where is the fuel filter located on a 2004 mitsubishi endeavor
May 27, 2011 at 4:11 AM
fule filter placement
2004 MITSUBISHI ENDEAVOR
TRYIN2MAKEIT30
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hello,

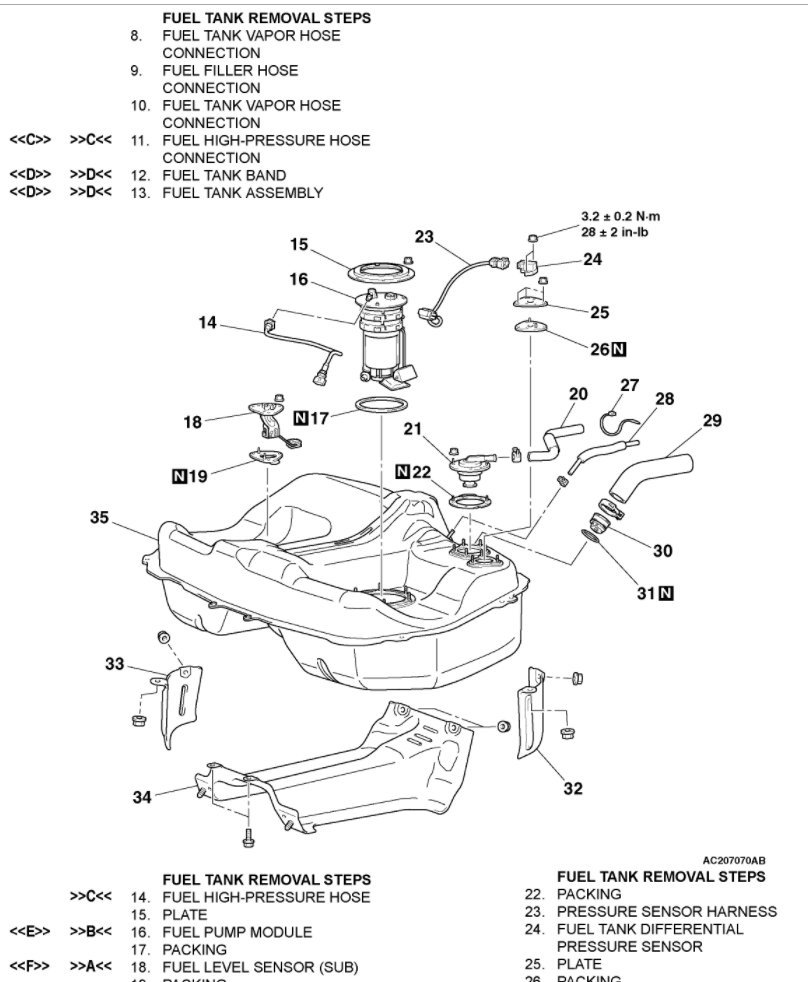

The fuel filter is in the tank and is considered a lifetime filter. Here is a diagram (BELOW) that shows where it is which is at the bottom of #16 directly mounted to the bottom of the pump.
Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
The fuel filter is in the tank and is considered a lifetime filter. Here is a diagram (BELOW) that shows where it is which is at the bottom of #16 directly mounted to the bottom of the pump.
Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
Image (Click to enlarge)
