Air Cleaner Filter

2004 MITSUBISHI ENDEAVOR
Avatar
ROSSI013
  • MEMBER
  • 1 POST
Which way does the air cleaner filter go into the assembly for 2004 Mitsubishi Endeavor---my neighbor took hers out and got a new one, but doesn't know how to put it back...Maybe there's a picture Thanks, Lou
May 17, 2011 at 4:01 AM
Advertisement
Avatar
BUDDYCRAIGG
  • CERTIFIED EXPERT
  • 2,262 POSTS
it should only fit in one way.
If you still have the old one, you can see which side is dirty, and that is the intake side.
May 17, 2011 at 4:57 AM
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS

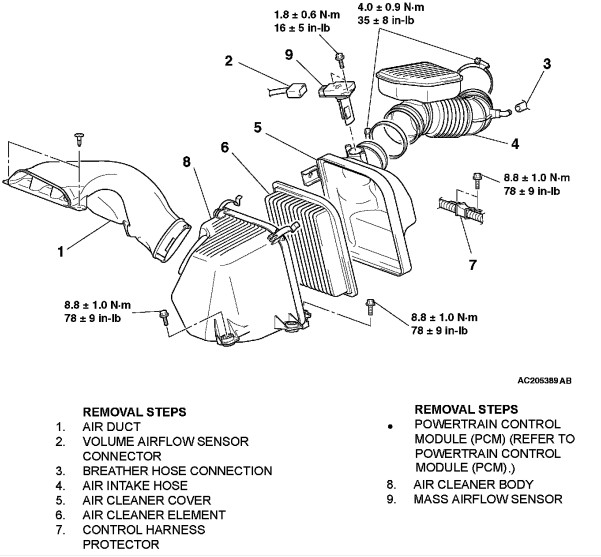

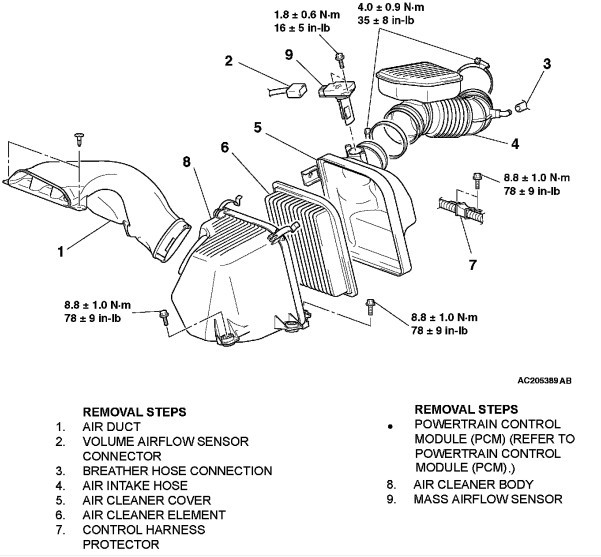

The side with the frame goes toward the engine. See pic
Image (Click to enlarge)
Attached Media
May 17, 2011 at 11:37 AM
