heater and blower not working?

2004 KIA SPECTRA
159,000 MILES • 1.4L • 4 CYL • AUTOMATIC
Avatar
SHELLYJ
  • MEMBER
  • 3 POSTS
The blower or air blows out, however; the heat does not get hot and the air does not get cold. Also, I notice that the controls have stopped working too. Can you advise?

Thanks

Engine 124-hp, 1.8-liter I-4 (regular gas) .
Transmission four speed automatic with overdrive.
Drive-train FWD.
Oct 27, 2017 at 6:17 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
It sounds like you blower motor or fuse is out. To confirm the problem we need to do some simple tests so you can get your car fixed.

First lets check the fuses.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

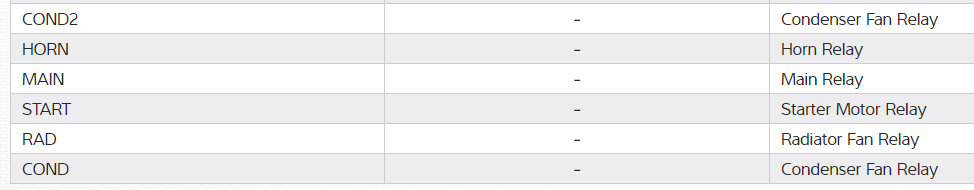

There is also a relay that needs to be checked as well

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

If the fuse and relay is okay then let's check for power at the blower motor this guide will show you how.

https://www.2carpros.com/articles/blower-fan-motor-works-on-high-speed-only

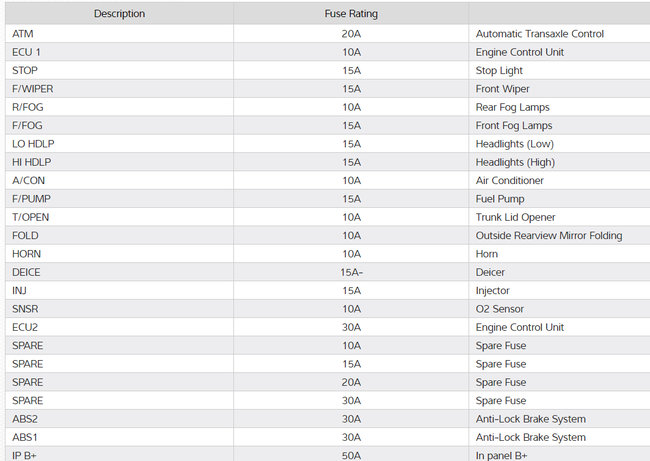

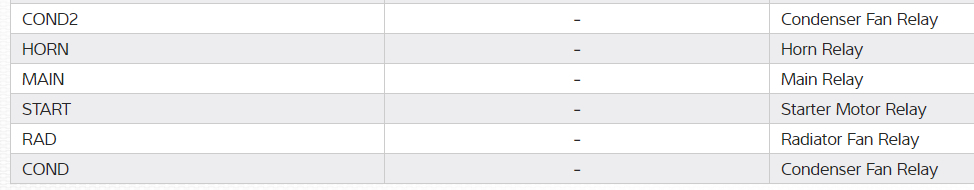

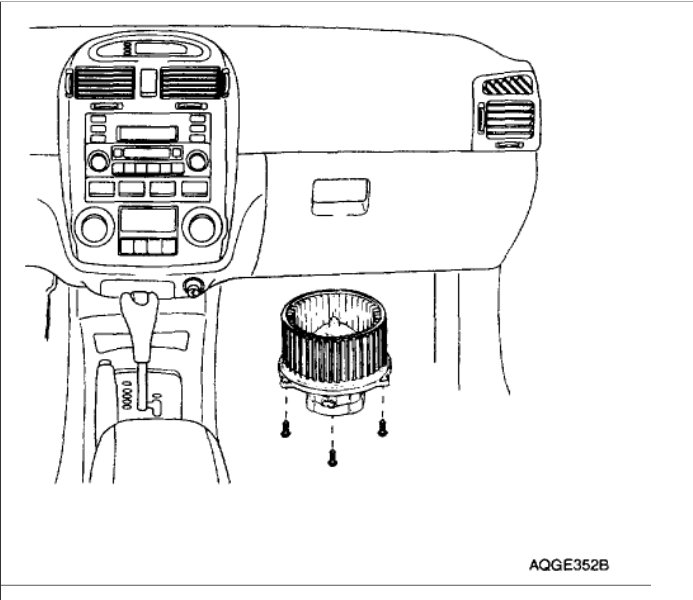

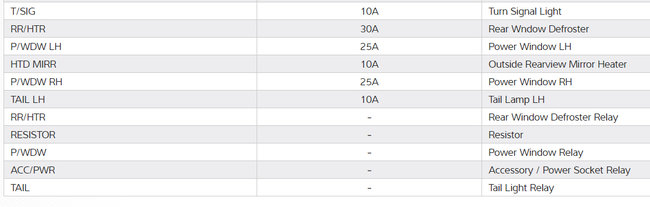

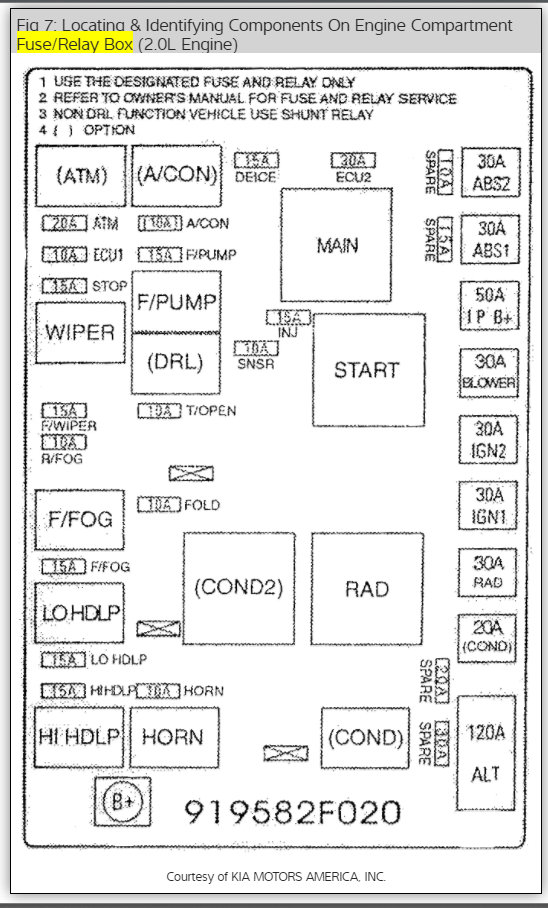

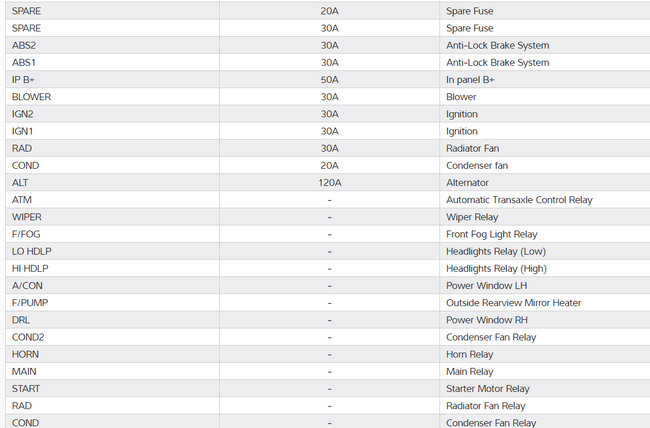

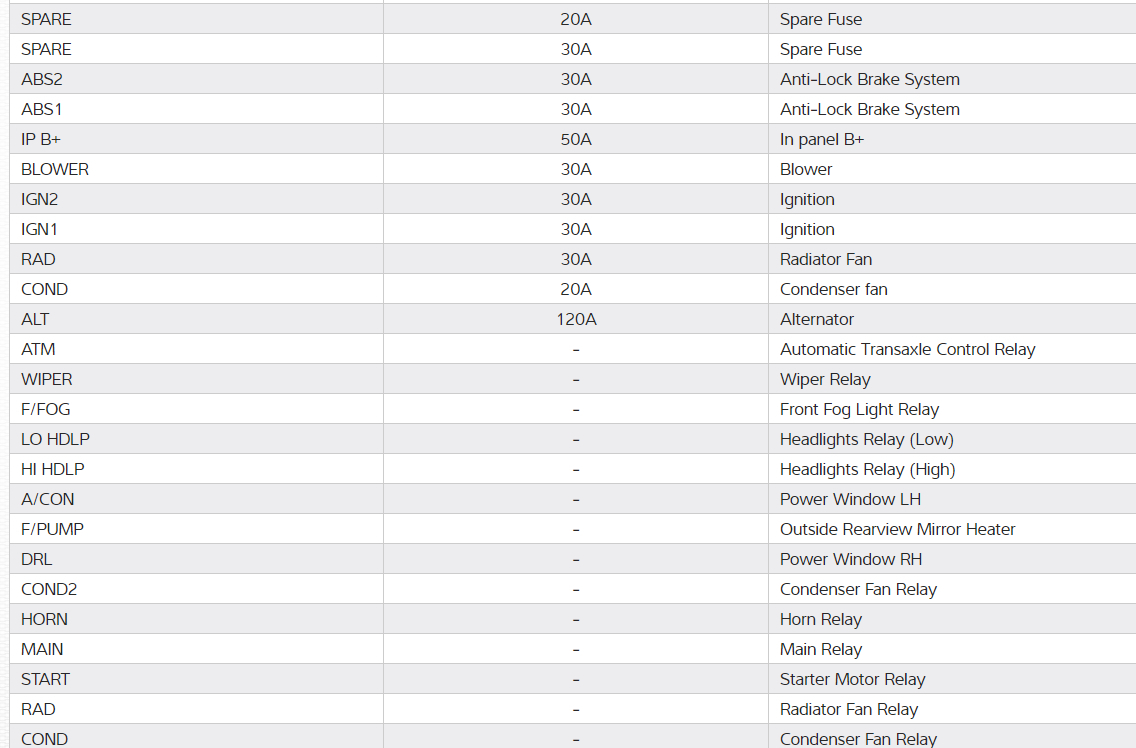

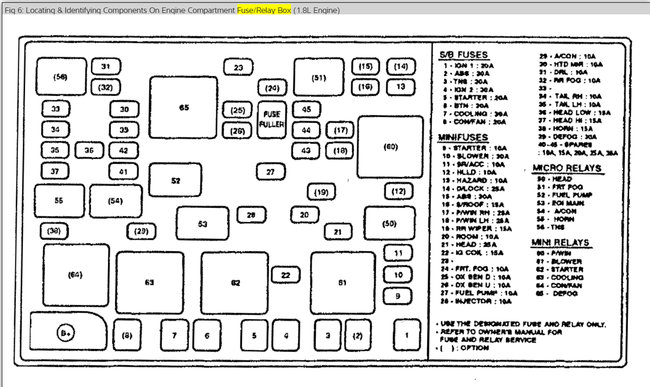

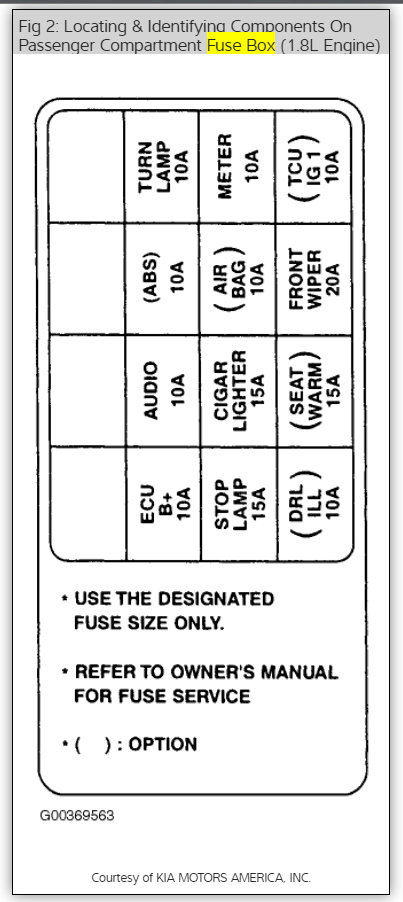

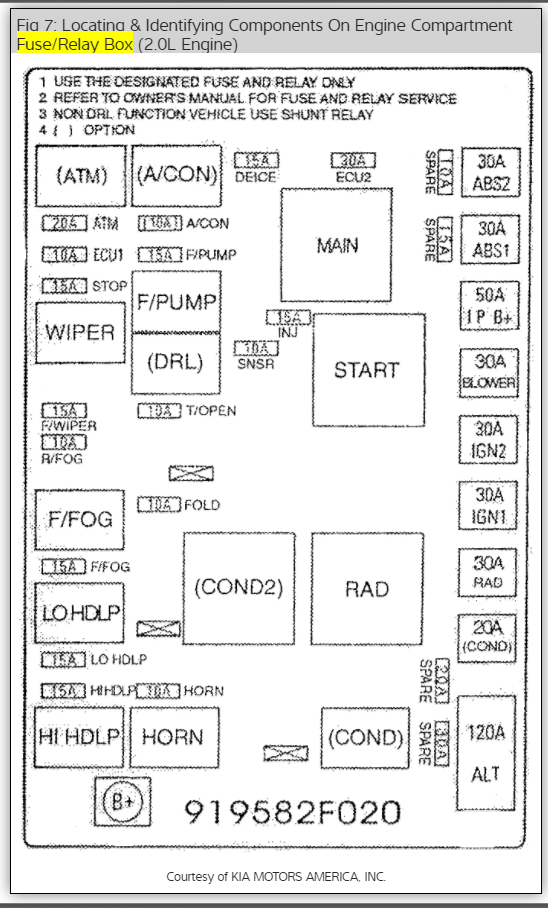

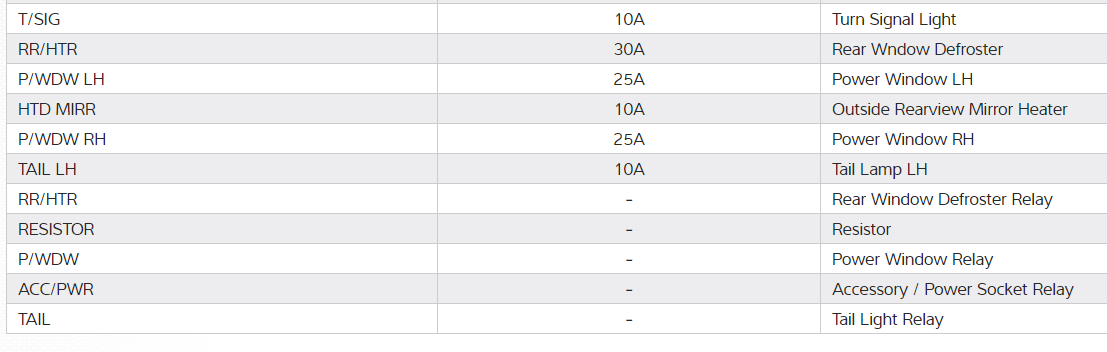

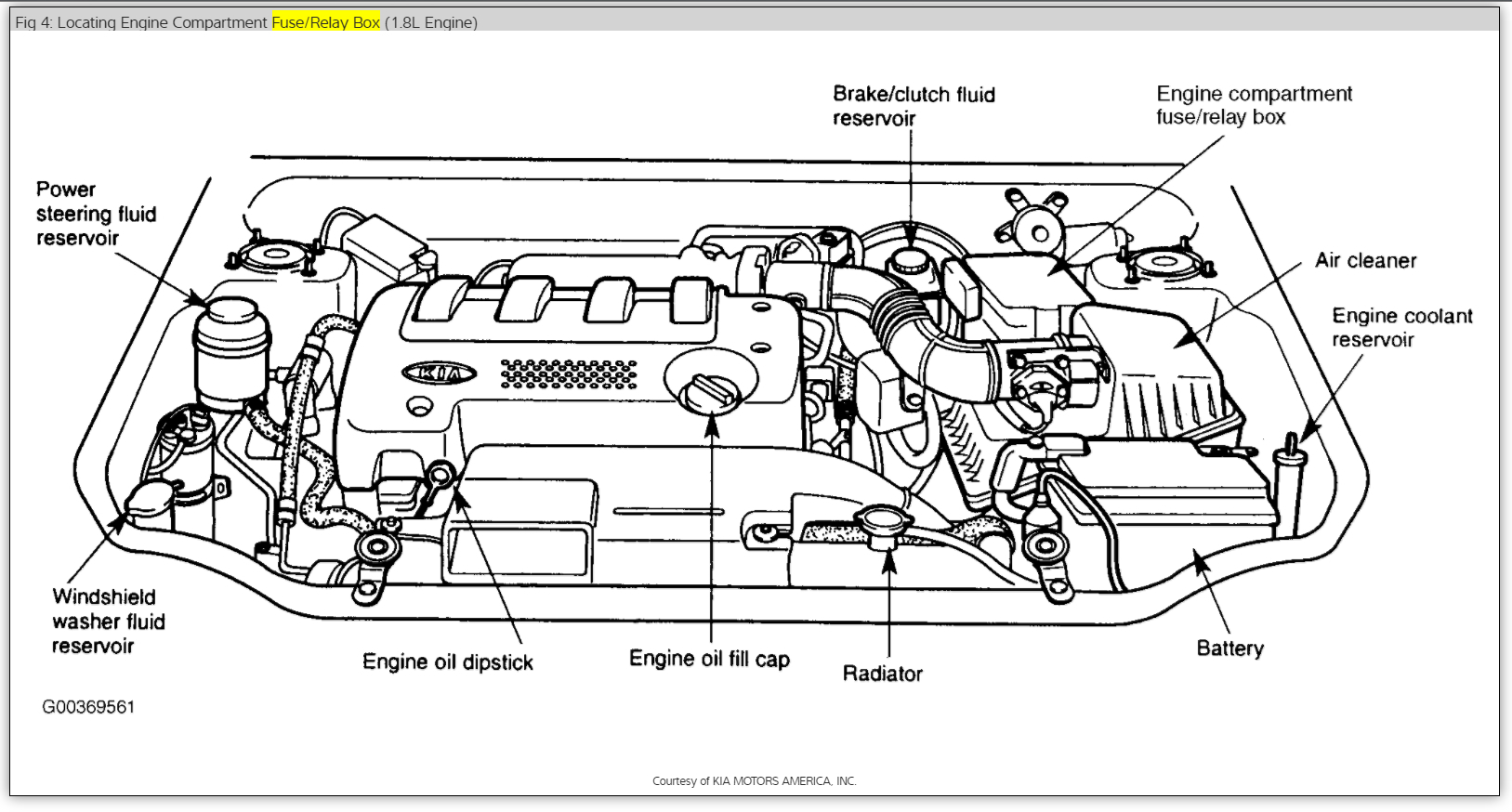

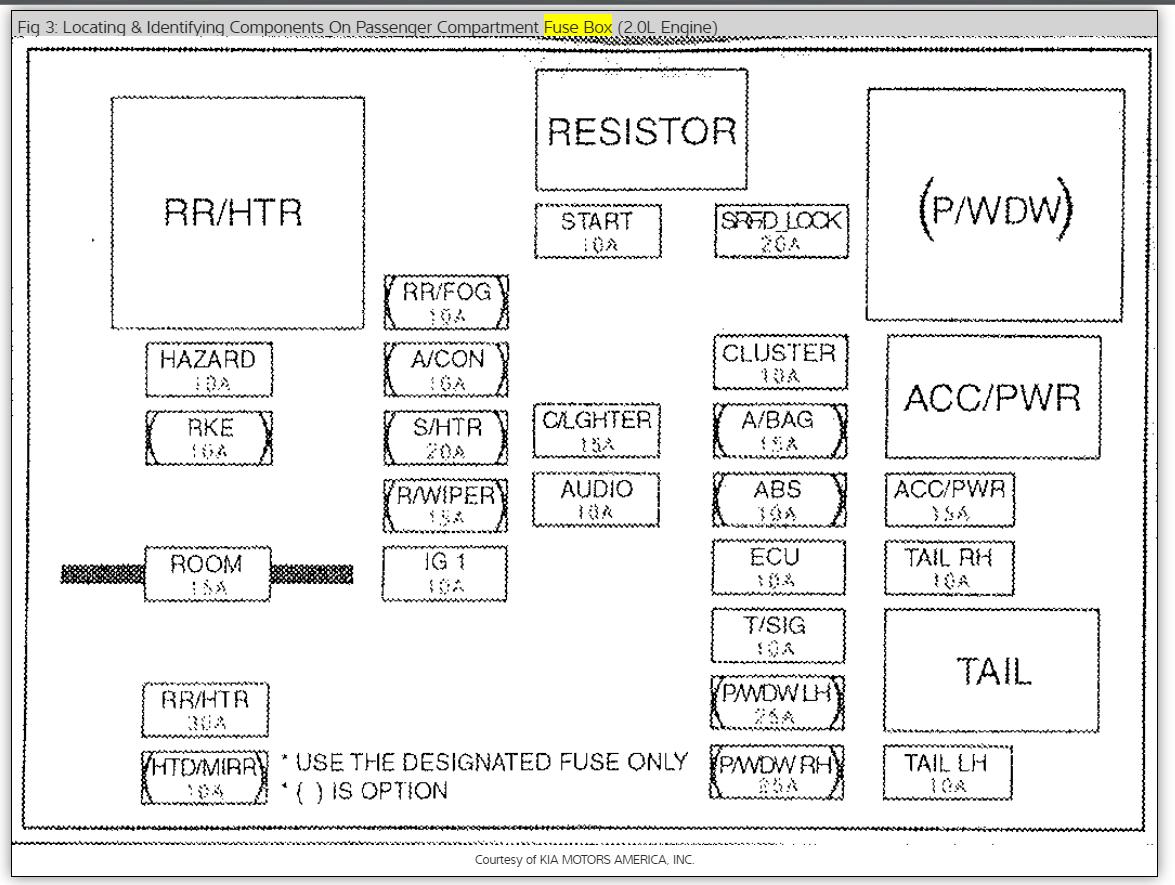

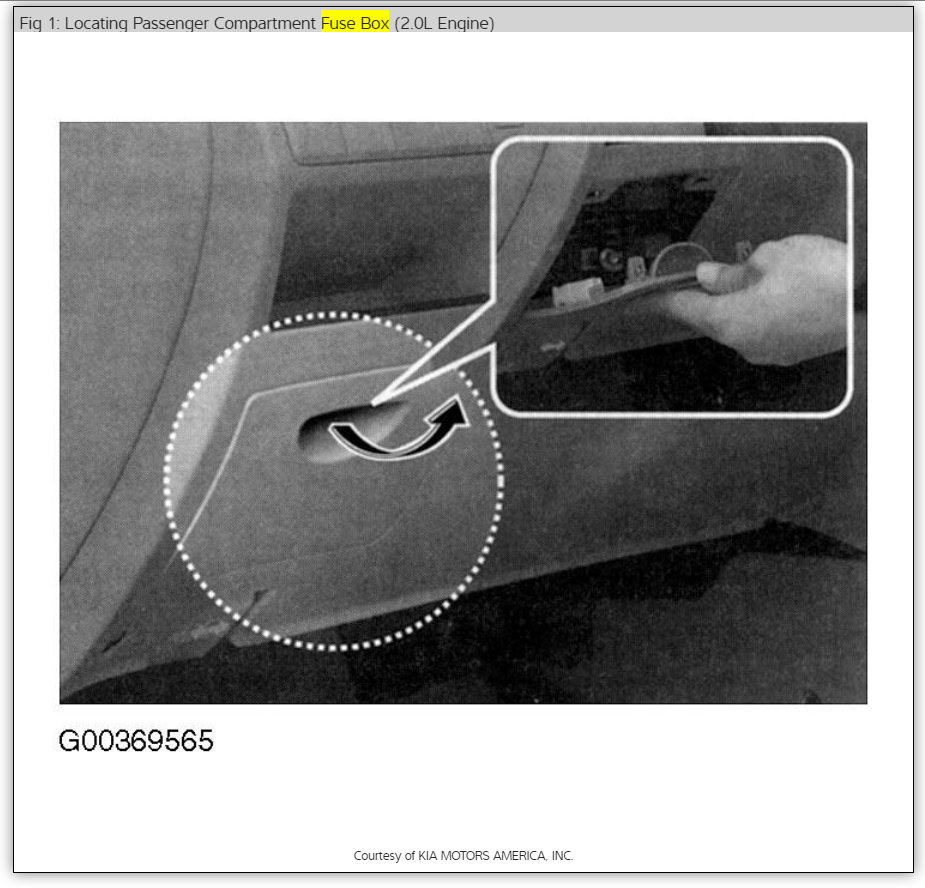

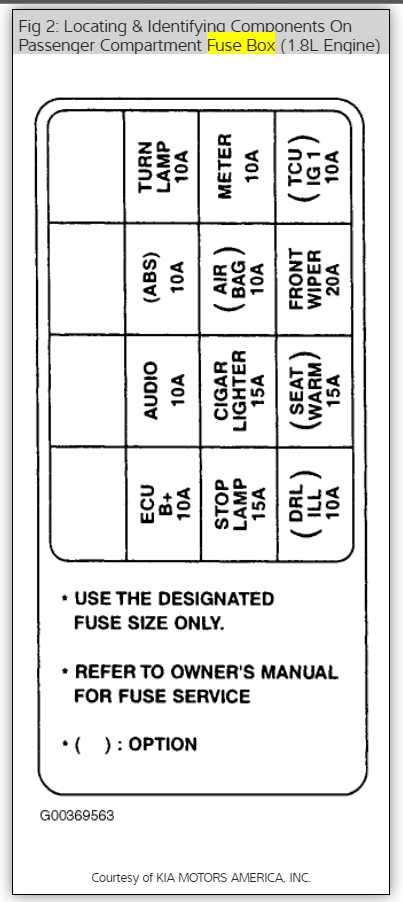

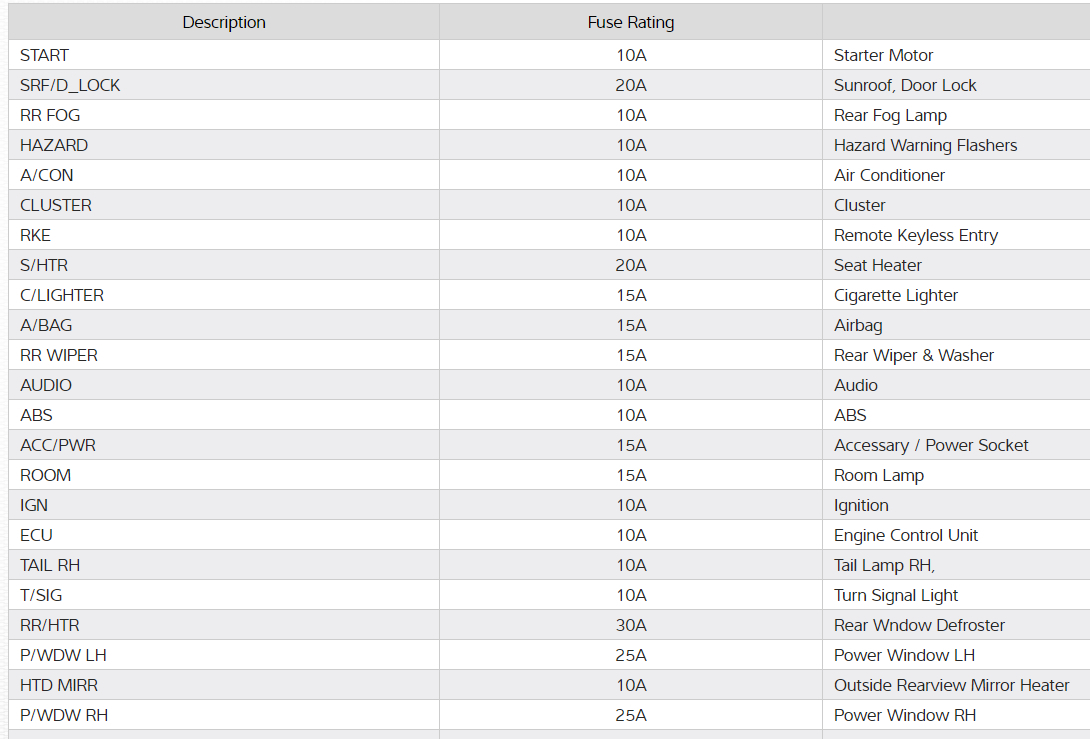

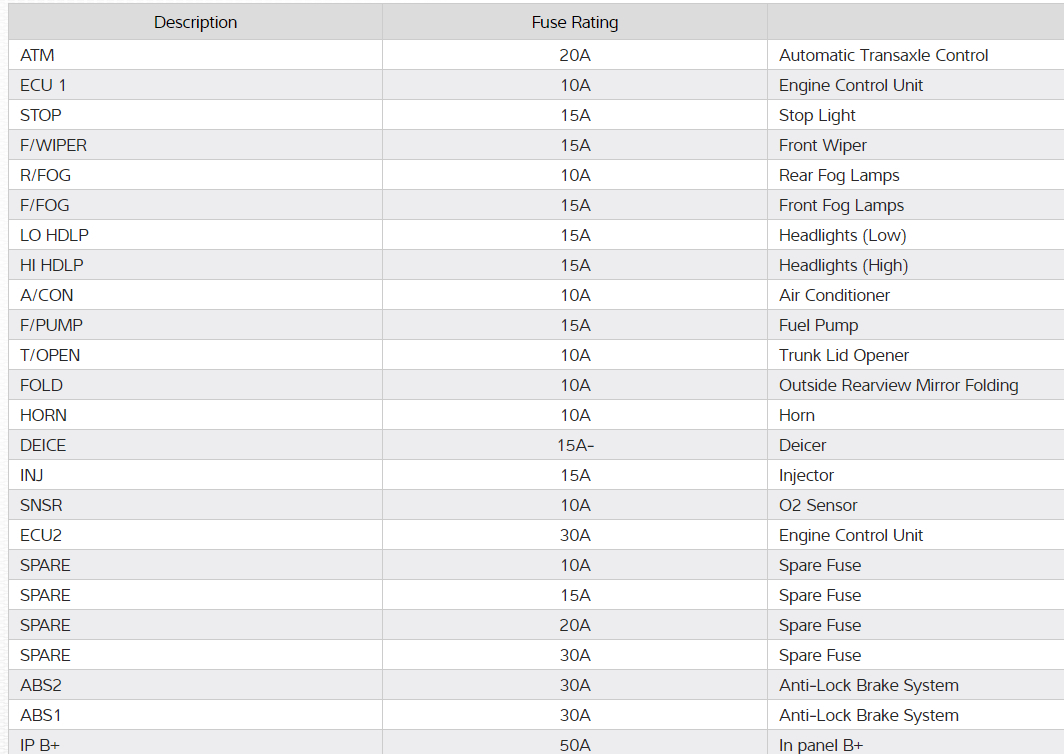

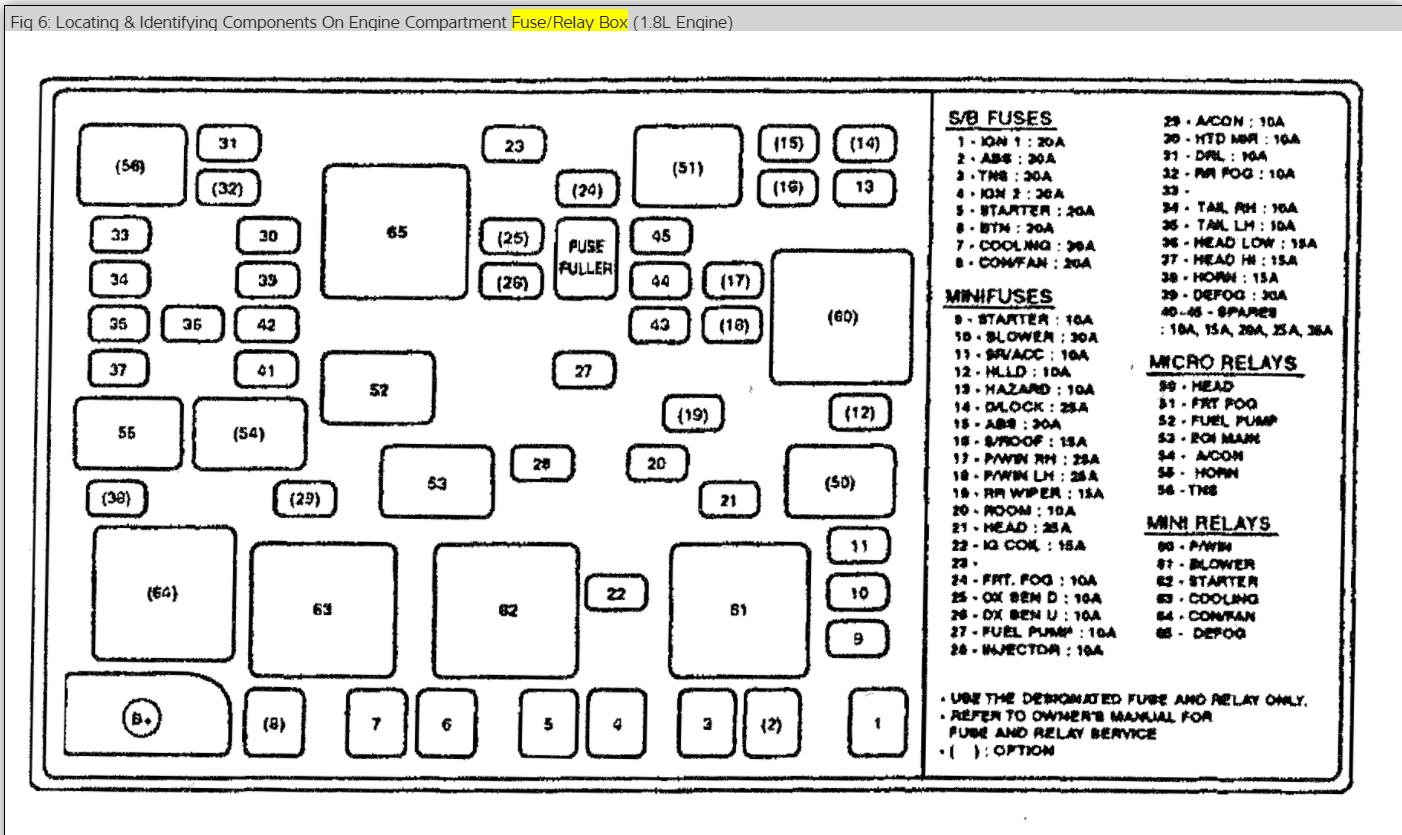

Below are some diagrams that will help you.

Please let us know what happens.

Cheers, Ken
Oct 30, 2017 at 12:02 PM
Avatar
SHELLYJ
  • MEMBER
  • 3 POSTS
Thanks so much/ I'll start by checking the fuse.
Nov 1, 2017 at 10:11 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Please let us know what you find. I'm interested to see what it is.

Cheers, Ken
Nov 1, 2017 at 6:38 PM
Avatar
SHELLYJ
  • MEMBER
  • 3 POSTS
Hi there. So, the fuse work fine, the blower is blowing out air, its just that the heat will not get hot and the air will not get cold. You think it may be a control switch? I noticed also that the light on the dash for the heat and air stopped working. But, the fan blows out air just fine- just no heat or no cold air. Thanks.
Nov 6, 2017 at 9:16 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

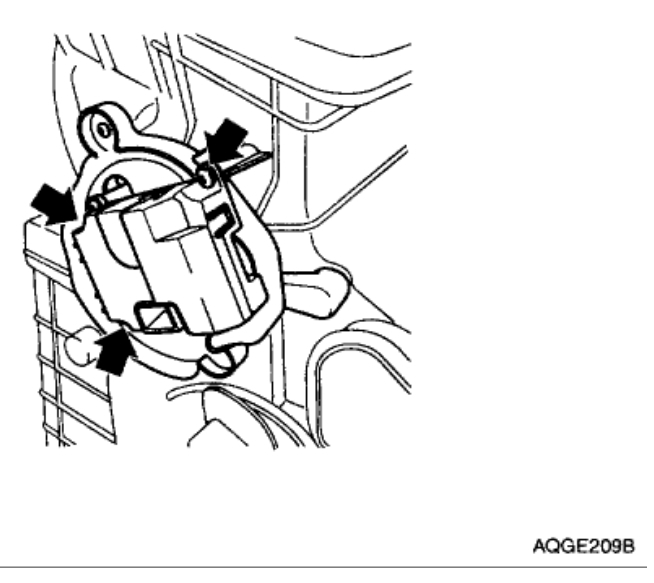

Okay this sounds like a temperature blend door actuator is not working. Here is a guide to show you what you are in for when doing the job.

https://www.2carpros.com/articles/replace-blend-door-motor

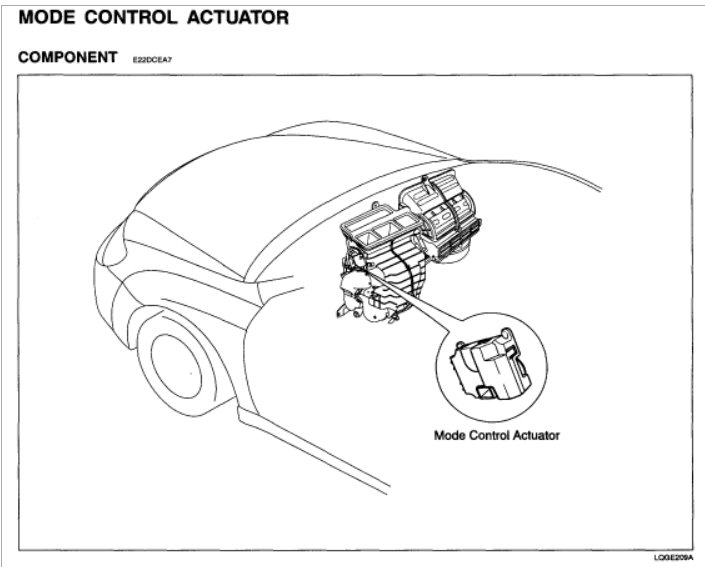

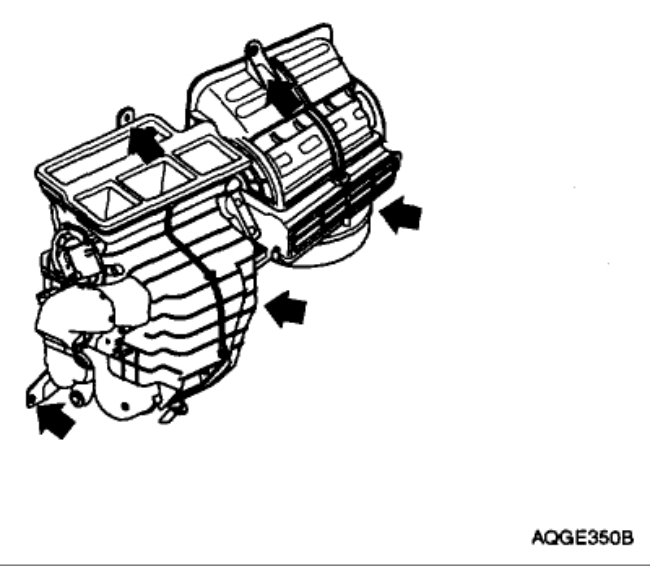

Here are some diagrams to help you fix your car.

Please let us know what happens.

Cheers, Ken
Nov 6, 2017 at 11:21 AM
