2004 Kia Rio Auto gear shift assembly

2004 KIA RIO
65,888 MILES • 1.5L • 4 CYL • 2WD • AUTOMATIC
Avatar
BLAIRBEAR
  • MEMBER
  • 2 POSTS
I am trying to remove my auto gear shift assembly.
My problem is the 4 main bolts that secure it to the chassis.
2 have bolts(easy to remove) 2 have flat heads and I can't get a spanner or screwdriver on them.
I have the replacement shift assembly and these 2 flat head bolts have a thread.
I would like to know how to remove these bolts please. There doesn't seem to be any access to them just 2
Flat heads .
Sep 25, 2015 at 7:56 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

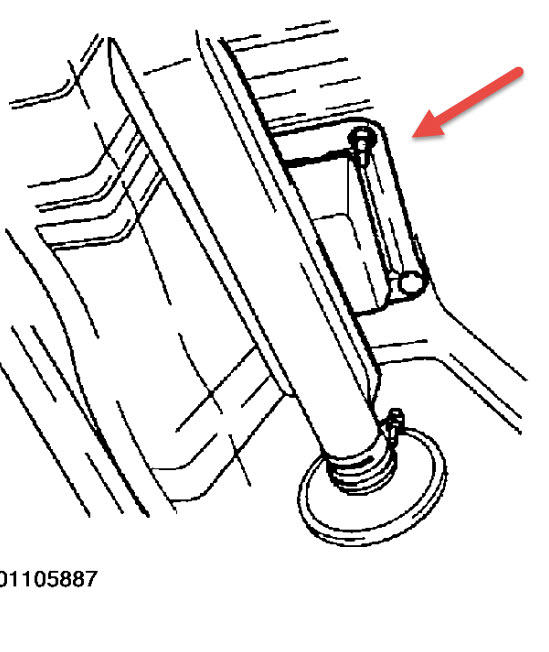

the flat screws you are talking about more than likely have nuts holding them on the bottom of car see pic.
Sep 26, 2015 at 6:39 AM
Avatar
BLAIRBEAR
  • MEMBER
  • 2 POSTS
Thankyou thanks, I have to go underneath the car to remove these bolts. This is a crazy way to do this. I hope they are accessible.
Thanks so much..
Sep 26, 2015 at 2:32 PM
