2004 Jeep Grand Cherokee P0420 and p0325

2004 JEEP GRAND CHEROKEE
140,000 MILES • 4.7L • V8 • 2WD • AUTOMATIC
Avatar
GREENCHEVYMALIBU
  • MEMBER
  • 230 POSTS
STFT B1 -10.9%
LTFT B1 7.8%
STFT B2 -4.7%
LTFT B2 6.3%

Engine rpm 1472
Vehicle speed 40
ECT 210.2
MAP(inHg) 10.9

Knock sensor code doesn't always trigger.

I have a live data scanner. What should I look for?
Apr 17, 2015 at 7:12 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

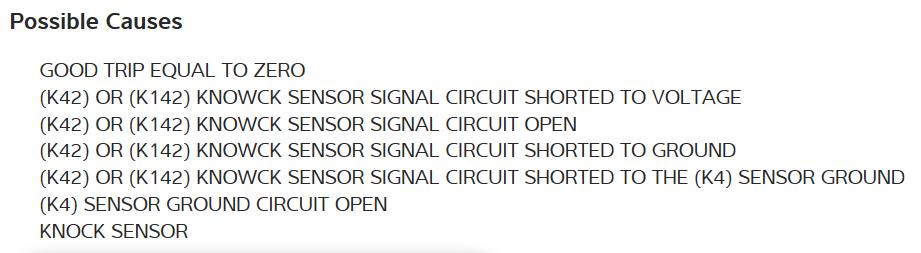

see pic for causes but with the converter being bad 420 code that may set it off as well. converter probably needs to be replaced.
Image (Click to enlarge)
Attached Media
Apr 17, 2015 at 7:34 AM
Avatar
GREENCHEVYMALIBU
  • MEMBER
  • 230 POSTS
would it better to replace both pre cats? then just one?
Apr 17, 2015 at 8:33 AM
Advertisement
Avatar
GREENCHEVYMALIBU
  • MEMBER
  • 230 POSTS
Could the bad cat be causing the knock sensor code?
Apr 17, 2015 at 10:40 AM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
teh cat system may be in one piece so both get replaced at same time. and that is what I ameant when I said the 420 code may set the other code.
Apr 17, 2015 at 12:06 PM
