Fuel pump relay location needed

2004 HYUNDAI SONATA
4 CYL • 2WD • AUTOMATIC
Avatar
JADENJAMAICA
  • MEMBER
  • 1 POST
Four cylinder front wheel drive automatic 106,233 miles, automatic transmission.

I need too know where the fuel pump relay switch is located. It is not getting power to the fuel pump and will not start. I have checked every fuse in the car, installed a new fuel pump and it still will not start up. I also need to know exactly which relay it is and if there is any trick too getting the old one out? Please help! Thank you.

Where is the fuel pump relay located? I have power at the fuse, but not at the pump. The car has a brand new fuel pump. I took off a gold colored relay under the radio part number 39160-38010. Is this the right relay?

Where is the fuel pump relay located?

Thanks!
Jul 29, 2011 at 1:45 AM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

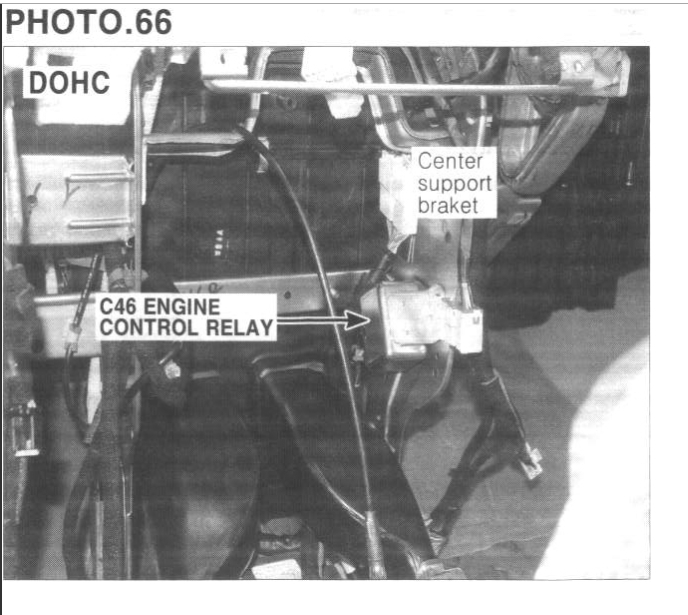

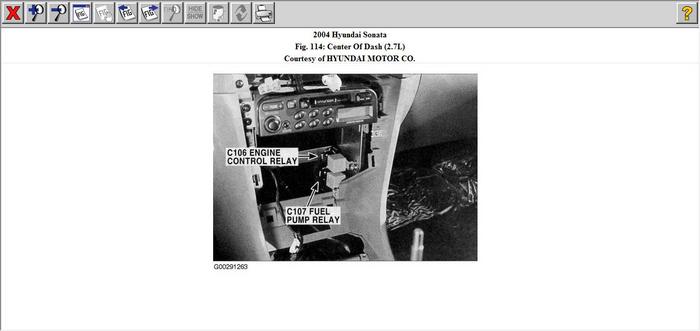

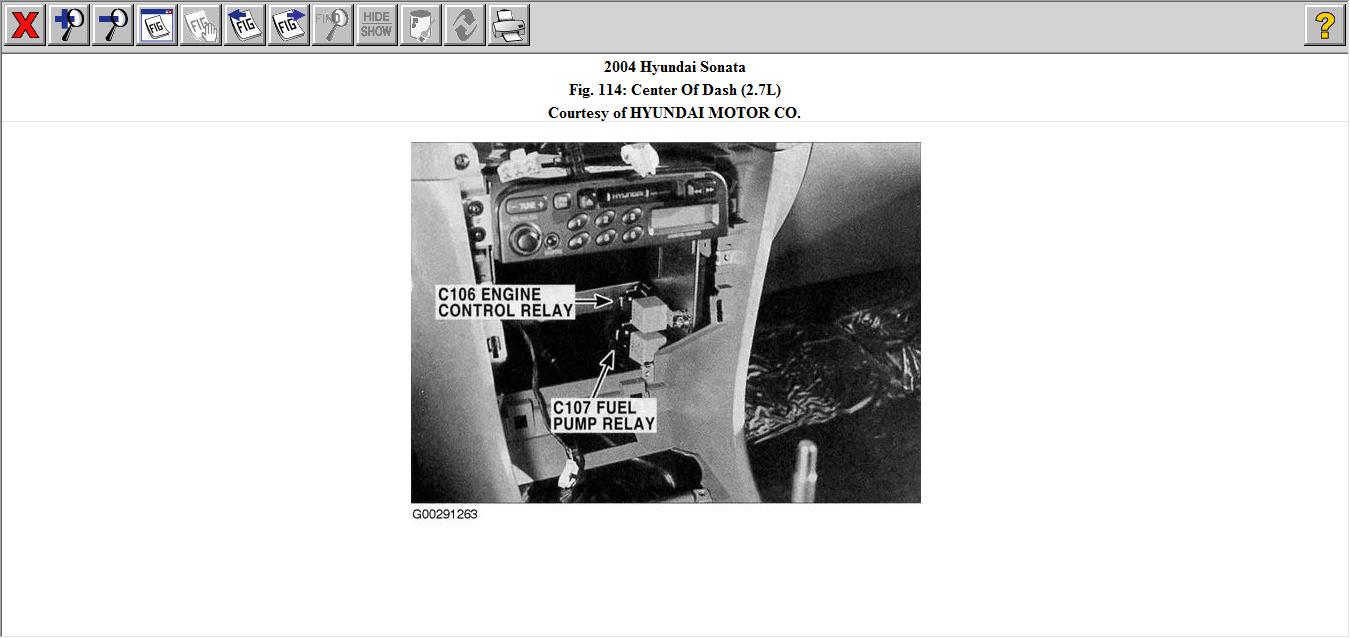

Center of dash, on bracket under radio, under engine control relay. Check the image (BELOW) :) If there is just the engine control relay then it does both jobs the fuel pump and engine. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed
Images (Click to enlarge)
Attached Media
Attached Media
Jul 29, 2011 at 2:13 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Here is a guide to help you test the relay

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

Some of theses cars have moved the relay and we don't have information on the relay location if anyone finds out where it is please post it.

Cheers, Ken
