What are the Torque specs for the camshaft bolts on the 2.4L engine?

2004 HYUNDAI SANTA FE
Avatar
MAGNUM12R
  • MEMBER
  • 1 POST
What are the Torque specs for the camshaft bolts on the 2.4L engine? or where can i fond them. I have been replacing the timing belt for a family member and he is on a budget already and doesn't want to buy the book, we just need the cam gear bolt torque specs or master engine torque specs.
Dec 4, 2011 at 6:24 PM
Advertisement
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS
Hello,

Here are the cam bolt torque specs and a video to show you how to use a torque wrench

https://youtu.be/juOClONIWeY

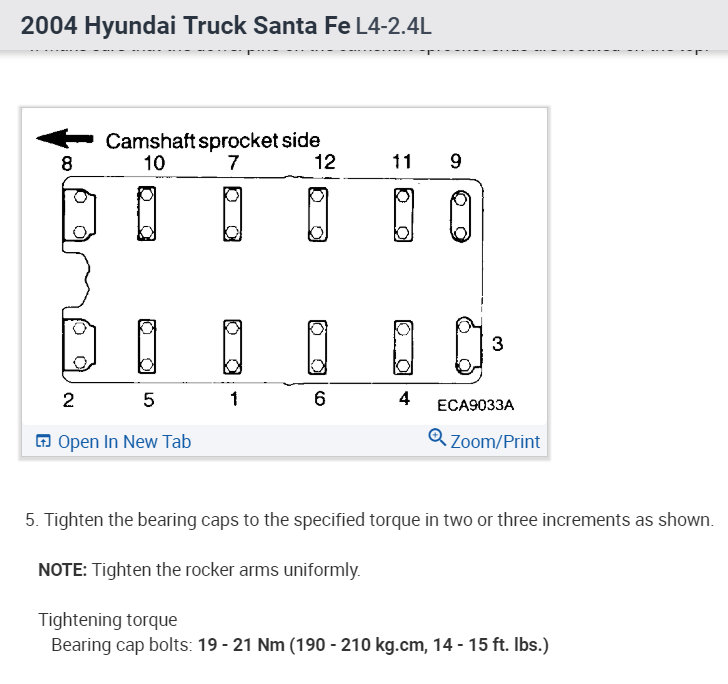

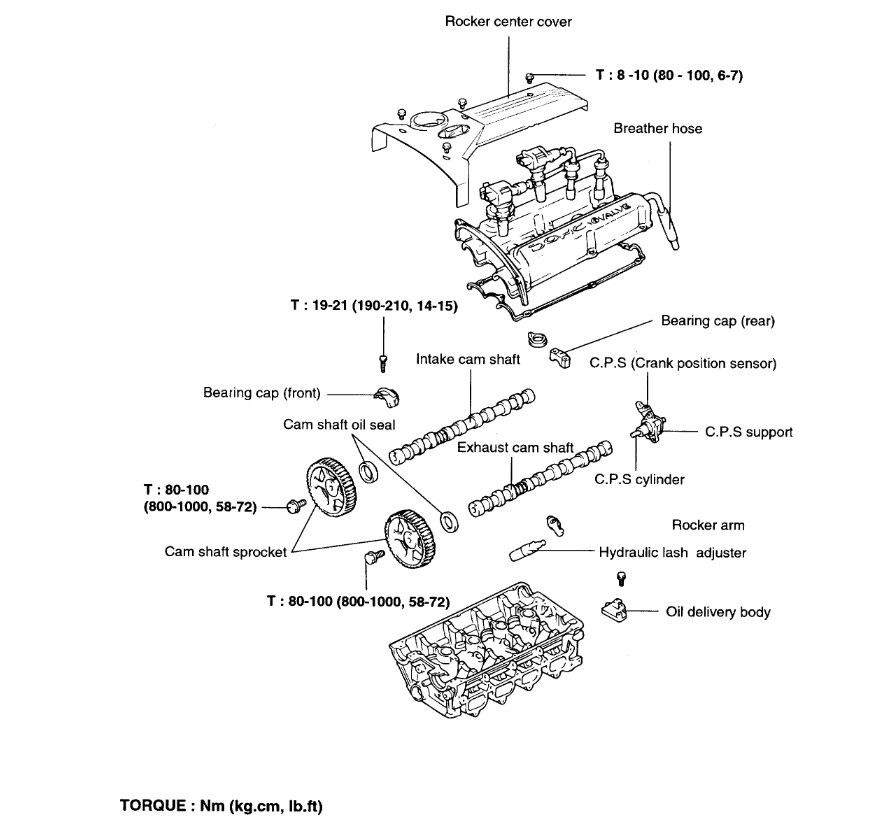

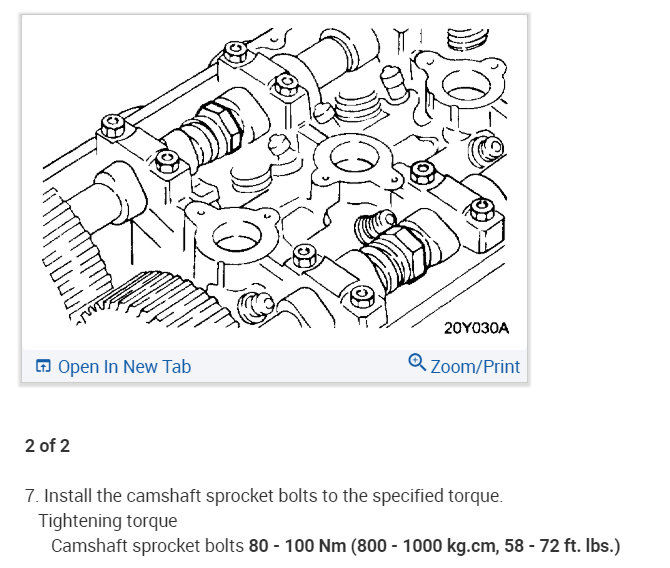

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Dec 4, 2011 at 7:49 PM
