Looking to locate drivers side blend door actuator in order to try and replace myself?

2004 GMC YUKON

162,000 MILES • 6.0L • V8 • AWD • AUTOMATIC

SMARC824

MEMBER
1 POST
FOLLOW

2004 Yukon Denali...drivers side and defrosters blow cold while passenger side is hot...went to dealership and they are claiming truck has 3 actuators and ALL need replacing to the tune of $1600.00. Looking to locate drivers side actuator in order to try and replace myself. I thought it was under drivers side dash. If it is located on passenger side as in you Chevrolet video I'll just try swapping that one for a new one. Any help would be appreciated.

Thanks

Nov 15, 2014 at 7:40 AM

HMAC300

CERTIFIED EXPERT
48,601 POSTS

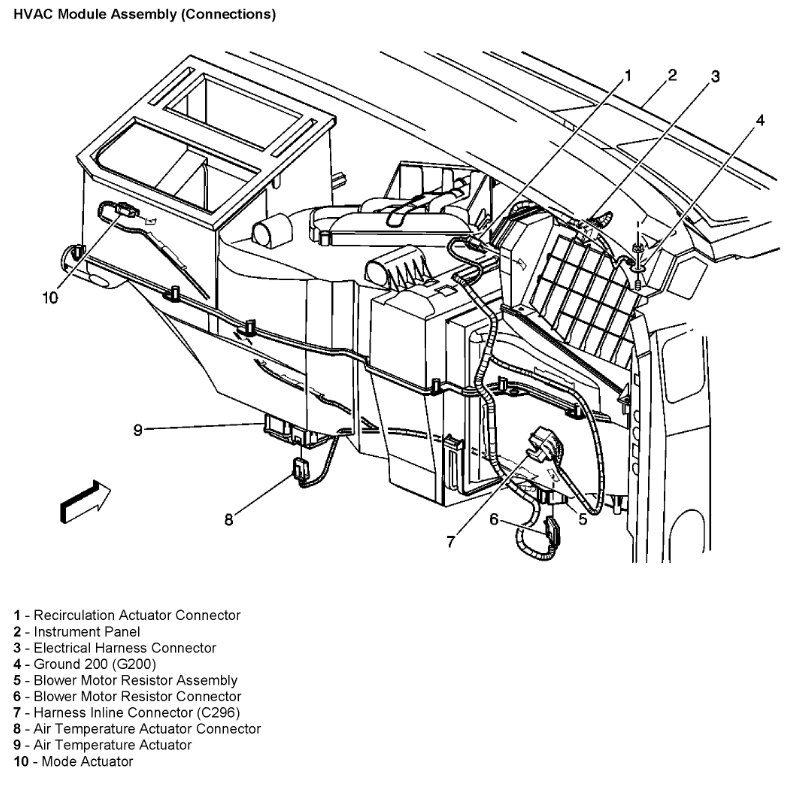

with key on pull hvac fuse inside car and then reinstall it may reset it to where it works. if not iit is on the bottom side of heater box towards passenger side. Please look at this guide and the images below.

https://www.2carpros.com/articles/replace-blend-door-motor

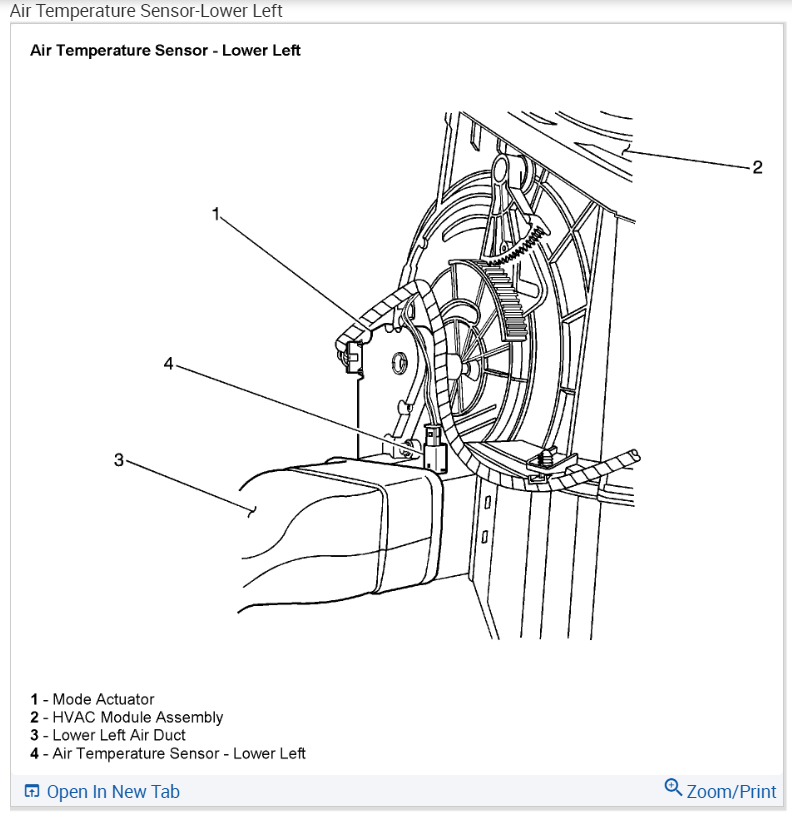

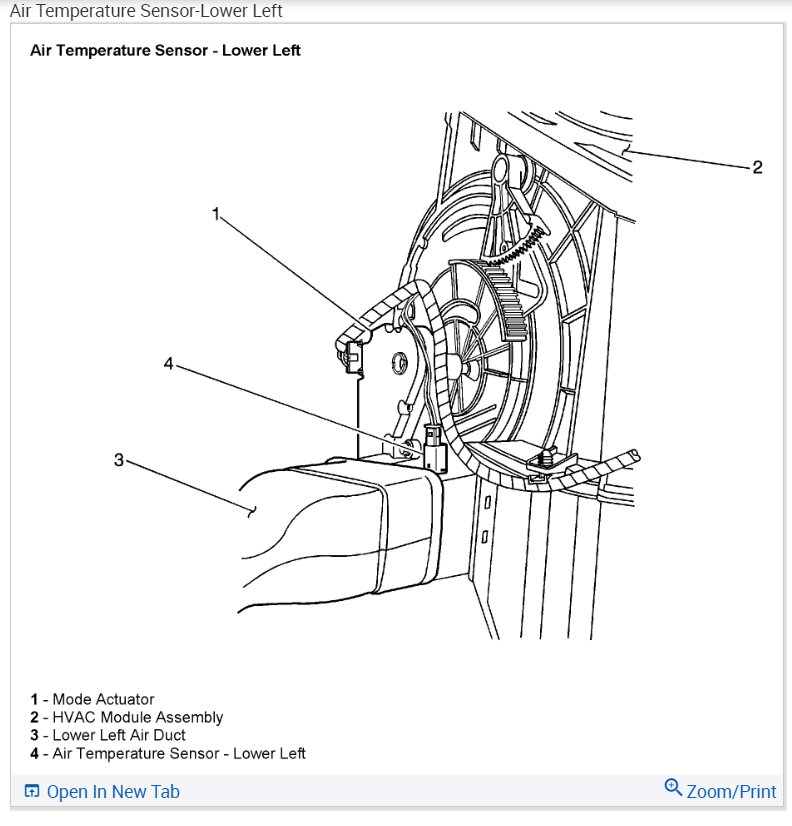

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Images (Click to enlarge)

Nov 15, 2014 at 8:18 AM

SQM

CERTIFIED EXPERT
6,383 POSTS

Hello,

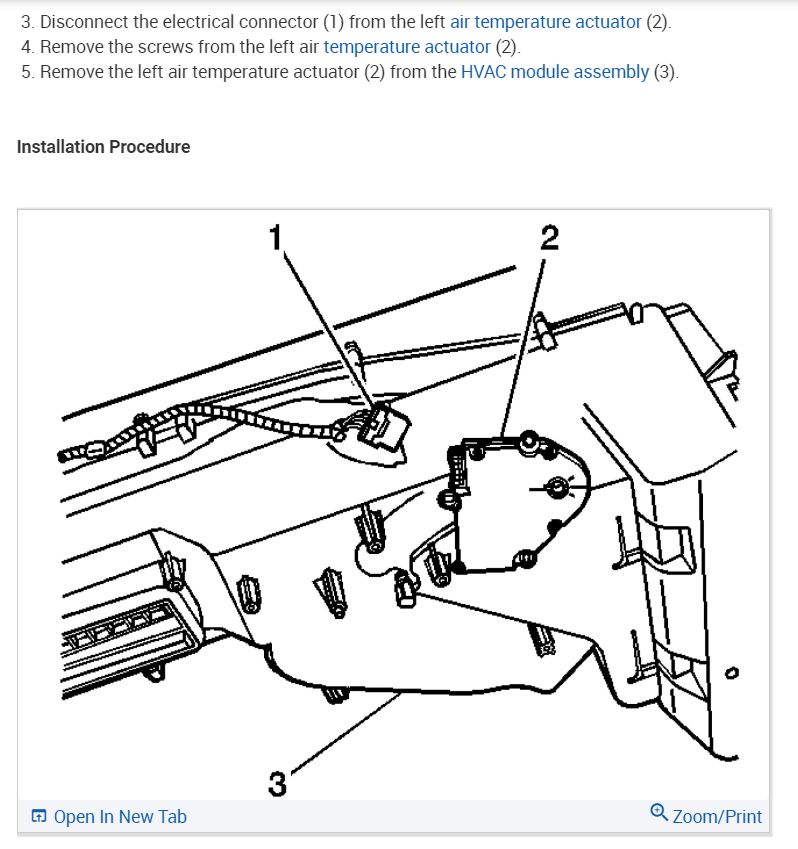

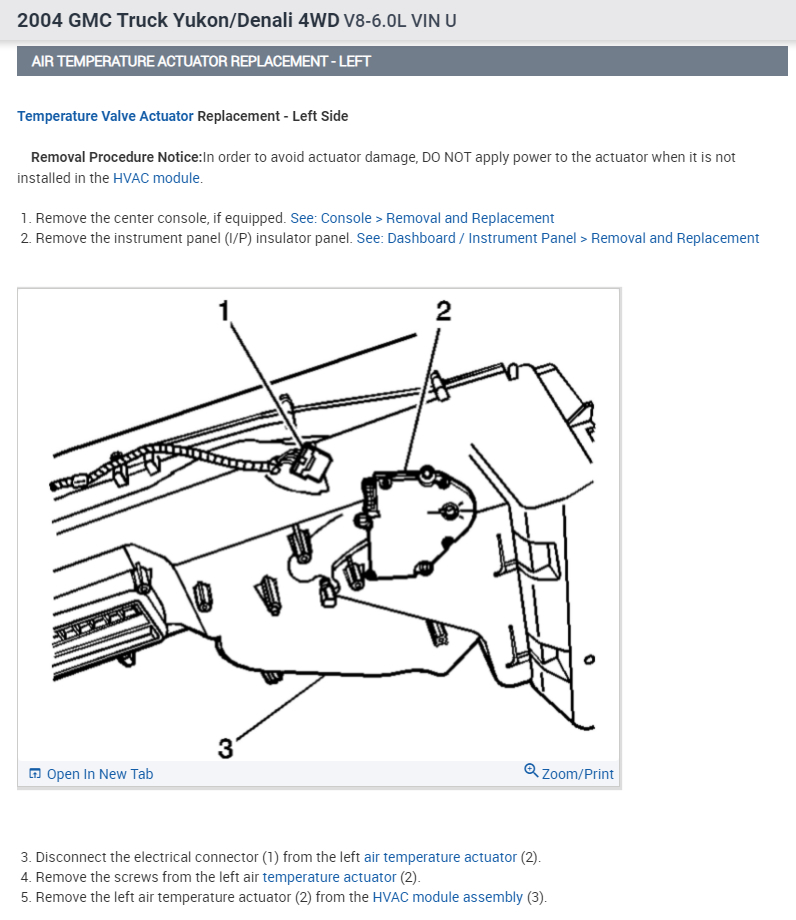

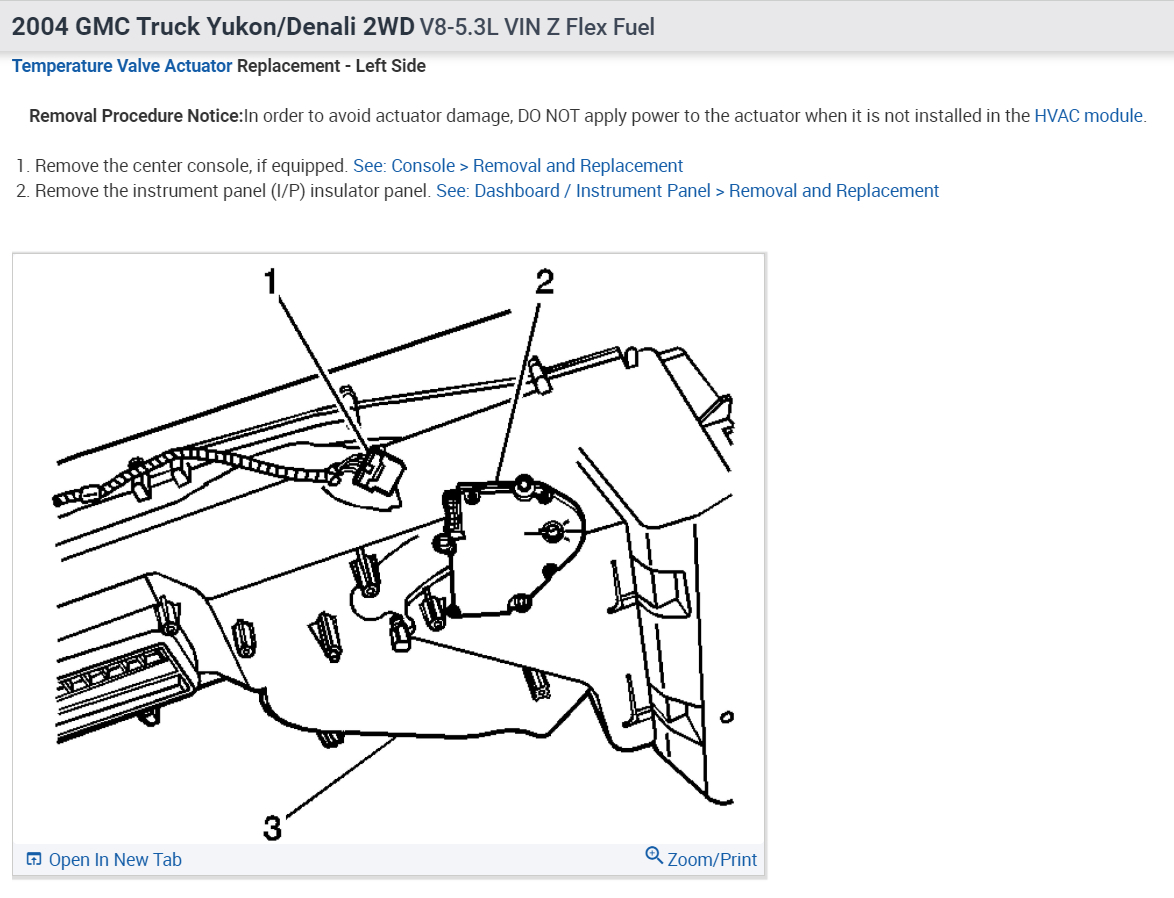

The driver side blend door actuator is located behind the center console.

https://www.2carpros.com/articles/replace-blend-door-motor

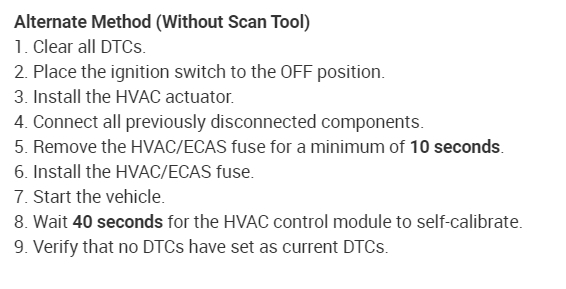

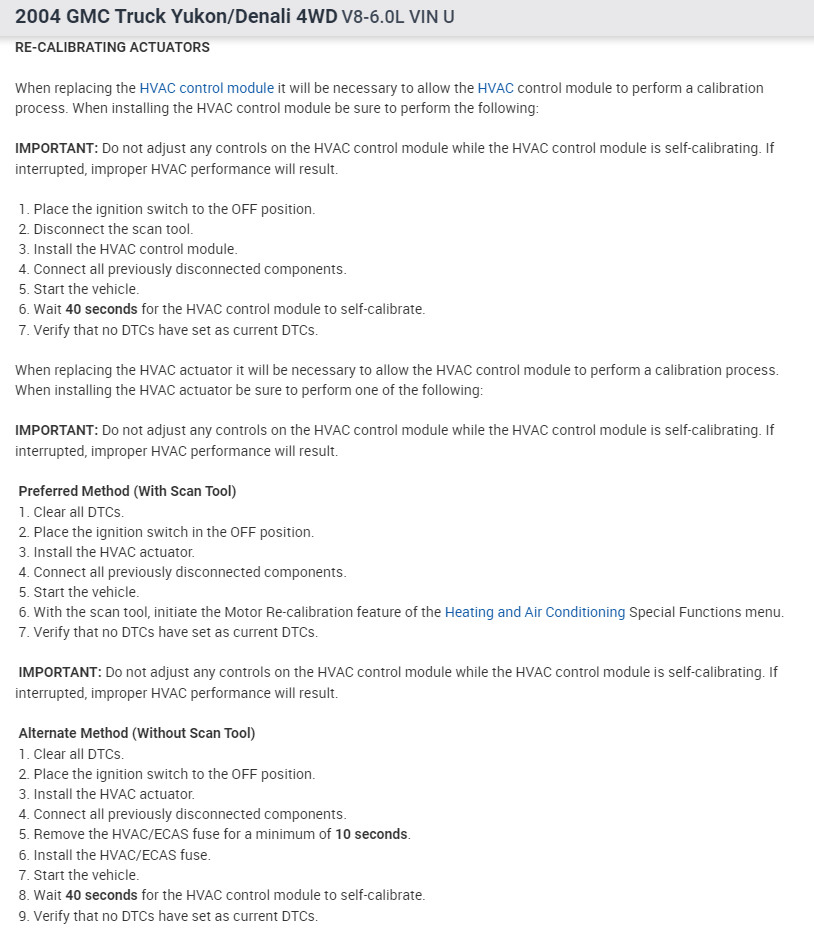

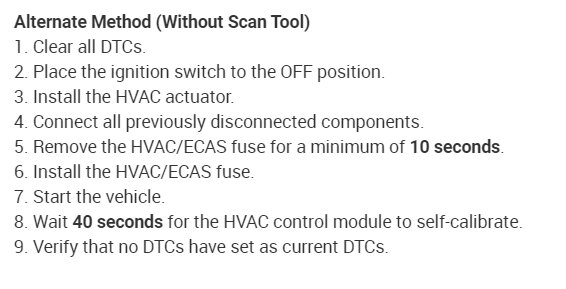

Keep in mind that after replacement the new actuator will need re-learning procedure in order for this to work properly.

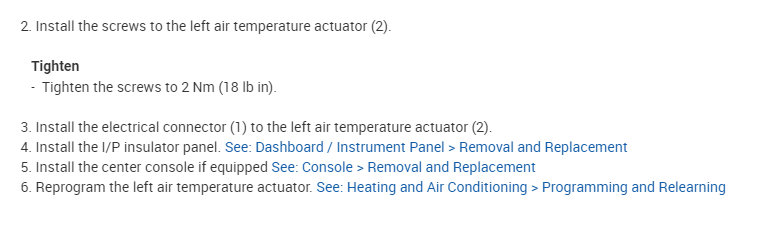

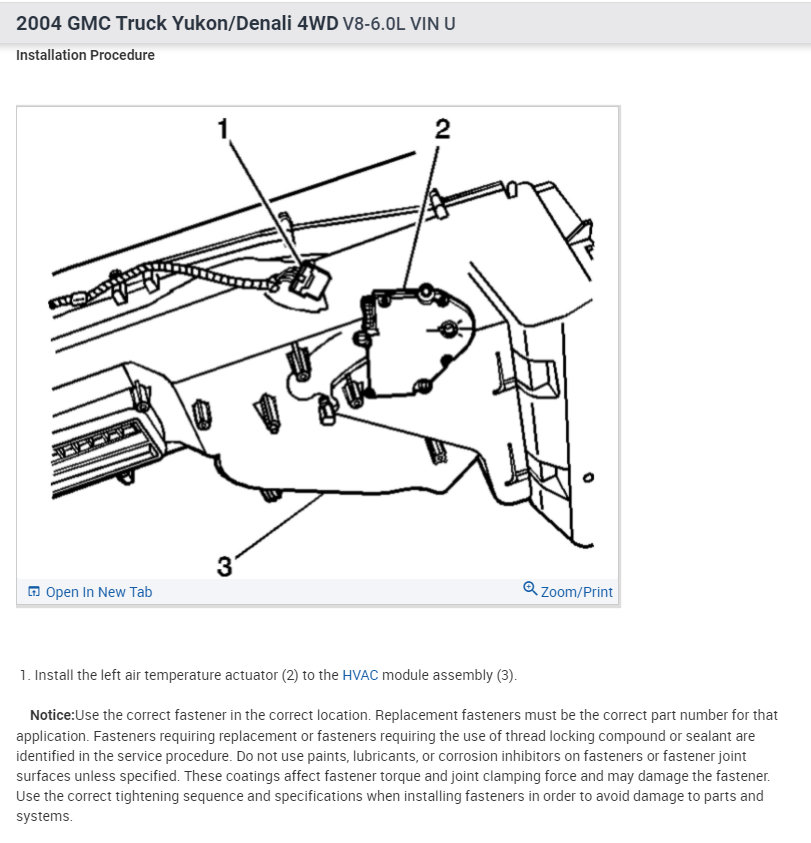

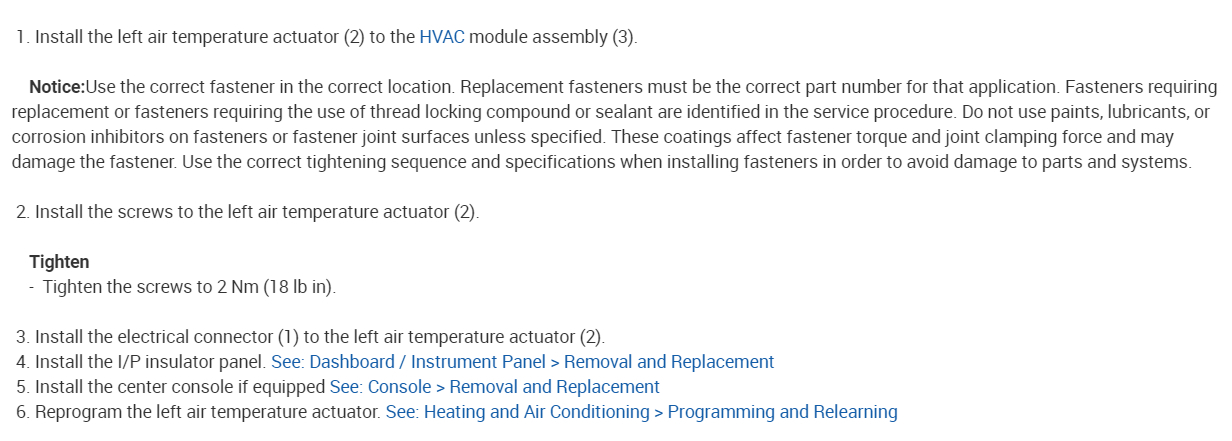

I have attached the replacement and the re-learning procedure below.

Please let me know of any questions.
Thank you.

Images (Click to enlarge)

Jan 9, 2022 at 1:24 PM
