Serpentine belt bypass?

Looking at the belt diagram, it may be possible to use a shorter belt as long as the new trajectory will not cause the belt to rub on anything and looking at the engine is to only way to find that out.

My A/C will not time. I want to bypass the A/C. Is it possible on my car? My VIN has a U. O'Reilly stated I can not bypass on a 2004.

Good afternoon.

They are correct. There is no belt listed for the engine without AC.

The way to do it is to remove the compressor and install a bypass pulley. That you can get from the parts store.

Then you can use your original belt.

Roy

procedure

REMOVAL

CAUTION:
- If installing a new air conditioning compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system.
- If A/C flushing equipment is available, carry out flushing of the air conditioning system prior to installing a new air conditioning compressor.
- If A/C flushing equipment is not available, carry out filtering of the air conditioning system after a new air conditioning compressor has been installed.
- Install a new evaporator core orifice as directed by the A/C flushing or filtering procedure.
- Install a new suction accumulator as directed by the A/C flushing or filtering procedure.

- Refrigerant Compressor Oil (mineral oil) F73Z-19577-AA (Motorcraft YN-9-A) should be used to lubricate R-134a refrigerant system O-ring seals only and should not be added to R-134a refrigerant systems as an A/C compressor lubricant. PAG Refrigerant Compressor Oil F7AZ-19D589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B only should be used as an A/C compressor lubricant.

NOTE:
- If installing a new A/C compressor, the A/C clutch disc and hub, A/C compressor pulley and A/C clutch field coil must be inspected and transferred from the old unit to the new unit if suitable for reuse.
- Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.

1. If flushing of the air conditioning system has not been performed, recover the refrigerant.
2. Remove the RH and LH cooling fans.



imageOpen In New TabZoom/Print

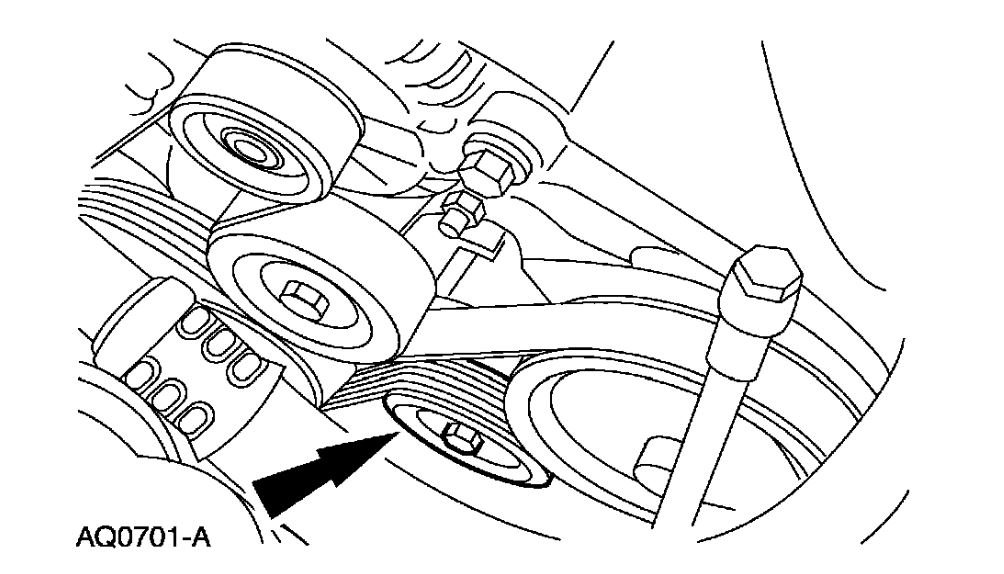

3. Loosen the tensioner and remove the drive belt from the A/C compressor pulley.



imageOpen In New TabZoom/Print

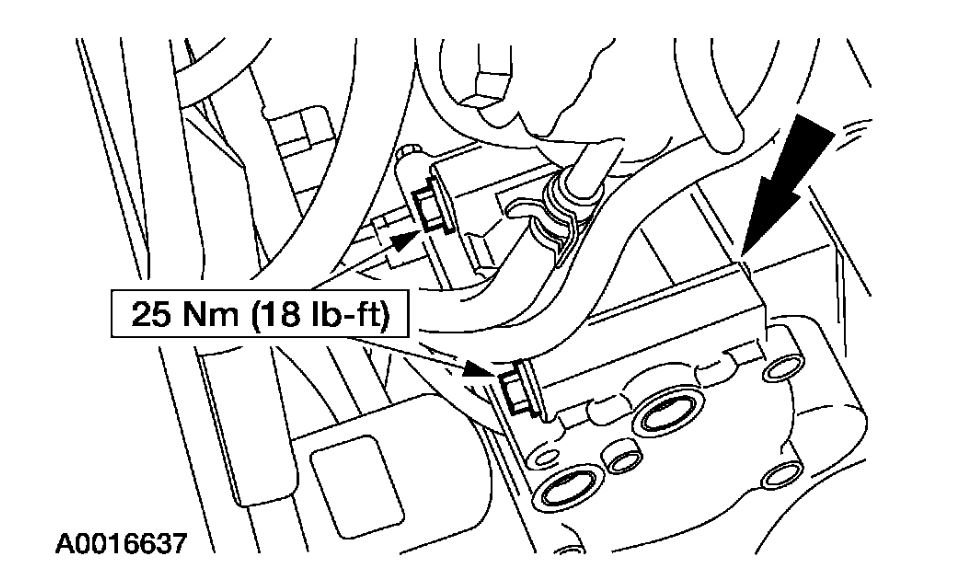

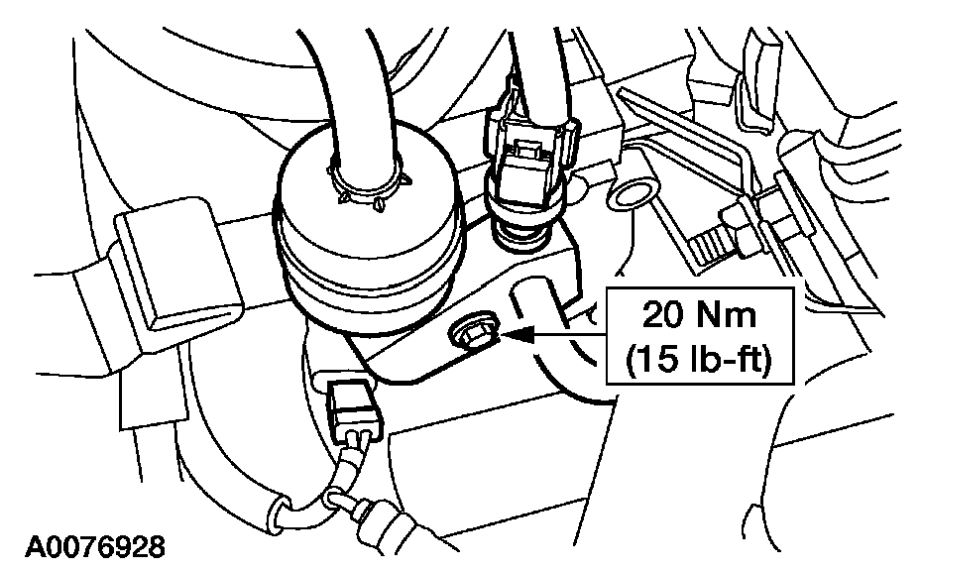

4. Disconnect the compressor manifold and tube assembly.
- Discard the O-ring seals.

5. Disconnect the compressor field coil electrical connector.



imageOpen In New TabZoom/Print



6. NOTE: The upper LH A/C compressor bolt must be removed with the A/C compressor.

Remove the four A/C compressor mounting bolts.



imageOpen In New TabZoom/Print

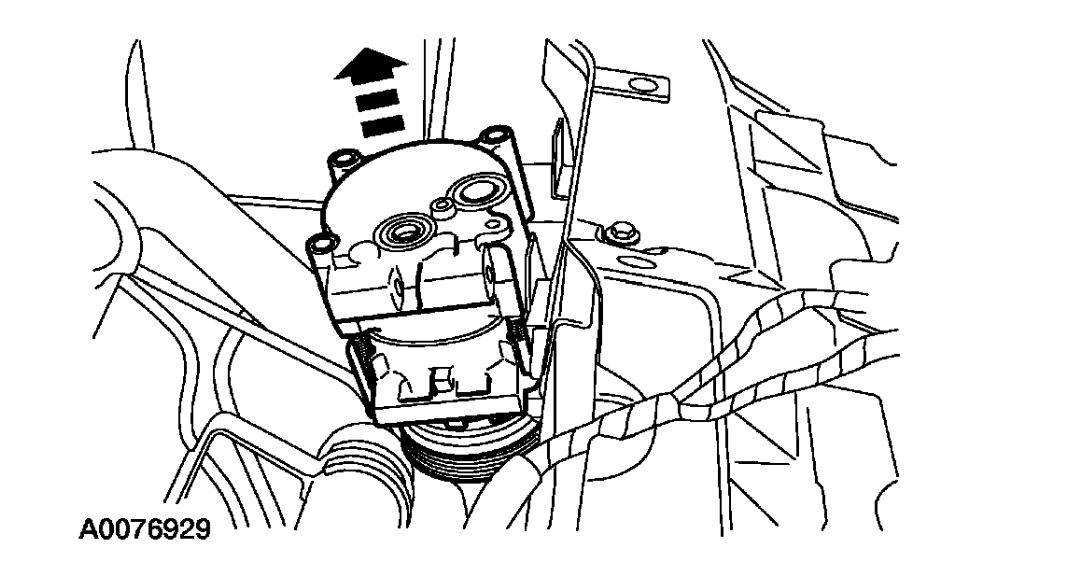

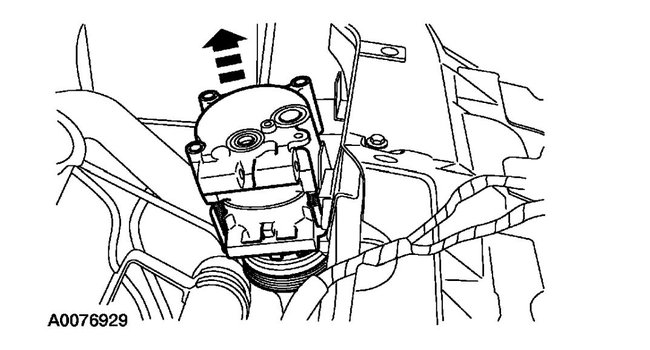

7. Remove the A/C compressor.

What size belt do I need to by pass the A/C compressor? I read the original is 102", and I will need a 94.5" belt w/o ac compressor. Does that sound correct? Here's what I found for belt size.
The belt designation is 822K6.

Hi PSILWIL:

Well, there is no specific belt made and noted for bypassing the A/C compressor. That being said, I found a couple of potentials.

This vid says to replace with the belt noted below and gives a somewhat procedure for it.
https://www.youtube.com/watch?v=89v9wxWf5X0
https://shop.advanceautoparts.com/p/dayco-poly-rib-belt-premium-5060820/19270575-P

This vid says it's necessary to install the bypass pully, as I found many other sites and discussion groups that say the same thing.
https://www.youtube.com/watch?v=PutYcMbnX0s

If you change the belt to the one above (5060820), be sure to note somewhere/somehow the specifications of the new belt and stock number --
Top Width: .82 in
Effective Length: 82.09 in
Outside Circumference: 82.75 in
so you can find a similar one if needed at another parts store. But, Advanced Auto Parts says it does not fit as a Taurus AC bypass belt. Apparently Ford will not authorize anyone to market a bypass belt so everyone says "it will not fit" no matter the size.

If you install the AC bypass pully, then it will always be the stock size belt which every parts store has.

I would really like to know which one you choose to do. Especially if you do the belt, and it does fit!

Glenn

My AC pulley has seized and I can't afford to replace it. Is there any way to bypass the AC with a shorter belt?

You can use a shorter belt if you might need to do some trail and error on the belt size her is a link that shows the belt routing to help you see how to do it

https://www.2carpros.com/diagrams/ford/taurus/2002

and

https://www.2carpros.com/articles/replace-serpentine-belt

Please let us know what you find.

Cheers

So the only way for me to get my car back on the road is to repair the (very expensive) A/C? Who's the engineer who thought that was a good idea!?

I experienced a similar AC problem last May. The mechanic advised to do exactly what you describe - bypass the AC with a shorter belt. We did it and it worked fine until such time as I could actually get the AC fixed. I was halfway to Pennsylvania from Alabama and HAD to continue my trip. This AC bypass saved my trip and cost under $200. Sorry I didn't read your question until 10/11/2008.

Trying to find a belt that will fit by bypassing the A/C compressor.

Hello, I am Danny.

Can you use your phone to take a picture of the under hood sticker of the of the belt routing diagram? If you could do that and upload it here it would help.There are about six different diagrams I have here. On some vehicles they make a dummy/idler pulley to take place of the A/C compressor to use the original belt but that requires the removal of the compressor entirely. Hope this helps and feel free to ask any questions. Thanks for using 2CarPros.
Danny-

I believe the AC compressor has locked up. While I was driving the car lost power and started smoking. When I raised the hood the serpentine belt had broken. Can I bypass the compressor without removing it?

Yes you can by using this serpentine belt.

http://www.autozone.com/cooling-heating-and-climate-control/belt/duralast-serpentine-belt/579126_0_23387/

The belt designation is 822K6. Just route it like you normally would but do not include the AC Compressor.

You never stated which engine you have. That shorter belt bypass may work on the 3.0 OHV (U) motor but it will not work on the DOHC (S) motor. The shorted belt will not clear the tensioner pulley.

Thank you and I have the OHV motor

I am so happy we could help you out! If you have any other questions come on back. We are always ready to help you!

Can i put a serpentine belt on this vehicle that does not have air-cond.? i hear some definate humming and chattering and i can see the outer ring of the clutch just spinning. this car is for my daughter who is off to college (not too far away) so i need a simple fix. i'm just not sure that it will clear the compressor pulley and mess anything else up with the heater system.

thanks so much for the help.

Scott

First of, all Tauruses were sold with A/C, there was no option for no A/C when you go ask for the shorter belt. And, if there were an option for no A/C, simply getting a belt with no A/C does not work. What you need to do is to get a piece of rope, loop it through whatever pulleys that you need the belt to run (keep it tight), measure the length of the rope and ask for that length of a belt. Here is how to read the belt. I'll use Goodyear for an example. You standard belt is 4060855. "40" denotes serpentine belt, "60" denotes the belt has six ribs, and "855" is the length, 85.5 inches. Supposed that you need a belt that measures 77.5 inches, you will ask your parts guy for 4060775 Goodyear Gatorback. If they don't carry Goodyear Gatorback, ask them to cross-reference to the brand they carry. Now. here is the twist. Look at the two belt routing diagrams. Look at your 8th digit of the VIN, it will either a 2, U, or S. You may be able to bypass the A/C pulley for VIN 2 or U, but I am not so sure for VIN S. You also want to make sure that the way the pulleys run. What I mean is that if a pulley runs clockwise, it has to stay to run clockwise with the shorter belt. Can't run the opposite direction.

3.0L V6 OHV Vin "U" or "2"

3.0L V6 DOHC VIN "S"

thanks so much for the info. my dear wife brought it to the mechanic (a local friend and certified mech) and he said because the noise was so "intermittent", he couldn't tell but thought the compressor was the culprit. i will keep you experts advised. thanks again

scott

My mechanic is telling me there is no way to run the belt if you bypass/leave out the compressor pulley. Is this true? He says the water pump will run backwards! You guys have sent me 2 belt diagrams, and neither one was accurate for my model of car, nor did it show the accurate belt path. Urgent please let me know!

Thanks, Jeff

Need the 8th digit of the VIN for the proper diagram. Example: If your VIN is 123ABC456DEF the 8th digit is "5".

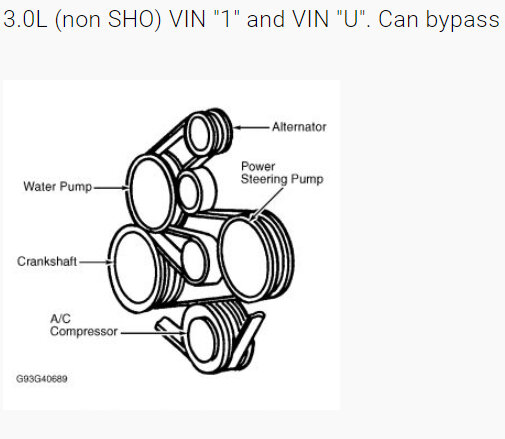

3.0L (non SHO) VIN "1" and VIN "U". Can bypass

3.8L VIN "4". Can bypass

3.0L DOHC (SHO) VIN "Y". Cannot bypass, not enough clearance

3.2L DOHC (SHO) VIN "P". Cannot bypass, not enough clearance

I have a 1999 Taurus with a U for the 8th # VIN and the compressor locked up. I need the belt size to bypass the compressor? Tia

Hello,

Since this is a different year than the original thread, please kindly open a new thread. This will put your question in front of all the experts.

Just go to this link to ask the question:

https://www.2carpros.com/questions/new

Thank you.

How to bypass the A/C compressor on 2007 Ford Taurus Se? Please show me the diagram.

Here you go.
