cruise control

Hello,

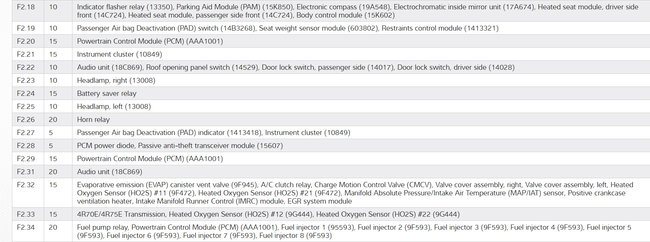

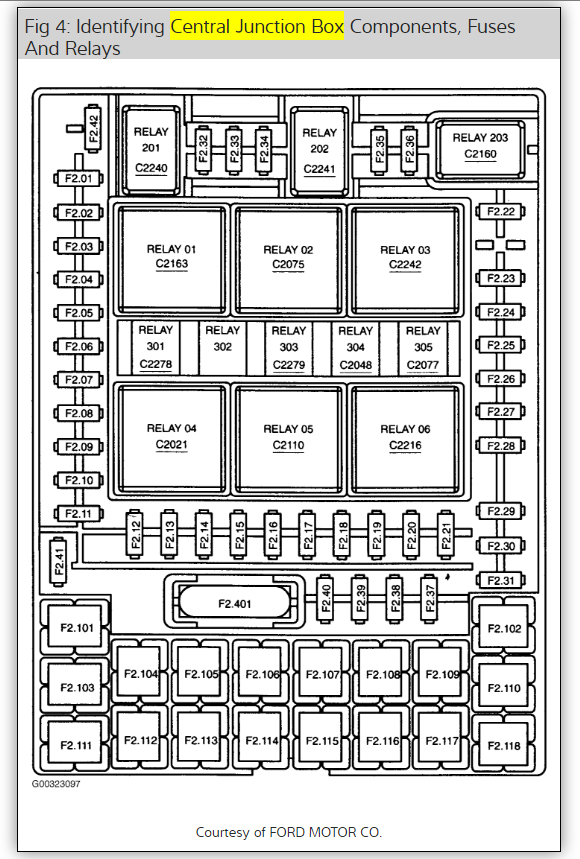

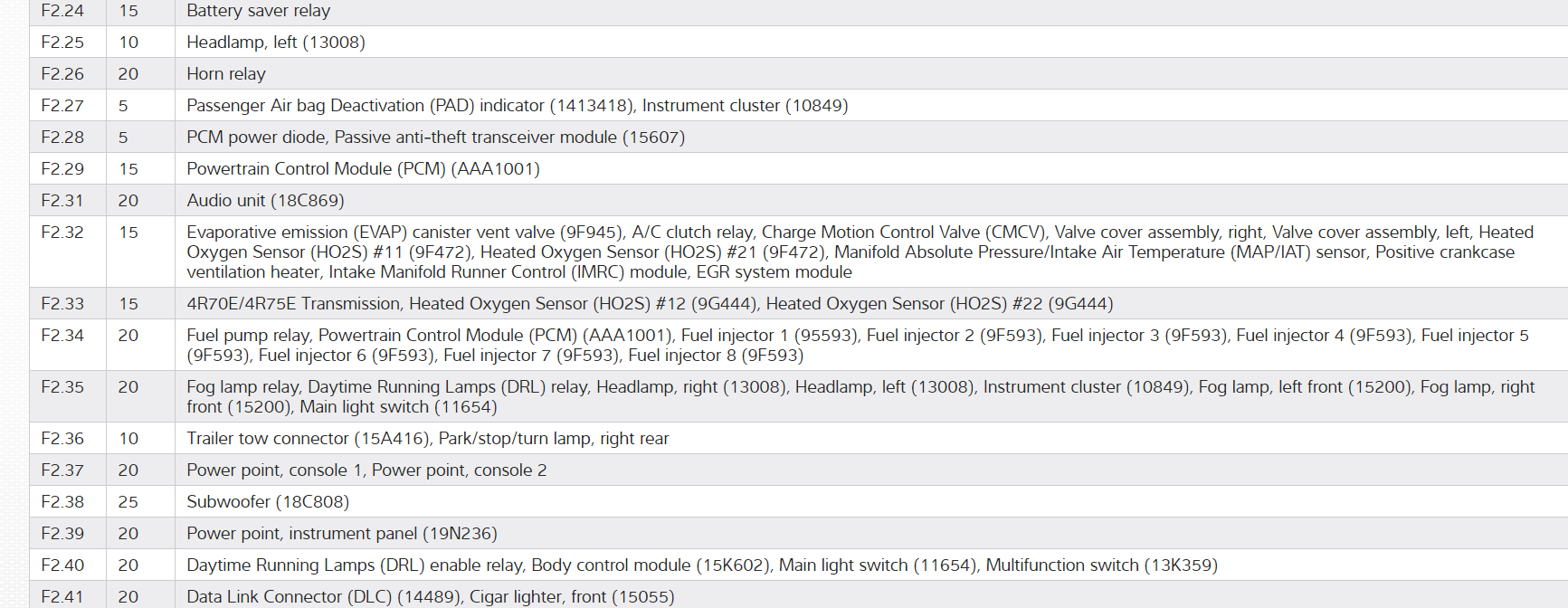

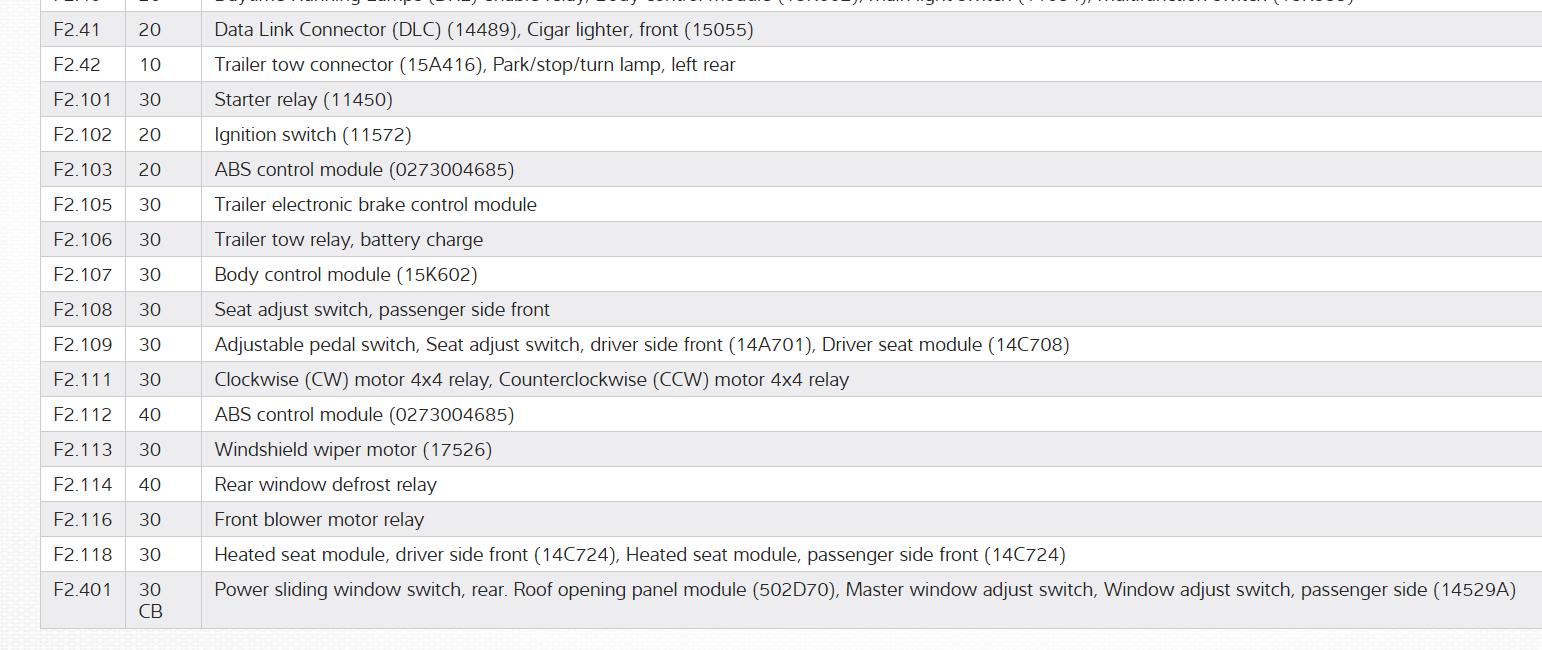

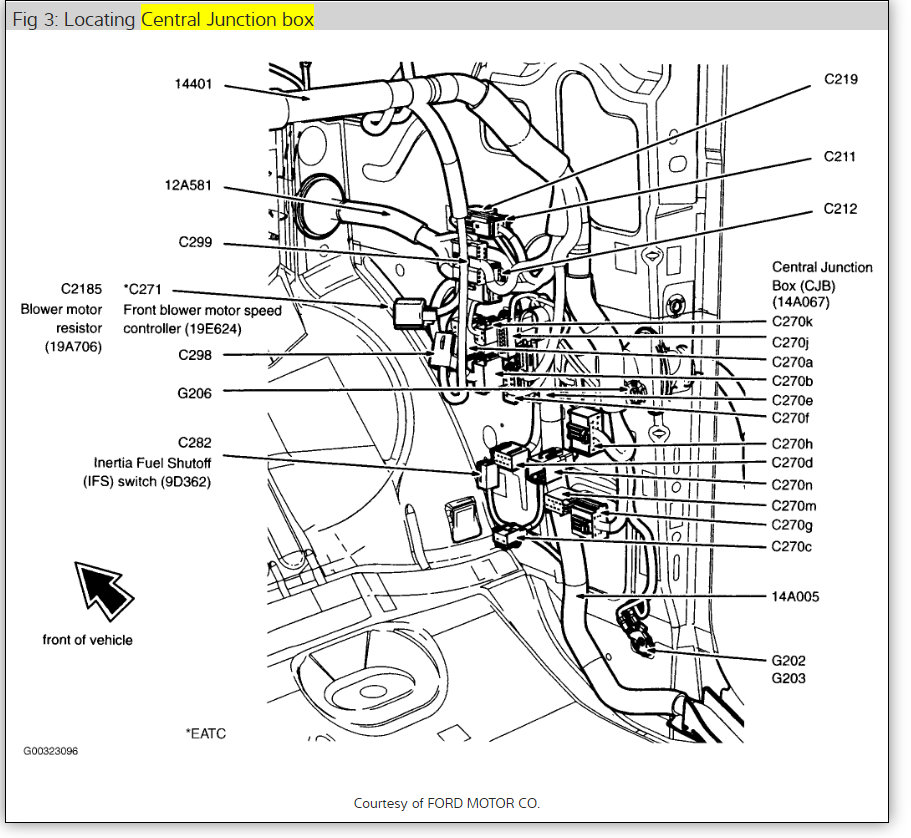

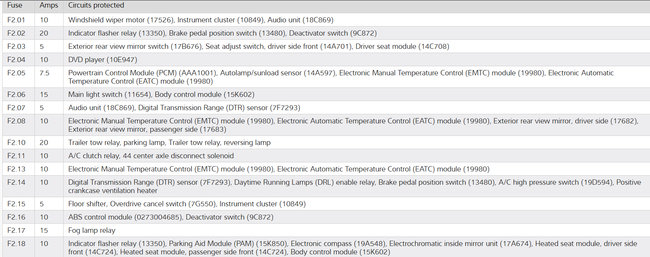

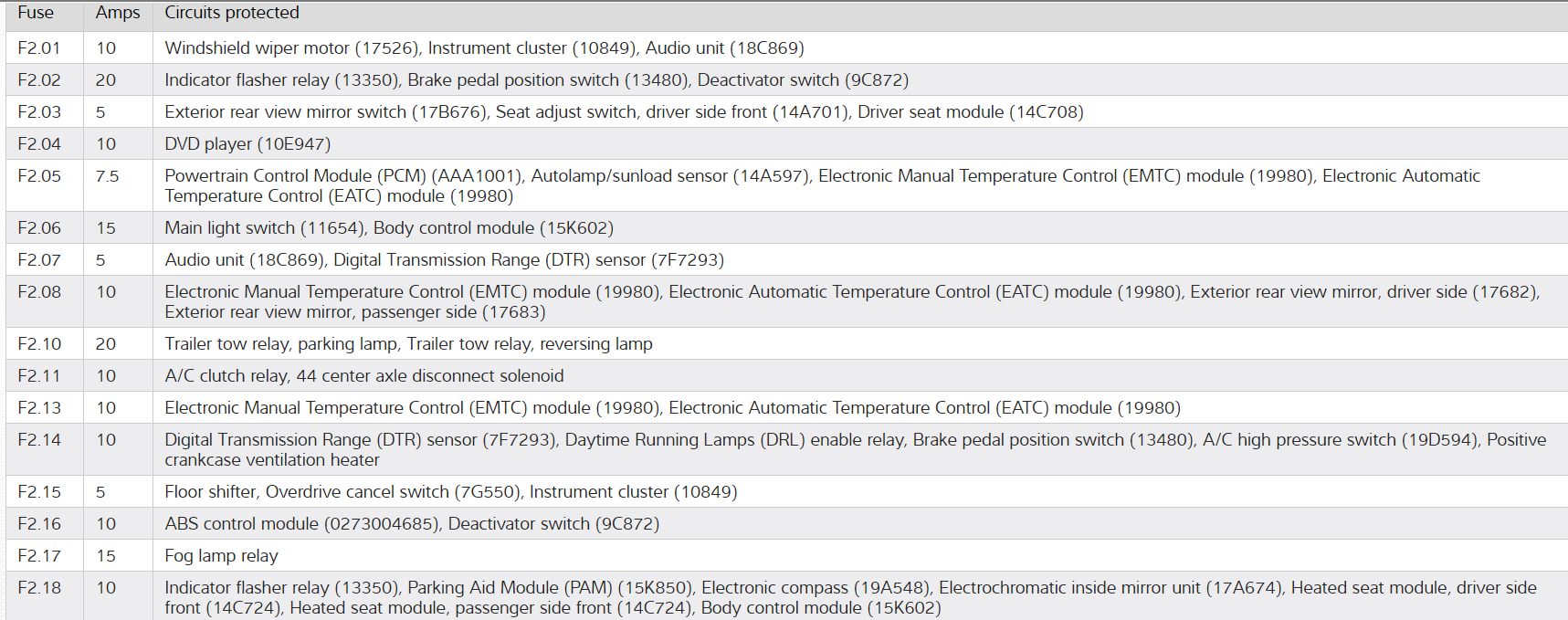

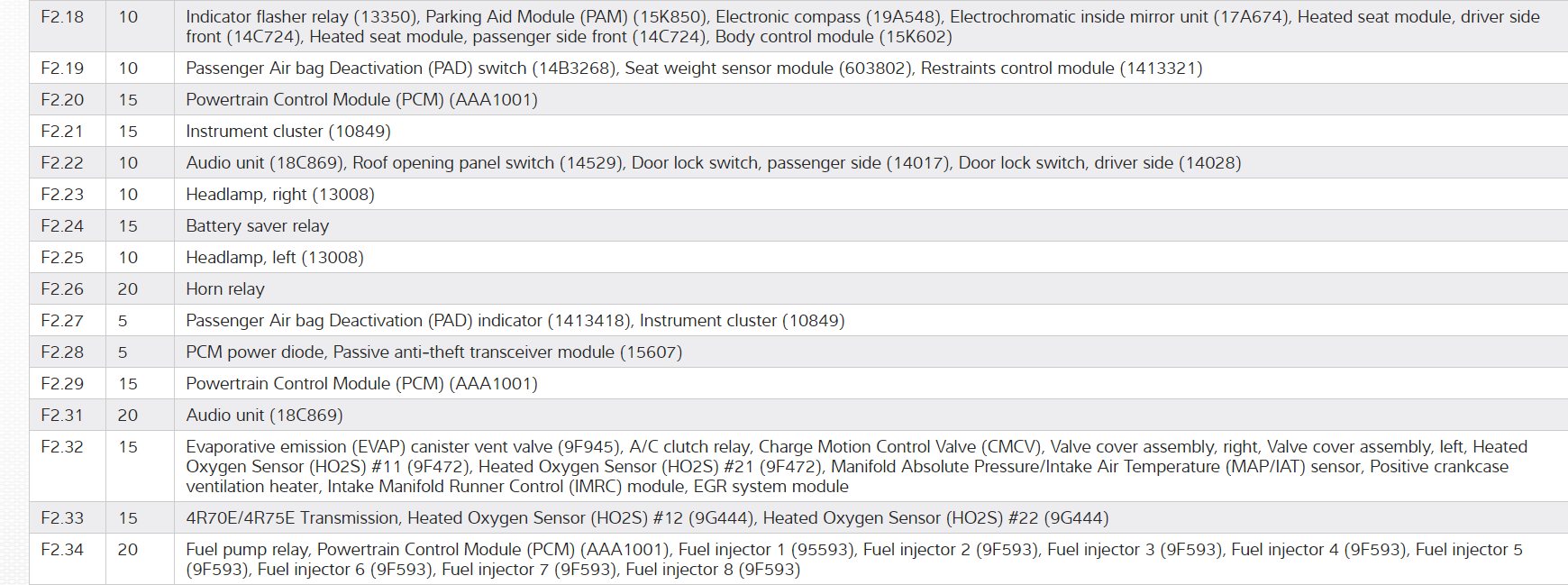

It can be the brake light switch which is common but to be sure lets start with the fuses here is a guide that will help with the fuse location in the diagrams below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.

I did i bit more research. I found out that I have a faulty brake interlock switch because I'm able to put my truck into gear without pressing the brake, all fixed@

Glad you could get it fixed, that kind of problem can be tough. Please use 2CarPros anytime we are here to help.

My cruise control has quit working, it worked on and off for a while, now not at all. Also I have a problem getting it out of park the button pushes hard. It has the console mounted shifter.

thanks,
Dave

check your brake lights to ensure they are still working, seems like brake light switch may be issue with CC as well as shifter.

My brake lights work fine.

The other day some friends and I were out! It started getting late and raining.have been getting a lot of rain lately. We were trying to get windows up and doors all shut, later it had stopped raining and tried to put windows down and none of them would work. I tried turning on dome light and it would not work. Today I tried using my cruise control, Its not working. I have been trying to trouble shoot, but getting no where. I have checked fuses and relays. All seem to be good. I am stumped as to what to do now? Please help!

Ford has had a lot of trouble with water leaks around their windshields on their trucks. It drips onto the "GEM" module, which is their version of Body Computer. Given the multiple symptoms, I would suspect that module or there is corrosion on the connector terminals.

My horn works fine with ignition off, but will not work with ignition on. Also criuse control quit working at same time, Ford performed recall on criuse control, but did not fix this problem. Ford said it was a separate issue. Any suggestions

Hi, it sounds like the GEM or alarm module has gone out. Ford had a problem with the GEM. I have replaced many. Please let me know what happens

thanks for using 2carpros.com

Thanks for the reply. Can I get this item at an auto part store, or is it a dealer item?

dealer item

Out of the blue my cruise control stopped working. Then a few miles later it started working again, when I hit the on and off button and accalerate buttton. i changed out the switch on the master cylinder and didn't help. Now it works sometimes but stays on when it comes on till i cut it off and then most of the time it don't work.

Hi robbys,

Thank you for the donation.

Perform the following to see if you can retrieve any trouble codes.


SELF-DIAGNOSTIC TEST

1. Hold speed control OFF button, and turn ignition switch to RUN position. CRUISE indicator should flash once to indicate successful entry into self-diagnostic mode. If CRUISE indicator does not flash, start procedure over. If CRUISE indicator still does not
flash, repair system by symptom. If CRUISE CONTROL indicator flashes once followed by 5 additional flashes, replace speed control servo/actuator.

2. Release speed control OFF button. Within 5 seconds in entering self-diagnostics, press speed control ON button. Press remaining speed control buttons in the following sequence; ON, RES, COAST and SET/ACCEL. As each button is pressed, CRUISE indicator will flash. Wait until indicator light goes out, then press next button. After sequence has been completed, indicator light will flash to indicate test passed or failed.

3. Immediately after static test has passed, actuator performs a dynamic test by automatically operating throttle .04-.40" (1-10 mm). Observe throttle movement to witness any sticking in cable or linkage. Ensure throttle returns properly. Turn ignition switch to LOCK position.

© 2008 Mitchell Repair Information Co., LLC.

What does it mean when the cruise light, goes on only for the off and on button but does not go on when the other three buttons are pressed

Thanks
Jerry

You could have a fault with the brake switch or other controls. Testings would have to be performed to determine the cause.

The cruse control Stopped working on my Ford F 150 2002 Crew cab, The cruse control light comes on when pressed but doesnto stay on.

IT could be a few things. First, have the computer scanned to see if there are any trouble codes stored.

If your cruise control is not working and your not getting any error codes with the self test AND the pedal is NOT moving at the end of the test...Check the Speed Control Deactivation Switch (the plug coming out of the Brake Cylinder going to the servo), if its leaking brake fluid its bad...a $15 part from your dealer and an easy fix, unscrew the old and screw in the new.

fixitmr, is this the year that had the recall with the MC wiring?

yah, i think they did finally decide to fuse the harness just as a backup measure? cause they sure didn't cure the problem well.

i was replacing a seal on the bottom of the gearbox, but inorder to actually get the seal replaced i had to completely remove the ger box. after we installed the gearbox the horn doesnt work, the airbag light is on and the cruise control doesnt work. i cant figure it out.

When you removed the gear box, what did you do with the steering shaft? To me it sounds like the clock spring is bad as far as the horn and the airbag light. Have you checked fuses?

hey guys my cruse control is not working what can i do to fix the problem myself. could it be fuse? or something else that i could check to see Im not very skilled in auto repair but Im willing to try anything without having to take it to a dealer thanks

The most common fix and the first thing to check is the brake pressure switch on the master cylinder, unplug it and look for fluid in the connector. If it's wet replace it with the new updated switch if the recall has not been done yet, also check the speed control servo connector for brake fluid.

HI, just some info I read in a forum by chance did you change the third brake light? Apparently the filaments in the original bulbs have something to do with the cruise control system, just a matter of thought, hope you find a fix. Blackbeauty..............
