Orifice tube location

2004 FORD EXPEDITION
175,000 MILES • 4.8L • V8 • 2WD • AUTOMATIC
Avatar
JVJOHNSO
  • MEMBER
  • 1 POST
Hello, I am trying to locate the A/C orifice tube. Does anyone know the location of the orifice tube?
Jul 17, 2017 at 3:31 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

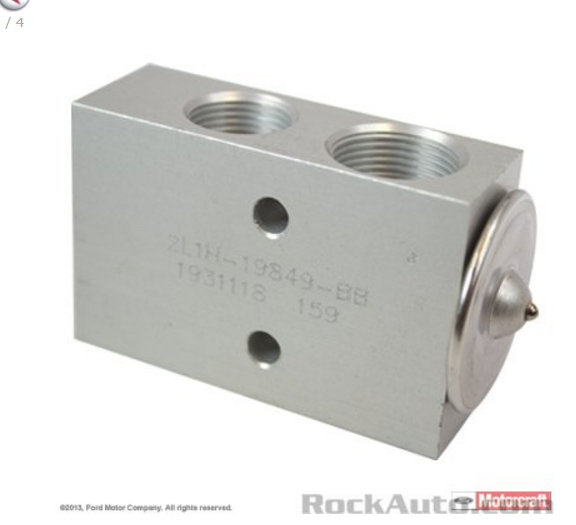

if you have one it will be where high pressure line enters evaporator there is normally a crimp in tube so it will not go backwards.if it is auto temperature control you do not have one you have an expansion valve which takes the place of the orifice. there is also one in manual system so you do not have one. Picture shows what it looks like.
Image (Click to enlarge)
Attached Media
Jul 18, 2017 at 8:14 AM
