Heater core removal and installation

Hi,

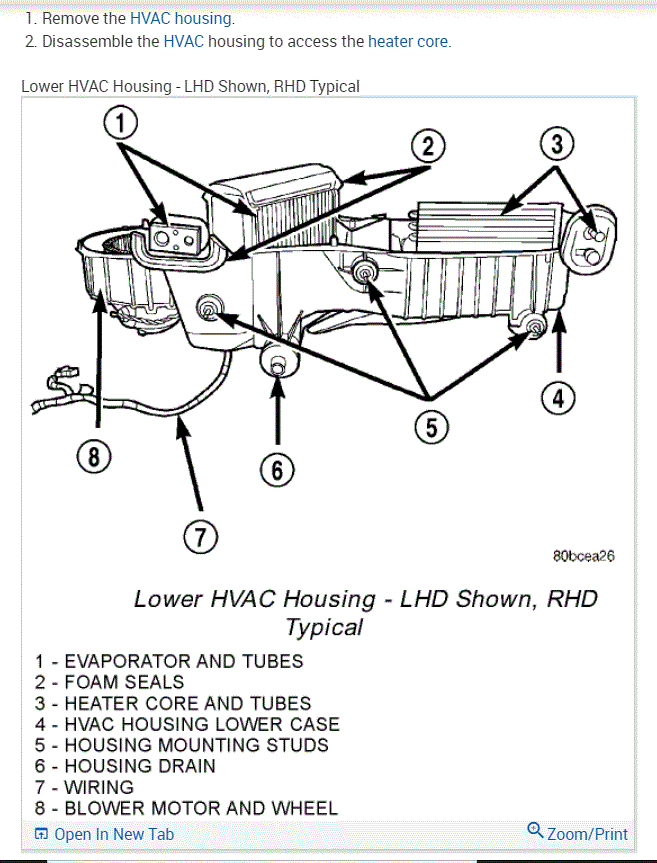

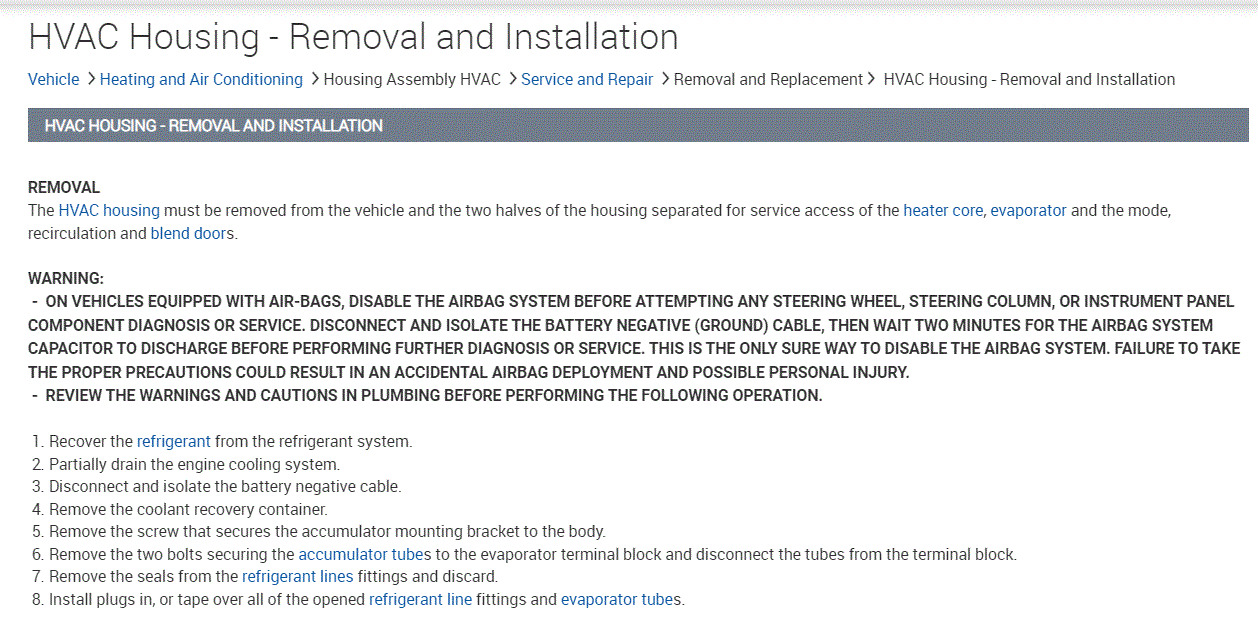

This is a somewhat large job. It will require the removal of the HVAC housing under the dash. Also, you will need to recover the freon from the AC system first. I will start with the directions for that and end with the removal and replacement of the core.

To get you started, here is a link that explains in general how it's done. It may be helpful if you have questions.

https://www.2carpros.com/articles/replace-heater-core

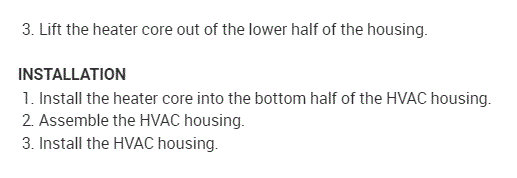

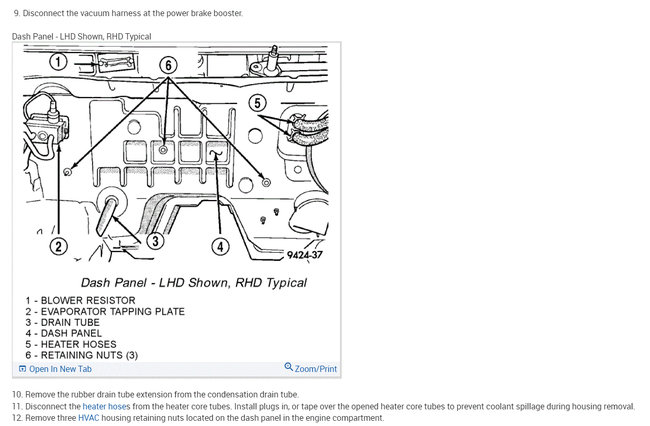

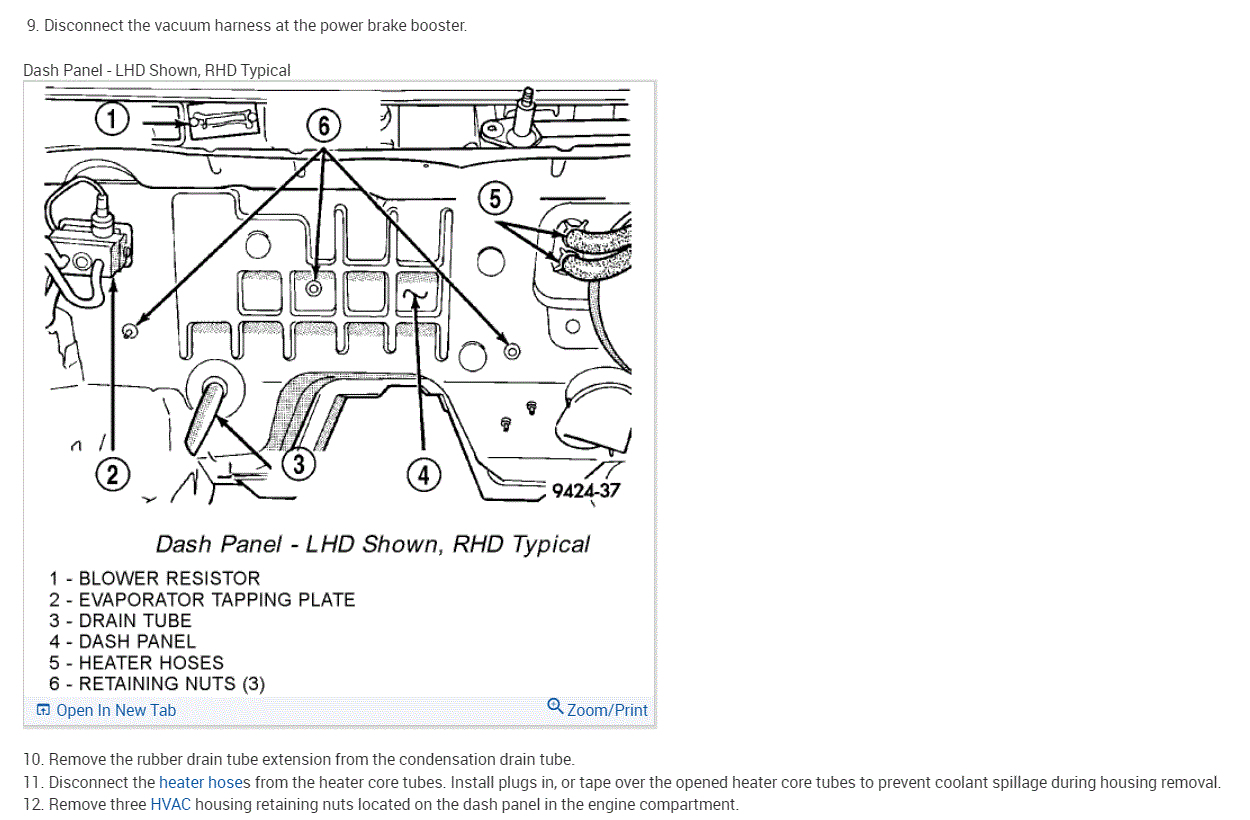

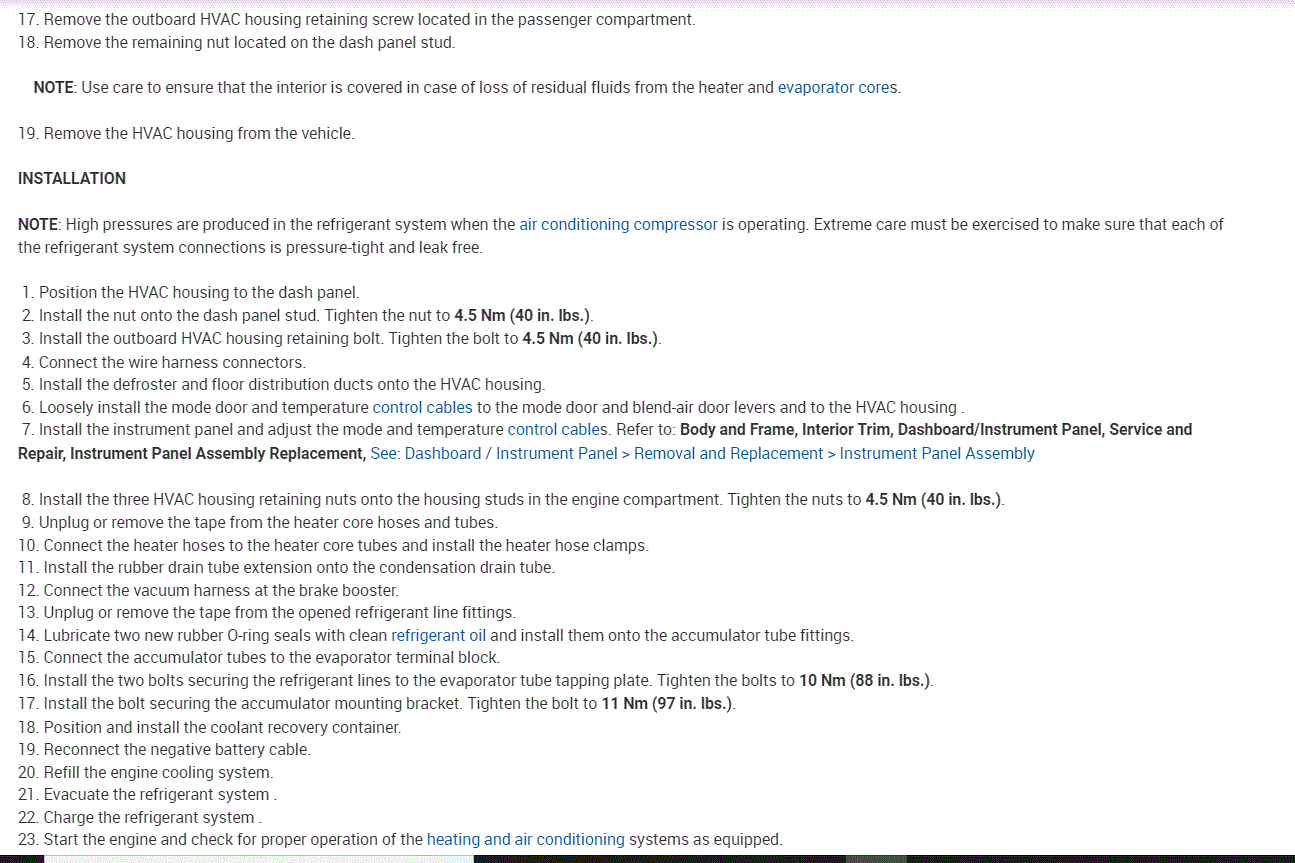

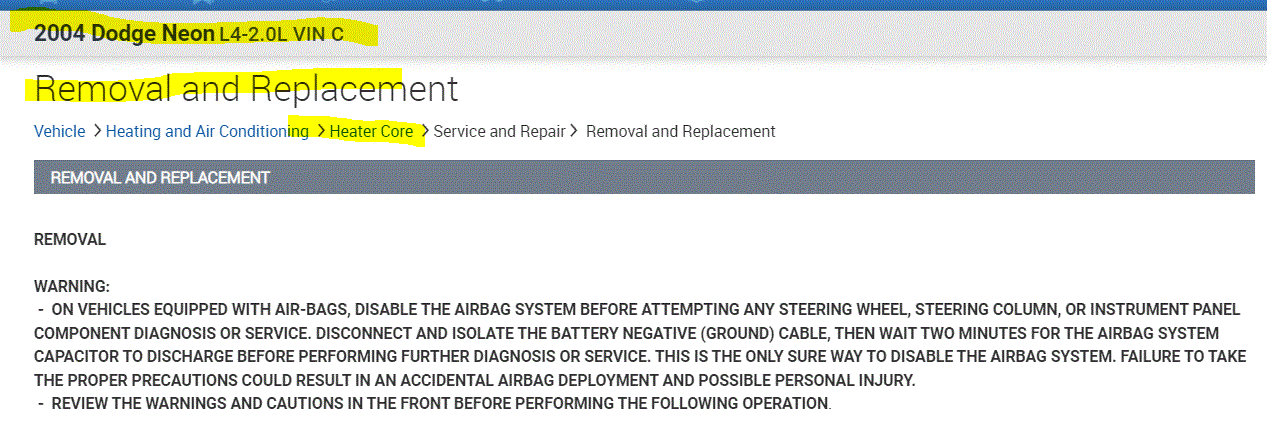

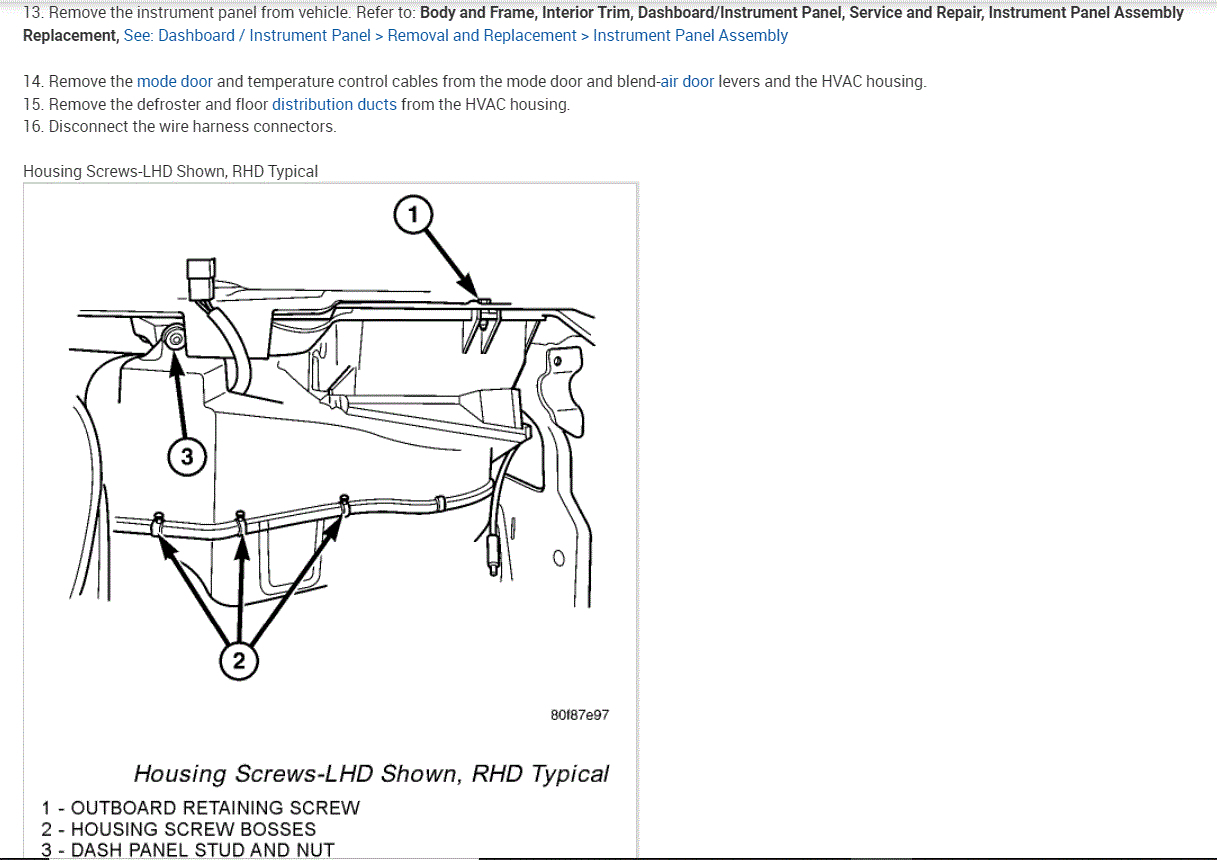

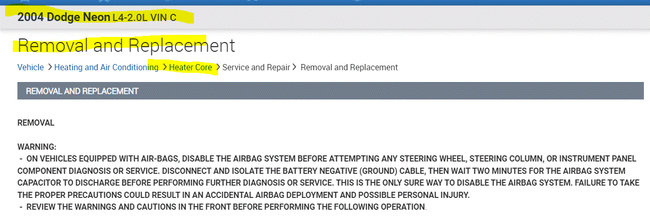

If you look below, I attached the directions from the manual.

Let me know if this helps. Also, if you have questions, feel free to ask.

Take care,

Joe

See pics below.
