Where is the crankshaft position sensor located on a 2004 2.4l dohc Chrysler sebring?
Oct 13, 2012 at 9:24 PM
Where is the crankshaft position sensor located on a 2004 2.4l dohc Chrysler sebring?
2004 CHRYSLER SEBRING
RJG777
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hey RJG777,

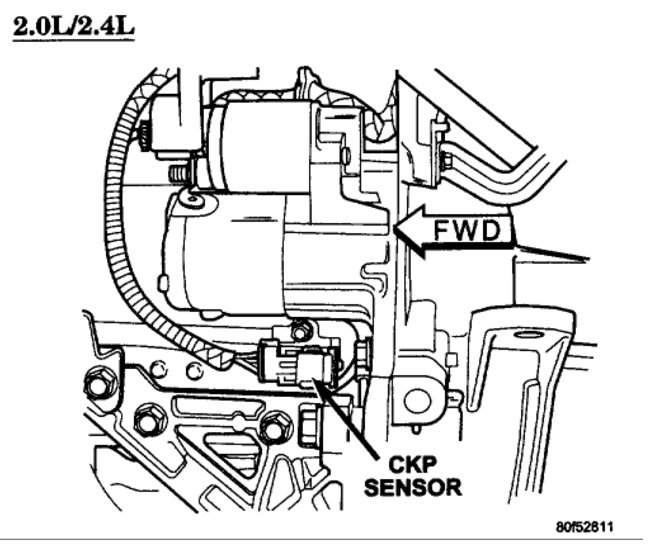

The crankshaft angle sensor is located just below the starter motor, Here is a diagram to help you find it.
Please let us know happens so it will help others.
Best, Ken
The crankshaft angle sensor is located just below the starter motor, Here is a diagram to help you find it.
Please let us know happens so it will help others.
Best, Ken
Image (Click to enlarge)
