2004 Chrysler Pacifica G 101 STRAP

2004 CHRYSLER PACIFICA
160,000 MILES • 3.5L • 6 CYL • AWD • AUTOMATIC
Avatar
HJORDAN
  • MEMBER
  • 12 POSTS

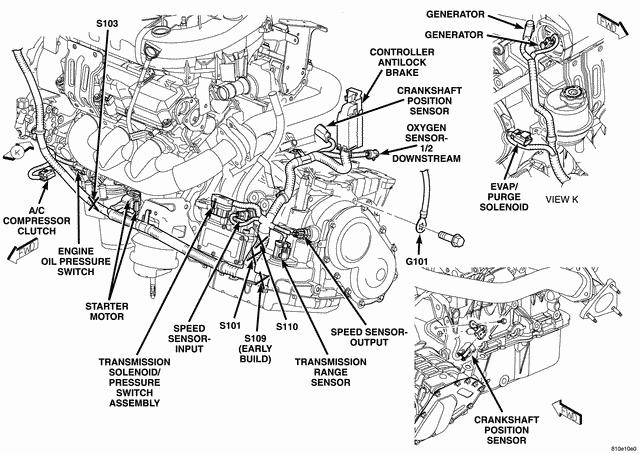

I WAS WANTING TO KNOW HOW WOULD I GO ABOUT RUNNING, AND WHERE TO RUN A GROUND WIRE (G-101 STRAP) THAT GOES TO THE TRANSMISSION STUD. ALSO WHERE IS THIS GROUND WIRE GOING TO, I WAS TOLD IT'S GOING TO THE EXHAUST MANIFOLD BUT THE WIRE I SEE THAT IS GOING TO THE TRANSMISSION STUD LOOKS TO BE THE SAME SIZE AS THE NEGATIVE BATTERY CABLE. THEN I WAS TOLD IT WAS GOING TO THE ENGINE BLOCK, I WAS GIVEN A DIAGRAM THIS G 101 STRAP FROM ANOTHER ONLINE SITE (see attached image) HOWEVER I DO NOT KNOW WHERE IT'S GOING AND WHERE TO RUN THE NEW GROUND WIRE... PLEASE HELP ME AND I'M HOPING THAT I WORDED THE QUESTION PROPER.... THANKS FOR YOUR HELP
Image (Click to enlarge)
Attached Media
Sep 22, 2014 at 9:08 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
our manual says it goes to rear of engine block with no picture showing. It is the negative battery cable so if you connect it to the transmission stud that is perfectly fine. Just make sure it's clean wher eit's connected and not corroded.
Sep 22, 2014 at 9:27 AM
Avatar
HJORDAN
  • MEMBER
  • 12 POSTS
I THANK YOU SO MUCH......... SO I CAN RUN THE NEW WIRE STRAIGHT FROM THE NEGATIVE BATT TO THE TRANSMISSION STUD, OR SHOULD I RUN THIS WIRE FROM A BOLT SOME WHERE ON THE ENGINE BLOCK. I AM UNABLE TO SPLICE INTO THE ORIGINAL WIRE BECAUSE ITS IN A BAD SPOT RIGHT BY THE MOTOR MOUNT. I'M WANTING TO RUN THE WIRE A DIFFERENT ROUTE SO THAT THIS MOTOR MOUNT DOESN'T FRAY THE WIRE AGAIN..... HOW DO I DO THIS?
Sep 22, 2014 at 10:38 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
just measure the length of a new negative battery cable to the trans stud and give it a cople of inches longer for flexing.....then replace the cable to there.
Sep 22, 2014 at 12:25 PM
Avatar
HJORDAN
  • MEMBER
  • 12 POSTS
GOT IT, THANK YOU AGAIN.. YOU GUYS ARE THE BEST! :)
