brake booster removal

2004 CHEVROLET VENTURE
150,000 MILES • 6 CYL • FWD • AUTOMATIC
Avatar
SWBOICE
  • MEMBER
  • 1 POST
what's the trick to getting the brake booster out of a 2004 venture. I looks like I might have to slide the ABS system back in order to get the the booster away from the firewall.
Nov 25, 2010 at 7:58 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

You must remove the brake master cylinder first.

https://www.2carpros.com/articles/how-to-replace-a-brake-master-cylinder

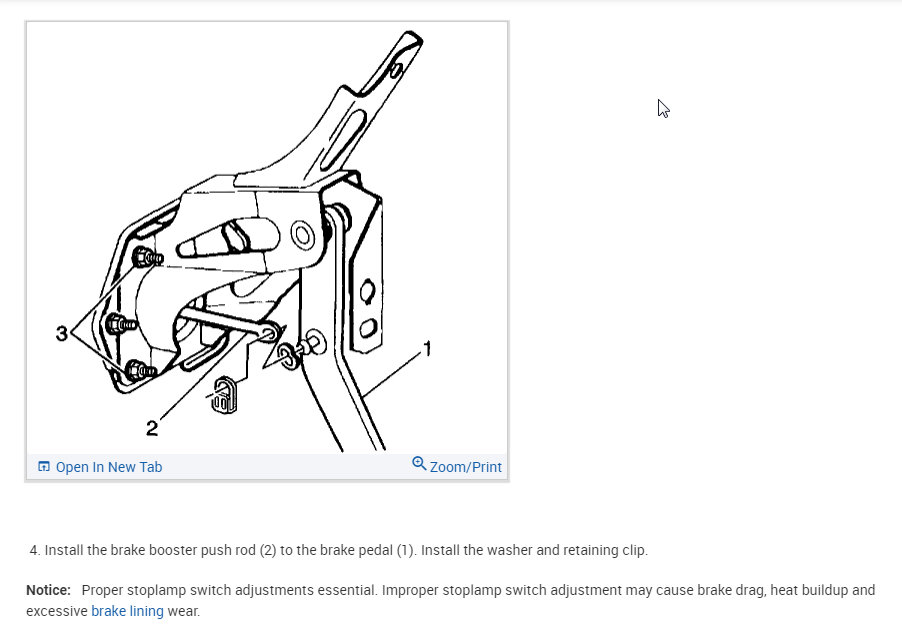

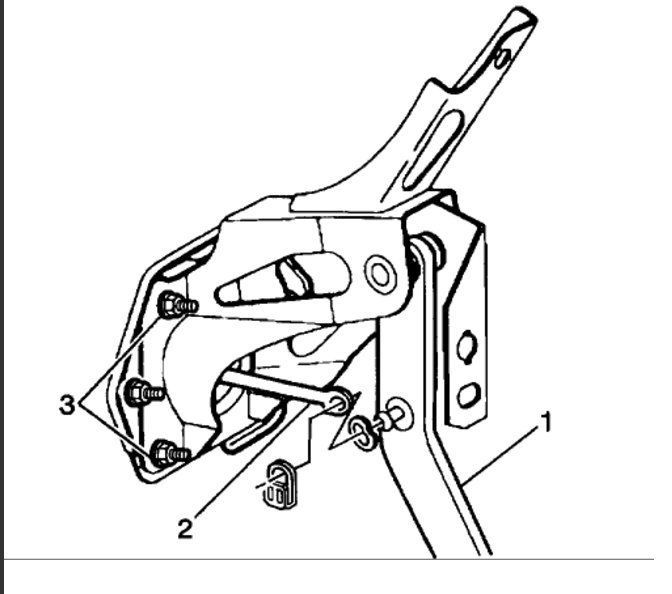

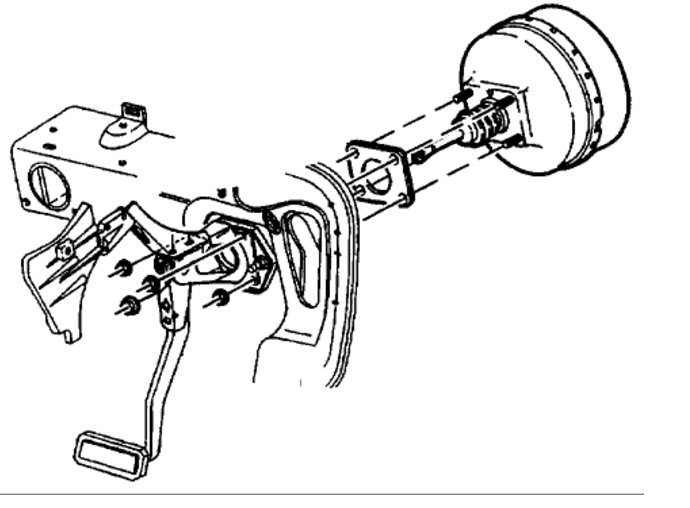

Then undo the push rod clip followed by the firewall mounts bolts, Here are some diagrams (below) to help you get the job done.

Please let us know if you need anything else to get the problem fixed.

https://www.2carpros.com/articles/how-to-replace-rear-brake-pads-and-rotors

Cheers, Ken
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jun 24, 2017 at 7:09 PM
Avatar
JIMMY OWEN2
  • MEMBER
  • 1 POST
How do you remove the brake booster it will not come out?
Nov 2, 2020 at 8:48 AM (Merged)
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS

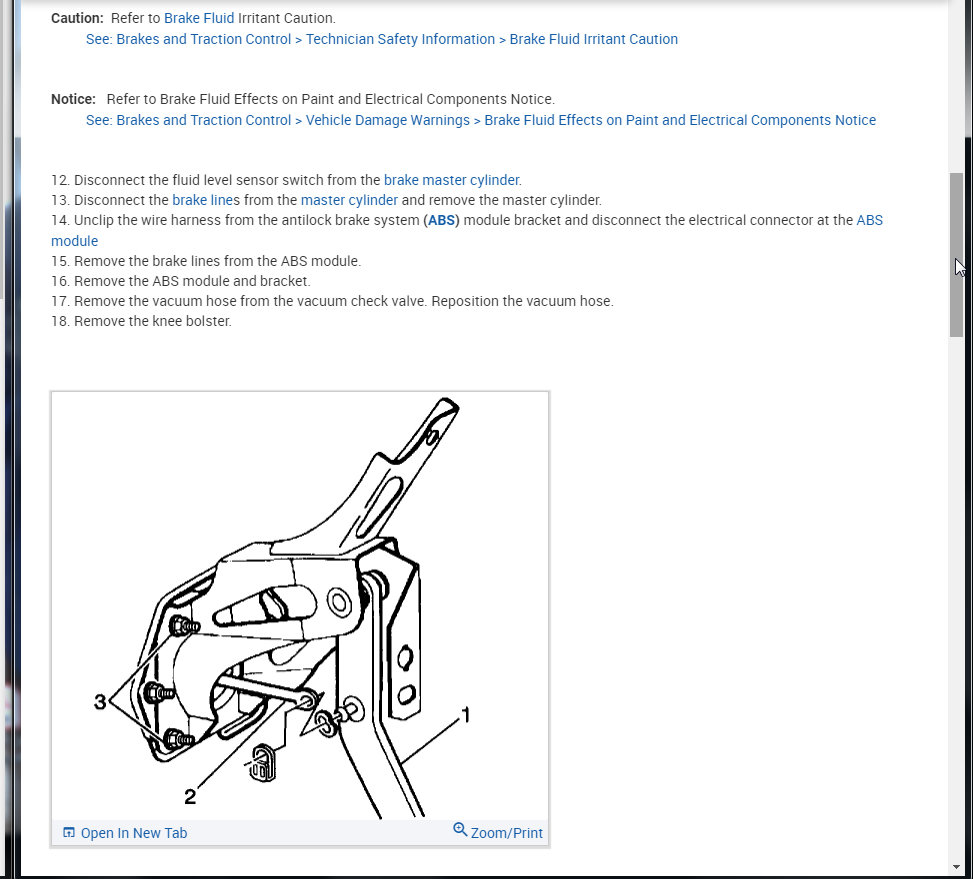

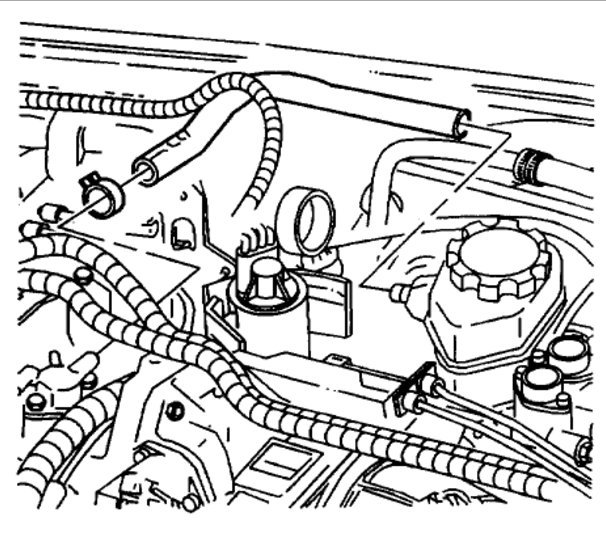

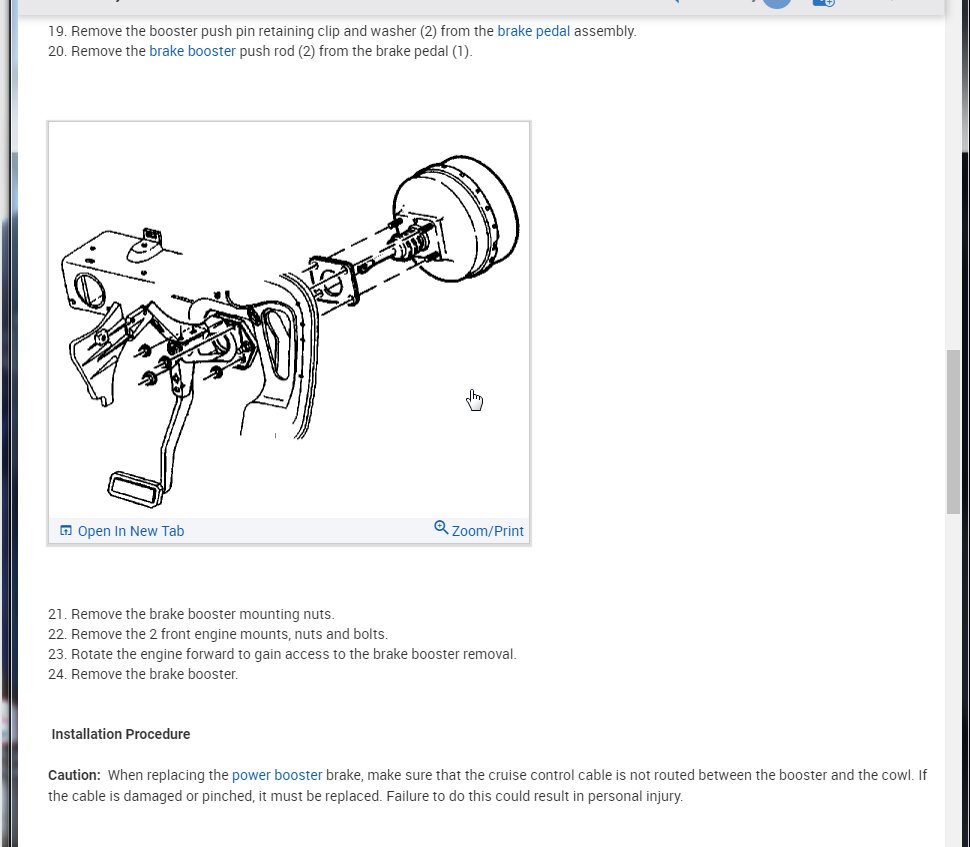

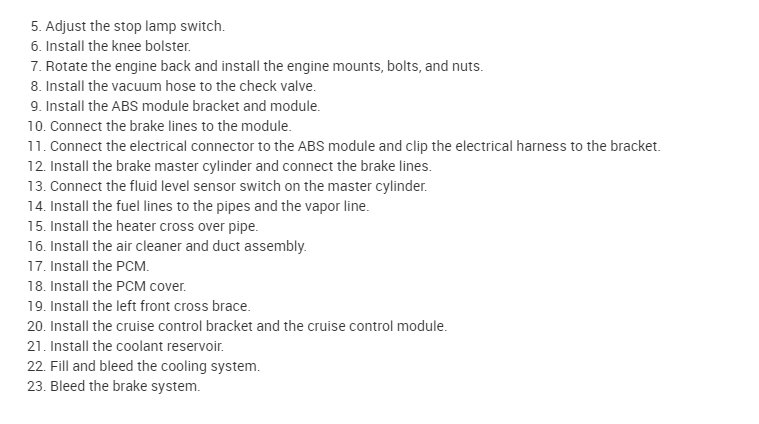

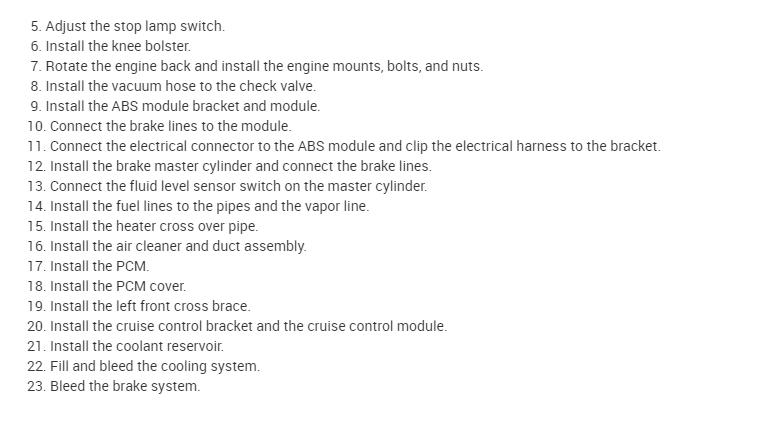

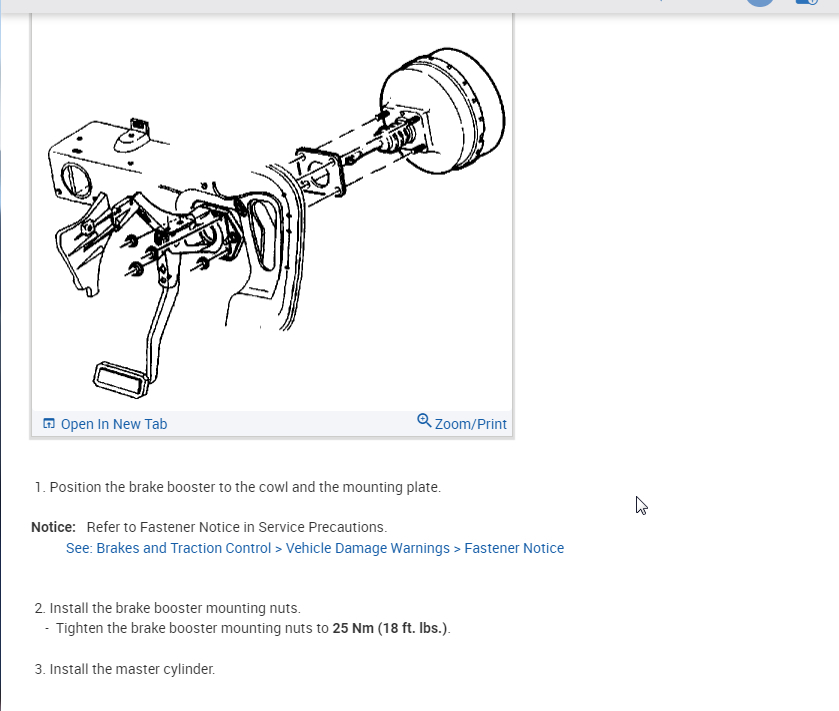

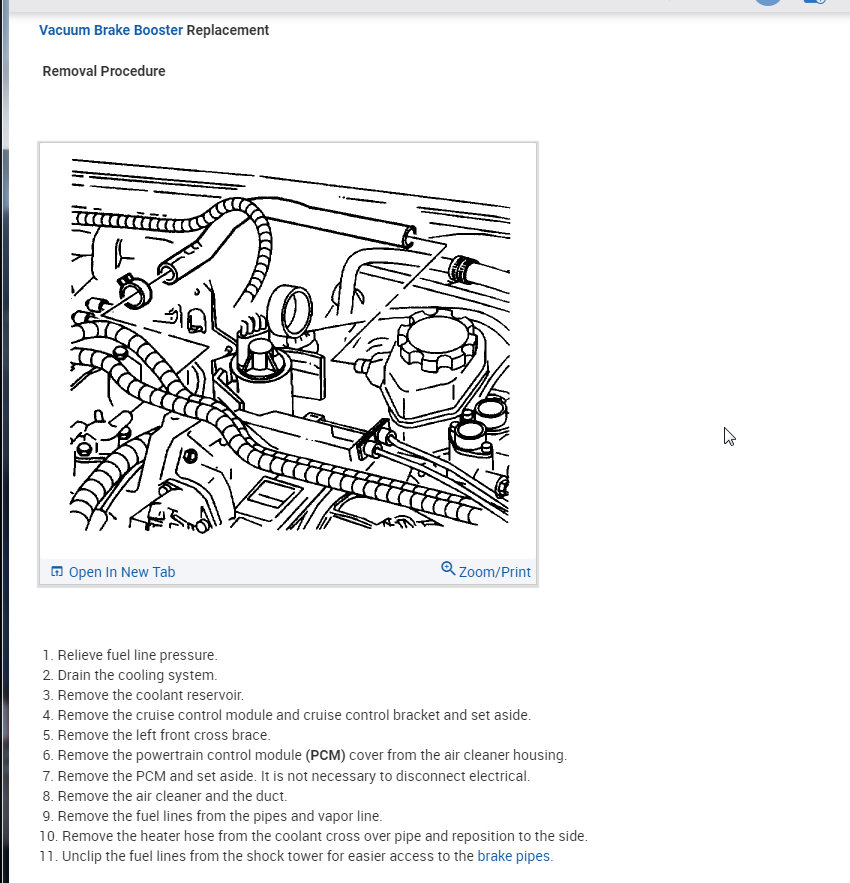

I attached the process from the manual. Can you review this and let us know if there was something that you missed? If you still can't get it out can you get pictures of what you are dealing with so that we can see what the issue may be?

Let's start here and let us know if you need more help. Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Nov 2, 2020 at 8:48 AM (Merged)
