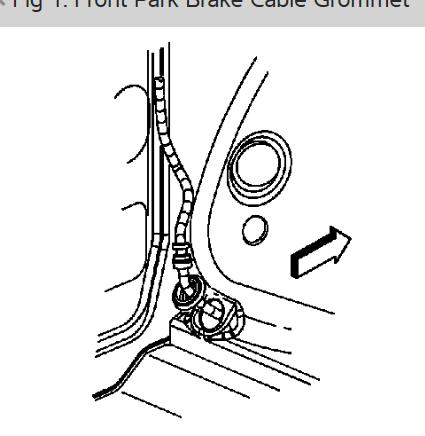

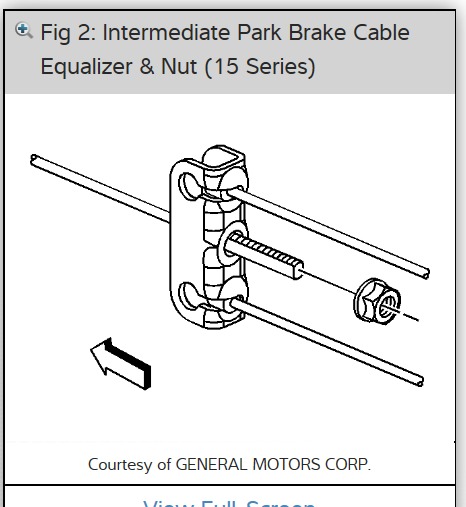

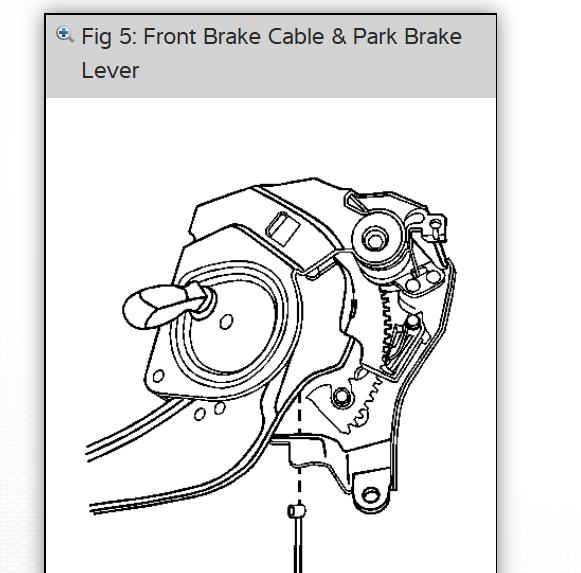

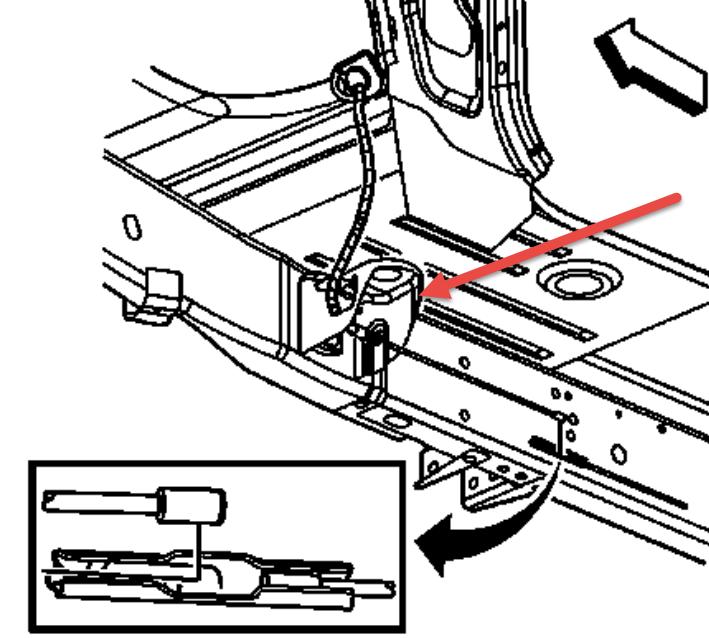

Does anyone have a emergency brake cable routing diagram for a 2004 chevy silverado 1500, I need a diagram from the e-brake on back,I installed the new emergency brake assembly and I am about 1/2 in short of getting the nut to start at the equalizer then I looked why and right after you put the cable in the firewall there are two eyelets that I missed and I am pretty sure that is where my cable shortage is but I thought if anyone had a diagram that would be great or if anyone knew what I was talking about.Thanks
Mar 25, 2015 at 9:16 AM
