2004 Chevrolet Impala AC compressor wiring harness

2004 CHEVROLET IMPALA
200,000 MILES • 3.4L • 6 CYL • 2WD • AUTOMATIC
Avatar
DARNDT
  • MEMBER
  • 2 POSTS
wires broke off of the harness from the AC compressor. Need to know where to look for other end! :) Would like to be able to splice and or replace wires. Thanks!!!!
Sep 2, 2014 at 9:37 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
the harness should be right by the compressor it may lead down to oil filter or in that area if it 's in back if not it should be near waterpump area. see pic for location and color. if you splice it make sure to solder connection an dto use shrink tubing to protect it after fixing.
Sep 2, 2014 at 10:00 AM
Avatar
DARNDT
  • MEMBER
  • 2 POSTS
Really need to know where that black and wire go to ... they are hanging from the AC compressor. No clue where to reattach them ,,, or where they go to. :(
Sep 2, 2014 at 11:29 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

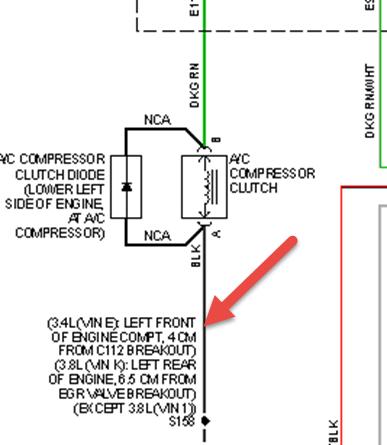

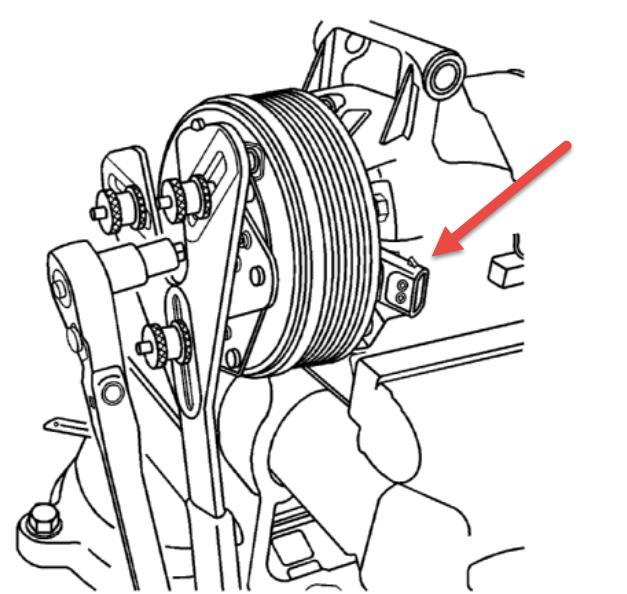

I thought you had the end that goes to compressor. you need to connect to the compressor clutch which will require a connector. If auto parts doesn't have it go to a junkyard and get the connector then wire it in . on the connector in pic it will marked a and b wires correspond to that in other pic I sent. If this piece in pic is missing then you need a new compressor clutch.
Sep 2, 2014 at 12:35 PM
