brake lights

2004 CADILLAC CTS
67,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
RASTA2BAD
  • MEMBER
  • 5 POSTS
removed rear seat and do not see any fuses or relays for rear brakes
Nov 21, 2010 at 2:39 AM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
What is your exact problem?

mark (mhpautos)
Nov 21, 2010 at 3:15 AM
Avatar
RASTA2BAD
  • MEMBER
  • 5 POSTS
center brake light on, tail light bakes stopped working
Nov 21, 2010 at 3:29 AM
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS

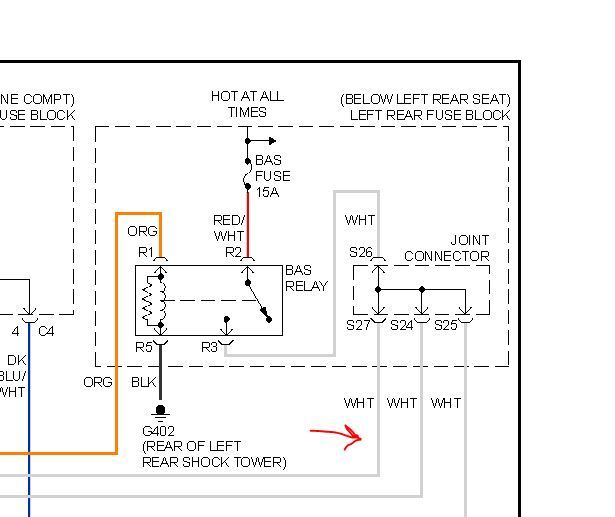

The indicated wire is the one you want, i am not familiar with this model but the pic has come from Mitchell 1 data base.

mark (mhpautos)
Image (Click to enlarge)
Attached Media
Nov 21, 2010 at 3:40 AM
Avatar
FACTORYJACK
  • CERTIFIED EXPERT
  • 4,159 POSTS
Have you checked and replaced the stop/tail bulbs?
Nov 22, 2010 at 12:03 AM
Avatar
BOBOU812
  • MEMBER
  • 2 POSTS
Under backseat. Right side of vechicle.Pull the carpet forward. Only a inch or two. It's a couple inches long bout inch wide should be black. Might have a Christmas tree holding carpet in place.
Nov 13, 2019 at 4:01 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Please feel free to use 2CarPros anytime!
Nov 16, 2019 at 1:20 PM
Avatar
GDIEHR
  • MEMBER
  • 1 POST
The left and right brake lights do not work; bulbs are fine. Center-mounted brake light works.

I suspect a fuse but using fuse diagram and coverage cannot find anything that identifies the outboard brake lights fuse.
Nov 16, 2019 at 1:21 PM (Merged)
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Hi gdiehr, Welcome to 2carpros and TY for the donation The fuse for the brakes is good otherwise the high mount lite will not come on. Inspect and test the joint connector located below left rear on left rear fuse block


https://www.2carpros.com/forum/automotive_pictures/12900_brakes_1.jpg

Nov 16, 2019 at 1:21 PM (Merged)
Avatar
MWRIGHT100783
  • MEMBER
  • 1 POST
WHAT KEEPS CAUSING THE BRAKE LIGHT FUSE TO KEEP BLOWING?
Nov 16, 2019 at 1:21 PM (Merged)
Avatar
BLUELIGHTNIN6
  • CERTIFIED EXPERT
  • 16,542 POSTS
must be a short in the brake lamp circuitry. check wire harnesses at brake lamp assemblies, ensure no wires are damaged or loose. if OK, check the brake lamp switch under driver dash, on brake pedal arm.
Nov 16, 2019 at 1:21 PM (Merged)
Avatar
BOBOU812
  • MEMBER
  • 2 POSTS
I just fixed mine. Had no brake lights. Had tail lights. Didn't have speedometer either. Mouse chewed through 3 wires under hood. Removed battery 3 wires going to plug in kinda tucked inside passenger side fender.. Odd how those 3 control brake lights and speedometer.
Nov 16, 2019 at 4:34 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Nice work, we are here to help, please use 2CarPros anytime.
Nov 17, 2019 at 10:47 AM
