Central locking not working

2004 BMW 118D
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
Hi,
My central locking has stopped working on my car. When I press it to unlock it opens all of the locks, but it does not lock all of the doors when I press the locking button either on the key fob or the inside of the car, it only locks the driver door. Any advice?
Mar 7, 2013 at 11:01 PM
Advertisement
Avatar
DOCHAGERTY
  • CERTIFIED EXPERT
  • 9,603 POSTS
It sounds like the door lock controller is going out or you have a fuse out. Here is a guide to help you test the fuses and the door lock wiring diagrams so you can see how the system works:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

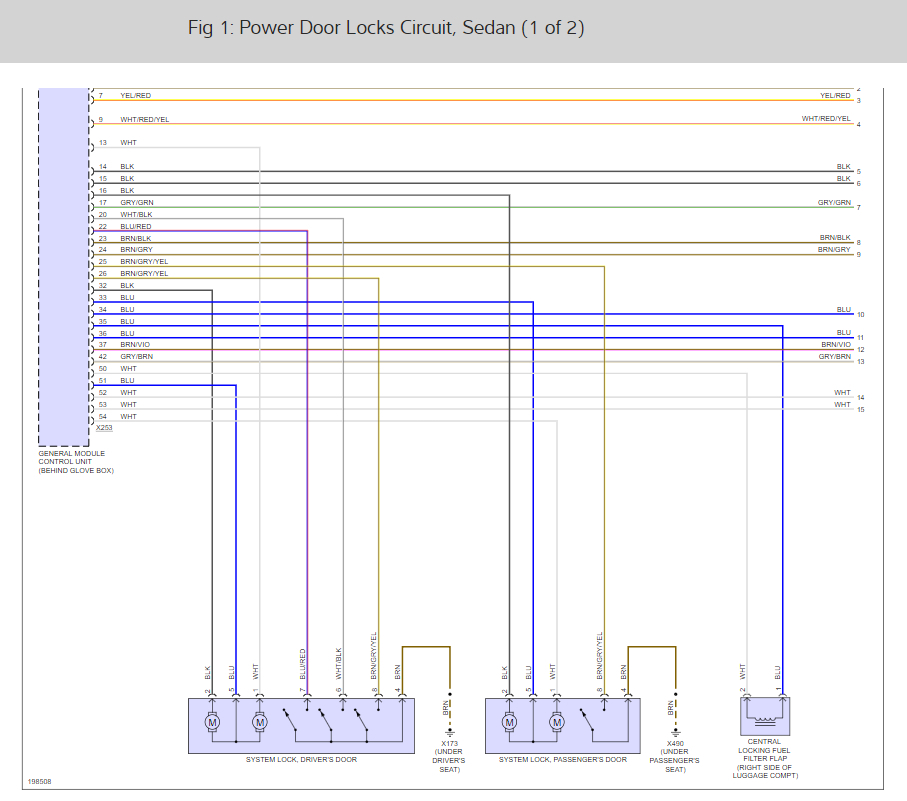

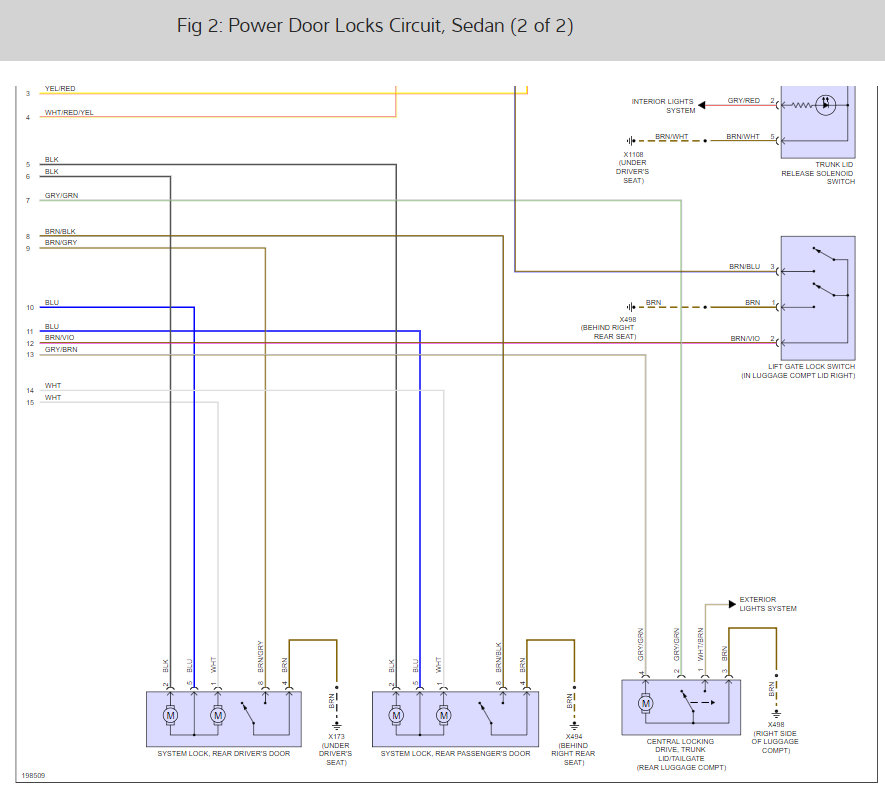

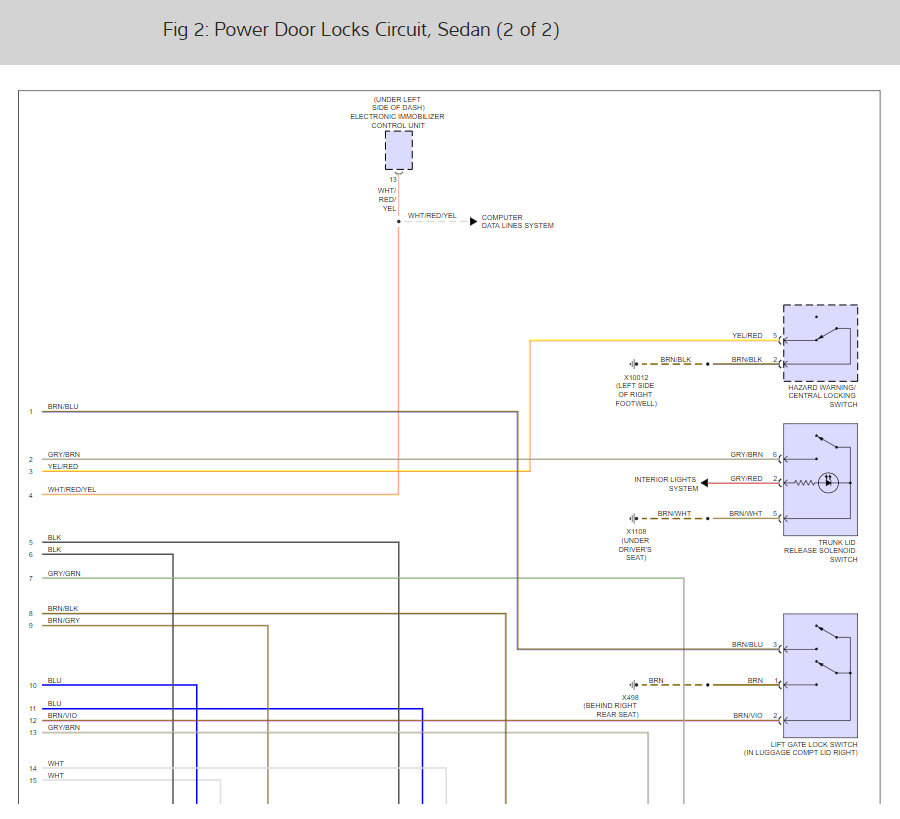

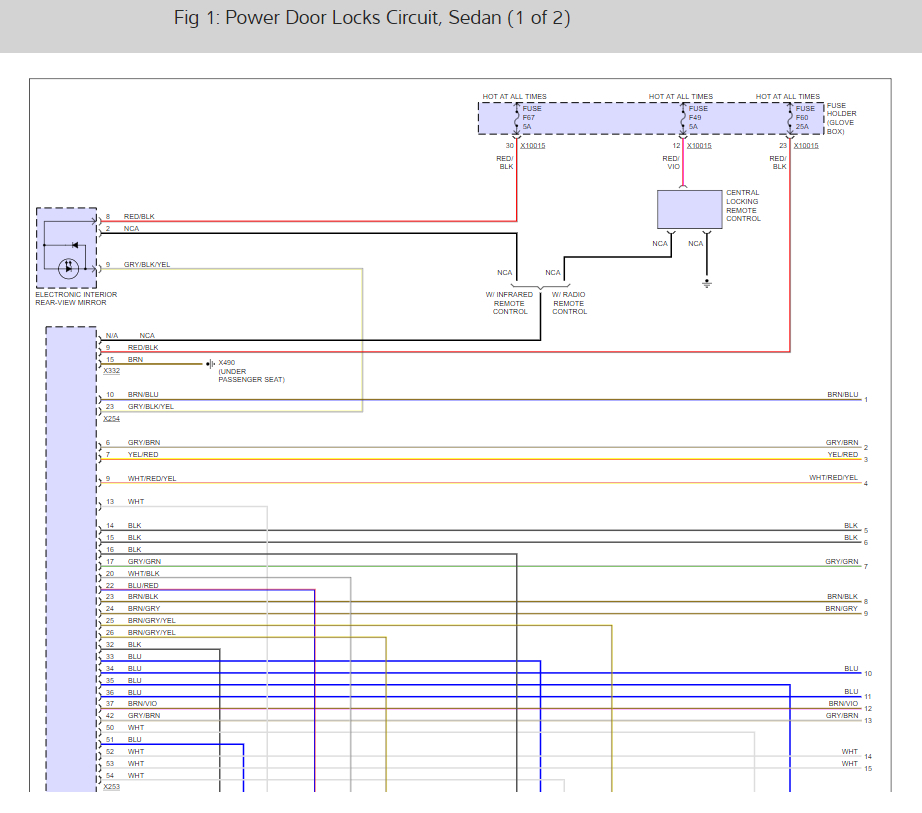

Check out the diagrams (below). Please let us know what you find.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Mar 8, 2013 at 12:15 AM
Avatar
MAGICALLYDELICIOUS342004
  • MEMBER
  • 1 POST
I had this problem the shop had to replace the lock controller is cost me $430.00 all fixed!
Jul 2, 2018 at 2:23 PM
