Touring Trip Screen and Radio not working?

2004 ACURA MDX
300,000 MILES • 2.0L • 6 CYL • 4WD • AUTOMATIC
Avatar
BRITTANYRAY93
  • MEMBER
  • 1 POST
i recently purchased the vehicle listed above Touring from the previous owner, however the trip screen does not work at all and has a black spot on it. Also, the A/C buttons under the trip screen do not work either. As well as the radio does not work (will not turn on (the back lights that light up the buttons do work).
May 17, 2025 at 6:18 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

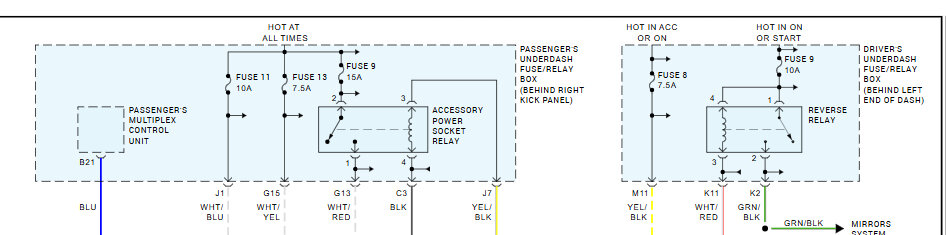

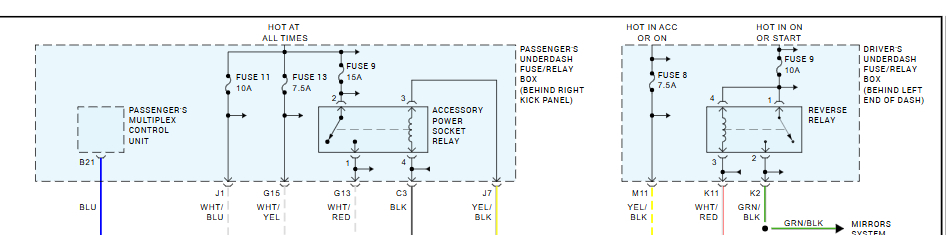

Yep, this happens when the screen gets overheated and takes out the screen driver. I would get a used unit from eBay and install it. Also, check the fuses just in case, I don't think it will help but you never know. Here is a guide to help test the fuses and the fuse locations in the images below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

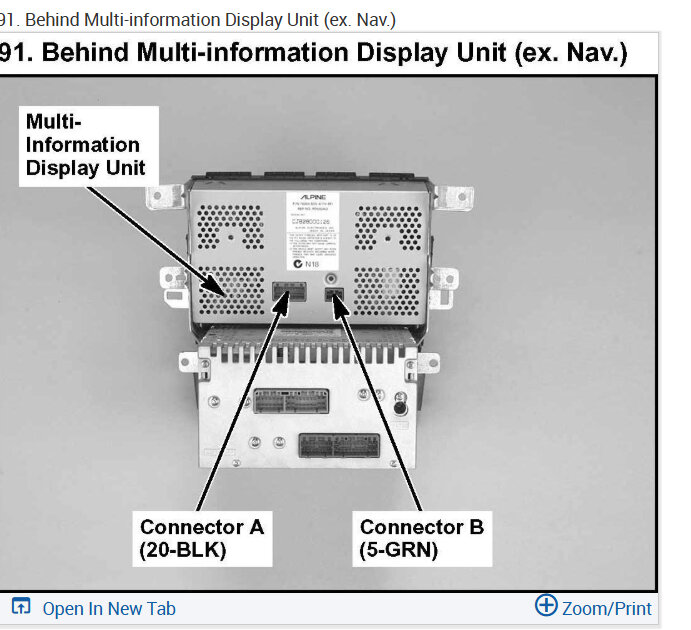

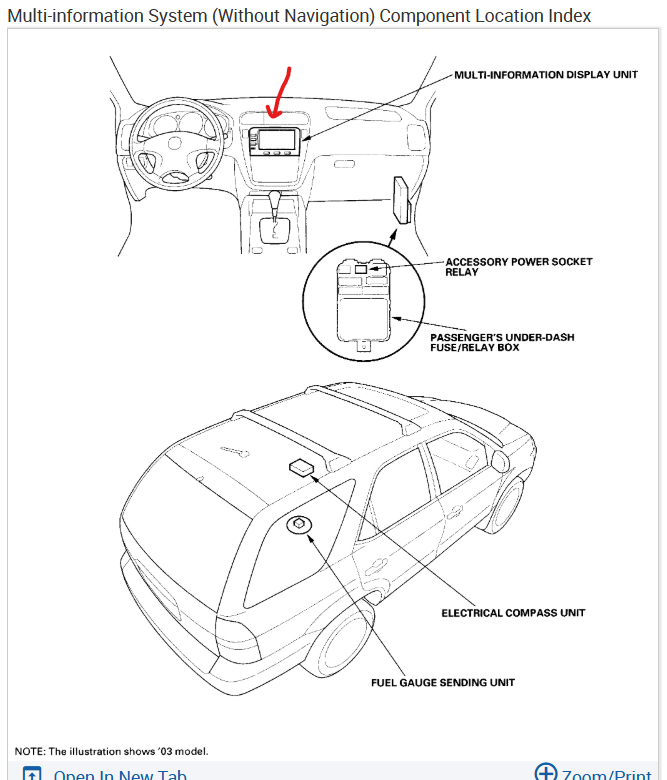

Check out the images (below). Let us know how it goes.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
May 18, 2025 at 6:41 PM
