No electrical

2003 VOLKSWAGEN JETTA
83,000 MILES • 1.8L • 4 CYL • FWD • MANUAL
Avatar
SKCASKEY
  • MEMBER
  • 1 POST
Charged battery. Interior lights, clock came on. When I turned ignition, lights, all electrical and clock when off and only a fan started under the hood. The car did not start. The electrical things did not come back on.
Mar 16, 2014 at 6:37 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

Just so that we cover all the possibilities, have you tried to jump start the vehicle?
When you turn the key does it make any noise?
Can you hear the starter clicking? what about any other noise?

If the battery is good, then you would have a issue with either the starter, starter relay or ignition switch. Any of these items can keep the vehicle from cranking over and starting.

https://www.2carpros.com/articles/starter-not-working-repair

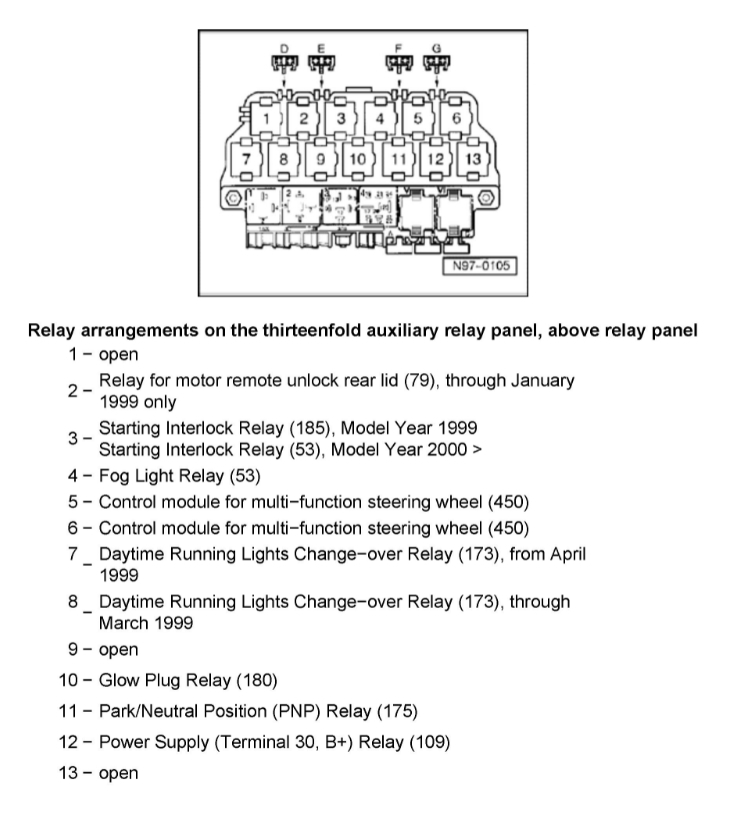

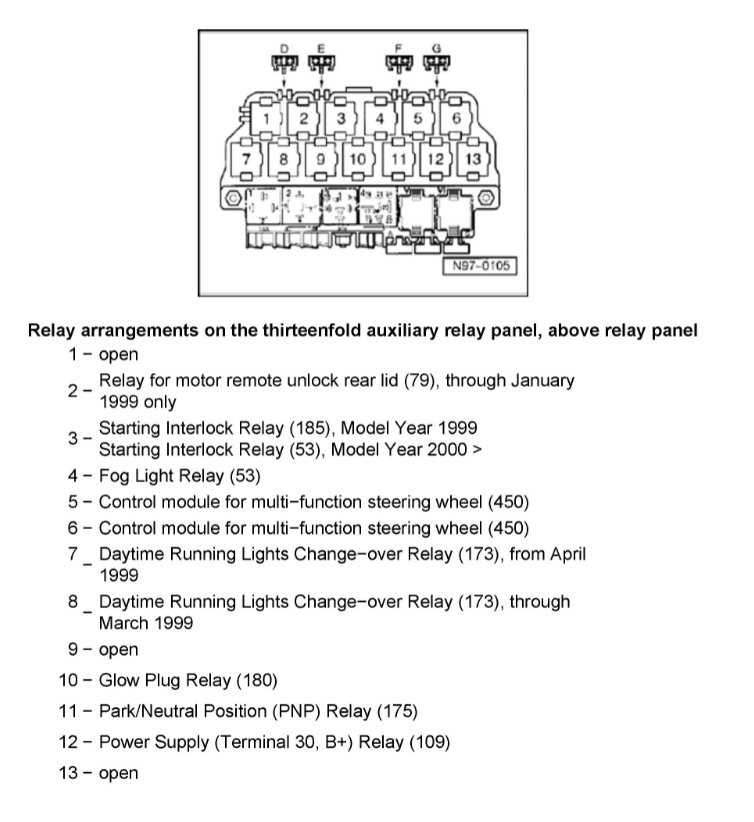

Firs you want the check the starter relay. It is located in the fuse block under the hood (see attached diagram below).
That relay can be tested. Please refer to this article on how to test relays:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
https://www.2carpros.com/articles/how-to-use-a-voltmeter
https://www.2carpros.com/articles/car-cranks-but-wont-start

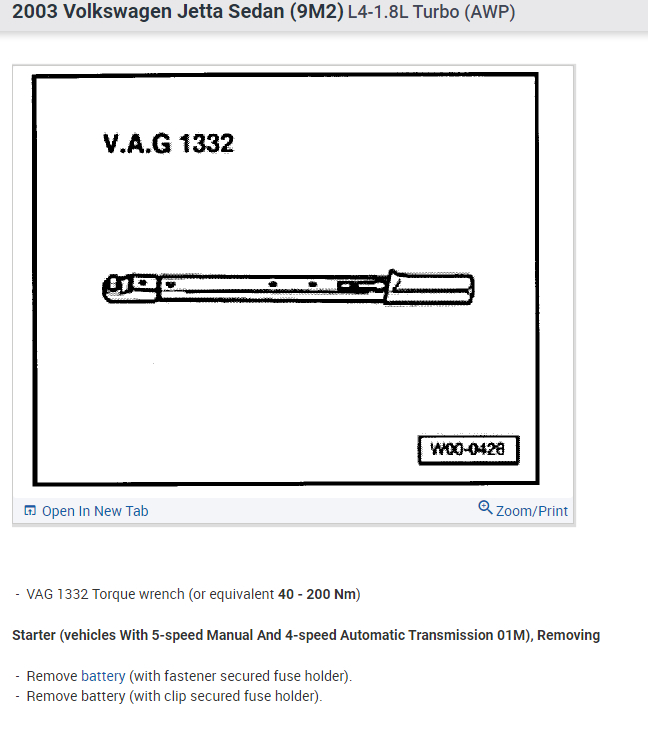

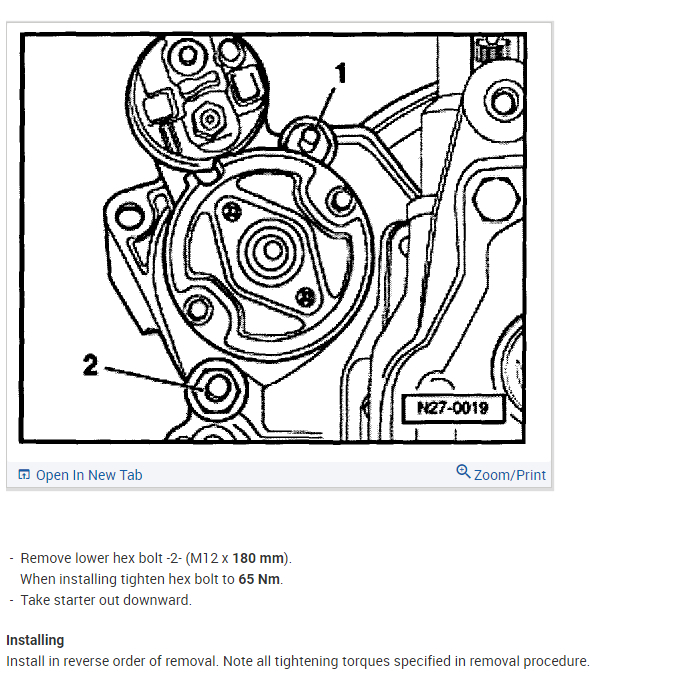

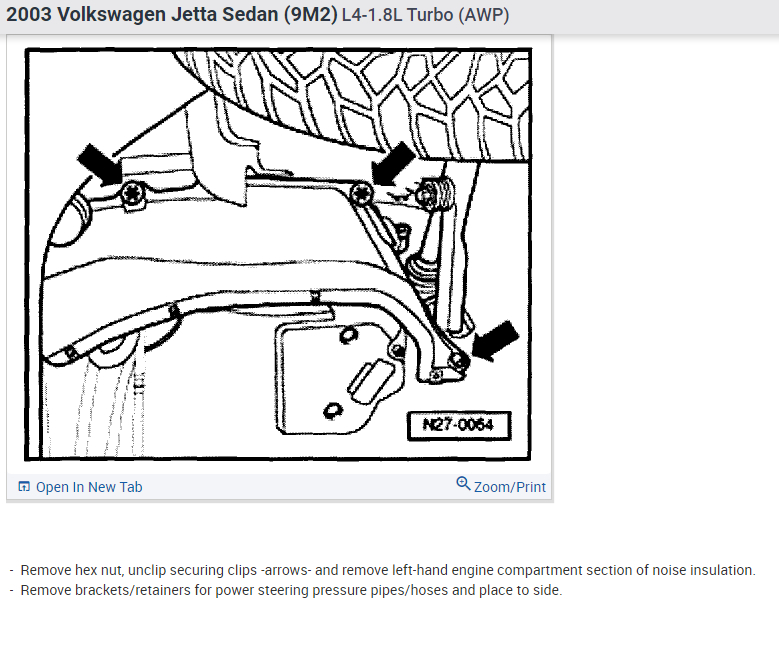

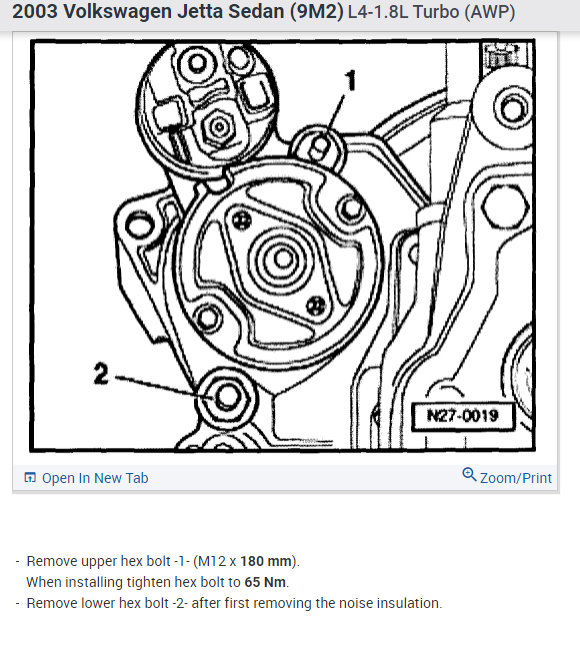

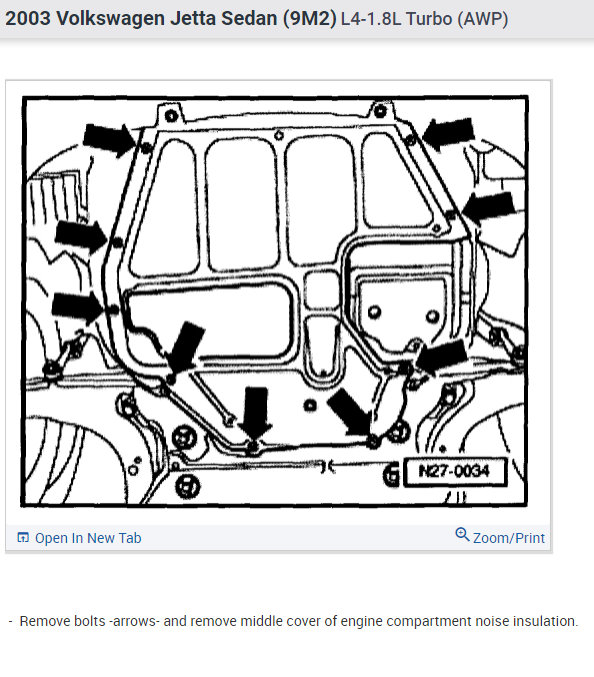

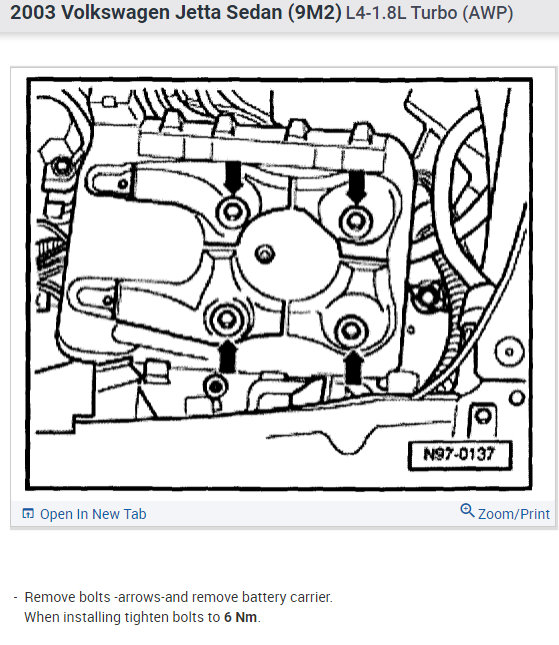

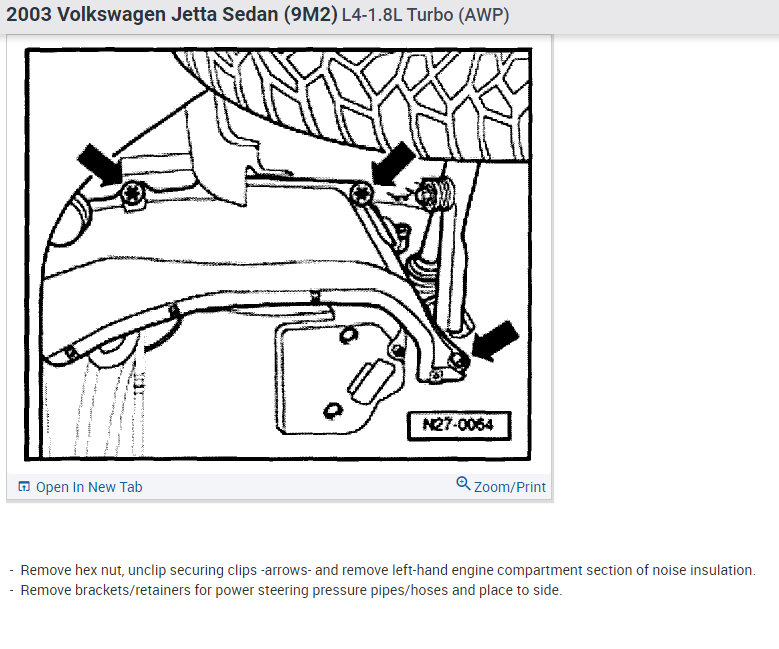

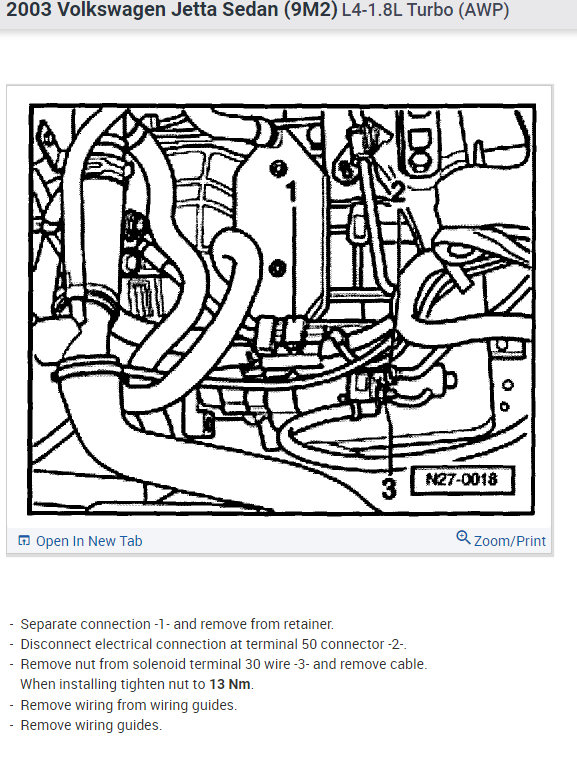

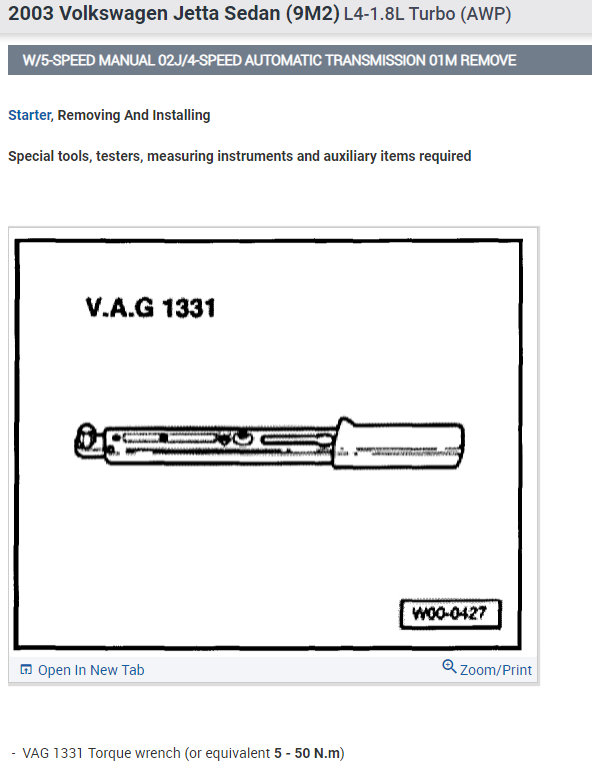

I have attached the diagrams for your reference.

Please let me know of any questions.

Thank you.
Aug 3, 2021 at 8:36 AM
