2003 VOLKSWAGEN BEETLE
100,000 MILES
Avatar
KEVINMCMILLAN
  • MEMBER
  • 1 POST
Im replacing passenger side cv axle on a 2003 vw beetle 1.8 turbo 6 speed automatic. The 6 speed standard is bolted to the trans. The 6 speed auto is held in by
a internal circlip. How do i compress the circlip to remove the axle. Thankyou. Desperate.
Dec 29, 2012 at 10:50 PM
Advertisement
Avatar
EXOVCDS
  • CERTIFIED EXPERT
  • 1,883 POSTS
It is a snap fit... use a large screw driver / pry bar to pop the shaft out.

Thomas
Dec 29, 2012 at 11:32 PM
Avatar
EXOVCDS
  • CERTIFIED EXPERT
  • 1,883 POSTS

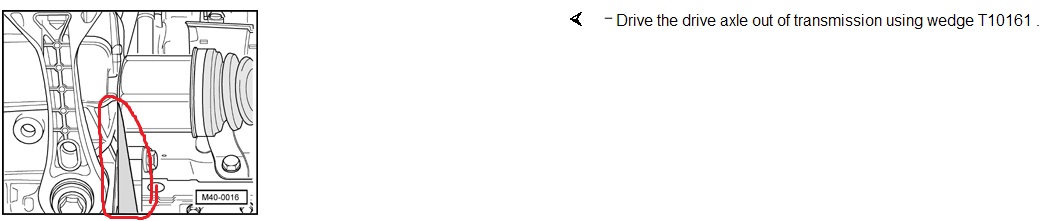

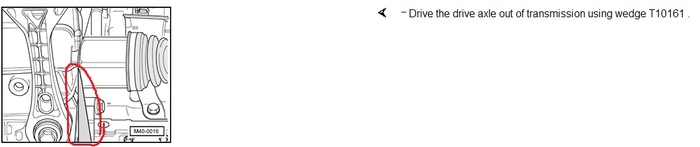

Picture attached....

Thomas
Dec 29, 2012 at 11:33 PM
Advertisement
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS
Clip does not need compressing. As exovds said, you just need to pry the axle out of the transmission with a large screwdriver or pry bar.
Dec 30, 2012 at 12:53 AM
