replace headlight?

2003 TOYOTA HIGHLANDER
AWD • AUTOMATIC
Avatar
GRIM7US
  • MEMBER
  • 1 POST
how to replace headlight assembly on 2003 toyota highlander please?
Dec 29, 2010 at 10:02 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Here is a guide to help you see what you are in for when doing the job.

https://www.2carpros.com/articles/how-to-replace-a-headlight-bulb

Here are the directions and diagrams (Below) to get the job done.

Disconnect the connectors.
Disconnect the pin.

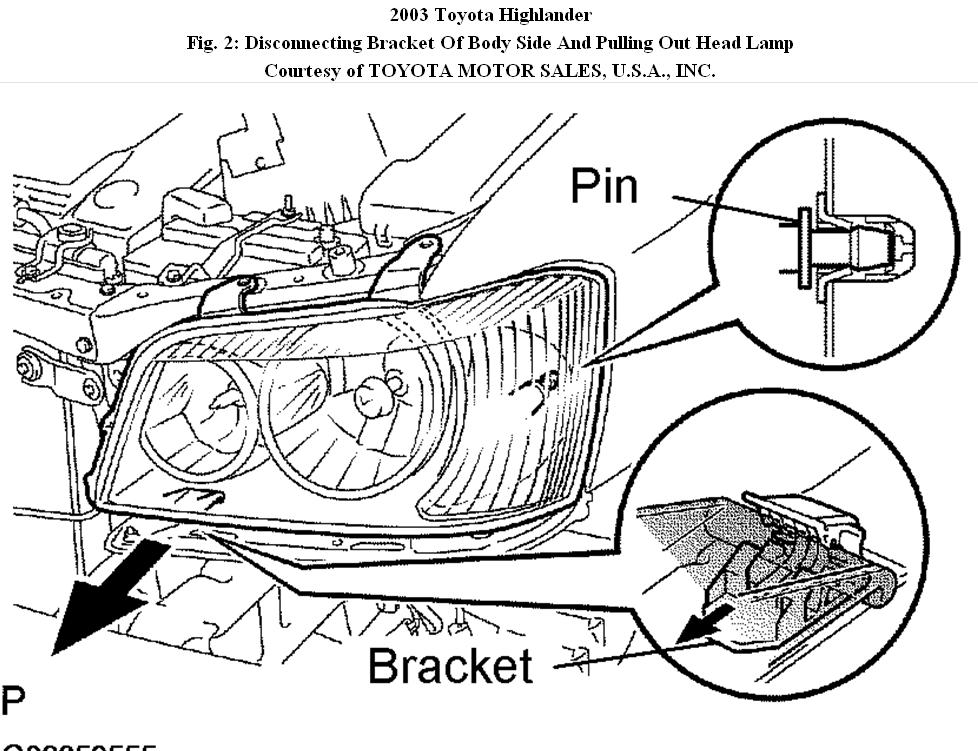

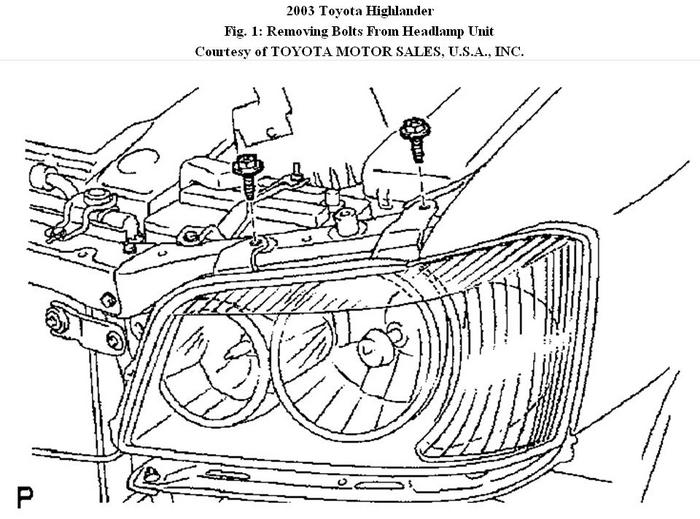

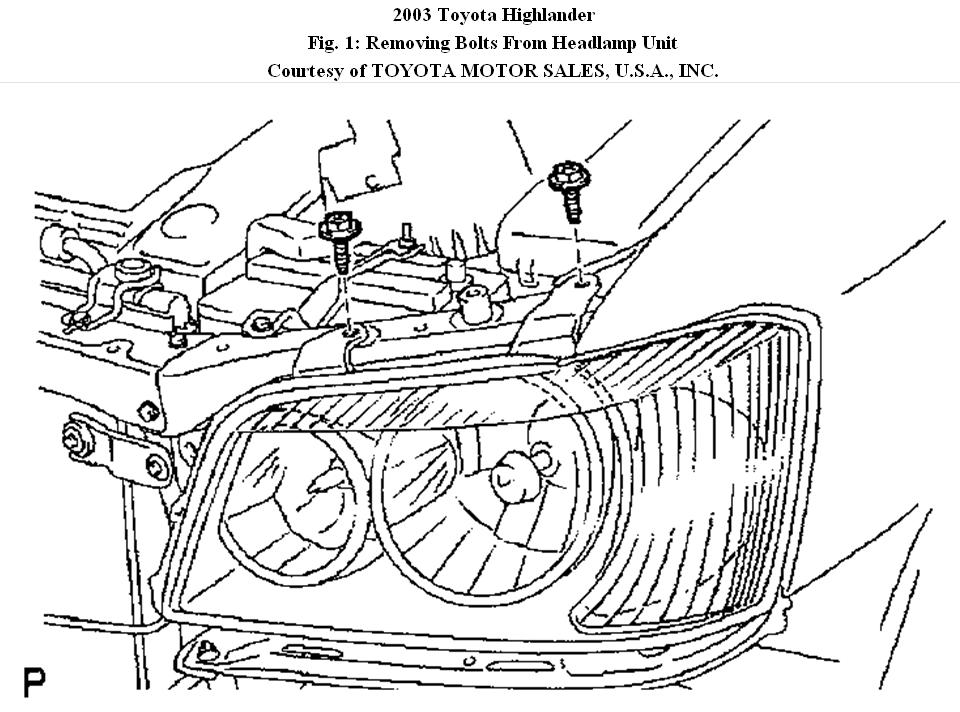

Pull out the head lamp unit forward, then disconnect the bracket of body side.
INSTALL HEADLAMP PROTECTOR RETAINER UPPER LH
HINT: When only the installation part of the headlamp unit LH is damaged, it can be repaired inexpensively by using a bracket provided for repair. In this case, however, the headlamp assembly LH itself should not be damaged.

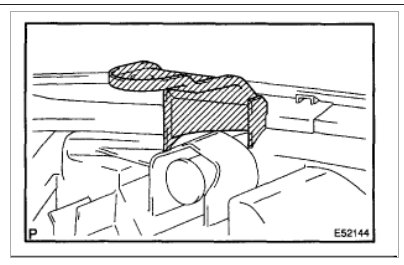

Cut off the part shaded in the illustration and properly it with sandpaper.
NOTE: After roughly cutting off the part, place the headlamp protector retainer UPR LH against the bosses and gradually file any interfering part until the proper condition for installation is made.

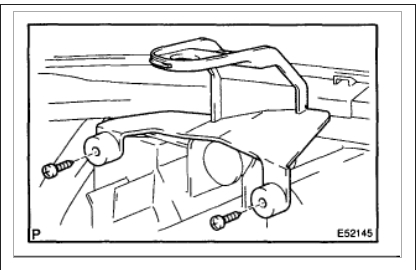

Install the headlamp protector retainer UPR LH with the 2 screws.
INSTALL HEADLAMP PROTECTOR RETAINER LWR LH
HINT: When only the installation part of the headlamp unit LH is damaged, it can be repaired inexpensively by using a bracket provided for repair. In this case, however, the headlamp assembly LH itself should not be damaged.


Cut off the part shaded in the illustration and properly it with sandpaper.
NOTE: After roughly cutting off the part, place the headlamp protector retainer LWR LH against the bosses and gradually file any interfering part until the proper condition for installation is made


Install the headlamp protector retainer LWR LH with the 2 screws.
INSTALL HEADLAMP BRACKET LWR LH
HINT: When only the installation part of the headlamp unit LH is damaged, it can be repaired inexpensively by using a bracket provided for repair. In this case, however, the headlamp assembly LH itself should not be damaged.

Cut off the part shaded in the illustration and properly it with sandpaper.
NOTE: After roughly cutting off the part, place the headlamp bracket LWR LH against the bosses and gradually file any interfering part until the proper condition for Installation Is made.

Install the headlamp bracket LWR LH with the screw.
HEADLIGHT AIM ONLY

Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers
Jan 4, 2011 at 5:09 PM
