How do I replace my water pump. Does the 2.5 have a timing chain that I have to take off to get to the water pump
Nov 14, 2012 at 9:10 PM
2003 NISSAN ALTIMA
ANONYMOUS
- MEMBER
- 1 POST
- FOLLOW
Advertisement
REMOVAL
CAUTION:
Perform when the engine is cold.
NOTE:
If necessary, the alternator and exhaust manifold catalytic convertor assembly must be removed to remove the water pipe.
1. Drain coolant.
2. Remove the following parts:
l Undercover, using power tools.
l Alternator, water pump and air compressor drive belt.
l Engine cover and coolant reservoir.
l IPDM E/R (set aside).
l Front passenger side wheel and tire, and splash shield.
l Engine ground.

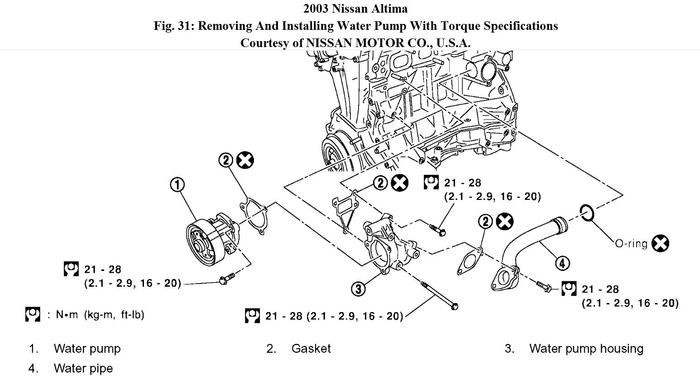

3. Remove the water pump.
CAUTION:
Perform when the engine is cold.
NOTE:
If necessary, the alternator and exhaust manifold catalytic convertor assembly must be removed to remove the water pipe.
1. Drain coolant.
2. Remove the following parts:
l Undercover, using power tools.
l Alternator, water pump and air compressor drive belt.
l Engine cover and coolant reservoir.
l IPDM E/R (set aside).
l Front passenger side wheel and tire, and splash shield.
l Engine ground.

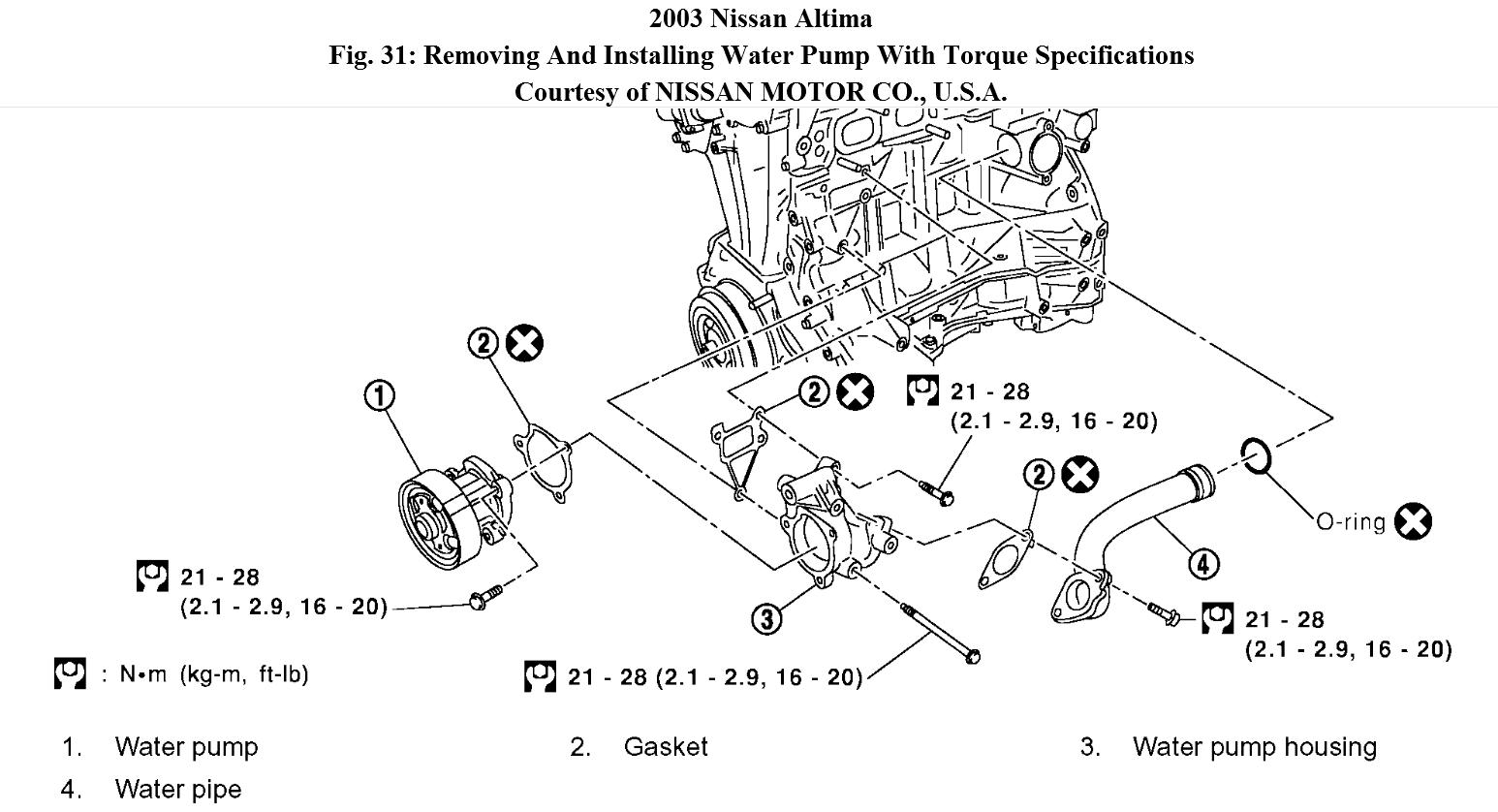

3. Remove the water pump.
Image (Click to enlarge)
Nov 14, 2012 at 9:30 PM
