DRUM BRAKES
Removal
NOTE: Numbers in parenthesis refer to number in illustration.

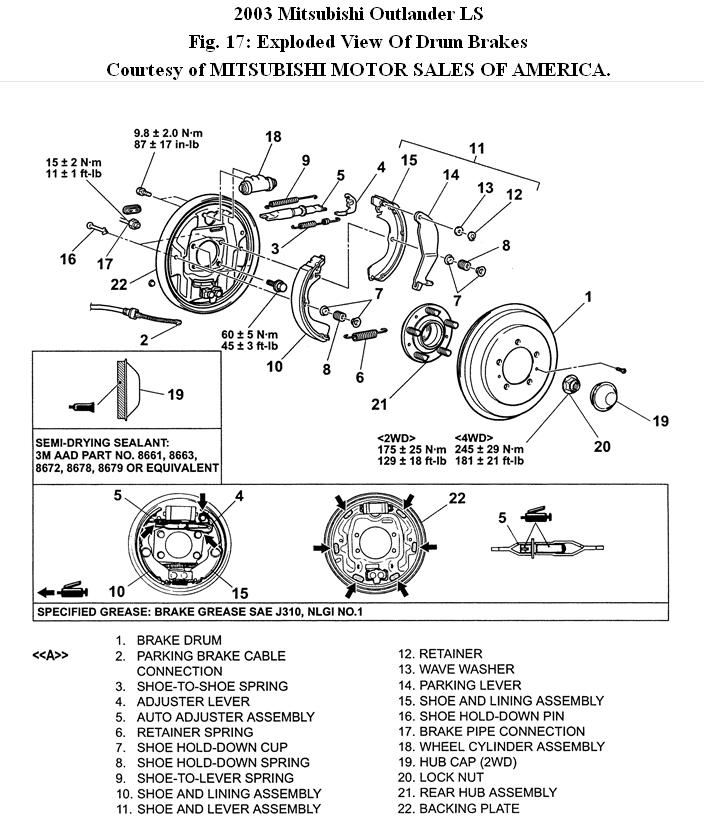

1. Remove drum brake. See Fig. 17 .

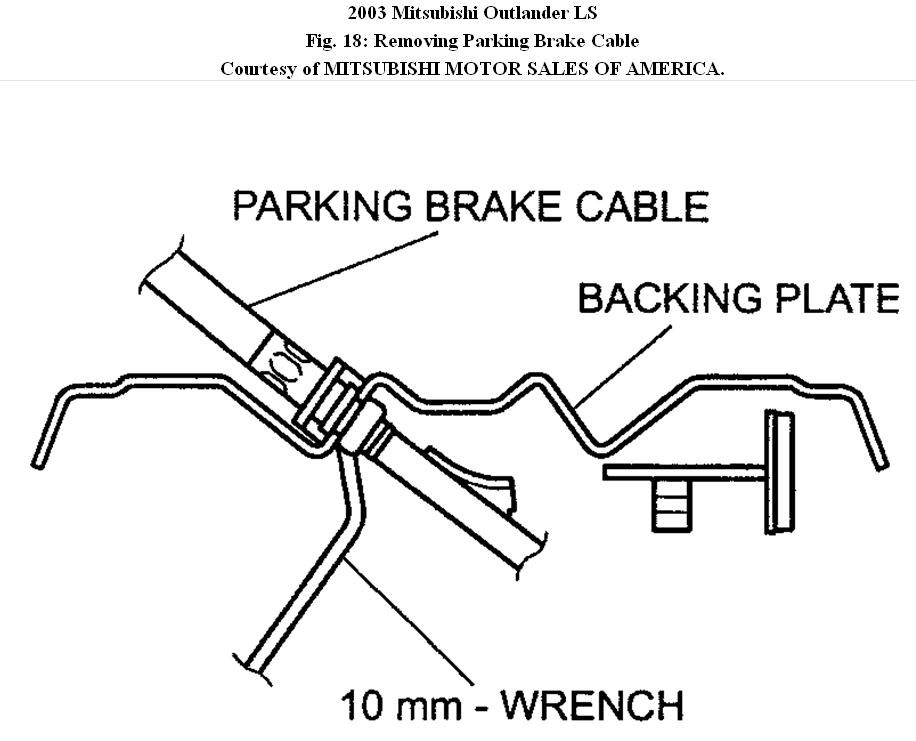

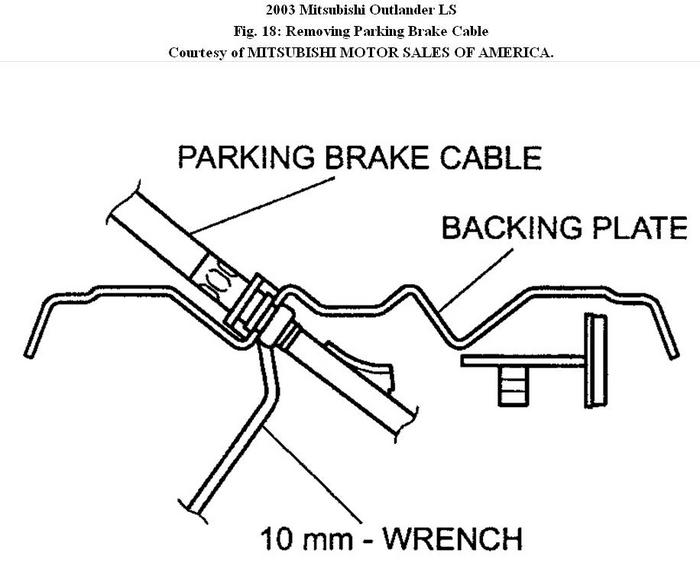

2. Using a 10-mm wrench, withdraw the parking brake cable from the backing plate. See Fig. 18 .
3. Remove shoe-to-shoe spring. See Fig. 17 .
4. Remove adjuster lever.
5. Remove auto-adjuster assembly.
6. Remove retainer spring.
7. Remove shoe hold-down cup.
8. Remove shoe hold-down spring.
9. Remove shoe-to-lever spring.
10. Remove shoe and lining assembly (10).

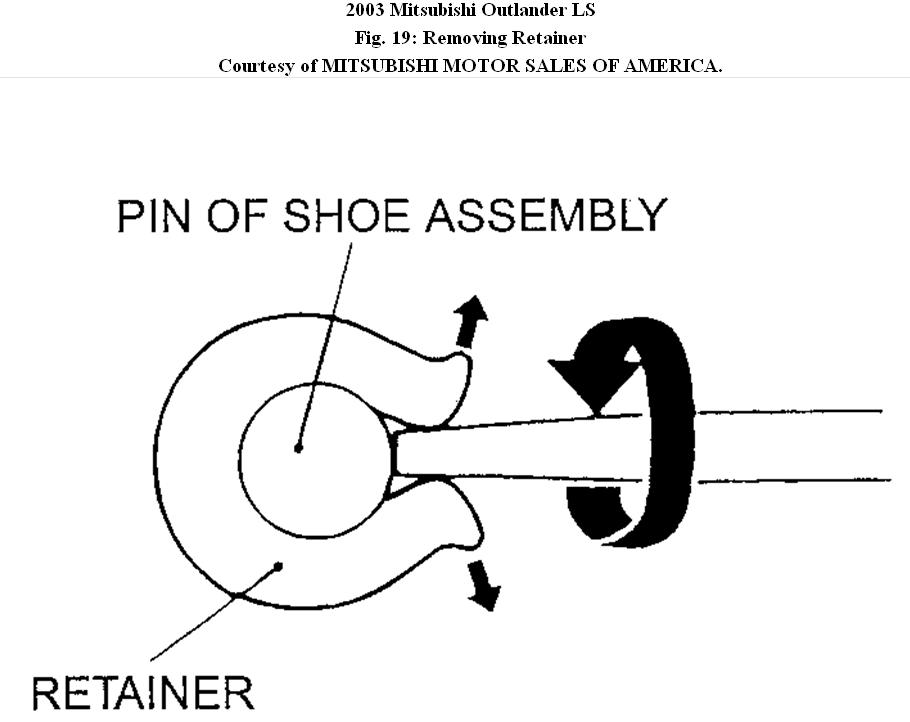

11. Using a flat-tipped screwdriver or a similar tool, open up the retainer joint. See Fig. 19 . Then remove the retainer.
12. Remove wave washer. See Fig. 17 .
13. Remove parking lever.
14. Remove shoe and lining assembly (15).
15. Remove shoe hold-down pin.


Installation

1. Install shoe hold-down pin.
2. Install shoe and lining assembly (15).
3. Install parking lever.

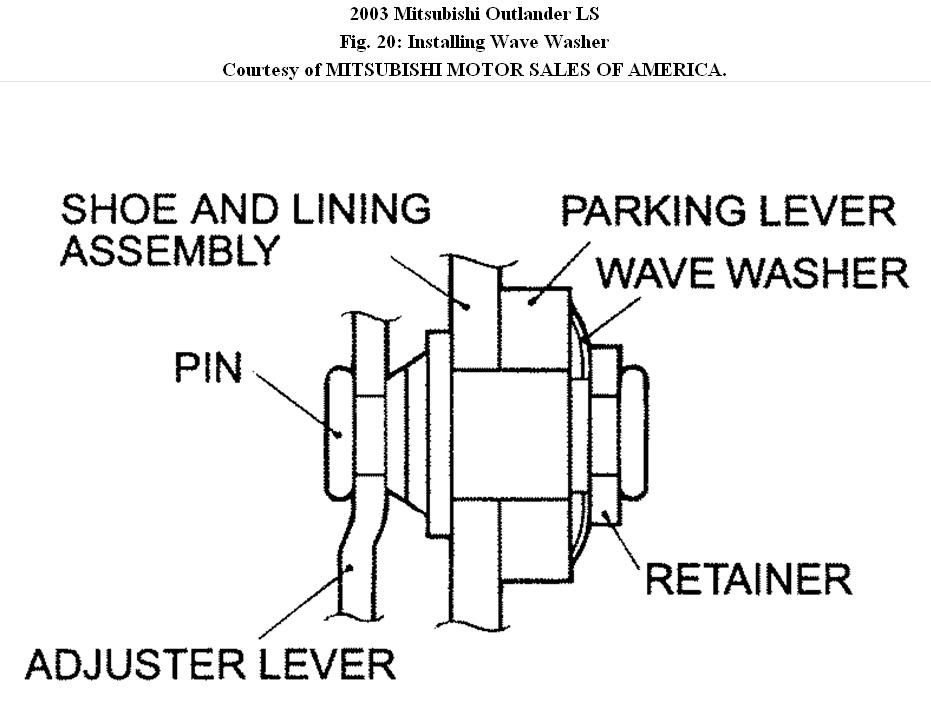

4. Install the wave washer as illustrated. See Fig. 20 .

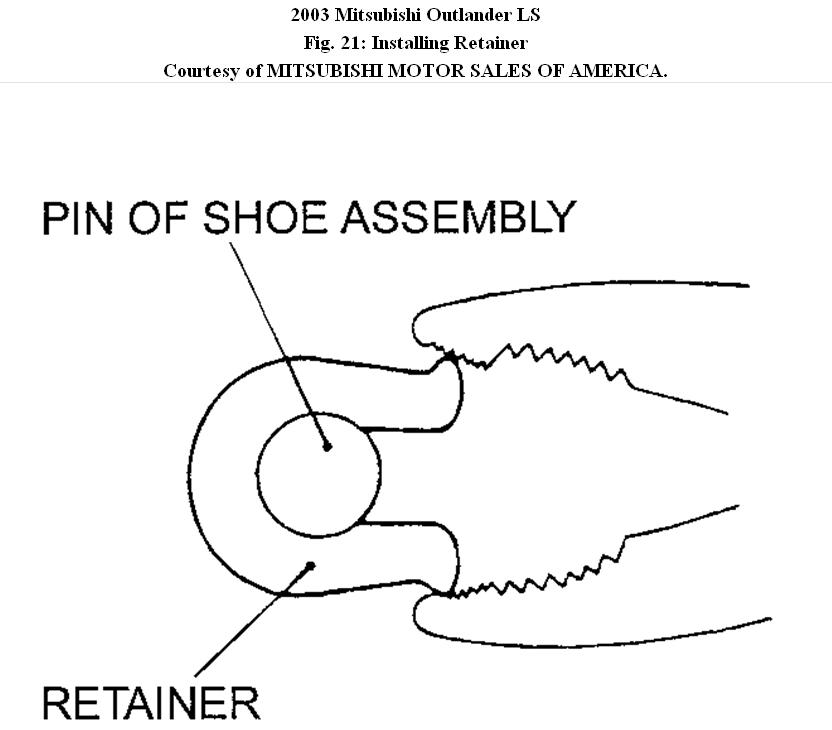

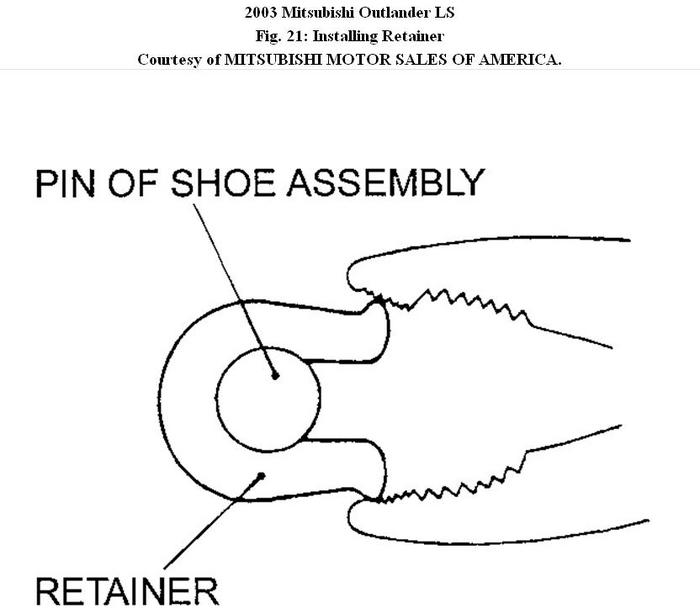

5. Use pliers or a similar tool to close the retainer end onto the pin. See Fig. 21 .
6. Install shoe and lever assembly. See Fig. 17 .
7. Install shoe and lining assembly.
8. Install shoe-to-lever spring.
9. Install shoe-lever cup.
10. Install retainer spring.
11. Install auto-adjuster assembly.
12. Install adjuster lever.
13. Install shoe-to-shoe spring.
14. Reconnect parking brake cable.
15. Install brake drum.

© 2008 Mitchell Repair Information Co., LLC.
