Cigarette lighter socket bad

2003 MITSUBISHI LANCER
90,000 MILES • 4 CYL • FWD • AUTOMATIC
Avatar
STEVENKATE
  • MEMBER
  • 1 POST
How do I replace the cigarette socket in my 2003 Lancer...it is located in the console?
Dec 28, 2010 at 8:49 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hello,

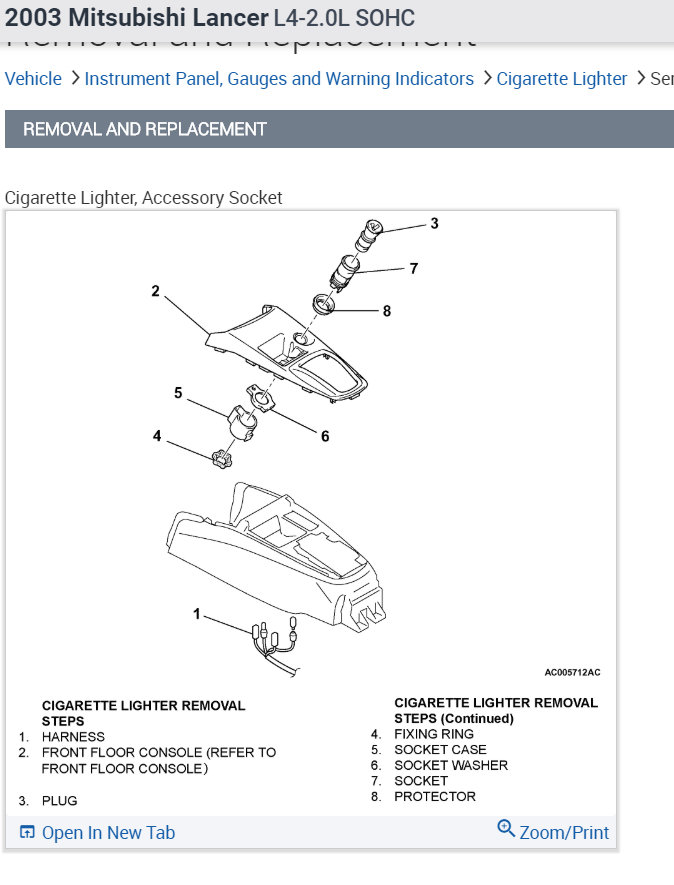

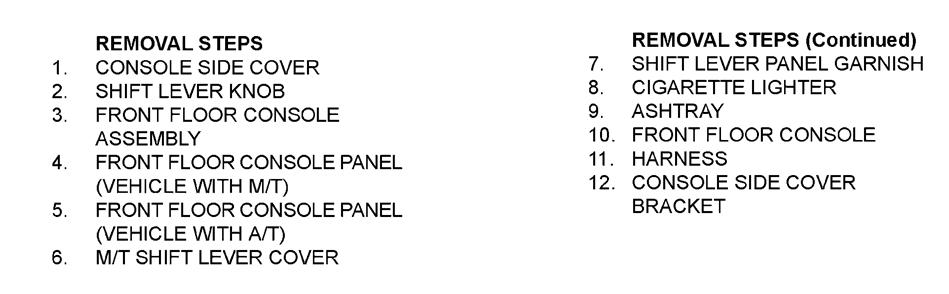

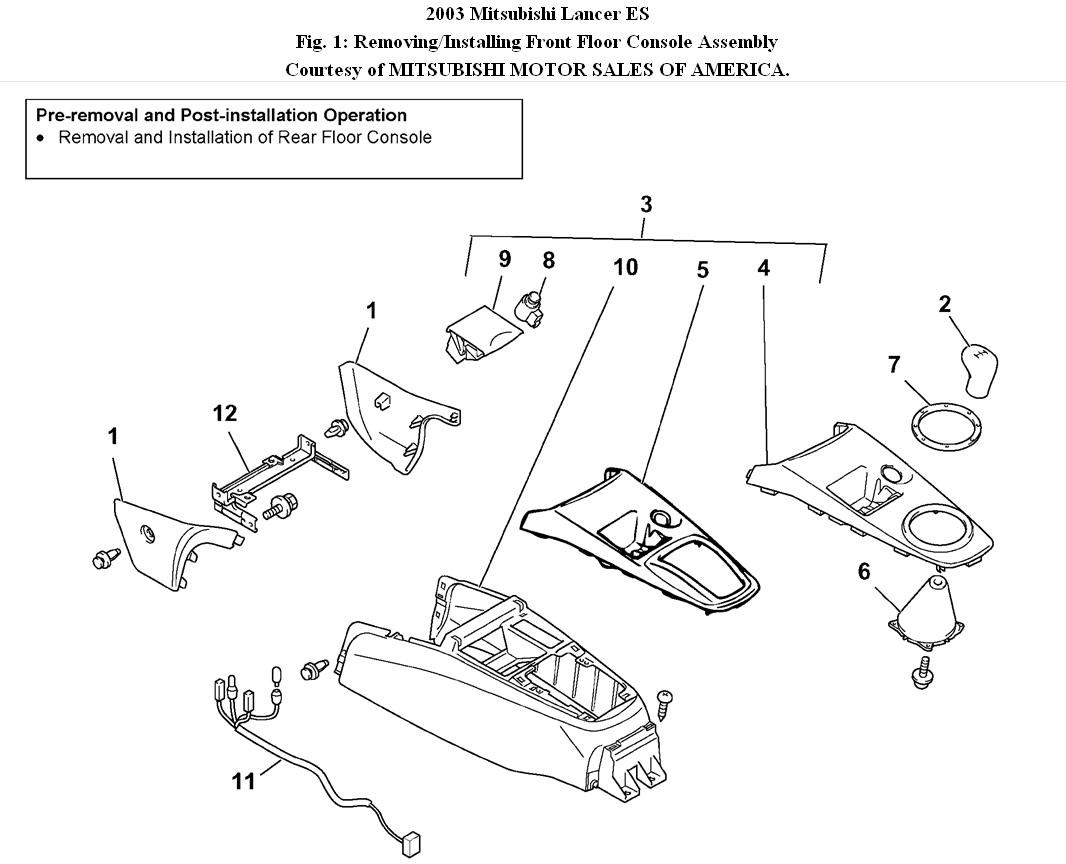

Here are the diagrams below to show you how to change out the cigarette light of your car. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jan 4, 2011 at 4:16 PM
Avatar
PAUL.WEE
  • MEMBER
  • 1 POST
How do I replace the cigarette lighter?
Jan 26, 2019 at 5:11 PM (Merged)
Advertisement
Avatar
DAVE H
  • CERTIFIED EXPERT
  • 13,384 POSTS
unplug electrical connector and unbolt from rear !
Jan 26, 2019 at 5:11 PM (Merged)
Avatar
BLISS801
  • MEMBER
  • 1 POST
cigarette lighter and ashtray and gear shifter light wont light up. but everything else will light up in my car like my cd player and my gauges i have a 04 lancer es. please help me
Image (Click to enlarge)
Attached Media
Jan 26, 2019 at 5:12 PM (Merged)
Avatar
HAMMAM AL-SHOBAKI
  • MEMBER
  • 4 POSTS
there is a connector behind the cigarette lighter ,check if it's still connected
Jan 26, 2019 at 5:12 PM (Merged)
