Turn signals not working

2003 MITSUBISHI ECLIPSE
179,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
my signal lights does not work. i have check all fuses and they are good. what next?thanks
Nov 17, 2012 at 11:24 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You would need a test light or DVOM to test the fuses and check for missing battery voltages.

Have you checked the wire connectors?

Nov 18, 2012 at 10:21 AM
Avatar
LSDJSS
  • MEMBER
  • 4 POSTS
I own the vesicle listed above GS and the turning signals don’t work. I don’t see a fuse for it and not sure if it’s a wiring issue or relay issue. The hazards work fine and the bulbs flash for the hazards. But for turning, no signals on dash and no flashing of the bulbs.

I replaced the actual stalk on the steering wheel but to no avail.

What should I do?
Dec 1, 2019 at 2:23 PM (Merged)
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello,

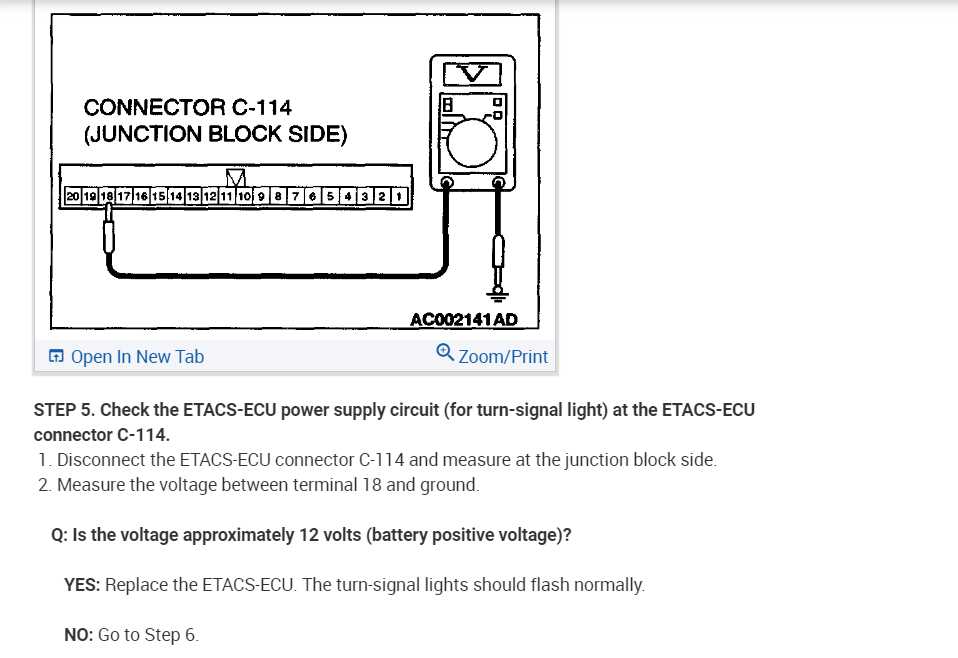

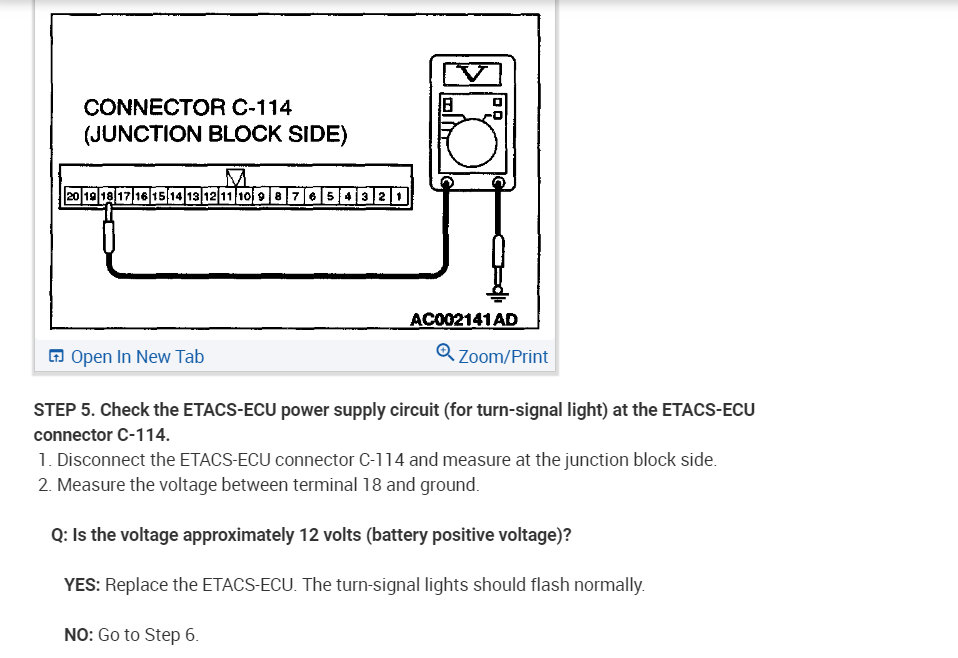

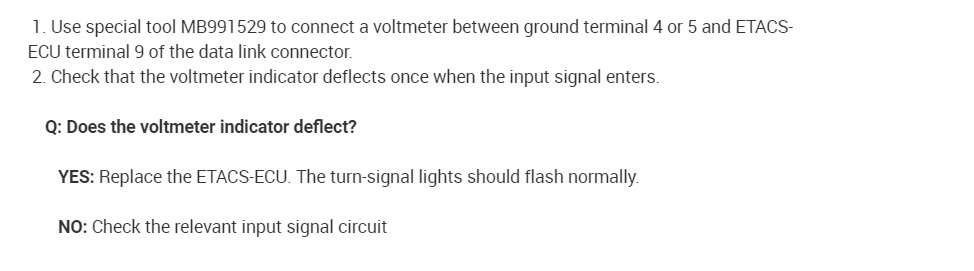

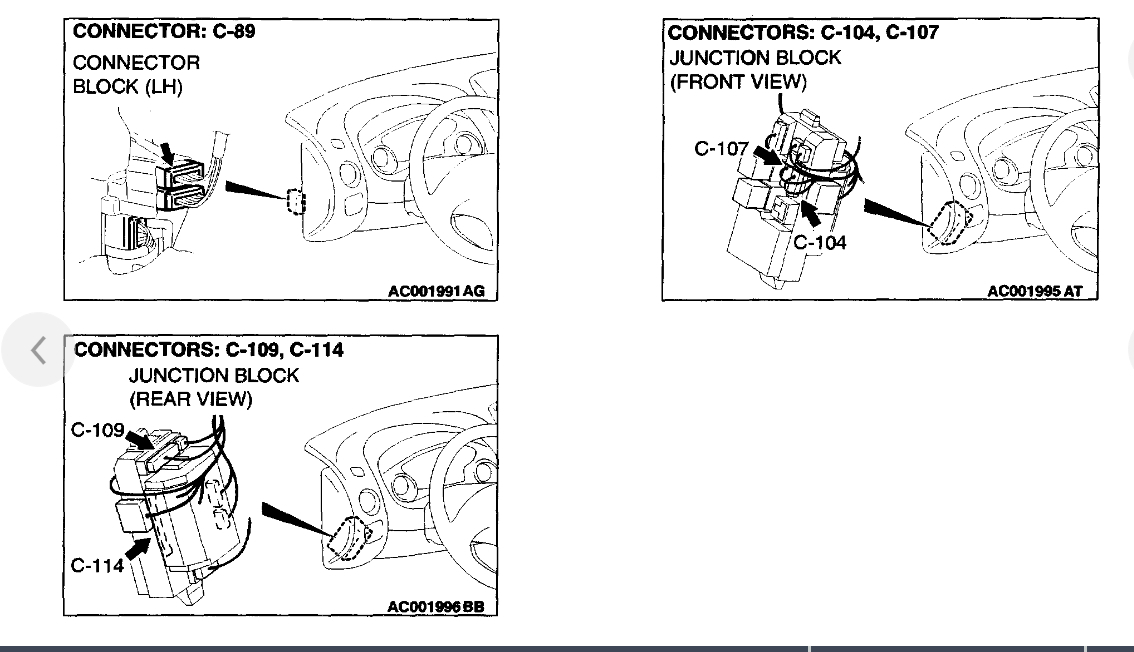

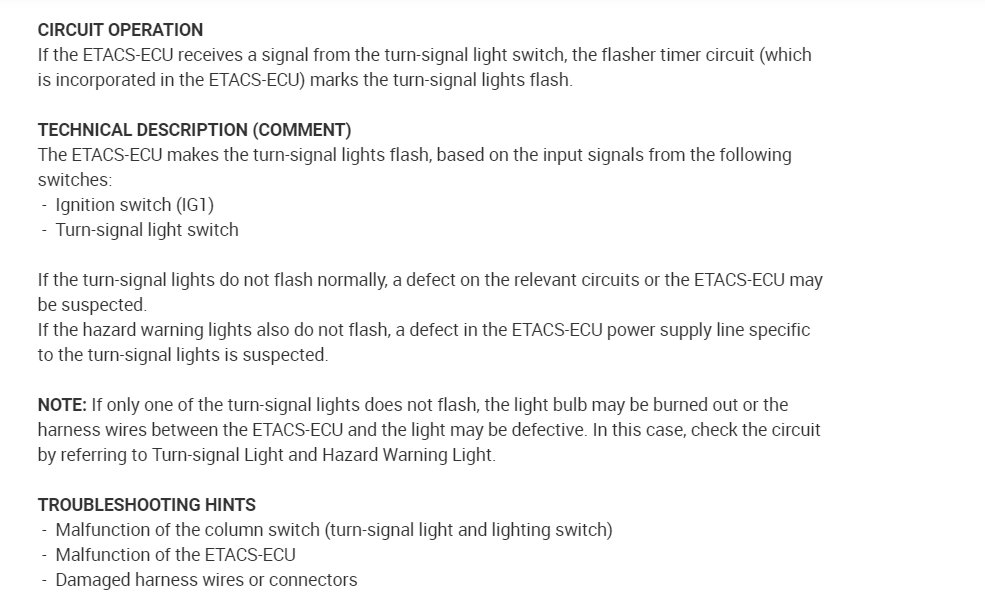

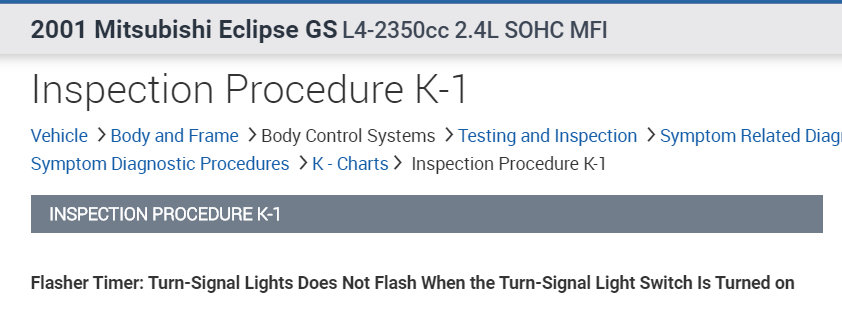

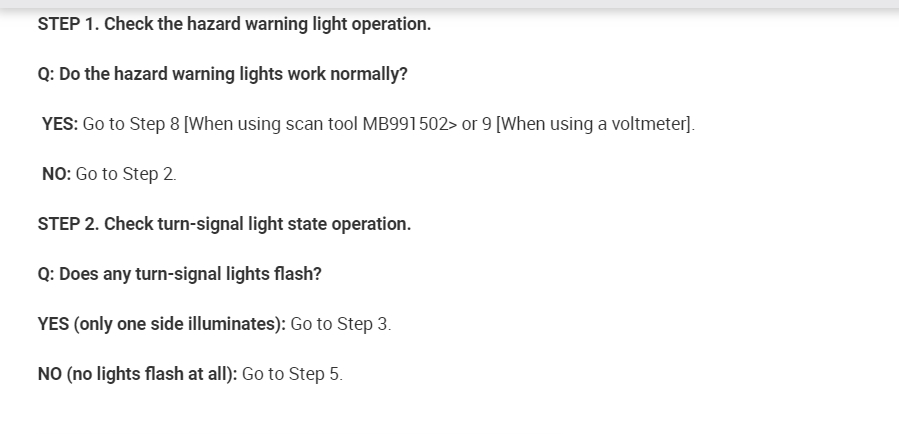

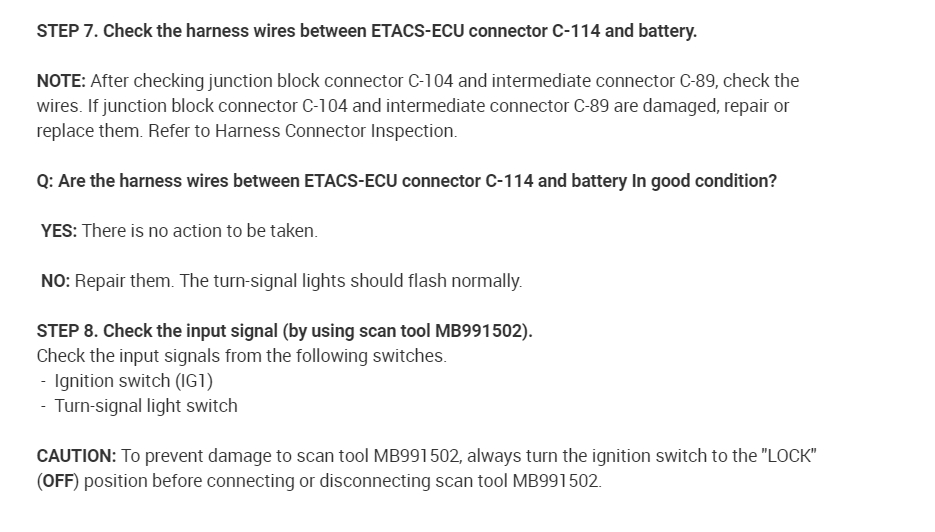

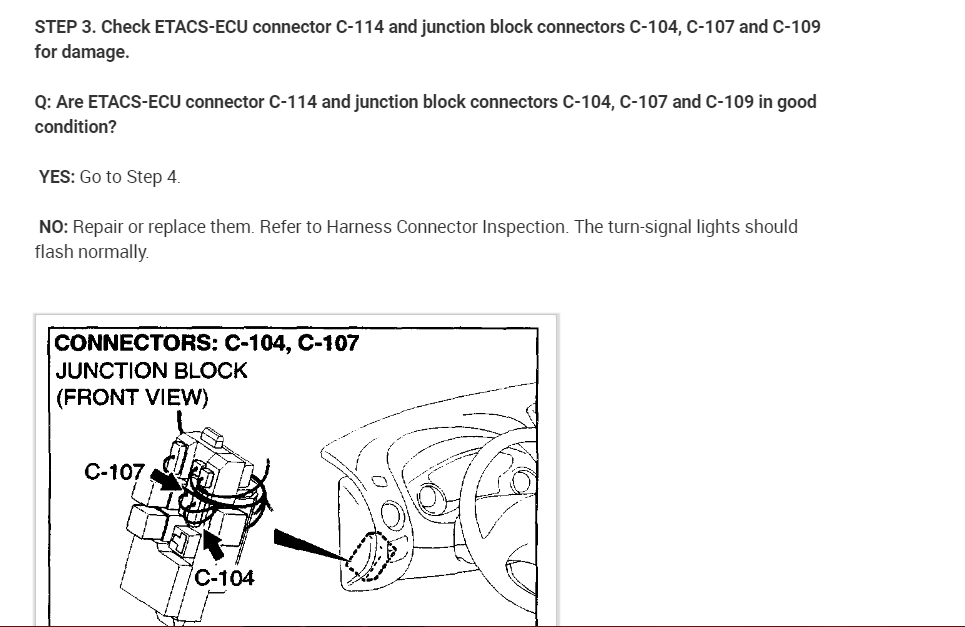

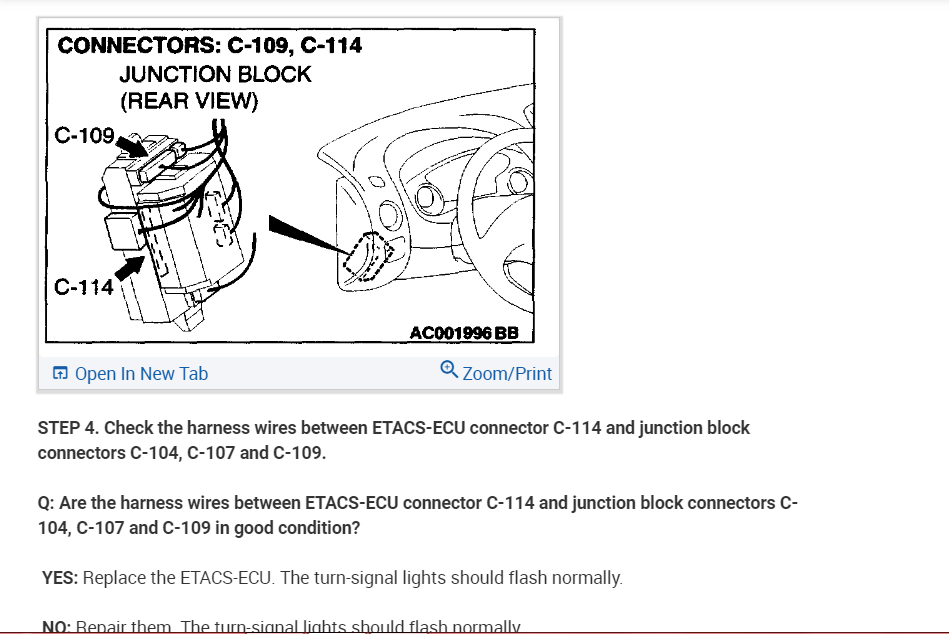

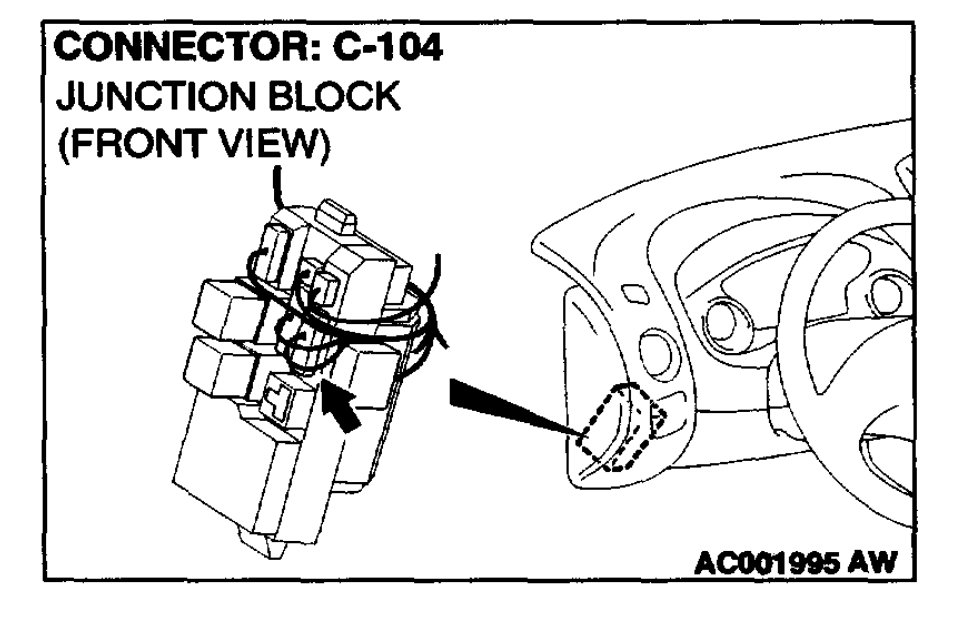

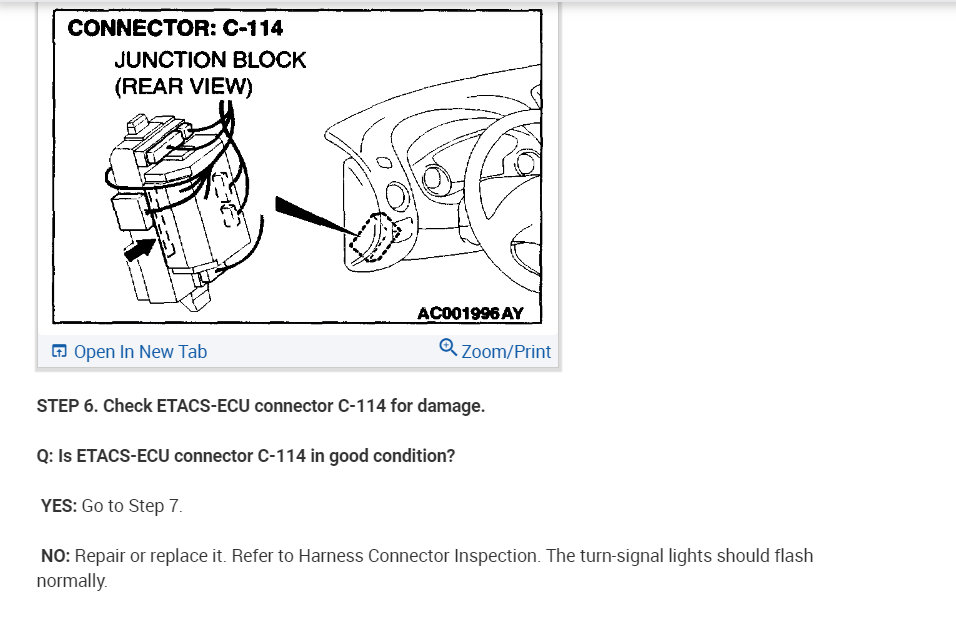

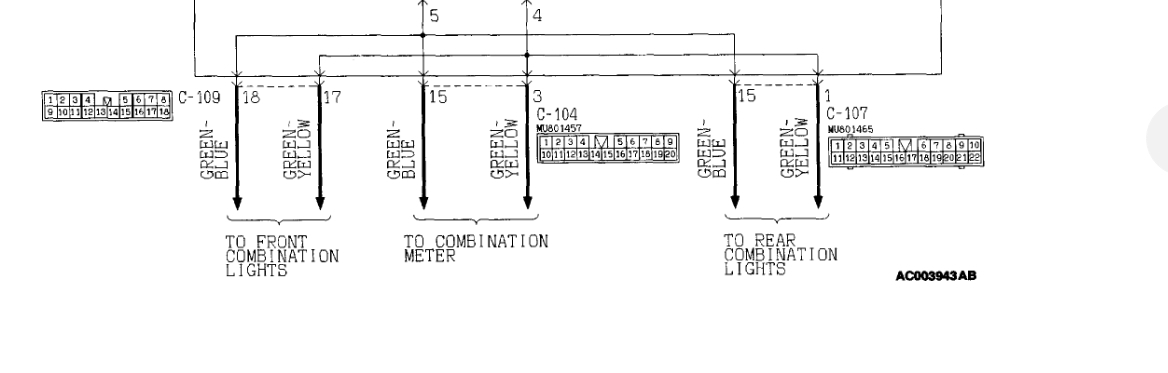

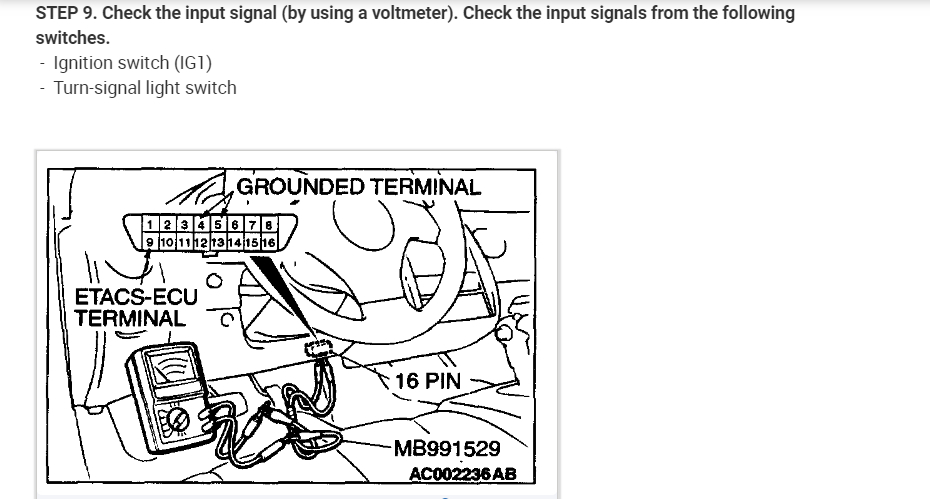

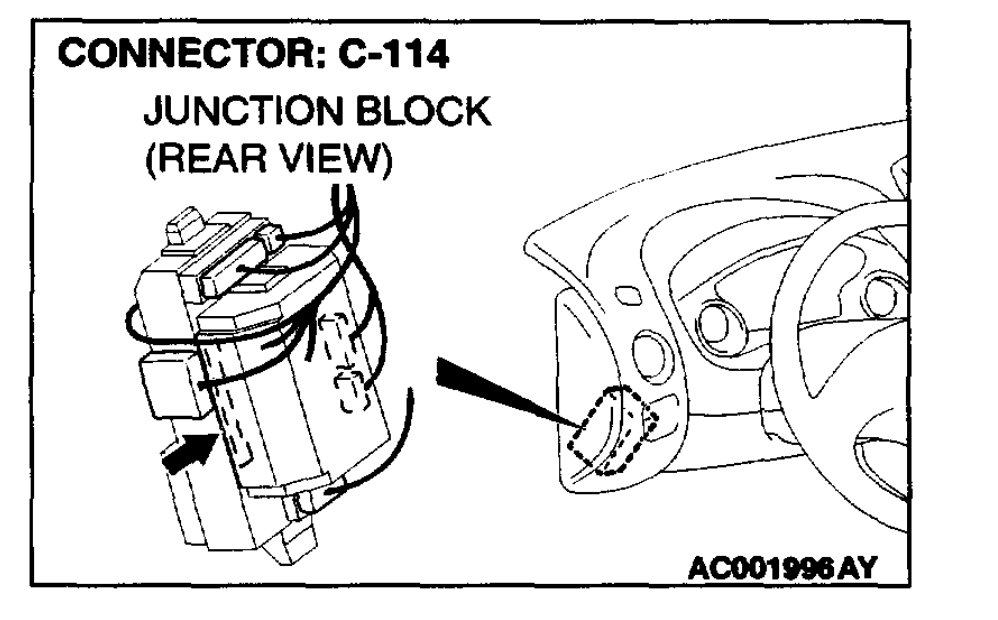

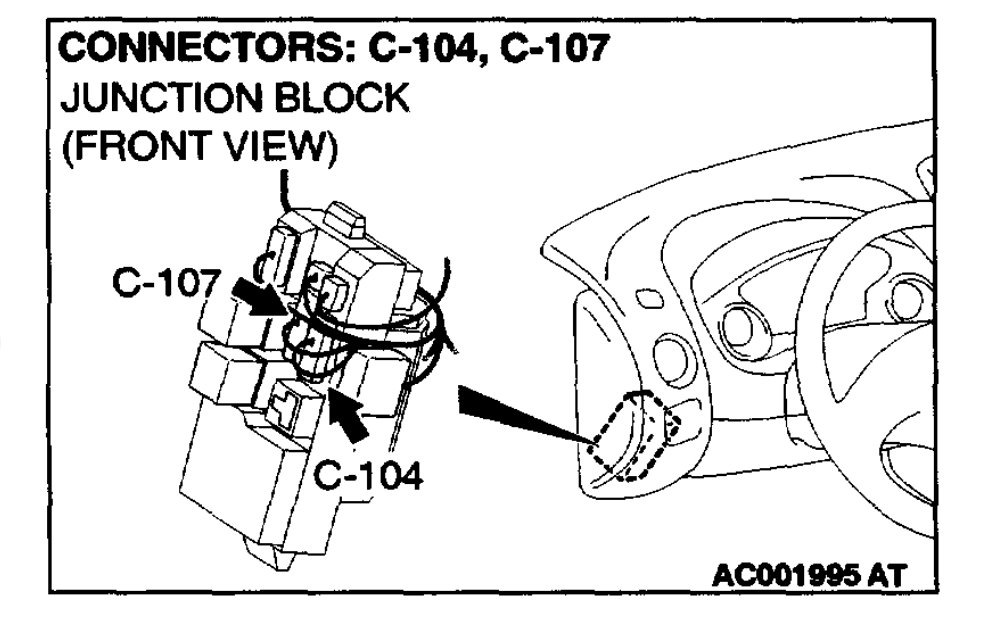

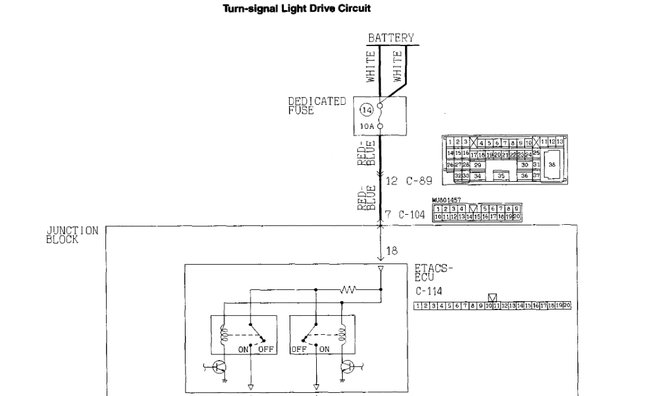

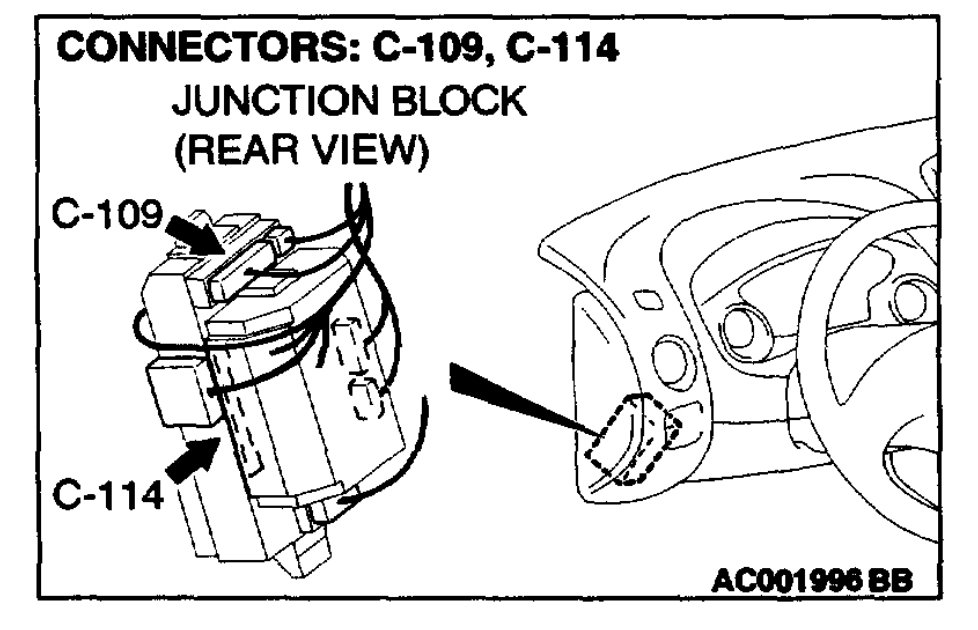

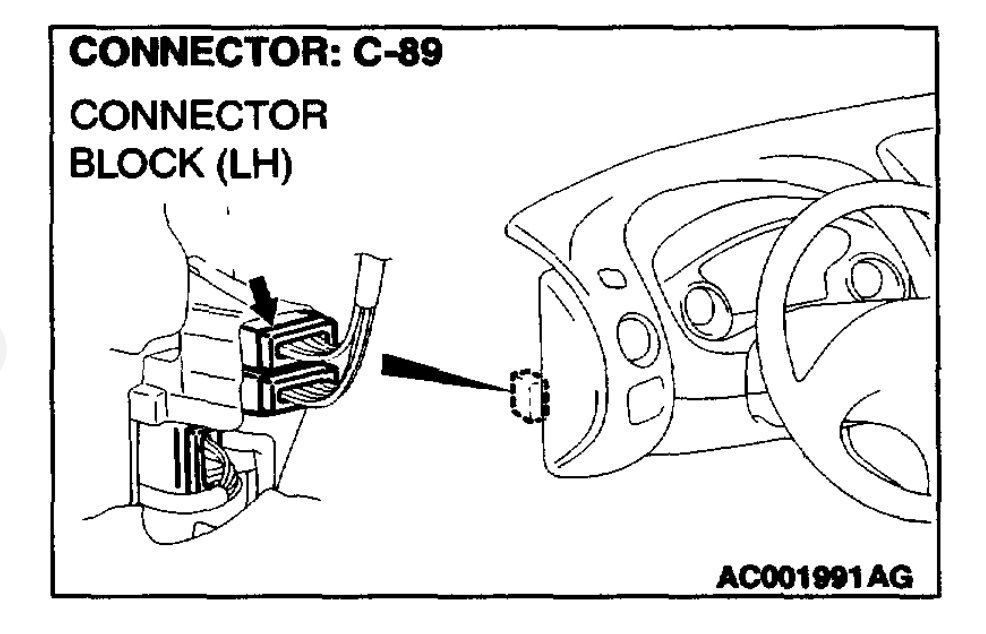

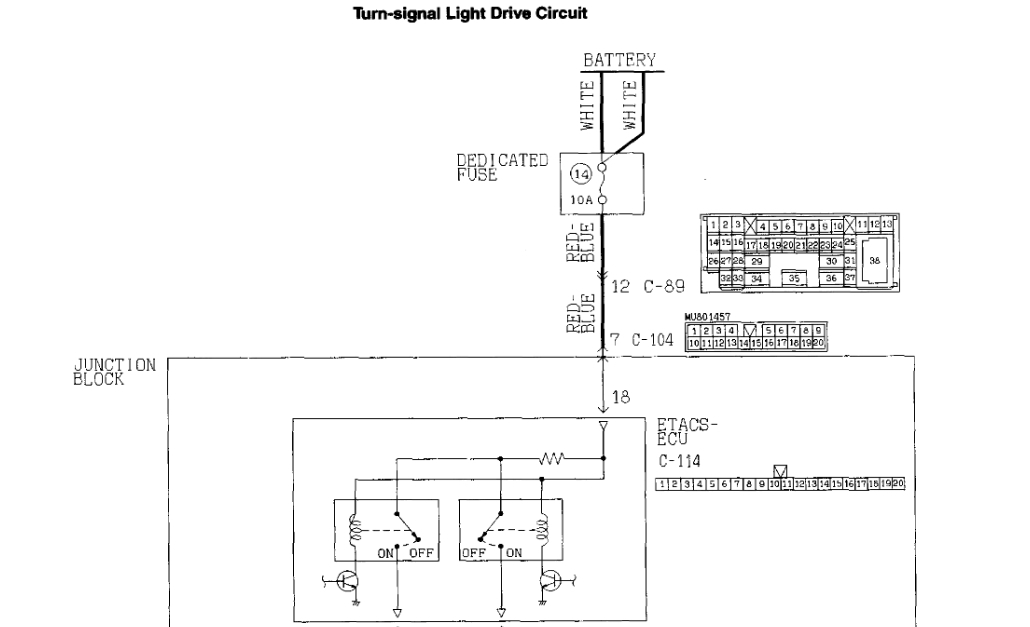

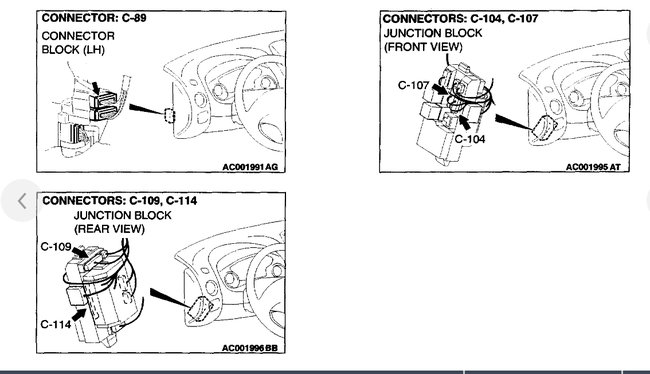

In the diagrams down below I have included the diagnostic troubleshooting guide from the vehicle manufacturer for your vehicle's turn signals being inoperative. This troubleshooting guide will require you to use a Digital Multi-meter [DMM], so here is a link below explaining how to use a DMM down below, if needed:

https://www.2carpros.com/articles/how-to-use-a-voltmeter

Please go through these guides and get back to us with what you are able to find out.

Thanks,
Alex
2CarPros
Dec 1, 2019 at 2:23 PM (Merged)
Avatar
LSDJSS
  • MEMBER
  • 4 POSTS
Hey Alex,

Can you tell which dedicated fuse(14) that is? Is it in the passenger compartment fuse box or the engine compartment fuse box?
Dec 1, 2019 at 2:23 PM (Merged)
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello again,

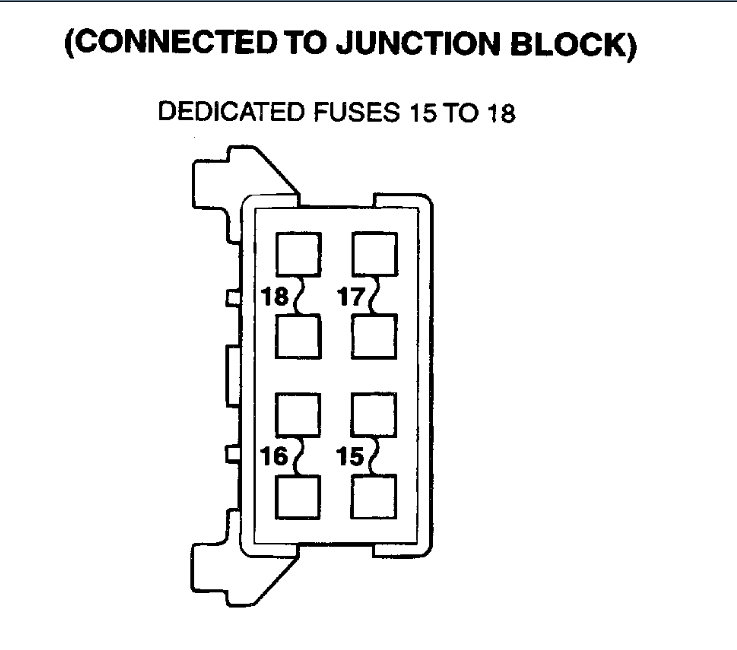

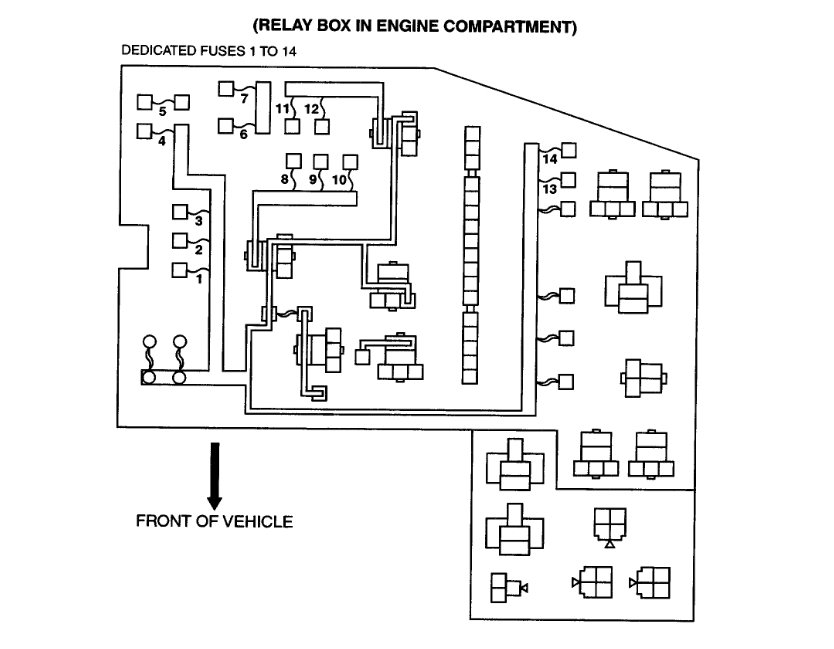

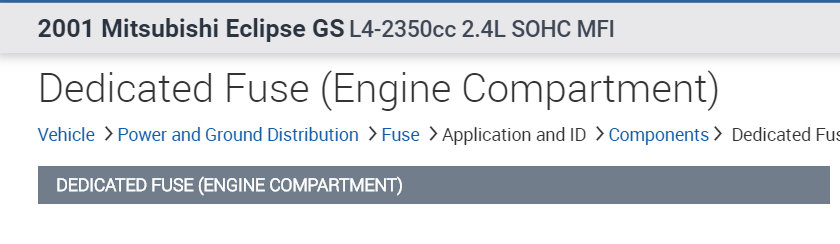

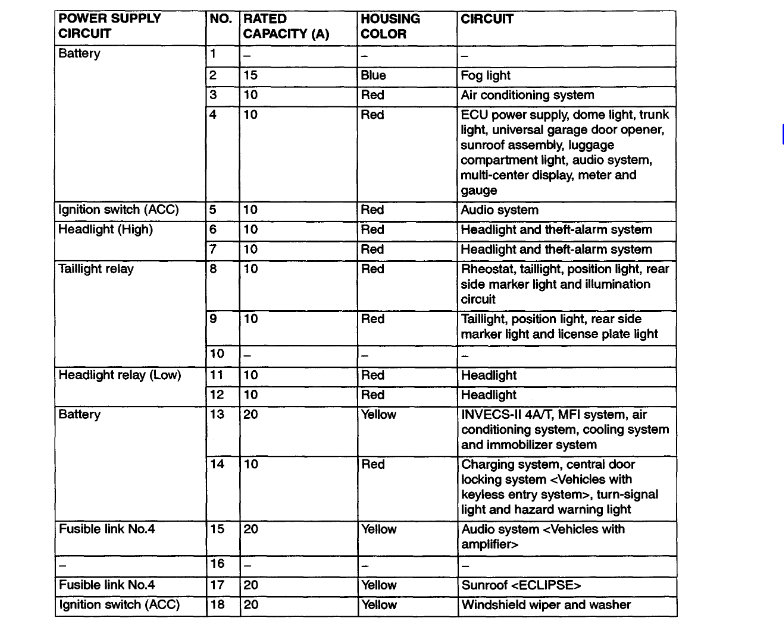

This would be the Under hood Fuse Box in the engine compartment. In the diagrams down below I have included the Under hood Fuse Box [Dedicated] diagram and callout for you. Please go through this guide and get back to us with what you are able to find out.

Thanks,
Alex
2CarPros
Dec 1, 2019 at 2:23 PM (Merged)
Avatar
LSDJSS
  • MEMBER
  • 4 POSTS
Hey, I found out what was wrong. I peeled back the steering column cover and saw two wires were cut/severed/ripped. I brought it to a mechanic and he charged $75.00 (different people charge different prices everyone. In-case you're reading this looking for help) to solder and organize the wires again.

I have no experience in it, hence why I got a mechanic, but to my knowledge soldering is pretty easy. I recommend anyone who has to time to look up how to do it. Anyways got it to work like a charm, its all set.
Dec 1, 2019 at 2:23 PM (Merged)
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Glad you could get it fixed, that kind of problem can be tough. Please use 2CarPros anytime we are here to help.
Dec 1, 2019 at 2:23 PM (Merged)
Avatar
DADDYRUBEN70
  • MEMBER
  • 2 POSTS


https://www.2carpros.com/forum/automotive_pictures/568640_car4_1.jpg

turn signals don't work . checked fuse and it is fine.
Dec 1, 2019 at 2:24 PM (Merged)
Avatar
LEGITIMATE007
  • CERTIFIED EXPERT
  • 5,121 POSTS
is the flasher fuse checked?
Dec 1, 2019 at 2:24 PM (Merged)
Avatar
DADDYRUBEN70
  • MEMBER
  • 2 POSTS
yes i checked all fuses . Plus flashers work!
Dec 1, 2019 at 2:24 PM (Merged)
Avatar
LEGITIMATE007
  • CERTIFIED EXPERT
  • 5,121 POSTS
ok then your problem is mostlikely in the "multi switch". the switch that controls hazzards and blinkers
Dec 1, 2019 at 2:24 PM (Merged)
