My Lexus RX 300 2003 High beam headlights are not working. High beam indicator comes on in instrument panel when the handle push forward or reverse but the High beam headlights do not turn on. Day time running lights (Are same high beam bulbs) works fine. I have checked all the fuses but no luck. Any help will be appreciate.

Jan 24, 2013 at 5:30 AM

BLAZE45

CERTIFIED EXPERT
380 POSTS

Does the car have HID headlights? If so, your ballast/ignitors/connectors could be shot.

See the guide below on testing wiring, it will help

https://www.2carpros.com/articles/how-to-check-wiring

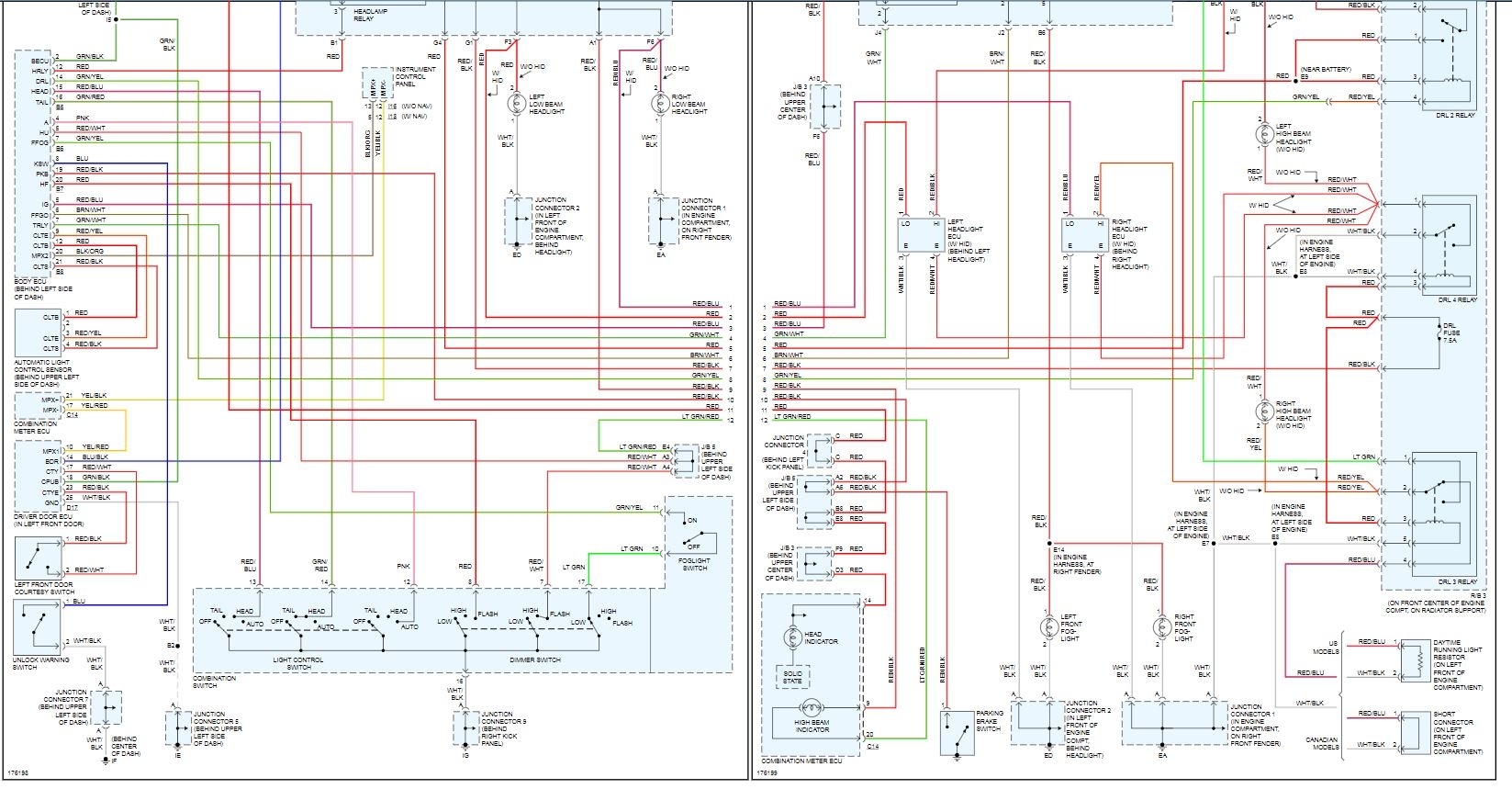

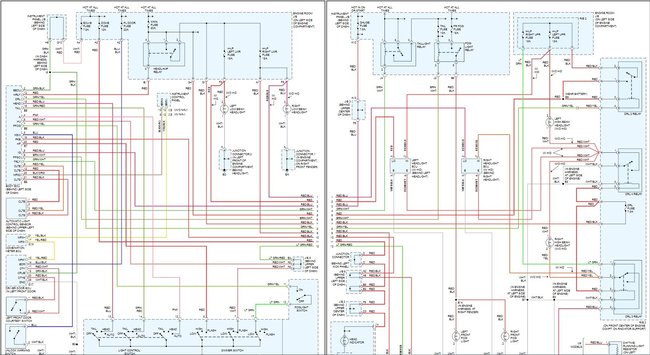

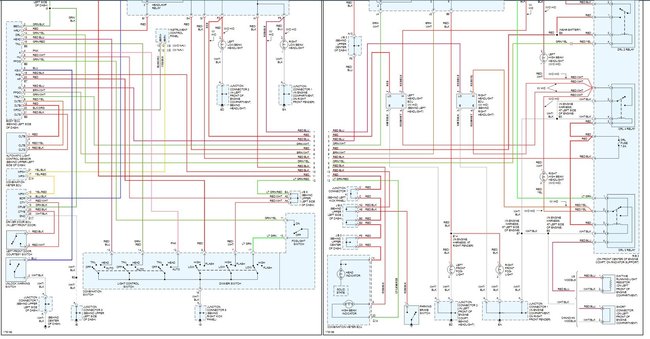

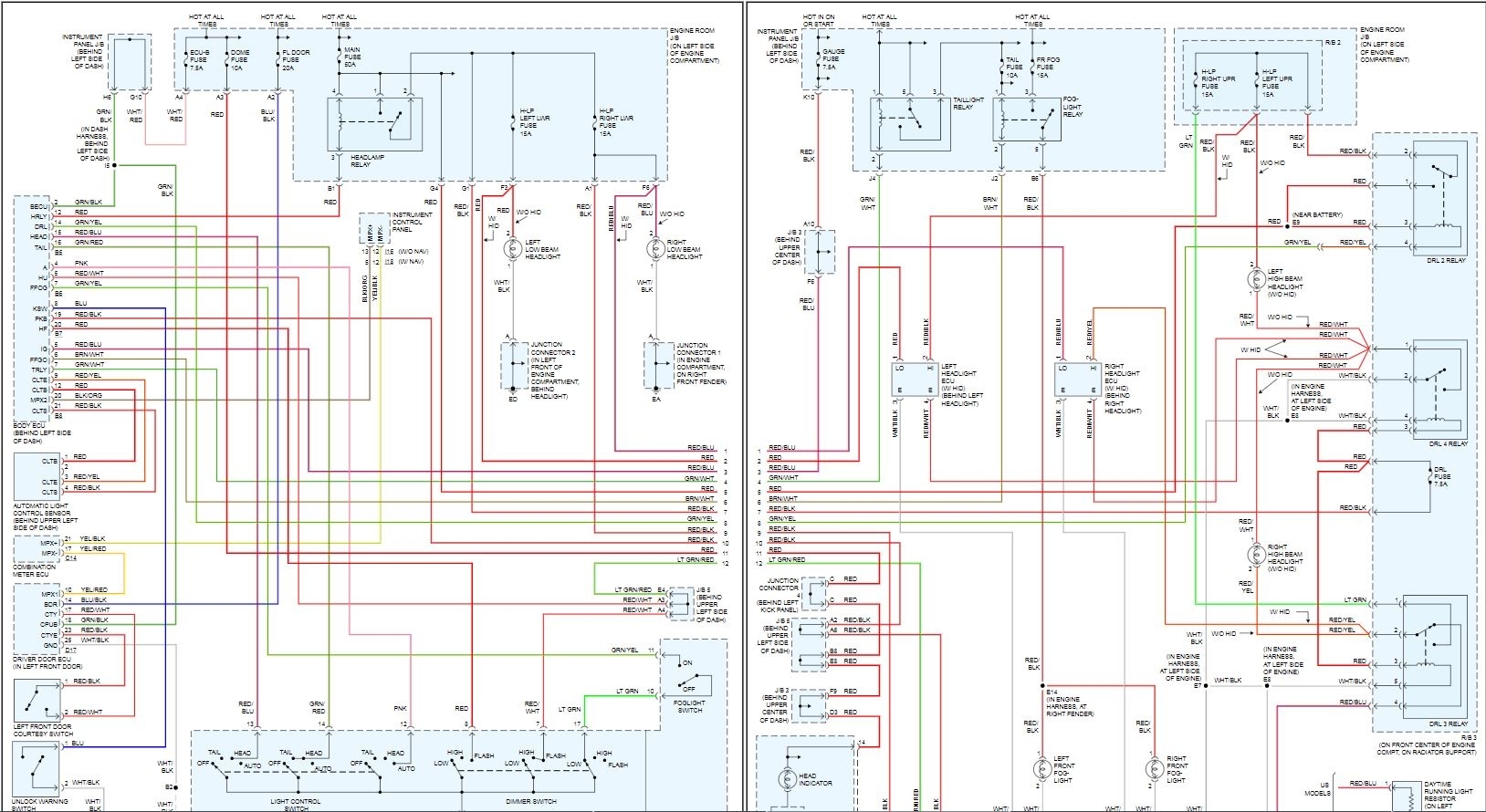

The wiring diagrams for your headlights are attached below

Images (Click to enlarge)

Jan 29, 2013 at 7:12 AM

WATERJUNKIE

MEMBER
1 POST

HI, I saw a response, you gave, to another RX 300 Lexus owner about the high beams not working. Can you please send me the diagram of the engine fuses too.

Thanks
Waterjunkie..

Mar 10, 2019 at 10:53 AM (Merged)

KHLOW2008

CERTIFIED EXPERT
41,814 POSTS

Hi Waterjunkie,

I have sent the files to you.

Hope they are helpful.

Mar 10, 2019 at 10:53 AM (Merged)

PMYEIC

MEMBER
2 POSTS

Both high beams fail to come on when I pull the stalk even though the high-beam indicator on the instrument panel lights up. I looked at the fuses but didn't see one for both high beams, just individual lights. All of them seemed fine.

Mar 10, 2019 at 10:53 AM (Merged)

MATHIASO

CERTIFIED EXPERT
1,209 POSTS

Hello pmyeic check the 50 amp. main fuse. if it good, check the head lamp relay (sending the diagram to your email)

Mar 10, 2019 at 10:54 AM (Merged)

PMYEIC

MEMBER
2 POSTS

Thanks very much. Can you give me some idea where the relay is located?

Mar 10, 2019 at 10:54 AM (Merged)

MATHIASO

CERTIFIED EXPERT
1,209 POSTS

Hello pmyeic The headlight relay is under plastic screwed down cover behind fuses. Look like this:
