Trouble codes P0980 and P0717

2003 LEXUS GS 300

126,000 MILES

ARIENNE599

MEMBER
1 POST
FOLLOW

The problem codes are there all the time. Do you need to drop the transmission to change the shift solenoid and turbine speed sensor or can the two be changed simply by dropping the pan?

Sep 25, 2013 at 8:44 AM

KASEKENNY

CERTIFIED EXPERT
18,907 POSTS

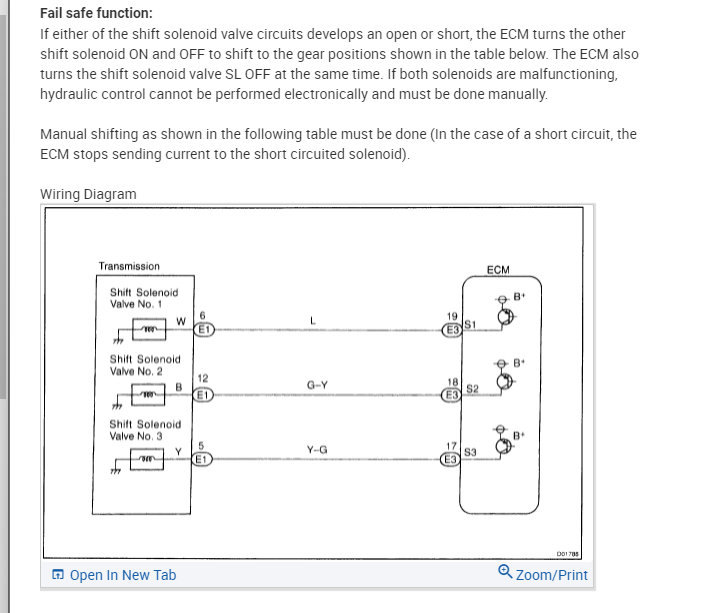

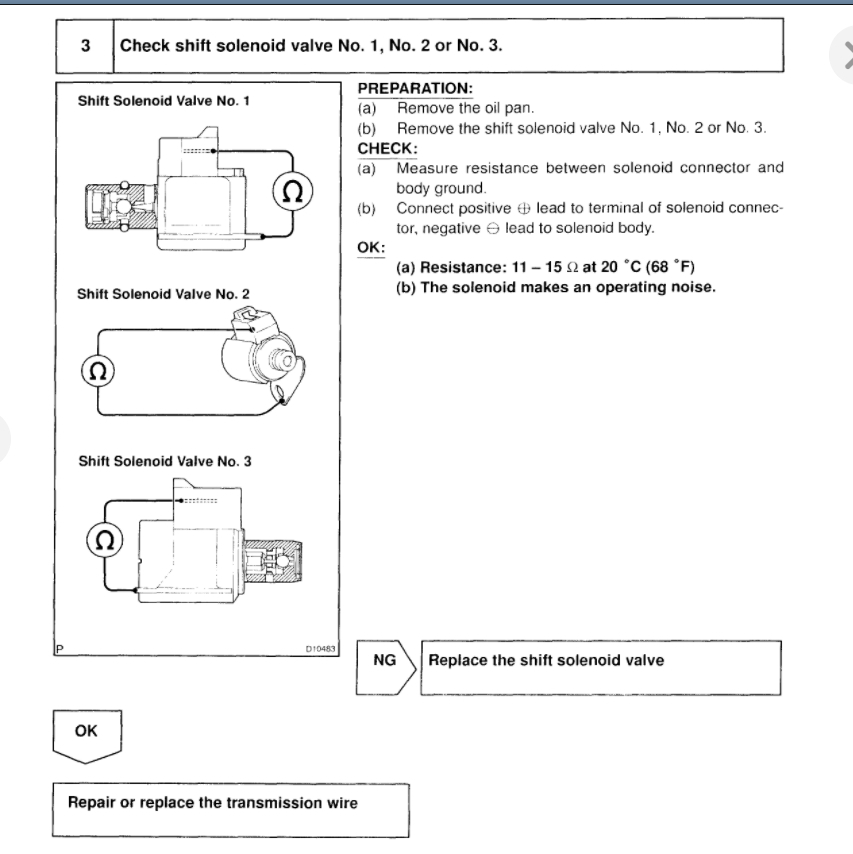

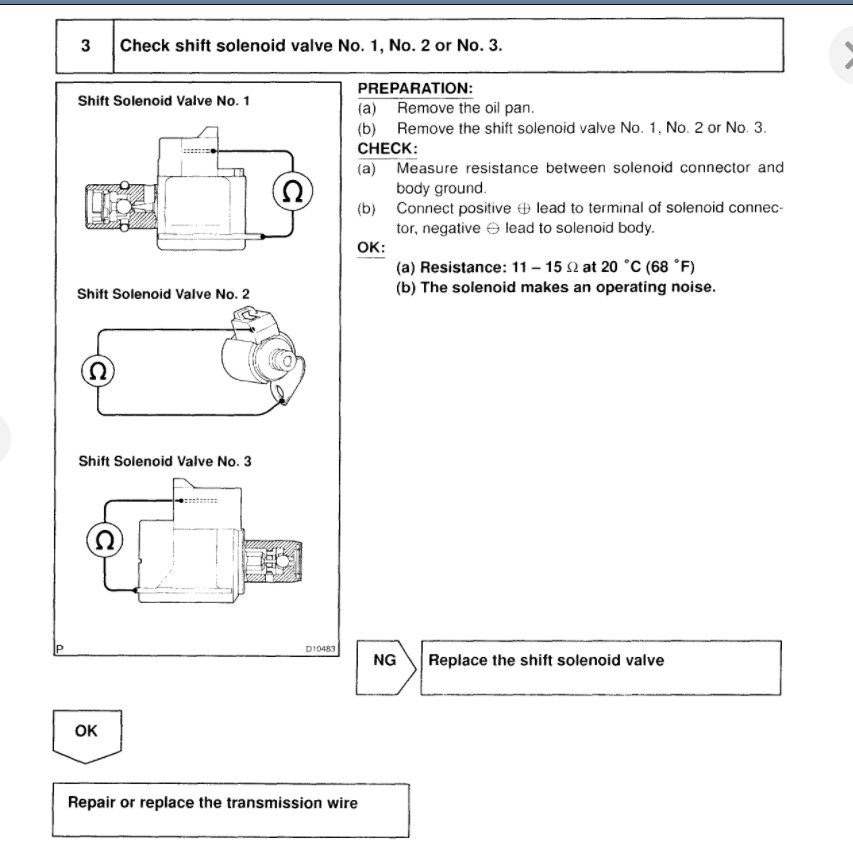

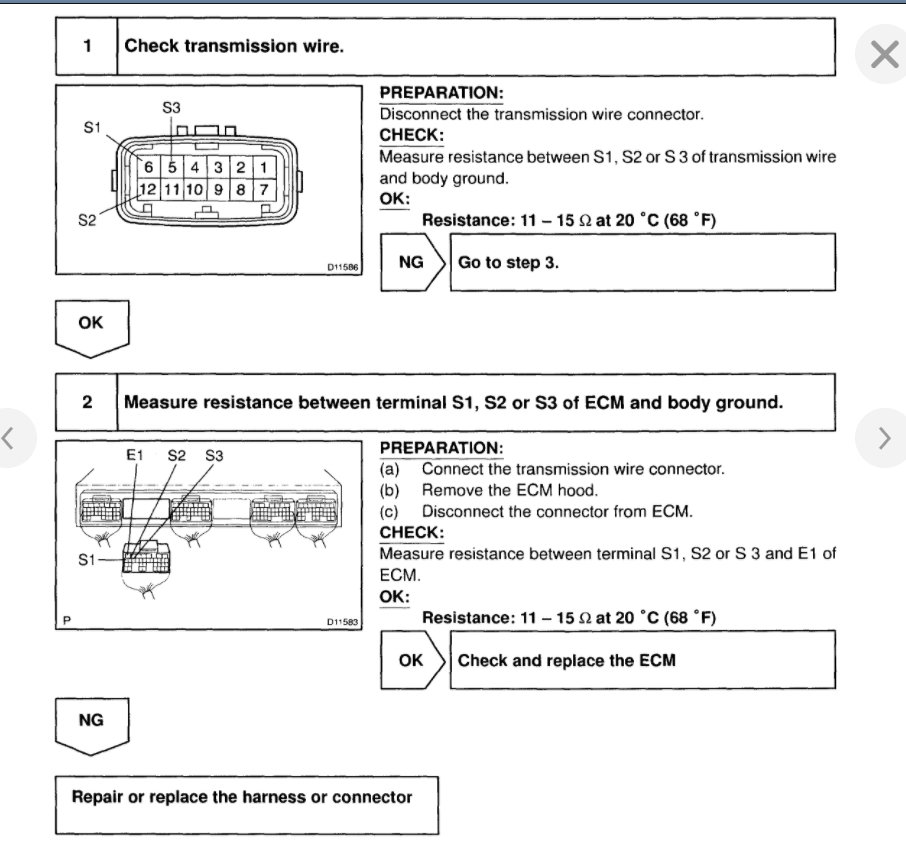

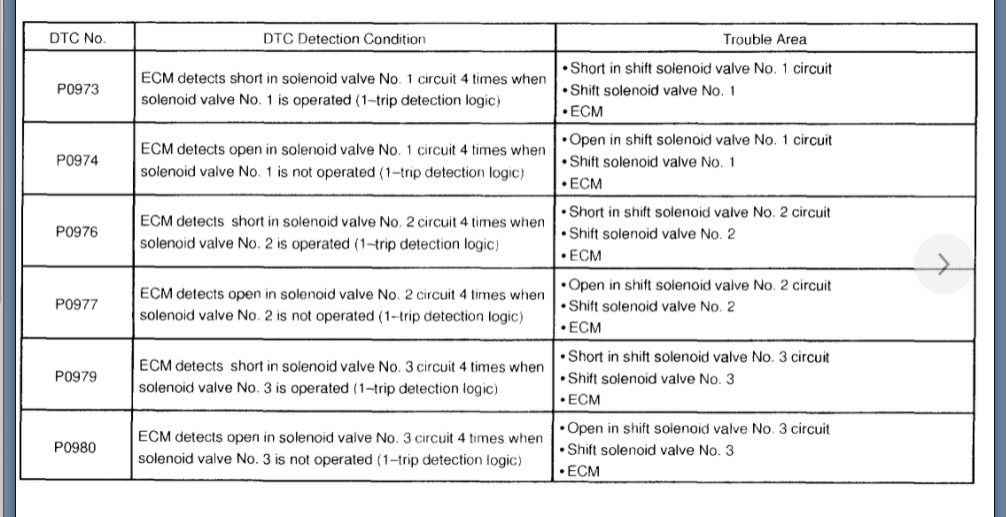

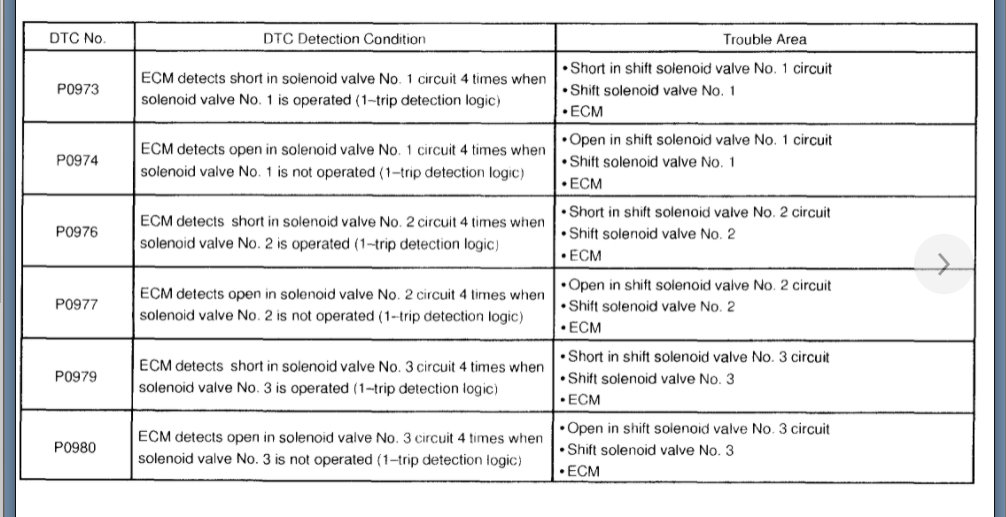

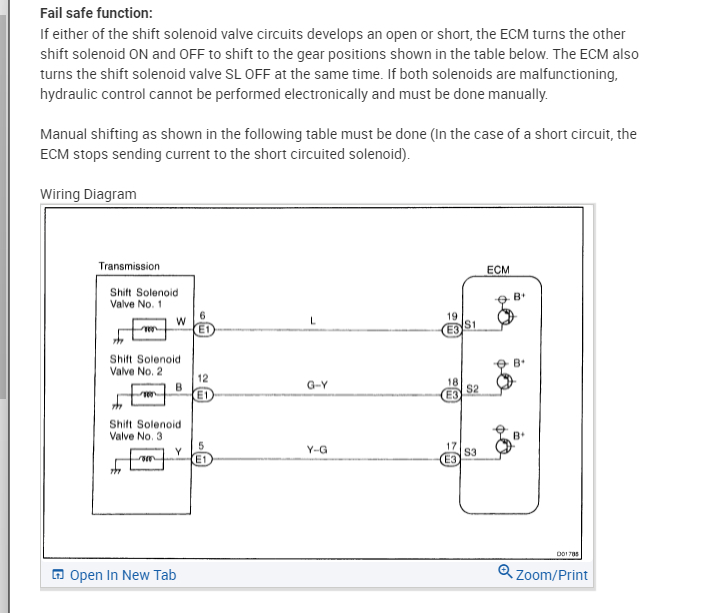

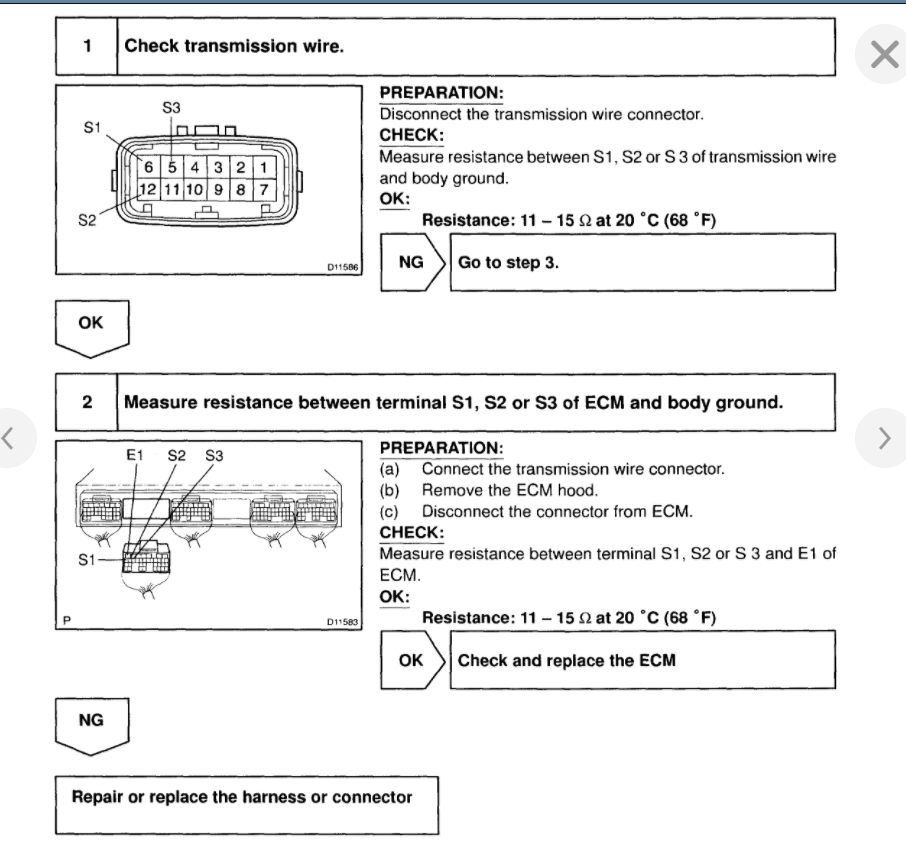

I am attaching the trouble shooting for this issue. We need to run through this to ensure the solenoid is the issue and here is a guide that will help with this:

https://www.2carpros.com/articles/how-to-check-wiring

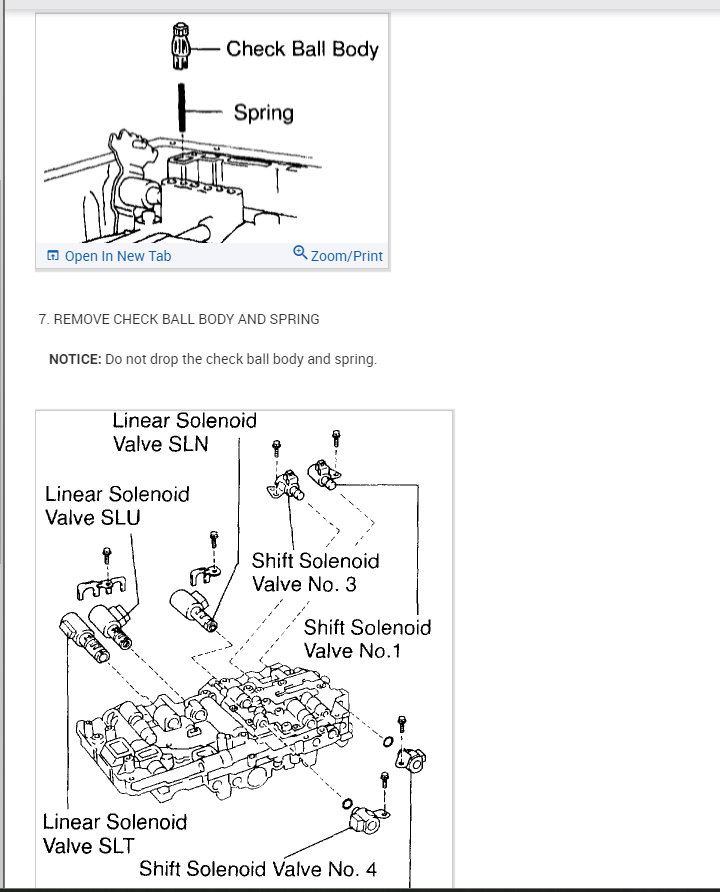

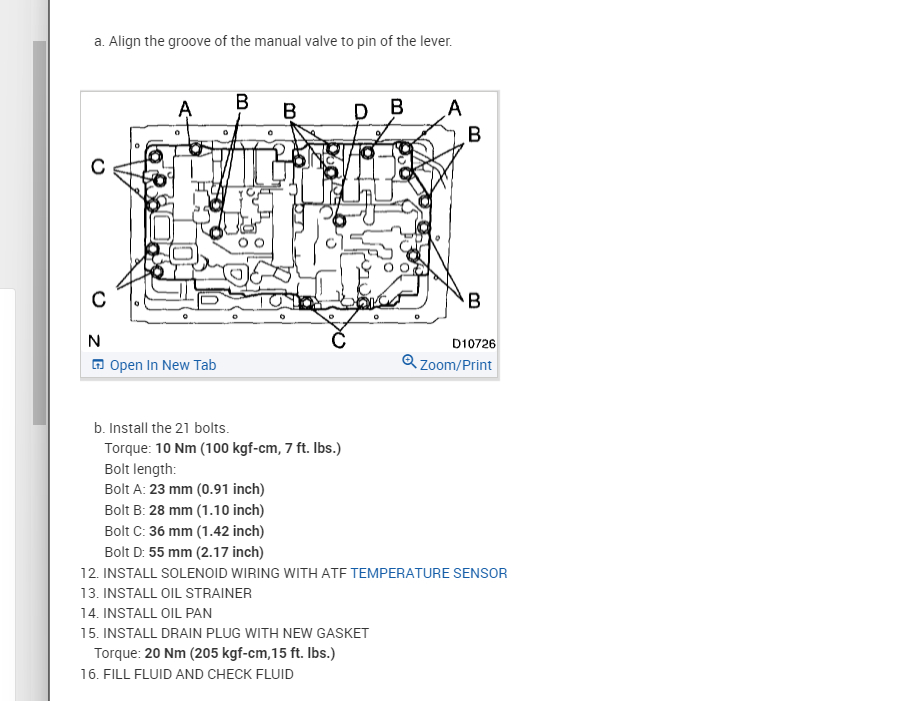

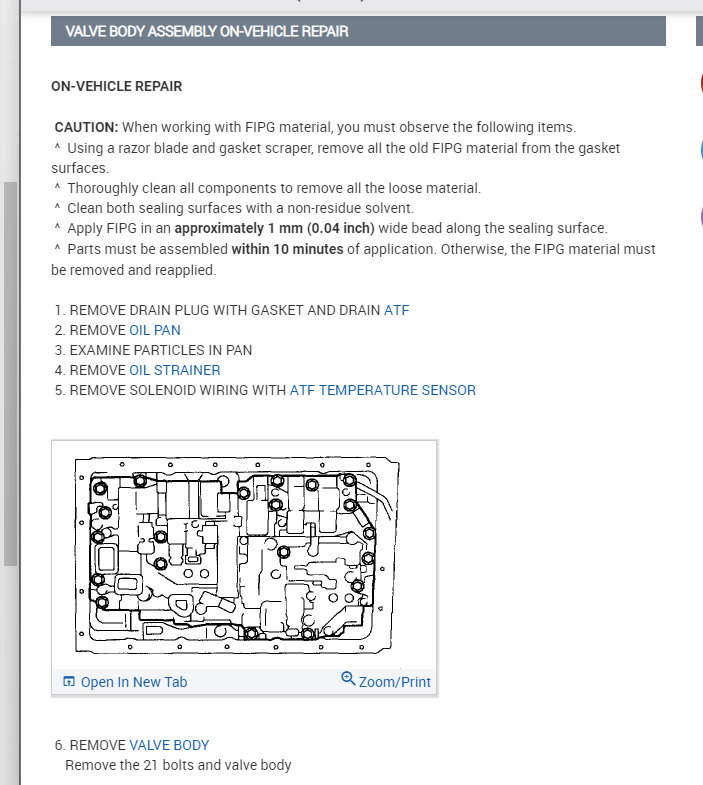

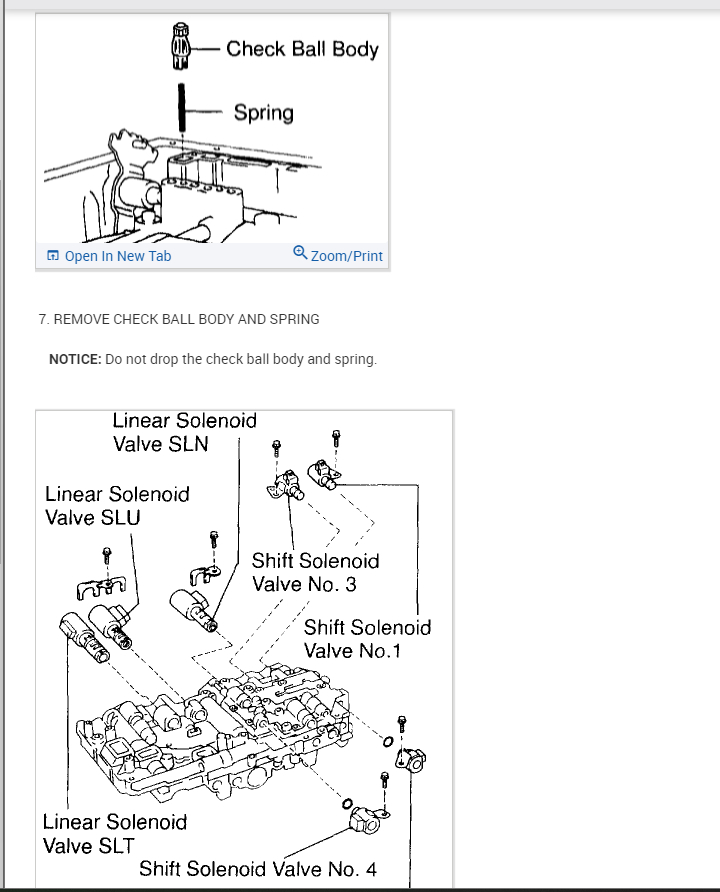

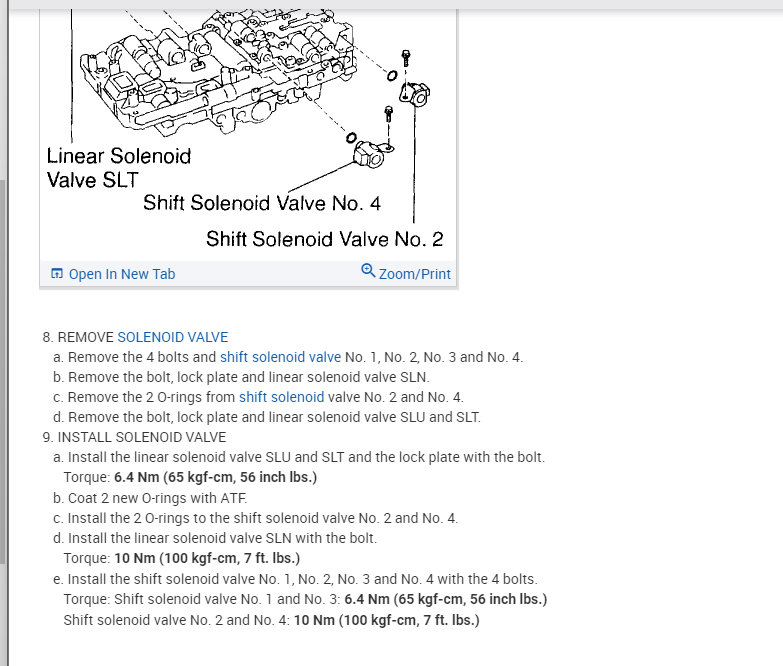

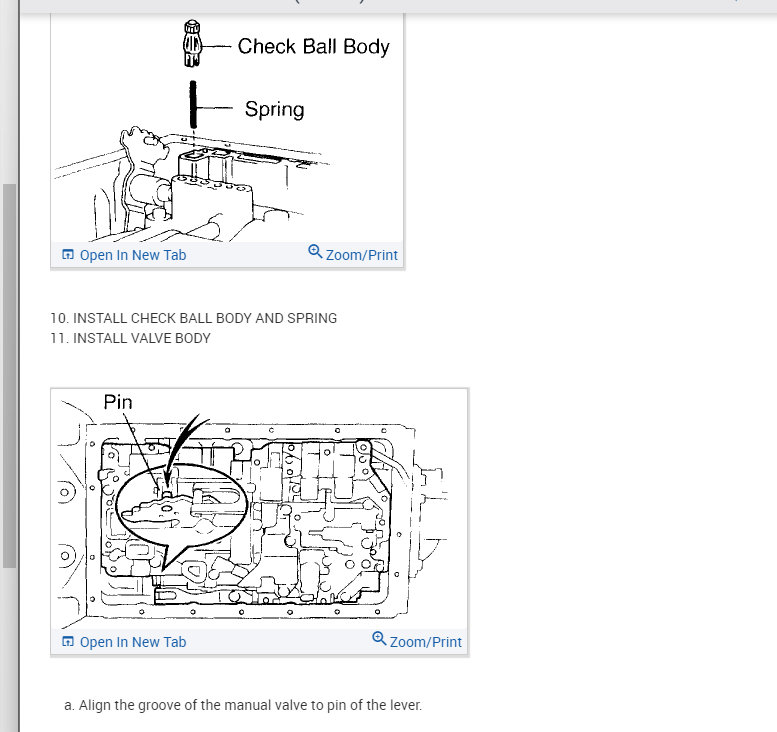

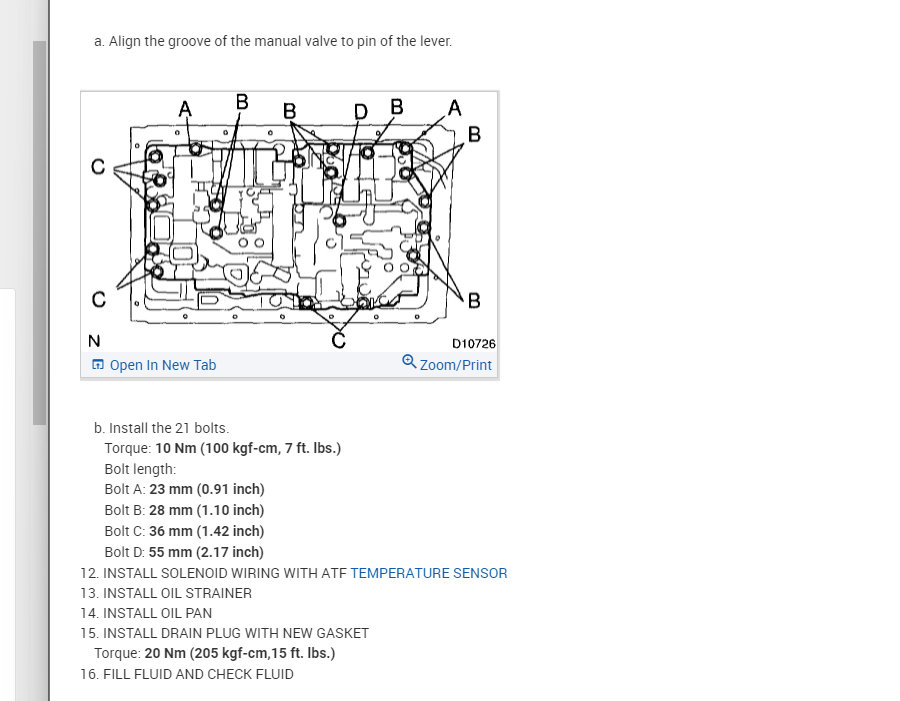

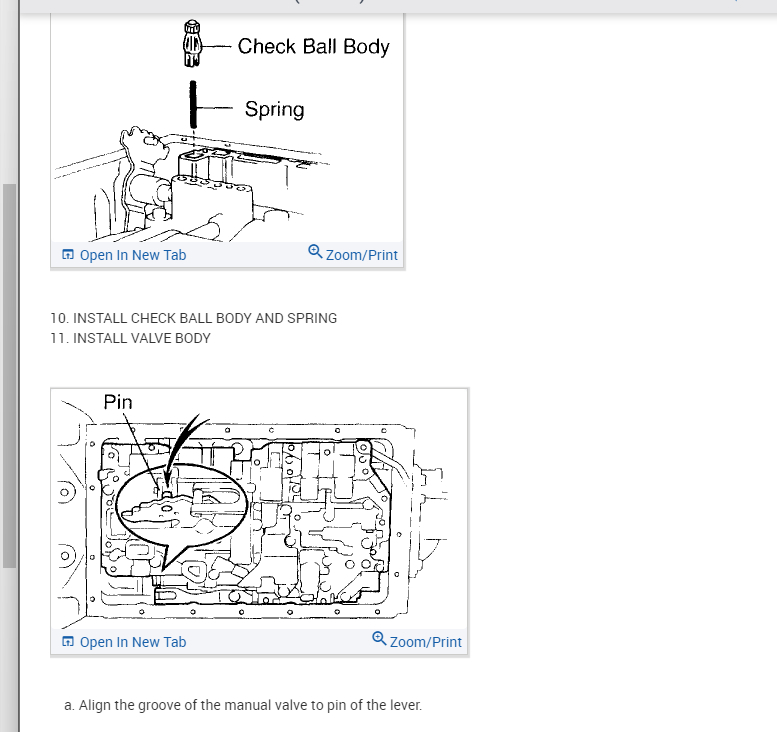

I am also attaching the process on how to replace it so to answer your question, it is only requiring to dropping the pan and removing the valve body.

Please run through this info and let us know what other questions you have.

Thanks

Images (Click to enlarge)
