2003 Jeep Laredo Air not blowing

2003 JEEP GRAND CHEROKEE LAREDO
4.0L • 6 CYL • 2WD • AUTOMATIC
Avatar
YASARI2JEREMIAH
  • MEMBER
  • 1 POST
My jeep only blows air on the dash vent the defrost which makes it foggy and cannotdrive, I have replaced the actuatur. All the lines are connected. What can I do??
Jul 21, 2015 at 11:14 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

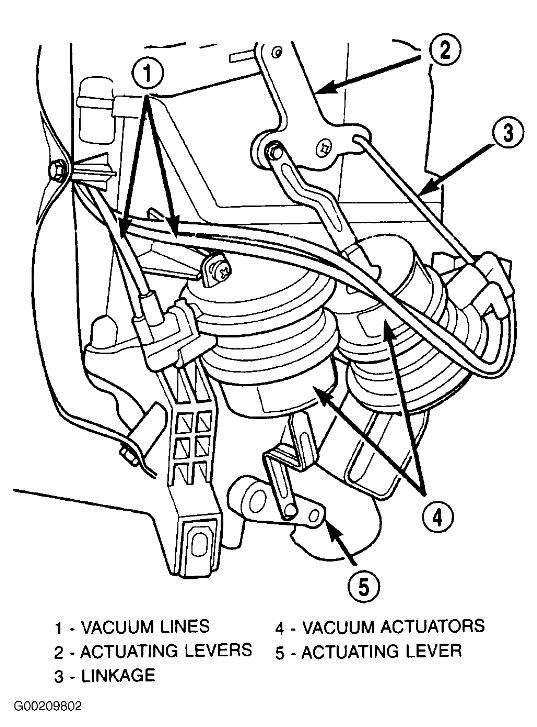

check for a vacuum leak and make sure actuator is getting vacuum. it may be the control has a leak an d not sending to vacuum motor. make sure linkage was hooked up correctly
Image (Click to enlarge)
Attached Media
Jul 23, 2015 at 6:22 AM
