tps replacement

2003 ISUZU RODEO
120 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
THEBOSSLADY71
  • MEMBER
  • 1 POST
how to replace throttle position sensor in a 2003 isuzu rodeo?
Apr 20, 2011 at 12:55 AM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
Hello,

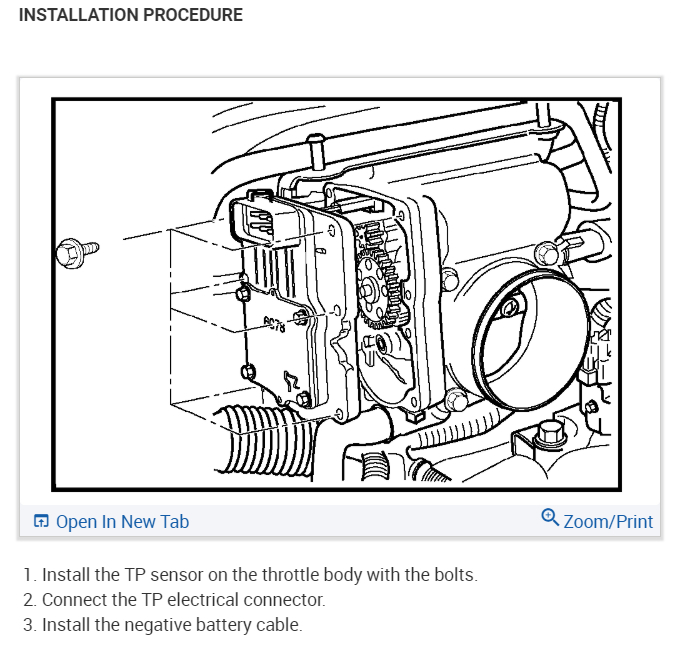

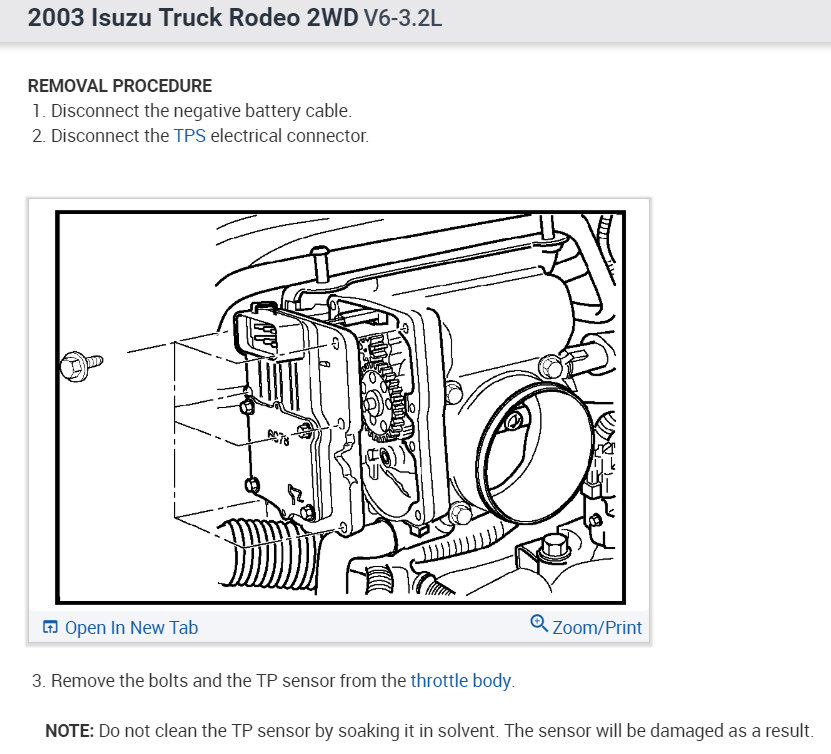

Here are diagrams and instruction on how to change out the TPS sensor. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Apr 20, 2011 at 1:17 AM
