passenger side rear brake

2003 HYUNDAI TIBURON
148,000 MILES
Avatar
DJUVONEN
  • MEMBER
  • 1 POST
when putting the piston on the passenger side rear brake back in. it just keeps turning and turning. it wont stop. i have tried a clamp and held pressure on it while turning clockwise. it went for a little while but it just keeps turning and turning.
Feb 16, 2012 at 12:34 AM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Sounds like you need to replace the caliper assy
Feb 16, 2012 at 12:58 AM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Installation

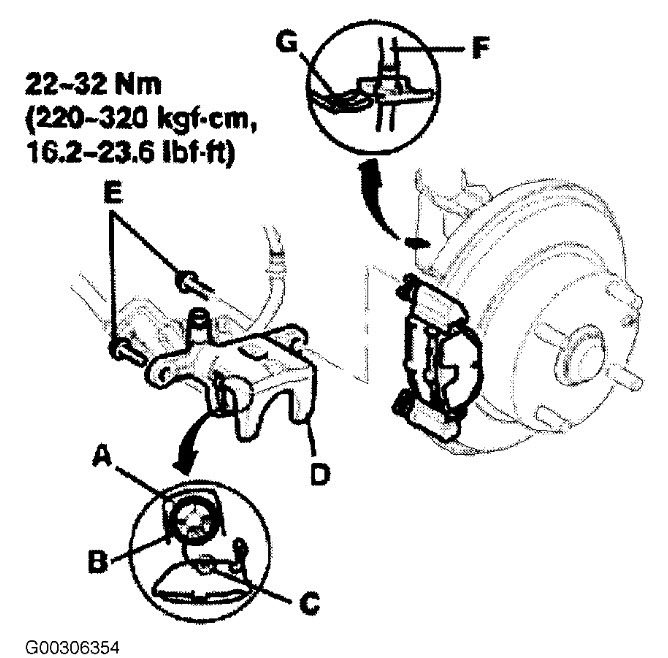

Rotate the caliper piston (A) clockwise into the cylinder, the align the cutout (B) in the piston with the tab (C) on the inner pad by turning the piston back. See Fig. 20 . Lubricate the boot with rubber grease to avoid
twisting the piston boot. If the piston boot is twisted, back it out so it is positioned properly. To complete installation, reverse removal procedure. Tighten all fasteners to specification. See TORQUE
SPECIFICATIONS .

Image (Click to enlarge)
Attached Media
Feb 16, 2012 at 12:59 AM
