Timing belts marks 2.7L?

2003 HYUNDAI TIBURON
2,010 MILES • 2.7L • 6 CYL • FWD • AUTOMATIC
Avatar
ARVIL HENDRICKS
  • MEMBER
  • 1 POST
timing belt broke going put one on how to I timing it to put the belt on?
Jan 28, 2015 at 5:45 AM
Advertisement
Avatar
HOMER1967
  • CERTIFIED EXPERT
  • 875 POSTS
it takes 3.5 to 4.0 hours.
Jan 28, 2015 at 7:52 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

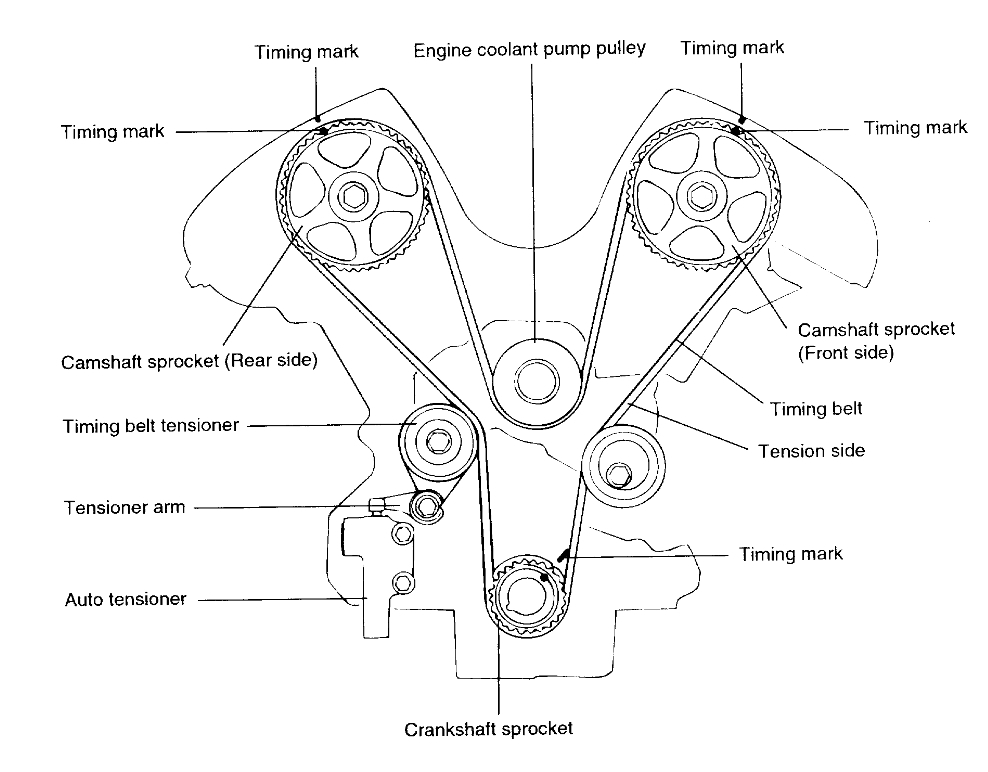

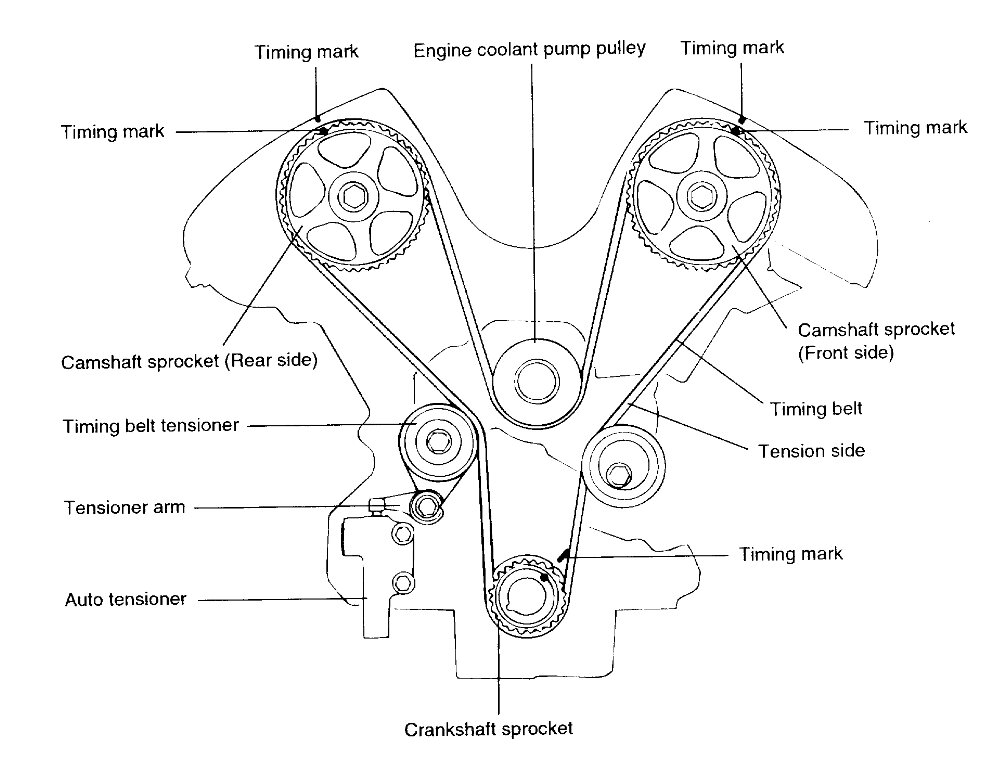

Here are the timing belt marks for the 2.7 liter engine so you can replace the timing belt correctly. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 27, 2024 at 3:18 PM
