I can't find my spark plugs location

2003 HYUNDAI SANTA FE
Avatar
MRJHALLER
  • MEMBER
  • 1 POST
Where are spark plugs located at on my car?
Jul 17, 2011 at 5:07 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Hello,

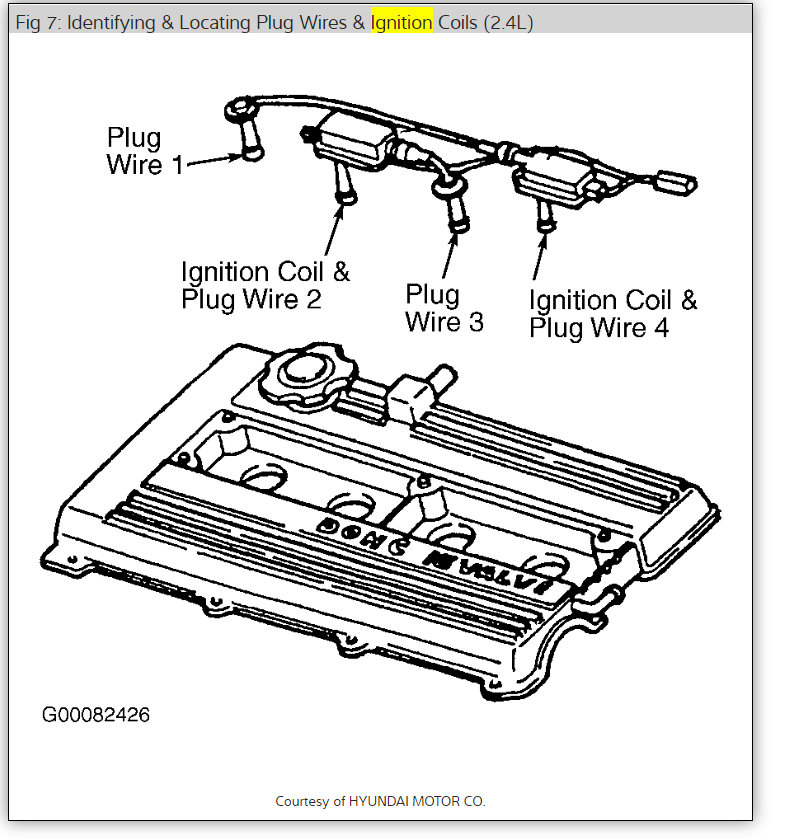

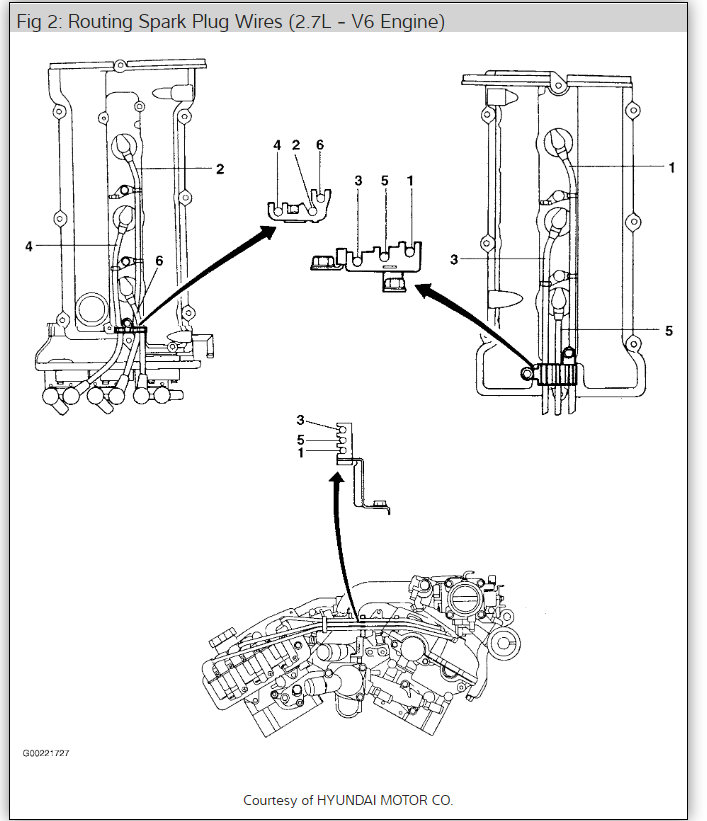

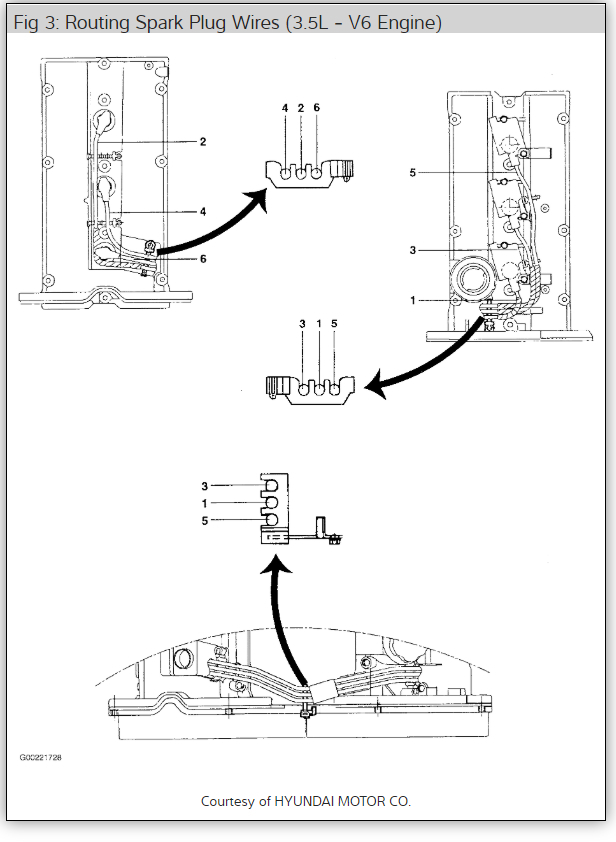

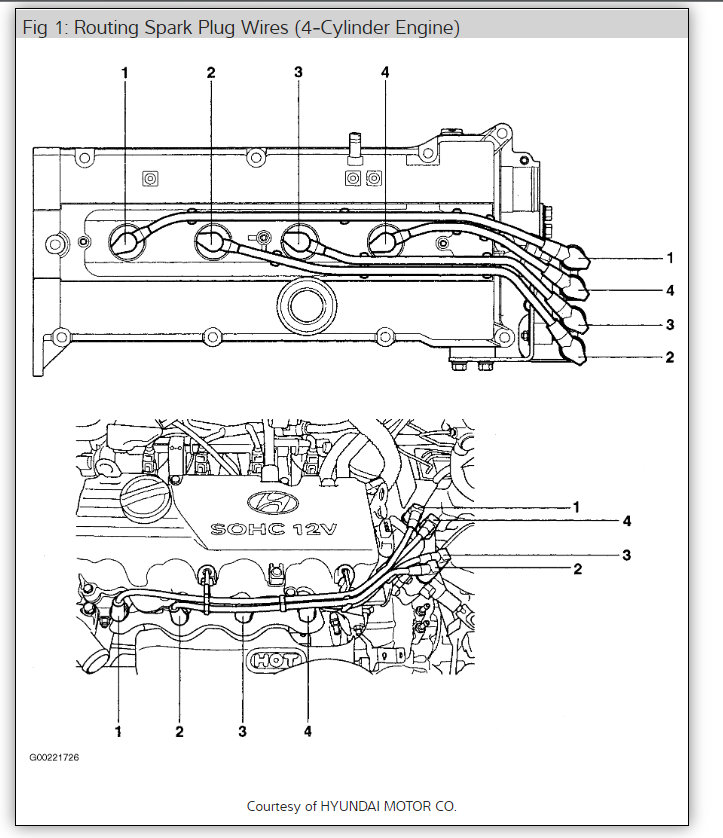

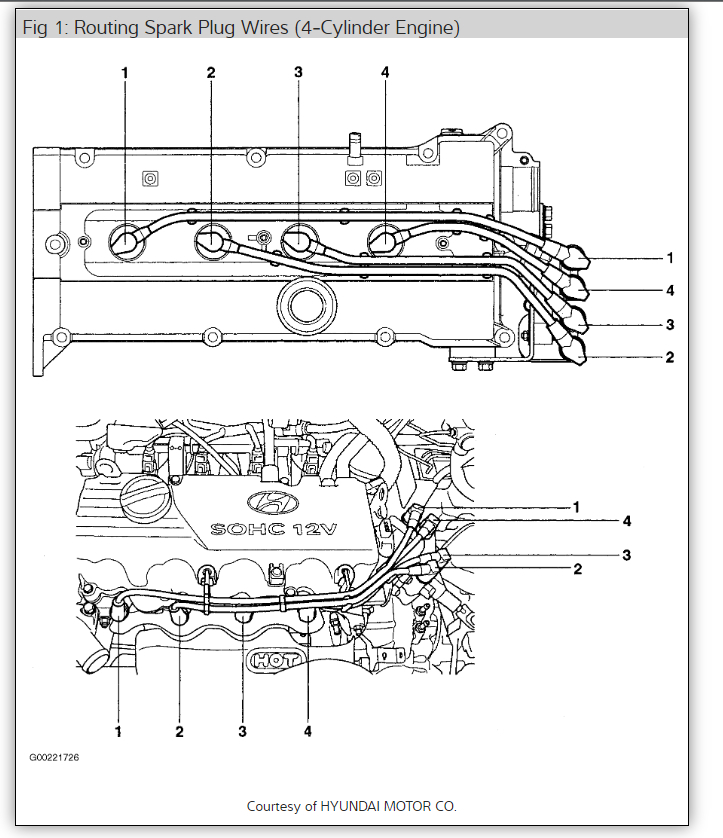

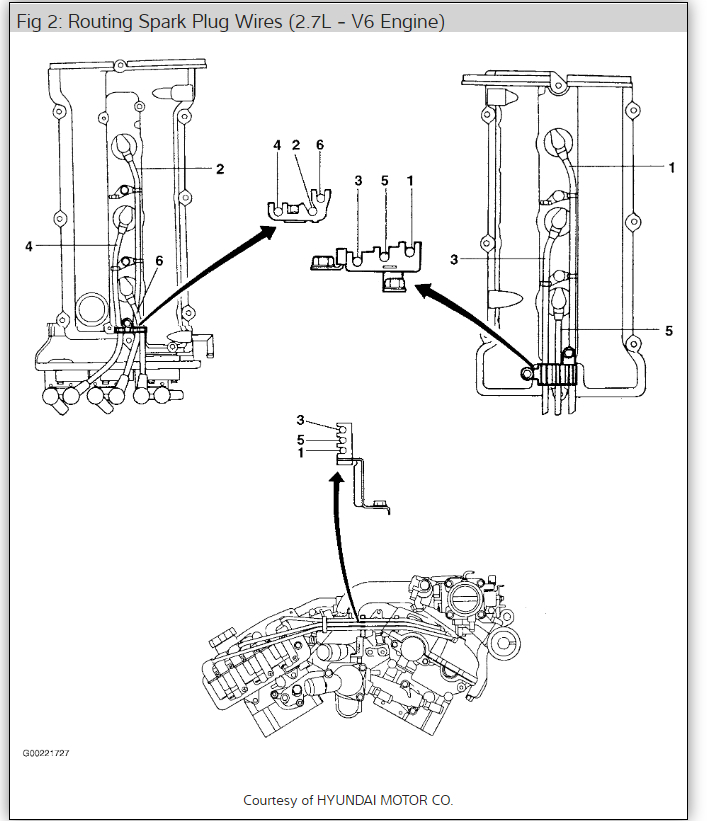

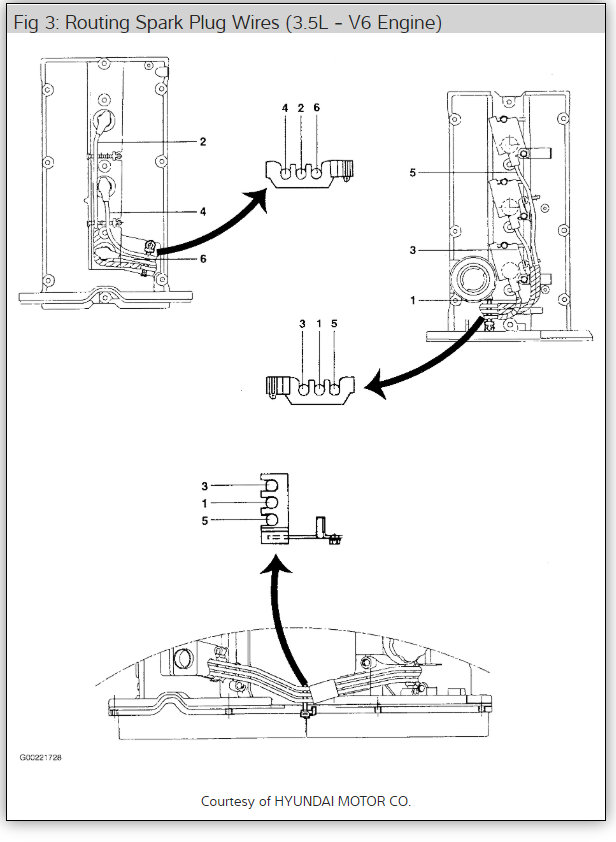

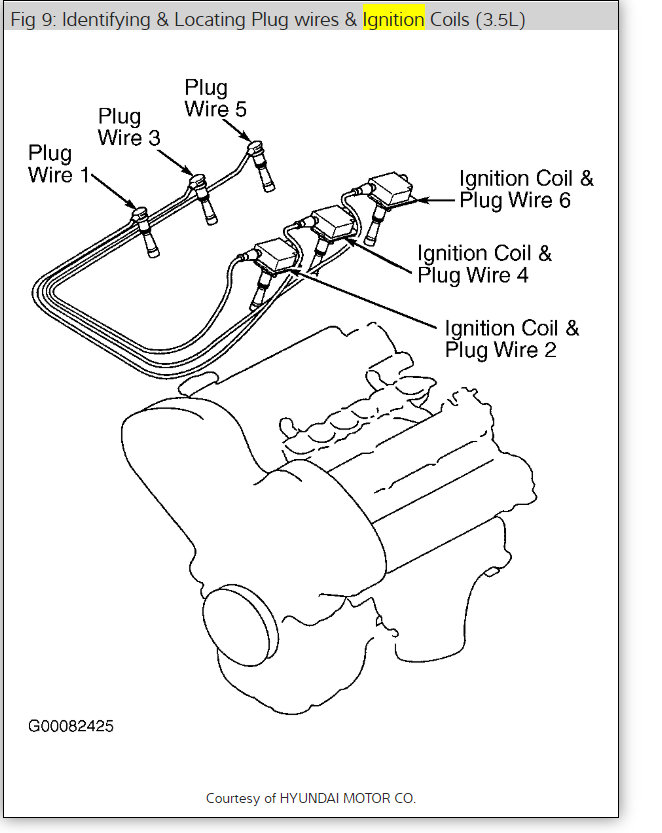

Some are under the ignition coil and others have spark plug wires going to them. Here is a guide and the firing order and plug wire locations for you car below. I included all engine options.

https://www.2carpros.com/articles/how-to-change-spark-plugs

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Jul 17, 2011 at 6:55 AM
Avatar
ARUSHKHAN
  • MEMBER
  • 1 POST
hi my car is running on 3 cylinders and tried to take spark plug out of the 2nd cylinder as the dyagnostic machine said it was 2nd that was misfiring and the plug is stuck
Jan 30, 2019 at 11:27 AM (Merged)
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
Spray lune around base of plug thread, let sit for a few hrs, slowly work plug back in and out to break up any carbon or rust, add plenty of lube spray.
Jan 30, 2019 at 11:27 AM (Merged)
Avatar
DANIEL18229
  • MEMBER
  • 1 POST
Engine Performance problem
2004 Hyundai Santa Fe 6 cyl All Wheel Drive Automatic

how do i get to the back 3 sparks plugs ( between the fire wall and the engine)
Jan 30, 2019 at 11:27 AM (Merged)
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
I get them from under the vehicle, but I have a rack to raise the vehicle. If you have ramps or can safely lift the front of the vehicle, try that.
Jan 30, 2019 at 11:27 AM (Merged)
