no power to fuel pump?

2003 HYUNDAI SANTA FE
100,000 MILES
Avatar
STEVES03SANTEFE
  • MEMBER
  • 1 POST
Was driving home, car just stopped running, seemed like it wasn't getting fuel, replaced the fuel pump, check relay, car will not turn over. Took it to the shop, they said the cat is clogged thats why its not starting. I know a clogged cat will bog the engine down, but never heard of it not allowing it to turn over. So I took it home and found no power to the fuel pump?
Dec 11, 2011 at 5:35 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hello,

It sounds like you have a fuel pump relay that is not working here is a guide to help you test it with the location of the relay as well.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

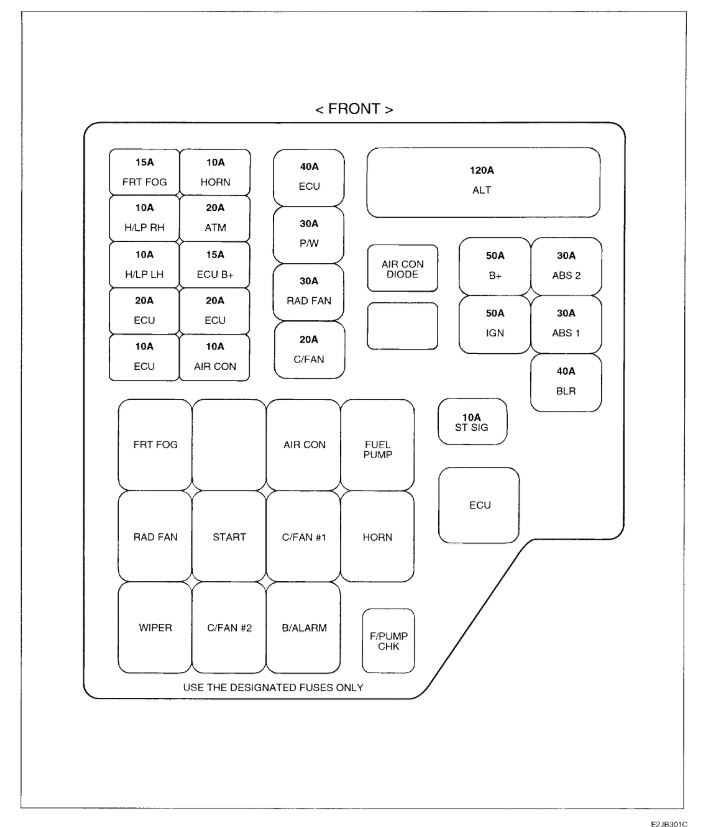

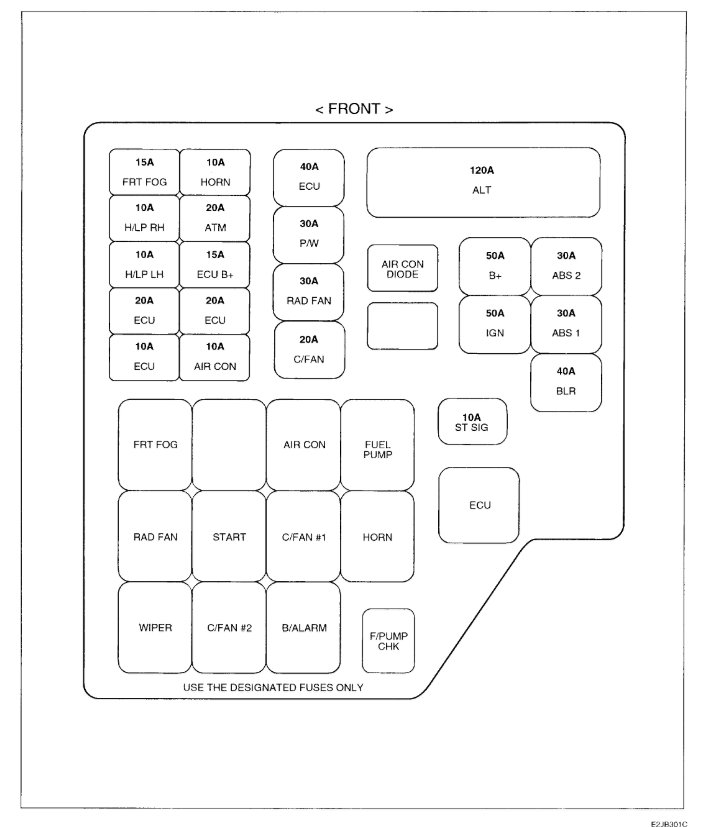

Check out the diagrams (Below). Please let us know what happens. Cheers,
Image (Click to enlarge)
Attached Media
May 8, 2021 at 10:13 AM
Avatar
KATHRADAR
  • MEMBER
  • 1 POST
Have the same problem with 2001 Santa Fe. Was running great, then wouldn't start next AM. Checked relay, fuse,power at connector on pump, reset fuel cut off switch. I replaced the fuel pump and still won't start so I changed the fuel pump relay out all fixed! I love this site.
May 8, 2021 at 10:13 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Good to hear, please use 2CarPros anytime we are here to help.
May 8, 2021 at 10:13 AM
