How to adjust TPS

Good afternoon,

I attached the procedure and the specs for you to adjust the TPS. It should be between .5 to .75 volts at closed throttle.

Roy

1. Connect a HI-SCAN (PRO) to the data link connector.

NOTE: Before inspecting the TPS, verify the basic idle speed is as specified.


imageOpen In New TabZoom/Print

2. If a HI-SCAN (PRO) is not used, connect a digital type voltmeter between ground and TPS output terminal.

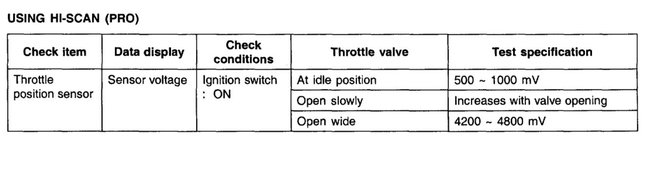

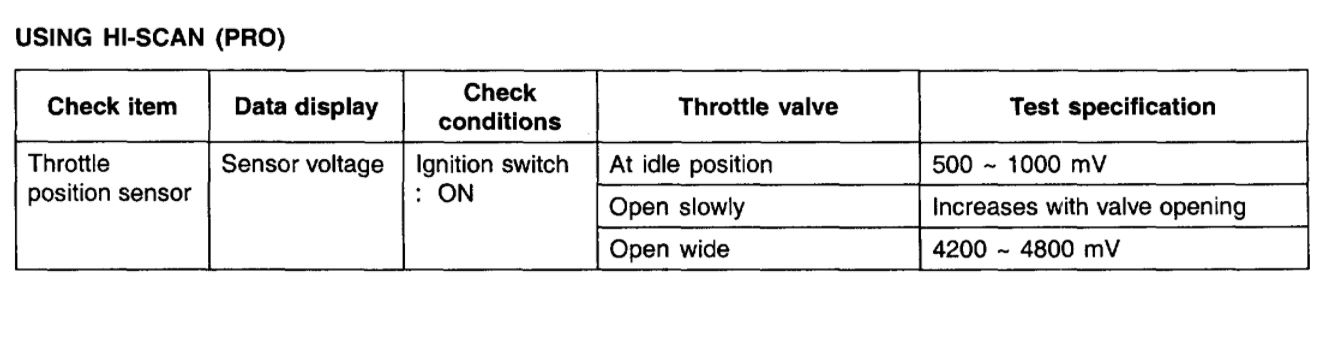

3. Turn the ignition switch to the ON position(do not start engine) and check that TPS output voltage is as specified. If a HI-SCAN (PRO) is used, read the TPS voltage.
Standard value (ETS vehicle): 300 - 900 mV


imageOpen In New TabZoom/Print

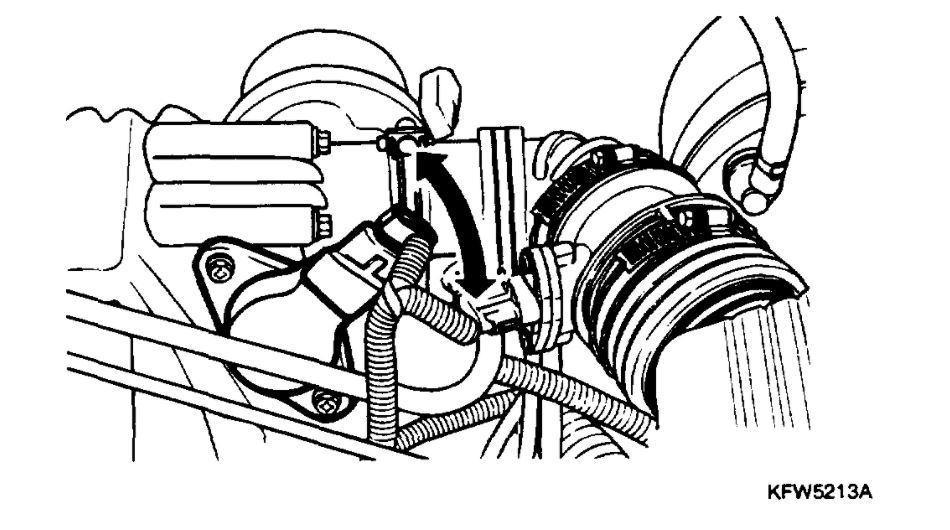

4. It it is out of specification, loosen TPS mounting screws and adjust by turning the TPS.

NOTE:
Turning the TP Sensor clockwise increases the output voltage.
Tighten the screws securely after adjustment

5. Turn the ignition switch to the OFF position.

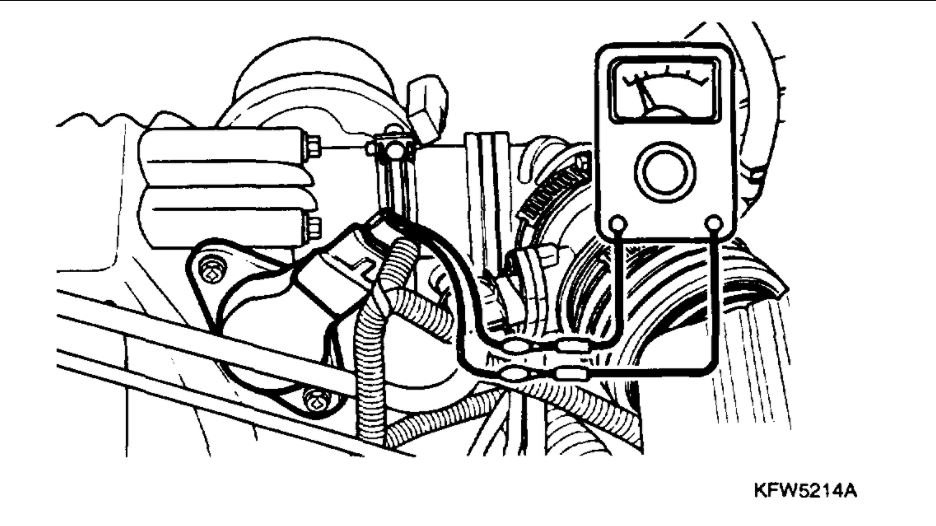

USING VOLTMETER
1. Disconnect the throttle position sensor connector.


imageOpen In New TabZoom/Print

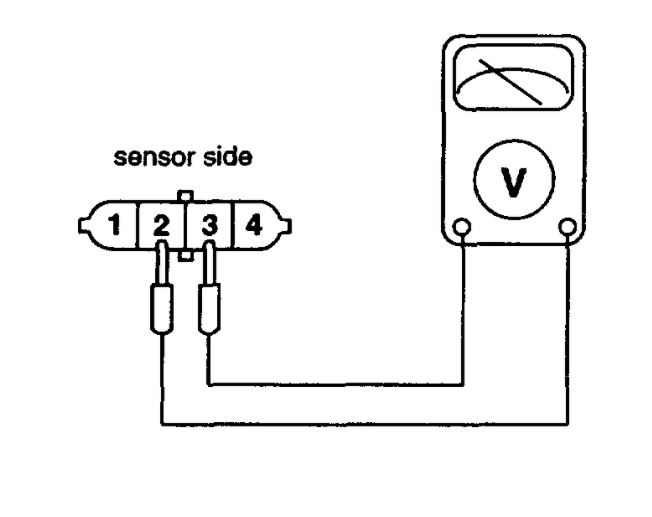

2. Measure resistance between terminal 3 (sensor ground) and terminal 1 (sensor power).
Standard value: 3.5 - 6.5 k Ohm

3. If the resistance is out of standard value above, replace the throttle position sensor.

Tightening torque
1.5 - 2.5 Nm (15 - 25 kg.cm, 1.1 - 1.8 lb.ft)
