serpentine belt tensioner

2003 HONDA PILOT
80,000 MILES • 6 CYL • 4WD • AUTOMATIC
Avatar
FRANCESCO MARINO
  • MEMBER
  • 2 POSTS
how do you replace a serpentine belt tensioner on a 2003 honda pilot? The pulley has rubber residue where it should be shiny, but it looks like it rolls fairly sooth.
Jan 26, 2011 at 12:54 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

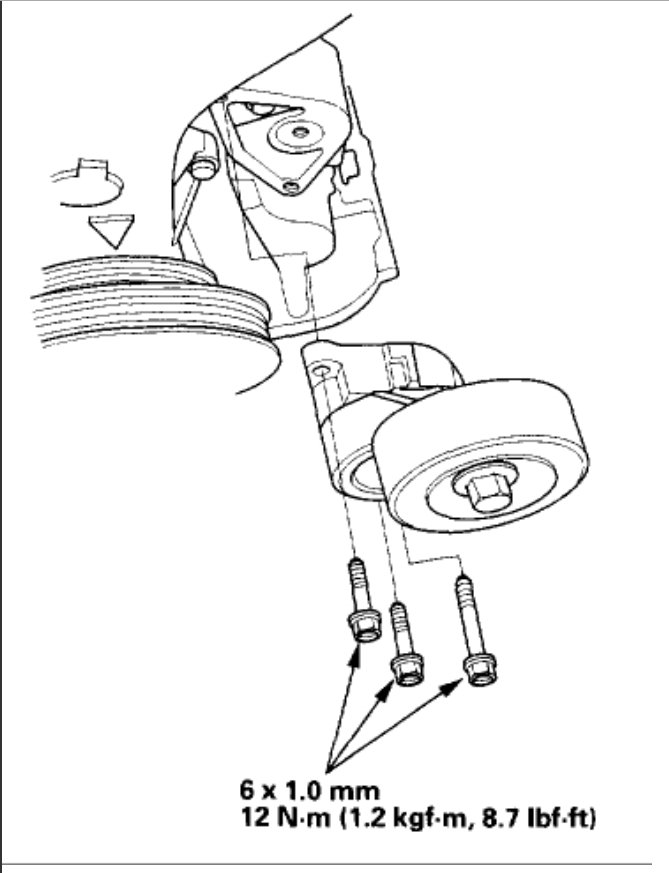

On this model Honda there is no bolt to release the tension and there are 3 bolts 2x10mm 1x8mm

this guide will help

https://www.2carpros.com/diagrams/honda/pilot/2003

The tensioner can then be removed by taking out the 2 holding bolts.

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers
Image (Click to enlarge)
Attached Media
Jan 26, 2011 at 6:54 PM
