2003 GMC SIERRA
130,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
where is the resistor for the blower motor located
Nov 20, 2012 at 11:19 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
With automatic hvac, you need to check blower motor control processor.
Nov 20, 2012 at 11:35 PM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

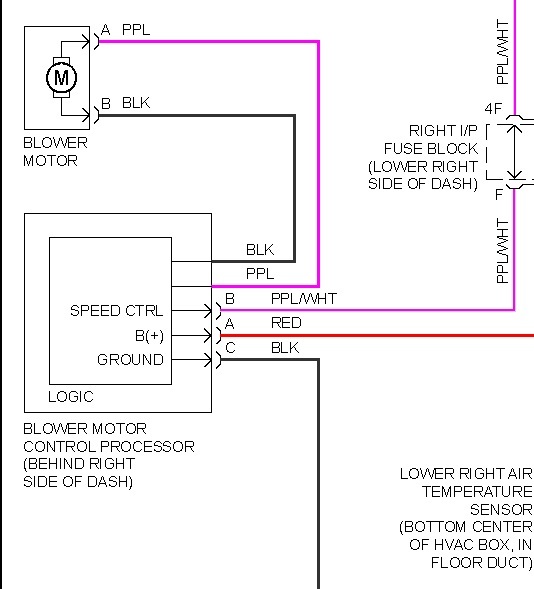

Forgot the diagram.
Image (Click to enlarge)
Attached Media
Nov 20, 2012 at 11:35 PM
