PCV location and how to replace

2003 FORD FOCUS
150,000 MILES
Avatar
JAKEKOZZY777
  • MEMBER
  • 1 POST
Pcv valve on one end what is the part on the other end? It looks like a little electric motor with two hose connections a wire harness plug on top and a single wire connection on the side. The pcv hose connection on this part is snapped and thus vacuum leak. So what's the name of the part and how do I replace it?
Jan 13, 2013 at 6:50 PM
Advertisement
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
Hello, I'm Danny.

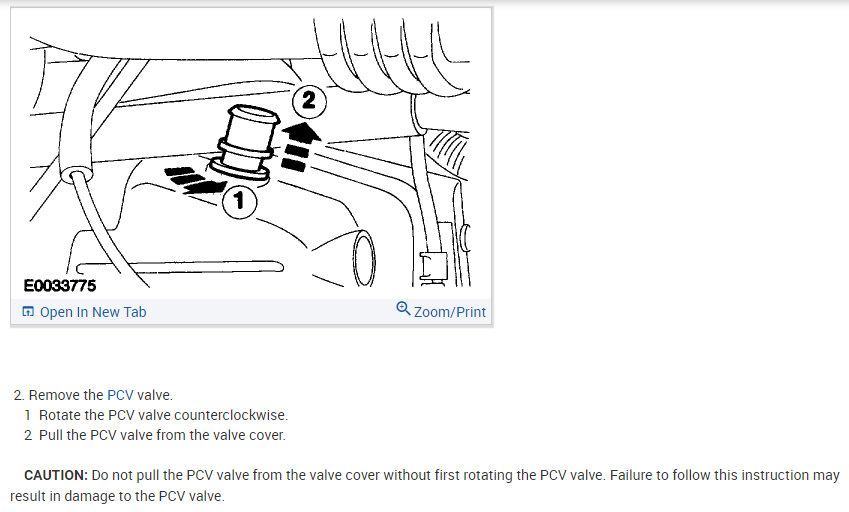

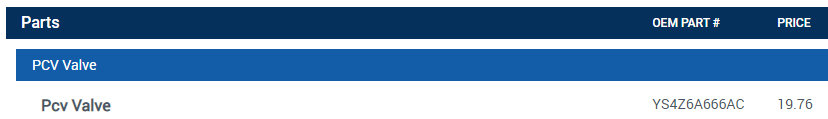

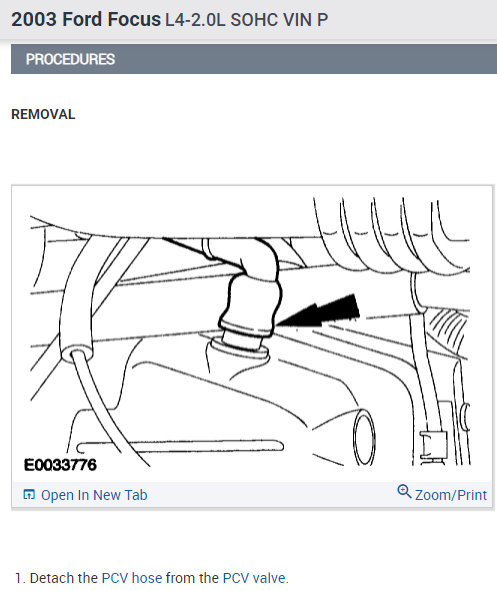

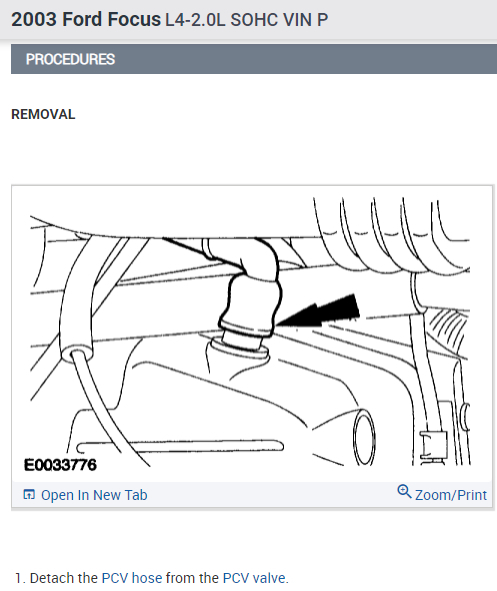

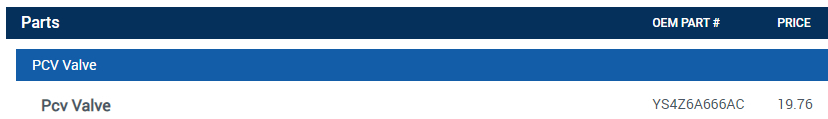

Here is the information you requested. I've attached pictures steps below showing how to remove and replace the PCV valve including its location on your Ford Focus. I've also attached a picture below as well including the factory Ford PCV valve part number. Hope this helps and thanks for using 2CarPros.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Jul 22, 2021 at 12:35 AM
