Vehicle stalls while driving

2003 FORD EXPEDITION
185 MILES
Avatar
ORIG_NAUTIQUE
  • MEMBER
  • 1 POST
5.4L (Eddie Bauer) will stall while driving 70mph on the highway. I can wait 2-10min and try the key again and it will run fine after that. This can happen once every 2-3months or at rare times 2x in one day. This can also happen while driving slowly through an intersection. Climate not an issue as it will happen in cold or hot weather. When it starts to stall it will futter a little. Feathering the gas pedal does not make a difference. I've taken it to a reputable FORD dealer and a good local one in town and they cannot find anything. Response - bring it back when it's not working. There are no error codes when this happens so it can't be tracked. I can hear the fuel pump engage when I first put the key in so I know it's getting the pressue it needs. I've replaced the alternator harness thinking there could have been a short which showed a wire burned, but the problem still exists. I've been told the IAC, TPS, coil packs and spark plugs could be causing the problem. To me it doesn't explain the sudden shotdown of the entire system when driving 70mph down the highway.
Nov 8, 2011 at 5:39 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

This sounds like a classic crankshaft angle sensor that is out. When these sensors go out hey may not set t codes which is why they are hard to detect by scanning. Here is a guide that will show you what you are in for when doing the job.

https://www.2carpros.com/articles/crankshaft-angle-sensor-replacement

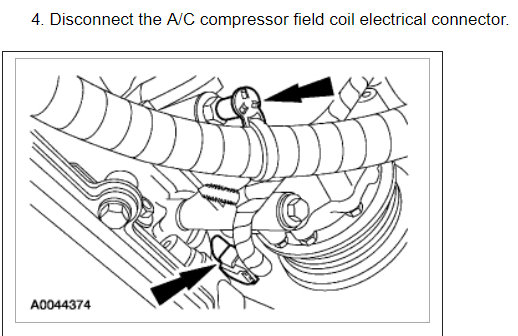

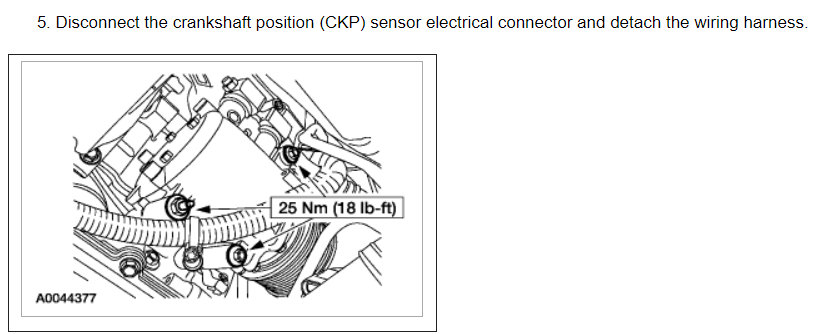

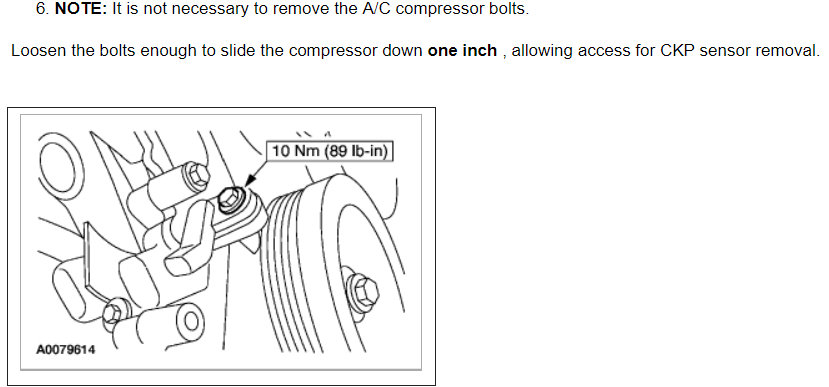

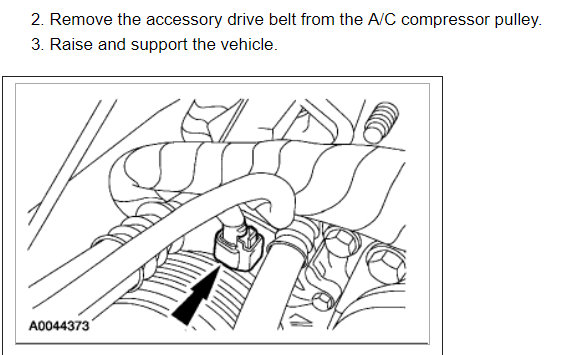

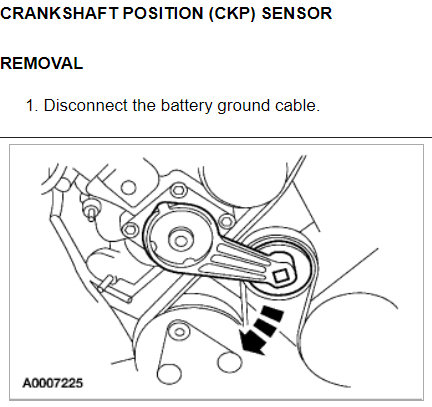

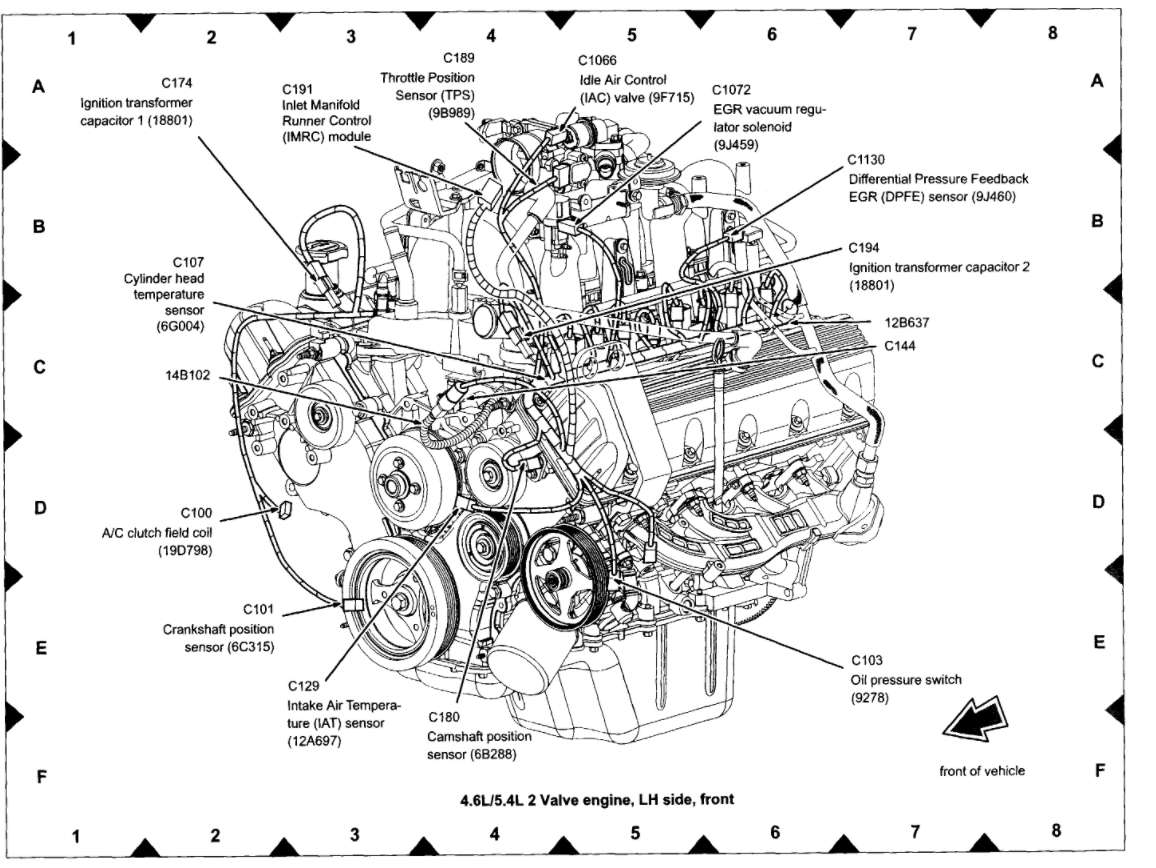

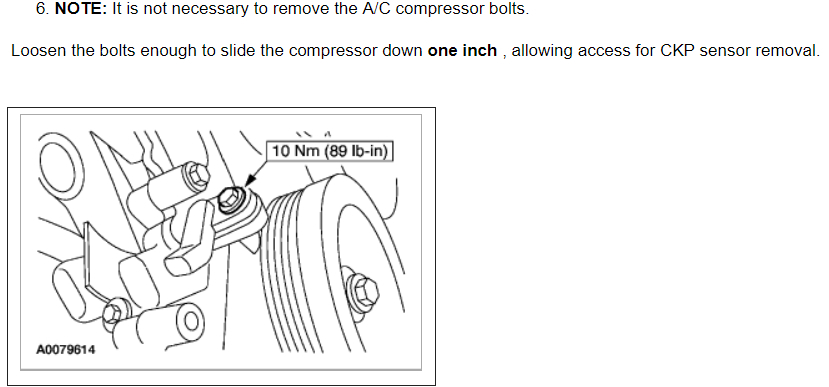

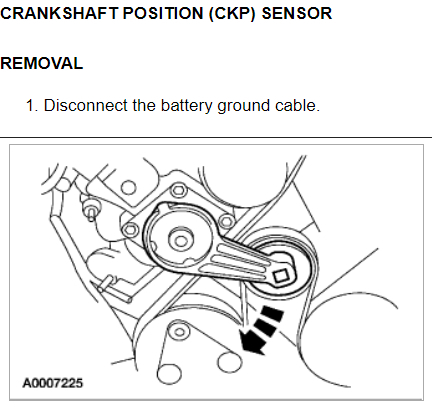

Check out the diagrams (Below)

Please let us know what you find. We are interested to see.

Cheers, Ken
Feb 19, 2018 at 3:57 PM
Avatar
CBATTMER
  • MEMBER
  • 0 POST
Yep this is what was wrong with my car. Now its running great :)
Feb 19, 2018 at 3:57 PM
