I check my fuses what is the hundred and twenty volt fuse where is it locatecan I tell if it is bad thank you have a good day how can I check the fuse or how do I know if it is bad I need help thank you
Dec 23, 2013 at 8:36 AM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

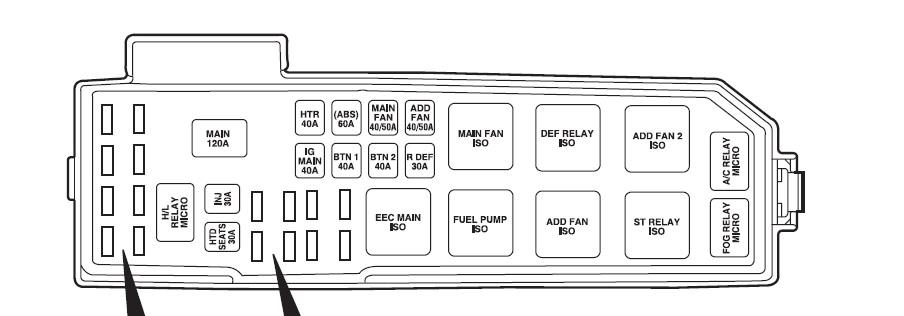

The 120 amp fuse is in the underhood fuse block. Your owners manual should have this info.
You can check continuity on the fuse, to see if it is good? Also, the fuse plugs into voltage, if no voltage, the circuit is still dead, even if the fuse is good.
Image (Click to enlarge)
Attached Media
Dec 23, 2013 at 10:00 AM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Just to add, the info I looked at was for 3.0L. Your having trouble with charging system?
Dec 23, 2013 at 10:02 AM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

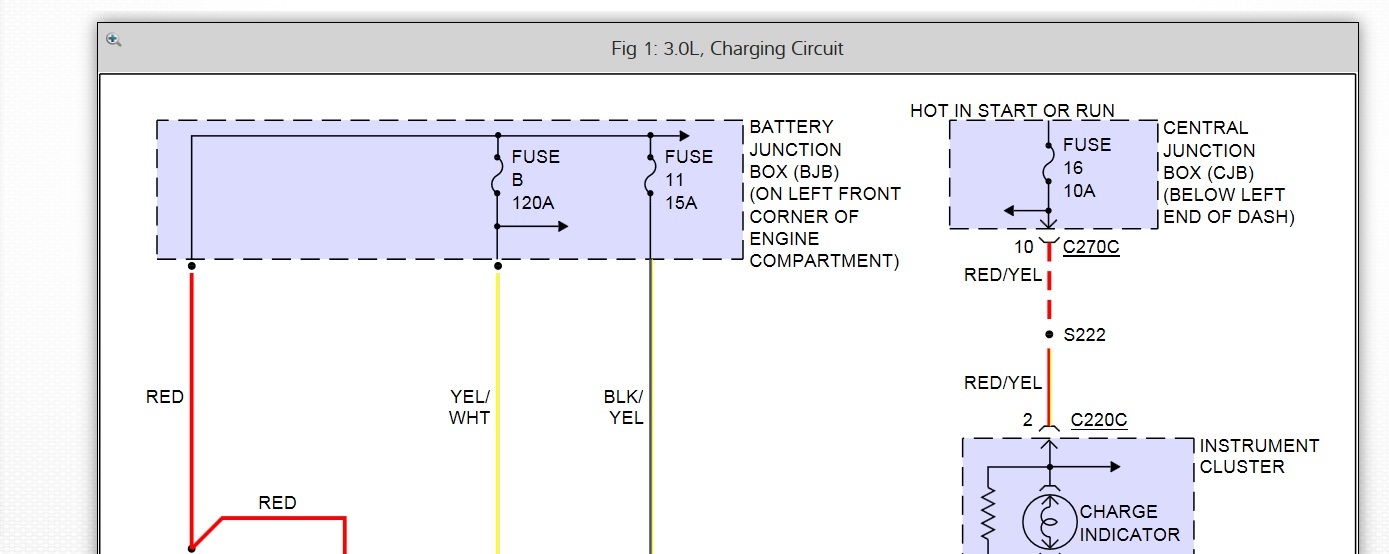

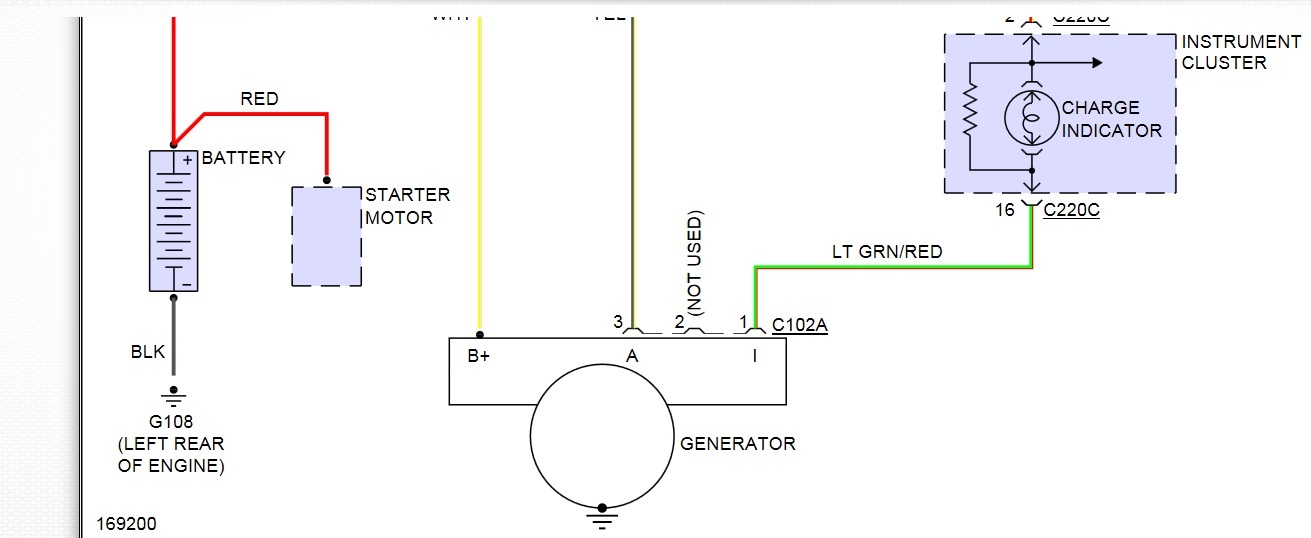

Here is wiring for charging system.
Images (Click to enlarge)
Attached Media
Attached Media
Dec 23, 2013 at 10:10 AM
Avatar
CAVE MANN
  • MEMBER
  • 7 POSTS
Thanks JDL the voltage wha thank thank you als would that keep the
Dec 23, 2013 at 10:43 AM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
At the alternator bat terminal, engine running, 13--15 volts reading, if alternator is charging. Use digital multimeter.

If problem with wiring connector, you might be able to purchase new connector with pig tail wiring.
