Turn signal flasher location?

2003 FORD E-SERIES VAN
Avatar
B4T
  • MEMBER
  • 1 POST
I have a 2003 E-250 and trying to find the turn signal flasher location on firewall. Do I have to take any dash panels apart?
Jan 11, 2011 at 4:31 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

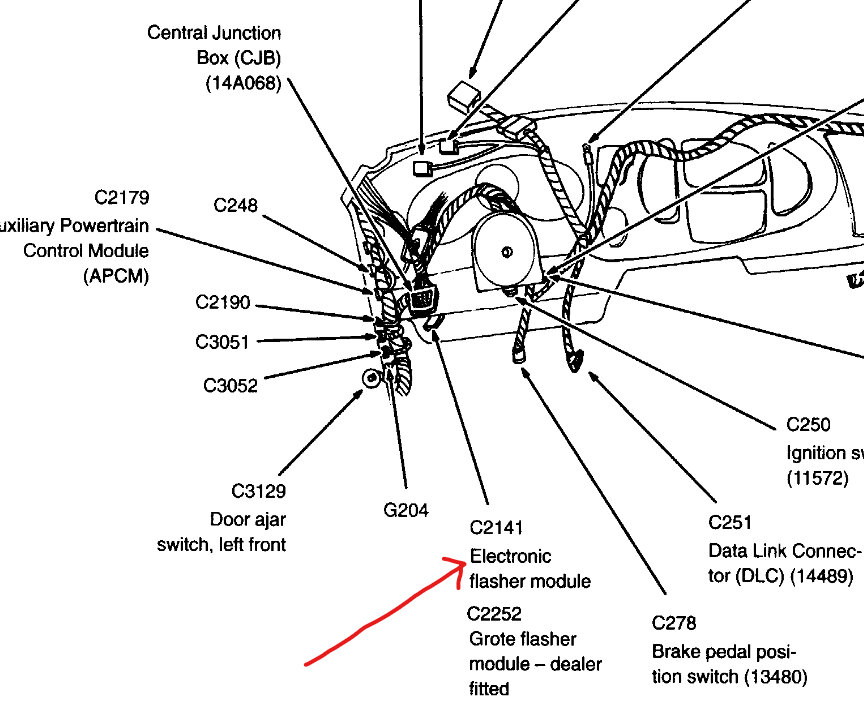

The electronic flasher module is behind left side of dash. Check out the images (Below). Please let us know if you need anything else to get the problem fixed.

Image (Click to enlarge)
Attached Media
Jan 11, 2011 at 4:42 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

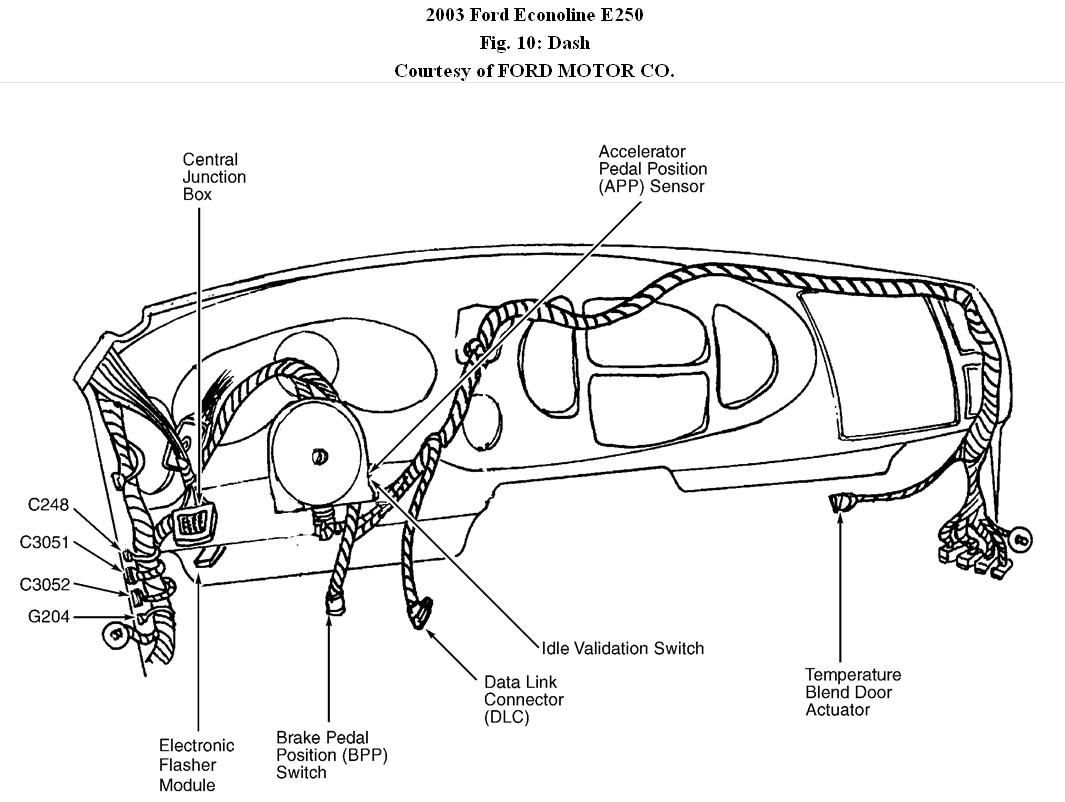

Electronc Flasher Module is located behind left side of dash. If there is any cover under the steering column, that is all you need to remove.

Image (Click to enlarge)
Attached Media
Jan 11, 2011 at 4:43 PM
