Engine swap

2003 FORD F-250
300,000 MILES • 5.4L • V8 • 2WD • AUTOMATIC
Avatar
JAMES LIDEON
  • MEMBER
  • 1 POST
My father is considering swapping the old engine with another one of the same type with less miliage. What we aren't sure of is that whether the existing engine has an EGR valve and where it would be located? Can anyone help?
May 24, 2019 at 8:26 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good morning,

The valve is on the top of the upper intake.

Procedures and pictures below.

Roy

REMOVAL
1. Remove the air cleaner outlet tube.



imageOpen In New TabZoom/Print

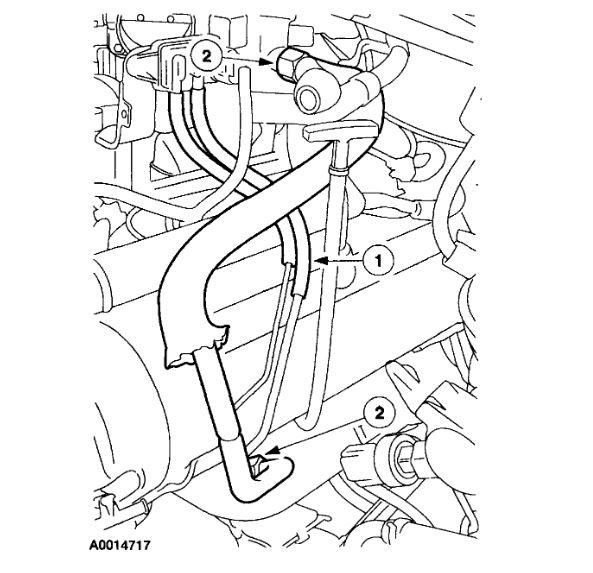

2. Remove the EGR valve to exhaust manifold tube (if equipped).
1 Remove the two differential pressure feedback EGR sensor hoses.
2 Disconnect the EGR valve tube fittings.



imageOpen In New TabZoom/Print

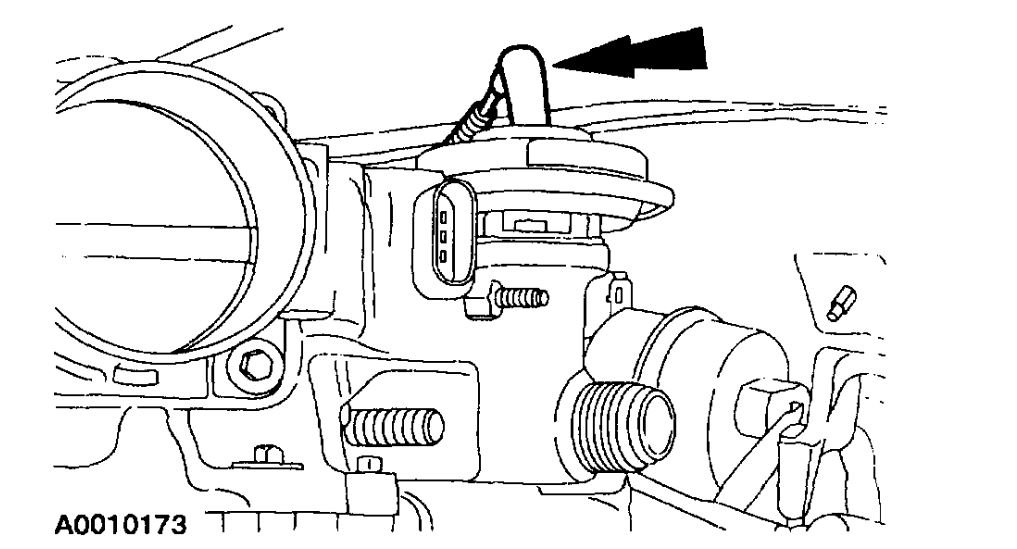

3. Disconnect the EGR valve vacuum hose.



imageOpen In New TabZoom/Print

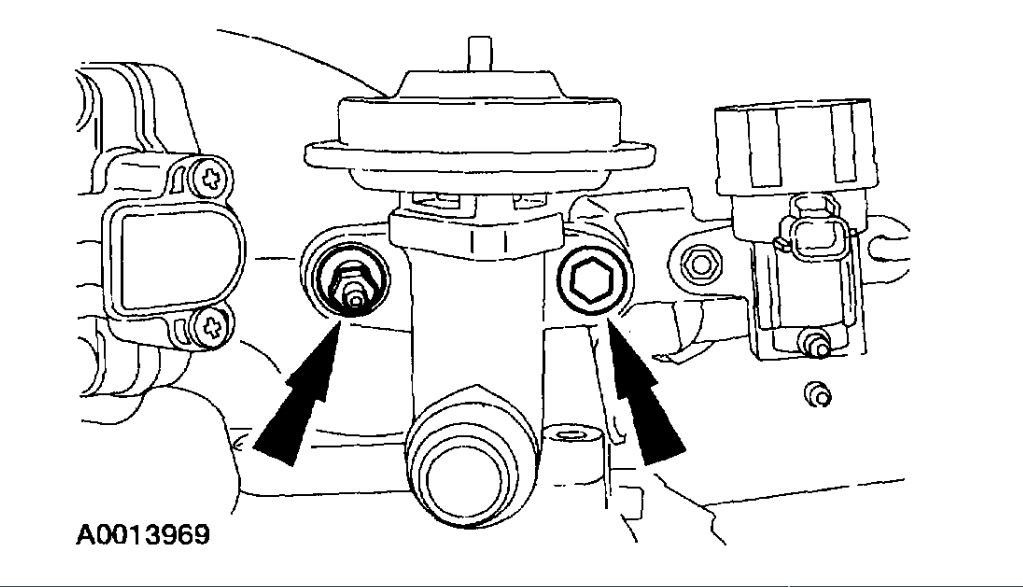

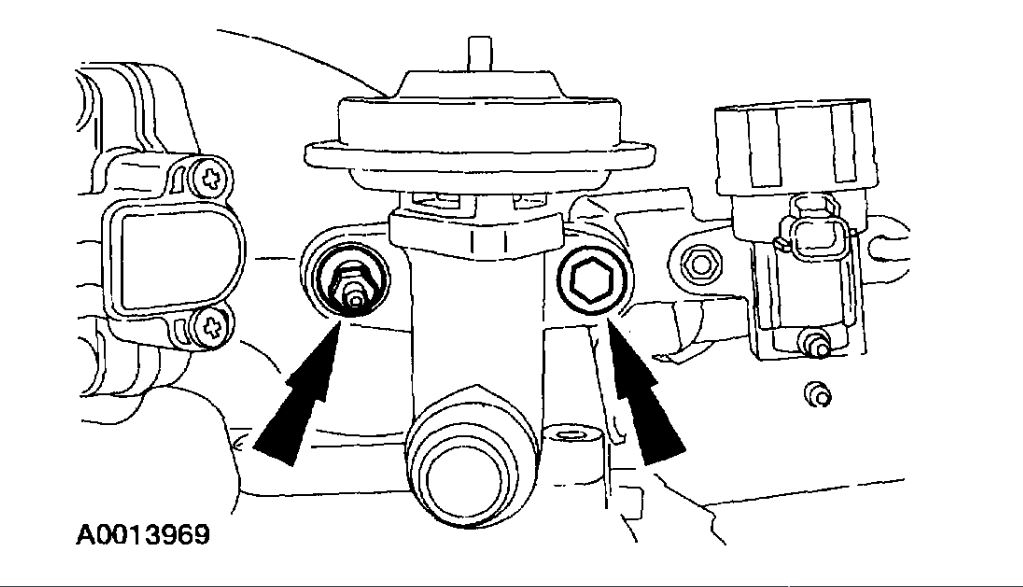

4. Remove the two bolts and the EGR valve.
^ Discard the gasket.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
May 24, 2019 at 8:36 AM
