I need computer pinout to trouble shoot a low voltage problem on cam pos sensor.

2003 DODGE CARAVAN
16,500 MILES
Avatar
PEI
  • MEMBER
  • 1 POST
Getting p0344 error. Voltage should be 8v but I only have 5. the waveform has a triangular top instead of square.
Sep 3, 2012 at 6:04 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

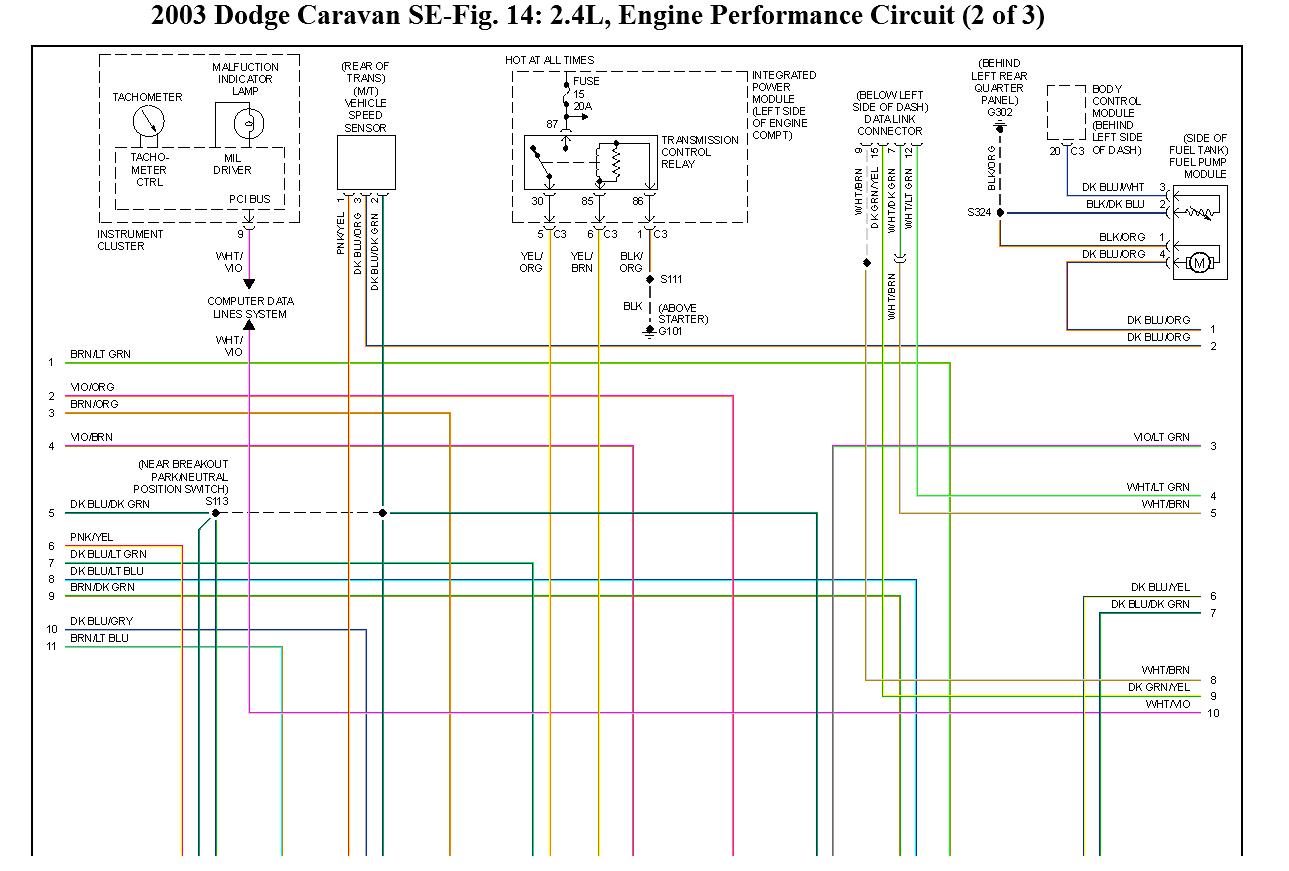

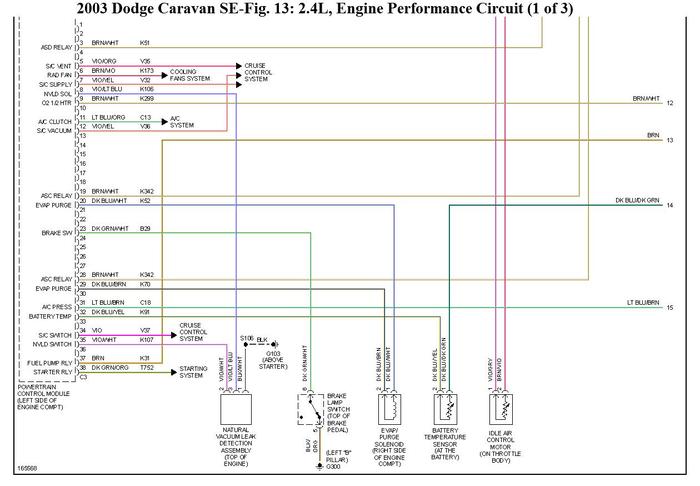

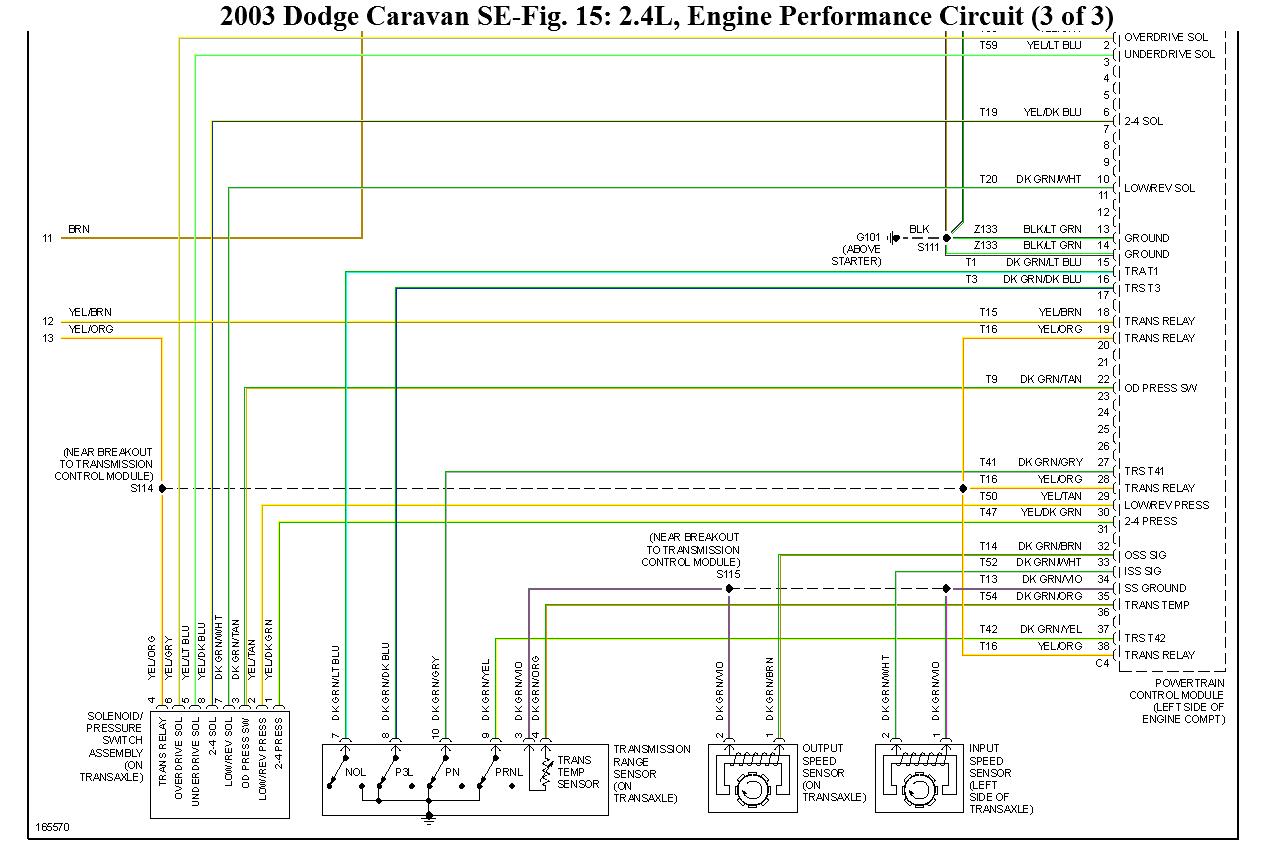

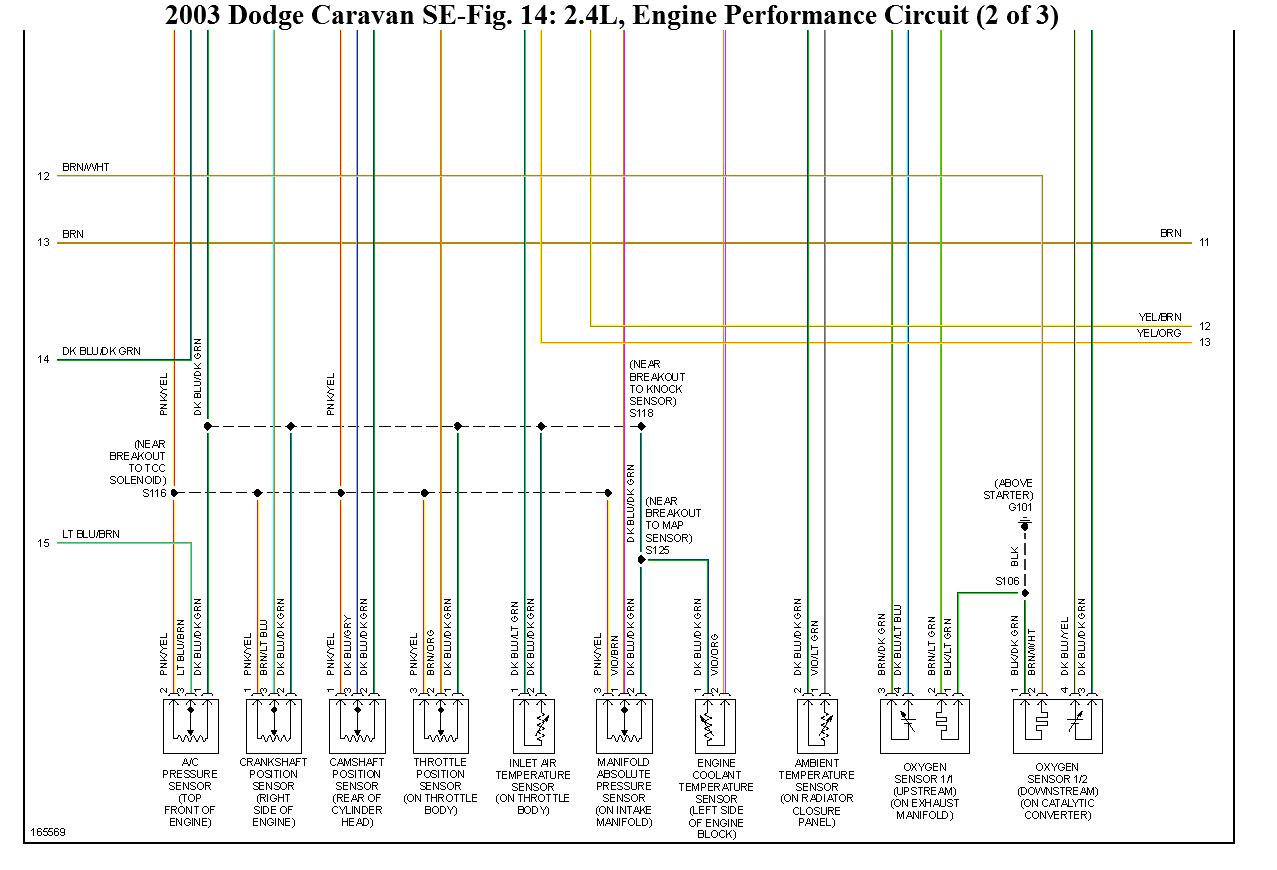

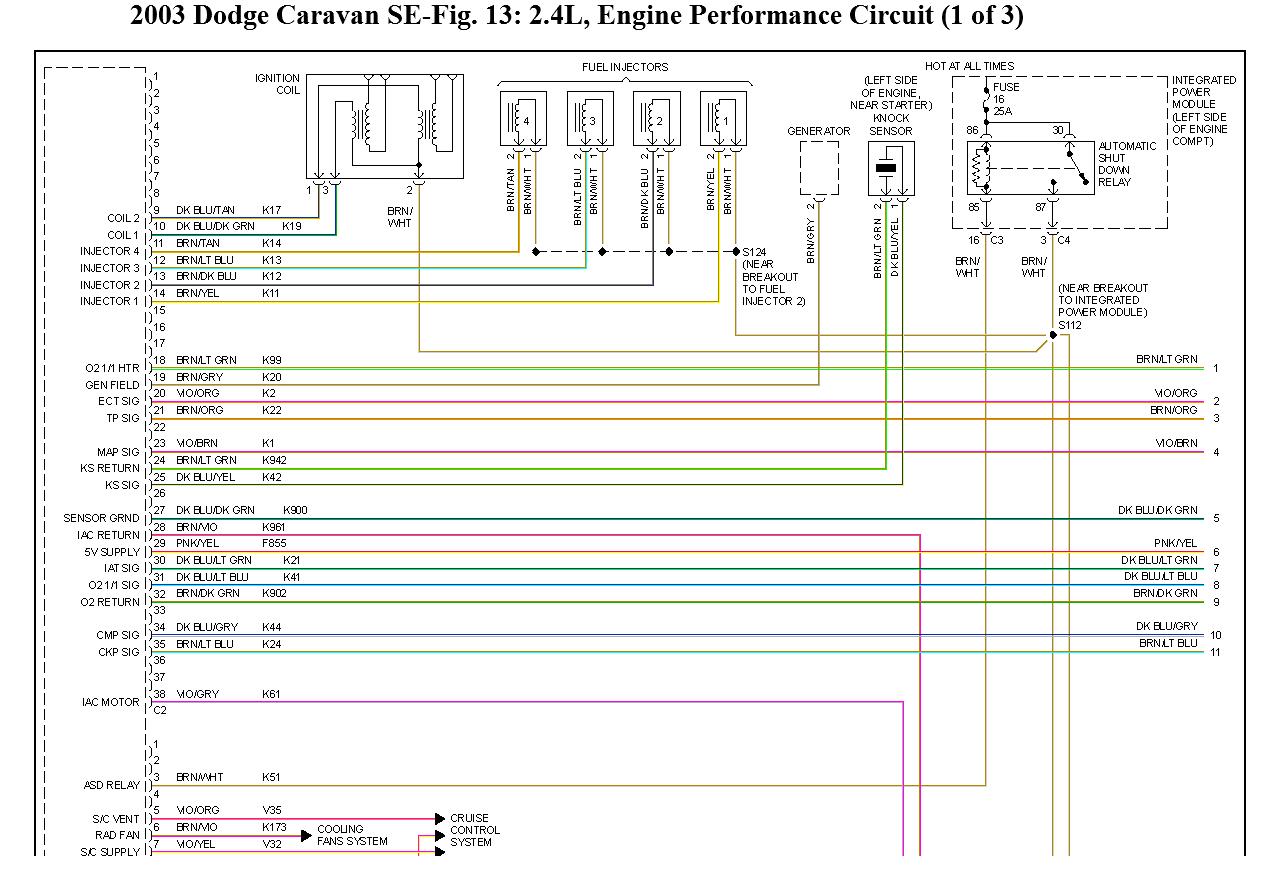

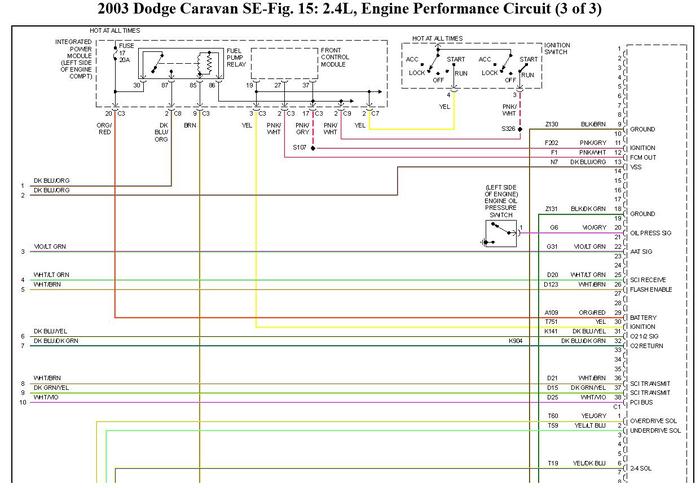

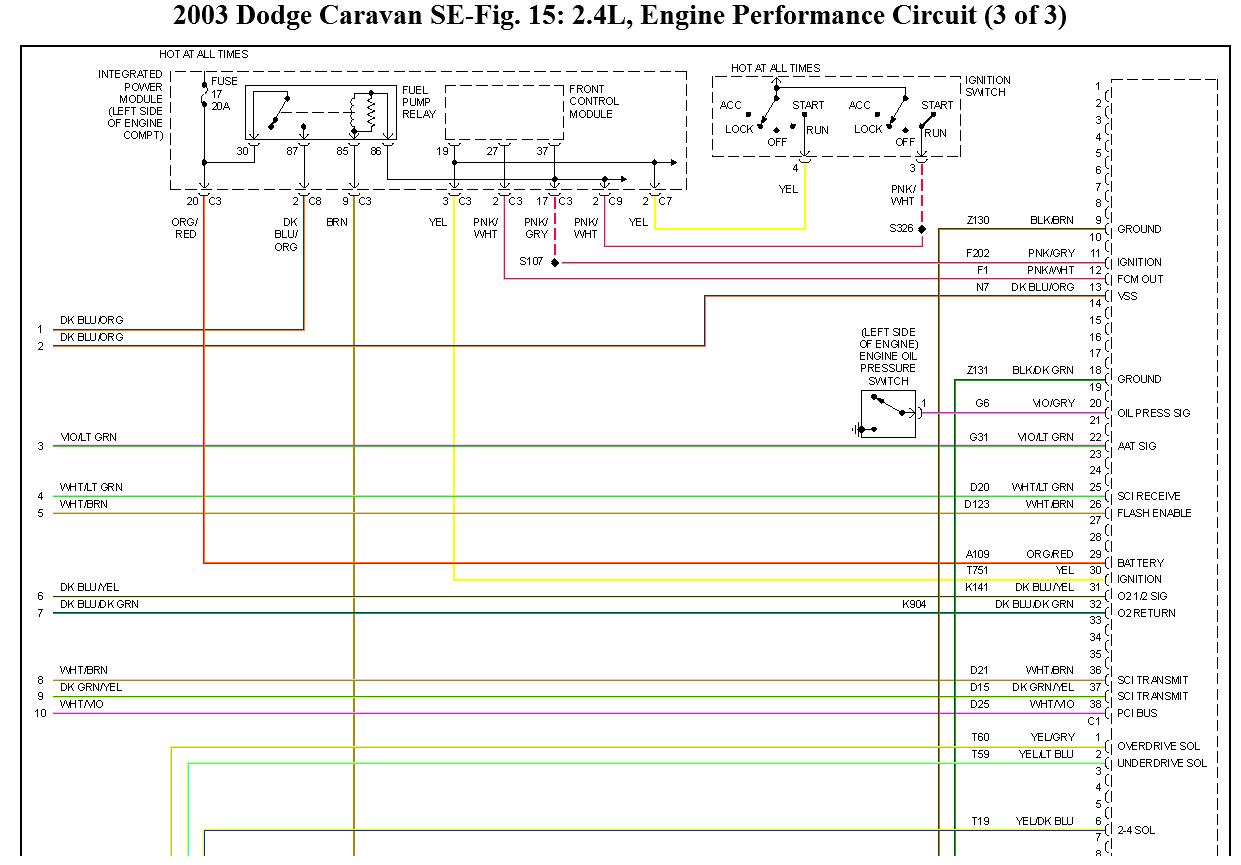

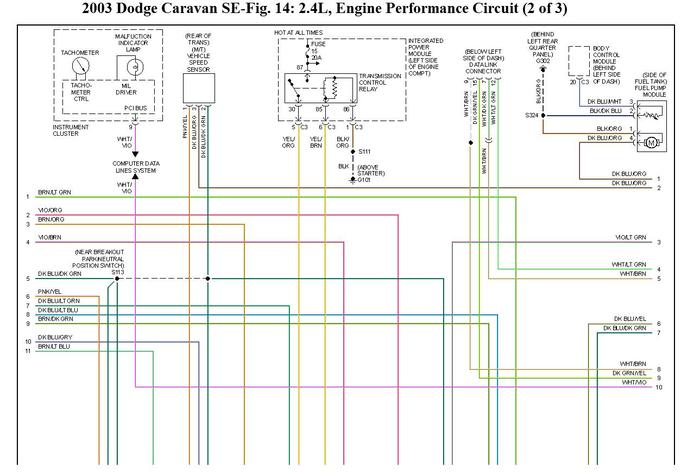

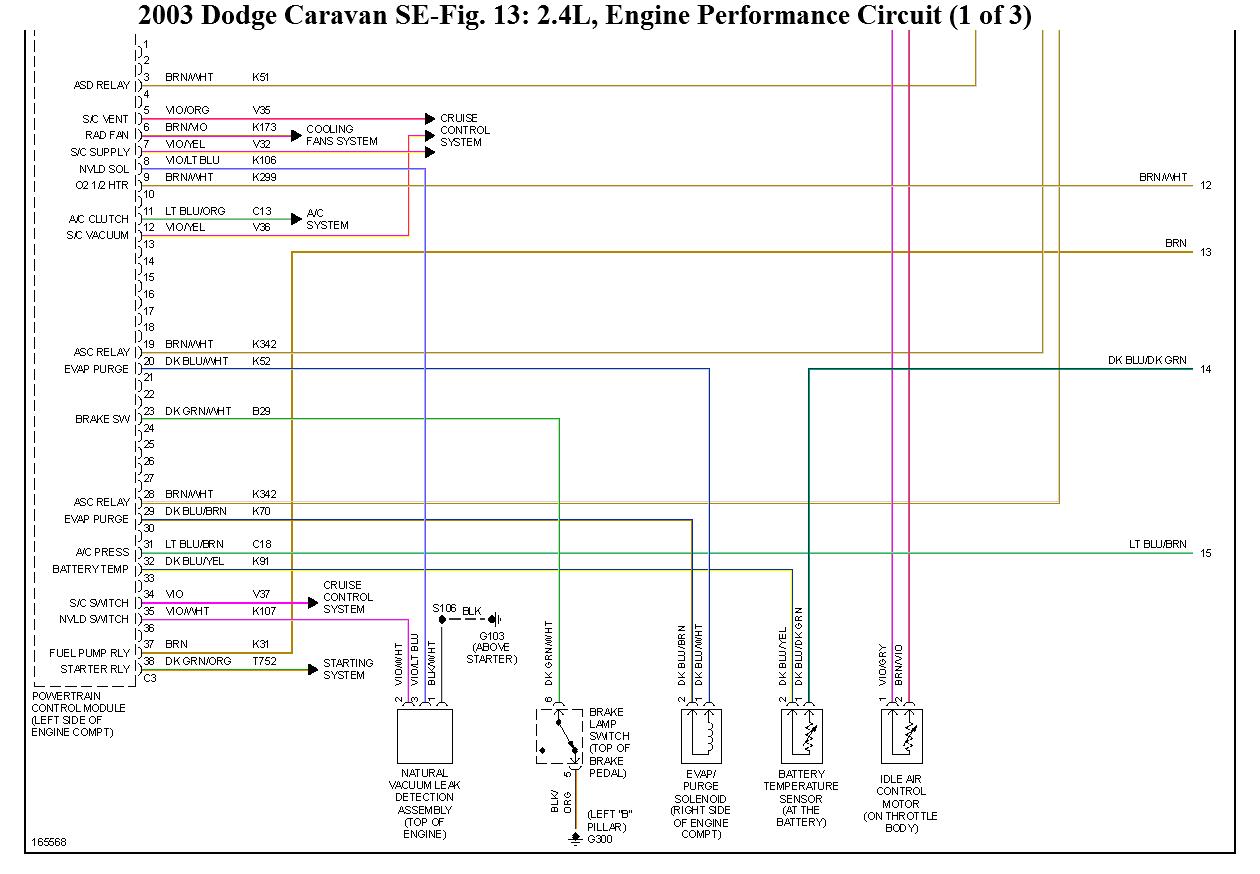

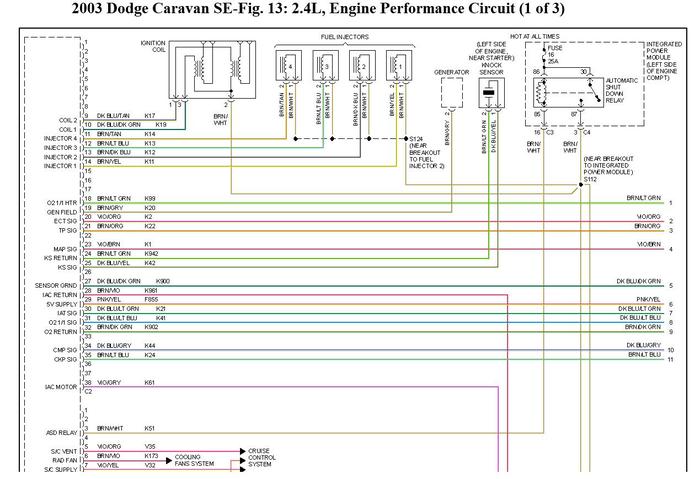

Could not find any pinout in our database but I think these are better.
