the head lights stay on to long after you shut the car off and the fuse under the hood makes a clicking noise I replaced the fuse still makes it
Jan 5, 2011 at 10:42 PM
2003 dodge caravan
2003 DODGE CARAVAN
HANDYORX
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Tets the switch this way, see pictures below.
DIAGNOSIS AND TESTING - HEADLAMP SWITCH

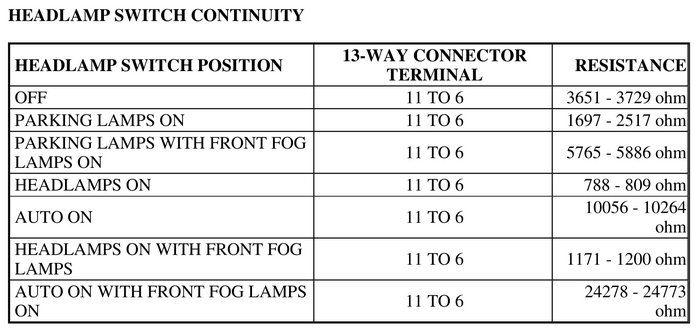

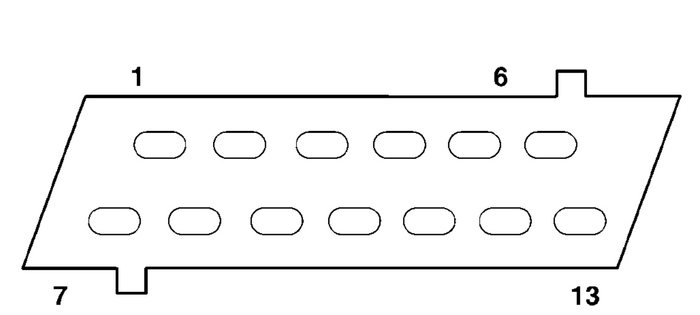

Using a Digital Multi-meter, perform the HEADLAMP SWITCH CONTINUITY test and refer to
(Fig. 21 ).
If the Headlamp Switch is not within specifications replace the switch.
DIAGNOSIS AND TESTING - HEADLAMP SWITCH

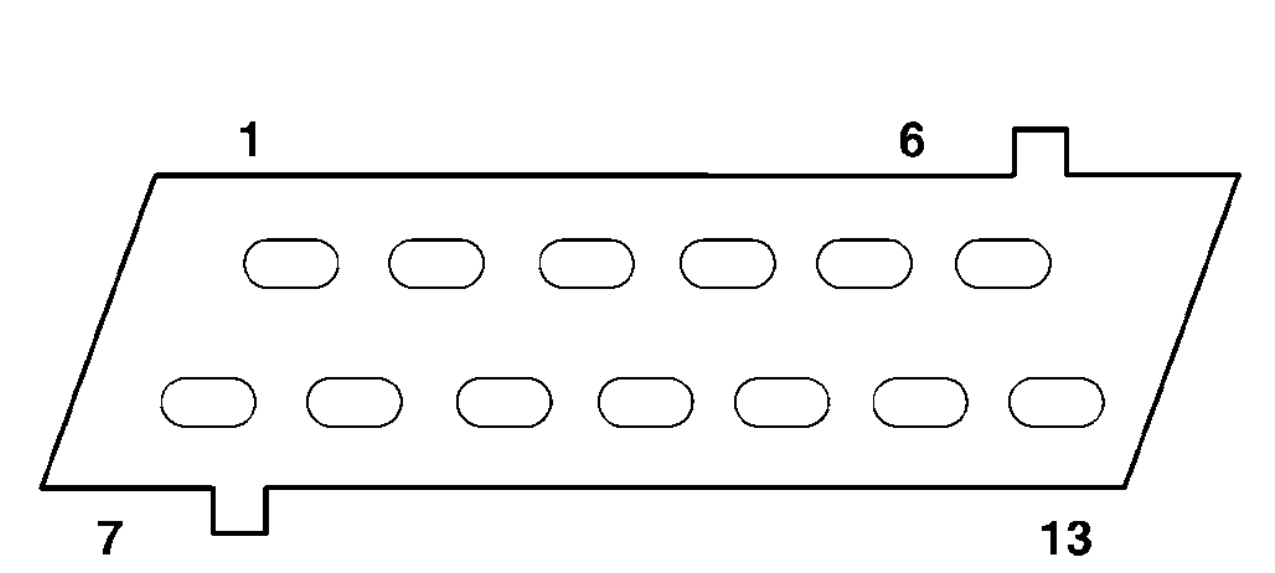

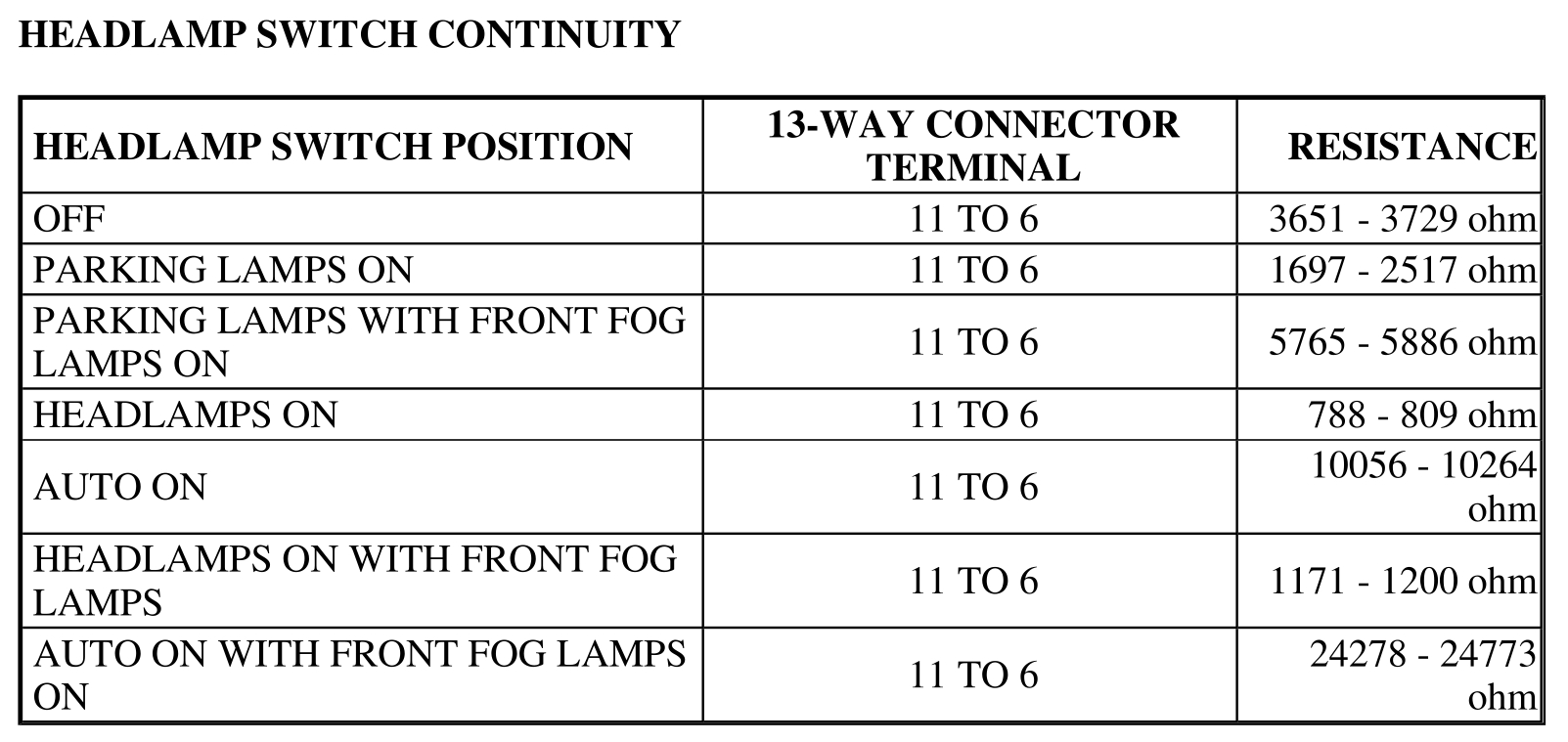

Using a Digital Multi-meter, perform the HEADLAMP SWITCH CONTINUITY test and refer to
(Fig. 21 ).
If the Headlamp Switch is not within specifications replace the switch.
Images (Click to enlarge)
Feb 20, 2011 at 6:53 PM
