speed sensor location
2003 CHEVROLET TRAILBLAZER
205,000 MILES • 6 CYL • 4WD • AUTOMATIC
JDEWEERD4124
MEMBER
2 POSTS
FOLLOW
where is transmission speed sensor located on 03 trailblazer ext 4wd 6cyl
Jan 19, 2011 at 11:28 PM
Advertisement
RASMATAZ
CERTIFIED EXPERT
75,992 POSTS
There are two locations one for 2wd and one for 4wd here are both locations so you can get the job done.

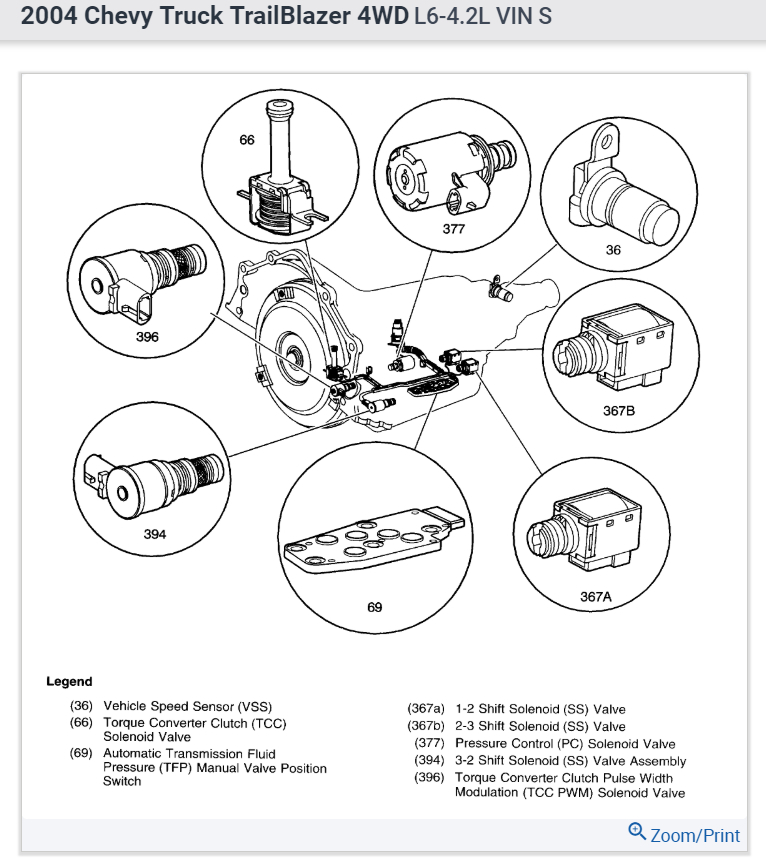

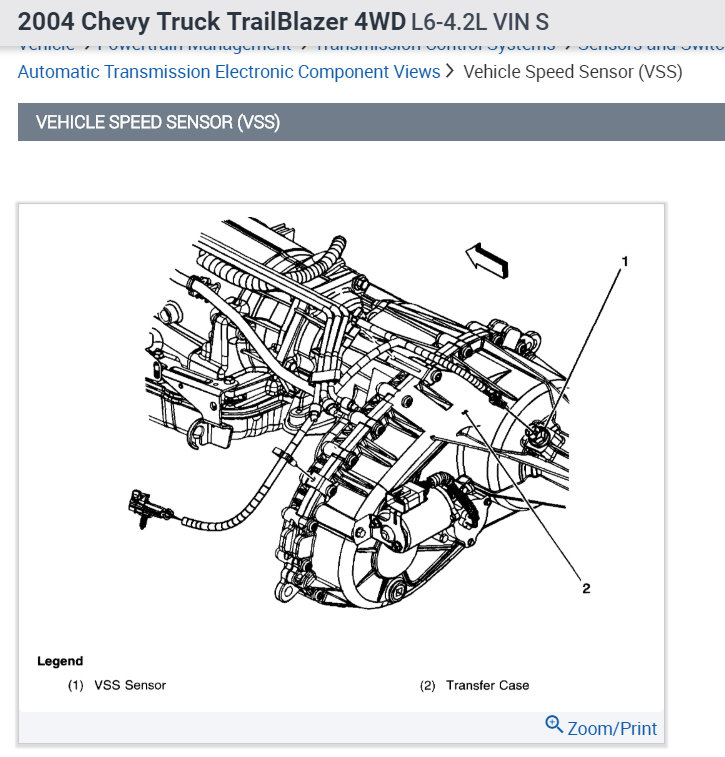

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Cheers
Images (Click to enlarge)
Jan 19, 2011 at 11:32 PM
JDEWEERD4124
MEMBER
2 POSTS
I have come to figure out that this is a pic of a two wheel drive thanks for both locations all fixed I love this site.
Jan 19, 2011 at 11:39 PM
Advertisement
RASMATAZ
CERTIFIED EXPERT
75,992 POSTS
Good to hear, please use 2CarPros anytime we are here to help.
Cheers
