Tension Spring for Serpentine belt

2003 CHEVROLET SUBURBAN
V8 • 4WD • AUTOMATIC
Avatar
SOOPERMAN
  • MEMBER
  • 1 POST
alternator for 03 chevy suburban
Jan 10, 2011 at 4:11 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

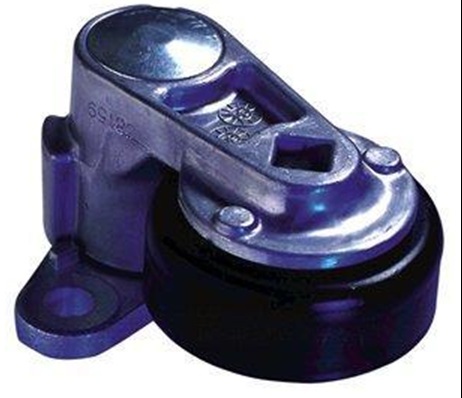

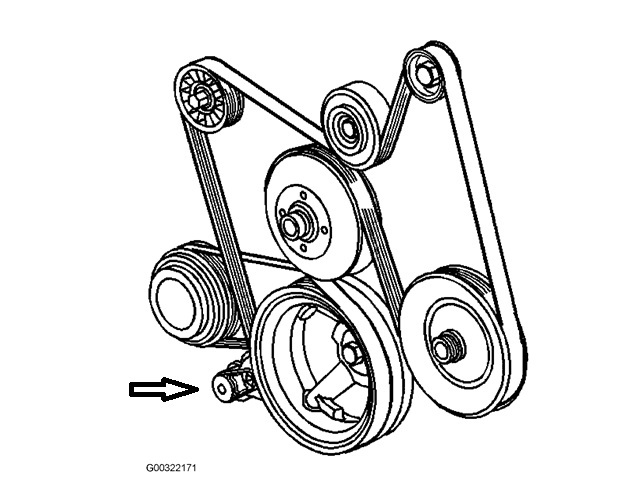

Not sure what your asking? Facing the front of engine, the tensioner is lower left. Not sure of drive cavity size in tensioner, may be 1/2 inch, so you use 1/2 inch drive rachet or breakover in the cavity and pull to release pressure on the belt.
Images (Click to enlarge)
Attached Media
Attached Media
Jan 10, 2011 at 4:35 PM
