TC PO442 how do I do a drive cycle and cold start

2003 CHEVROLET SILVERADO
Avatar
ROBERTLOWRY
  • MEMBER
  • 7 POSTS
I had a check engine light and trouble code PO 442. Replaced the charcoal cannister, purge solonoid, and gas cap. I cleared the check engine light and troublecode with my code reader. I took it to the chev dealer and had the evap nitro smoke test done on it. they said it was working proper and sealing good. They told me it would take several cold starts to make the vapor IM sensor go from incomplete to OK. They said I would have to perform several drive cycles to get cat IM sensor to do the same. my question is exactly what does a cold start consist of and what makes a complete drive cycle for 2003 4.8 V8 silverado?
Thanks Robert C. Lowry @ [email protected]
Jan 3, 2012 at 7:57 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
So the code is gone and hasnt come back and there are no other codes set?I need to know that before answering your question.
Jan 3, 2012 at 8:42 PM
Avatar
ROBERTLOWRY
  • MEMBER
  • 7 POSTS
That is correct. The code hasnt come back and no new codes have been set. I am however trying to get the Evap System Monitor to reset. It is showing incomplete. The Chev dealer told me I need to do cold starts and drive cycles to get it to reset.
Thanks Robert C. Lowry
Jan 4, 2012 at 1:50 AM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Forgot to ask you what size engine do you have?
Jan 4, 2012 at 1:52 AM
Avatar
ROBERTLOWRY
  • MEMBER
  • 7 POSTS
4.8 V8
Jan 4, 2012 at 2:03 AM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS

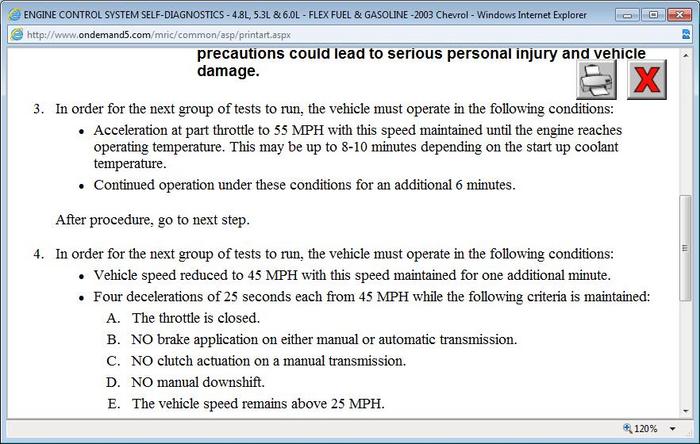

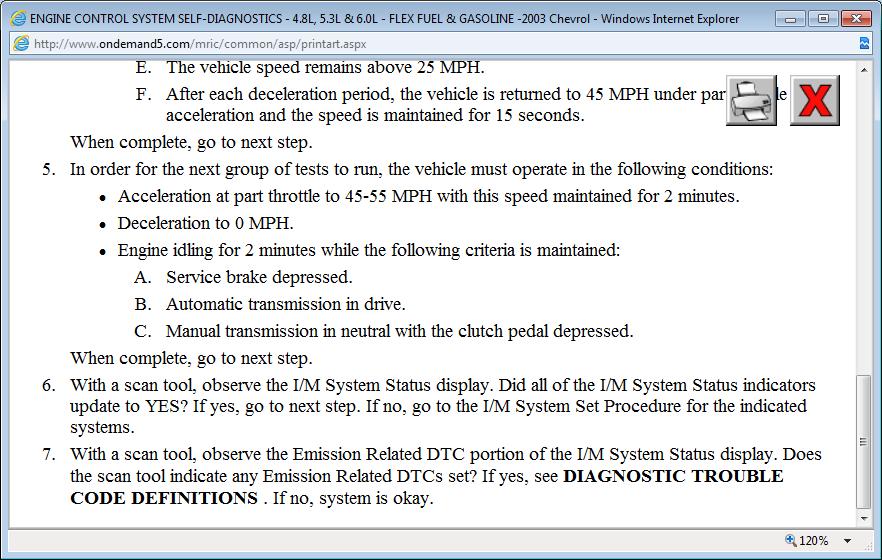

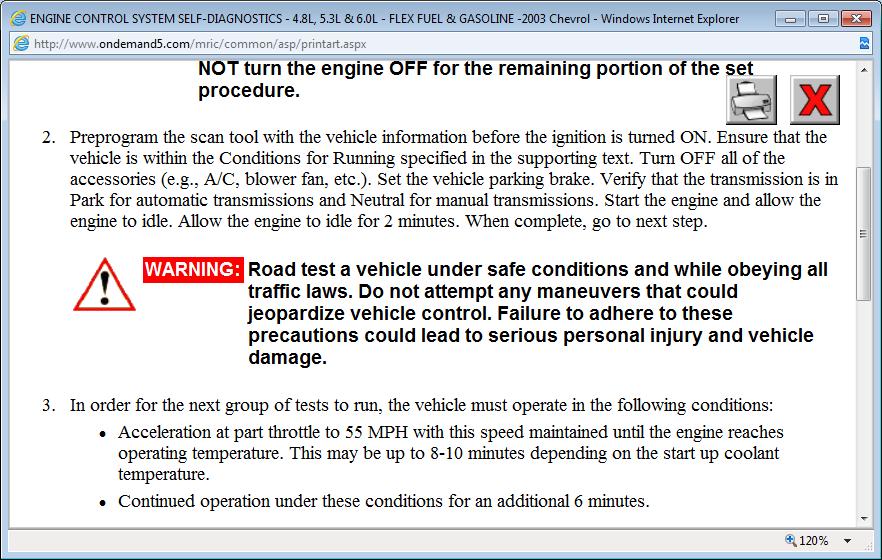

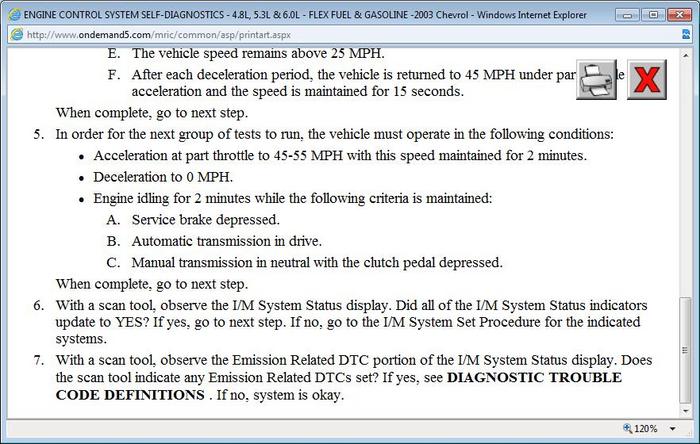

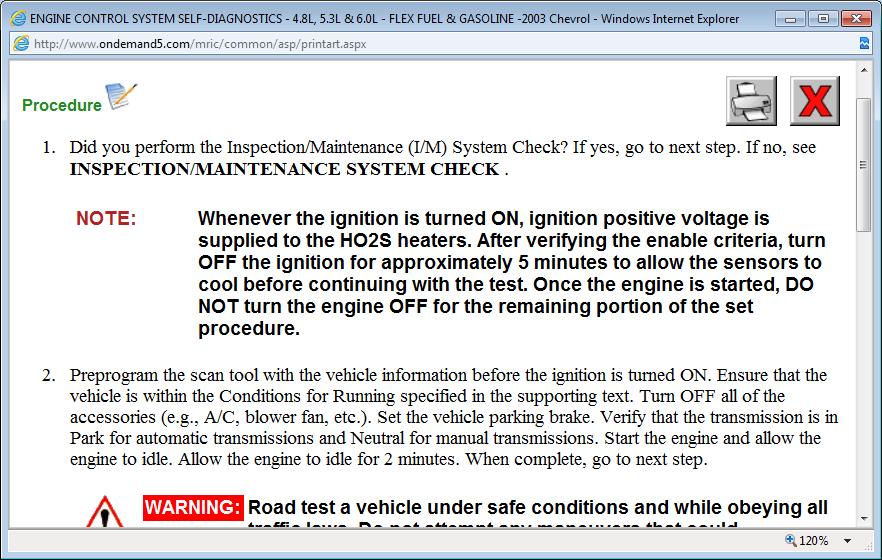

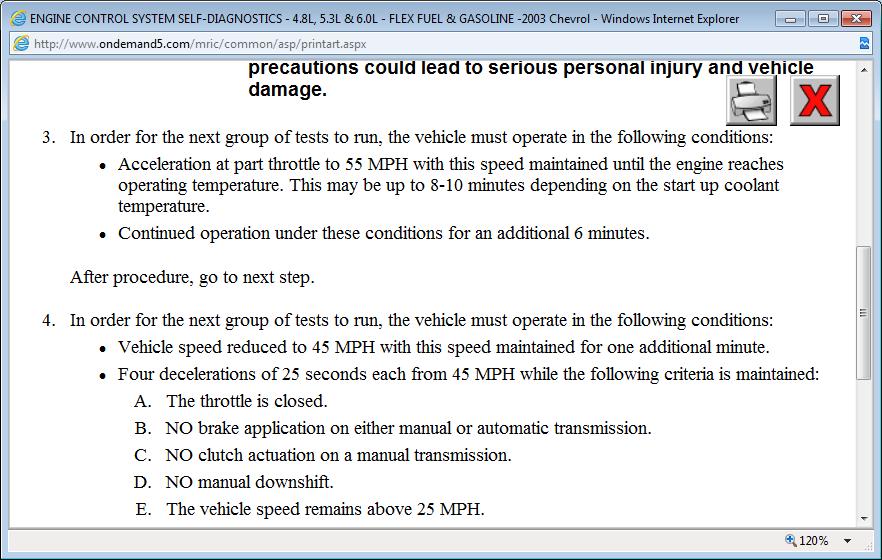

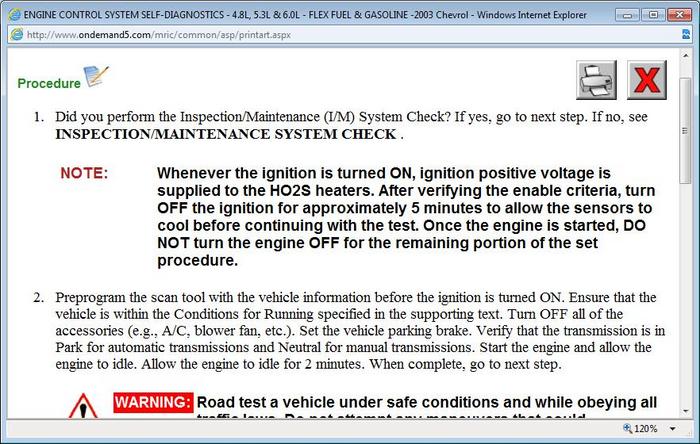

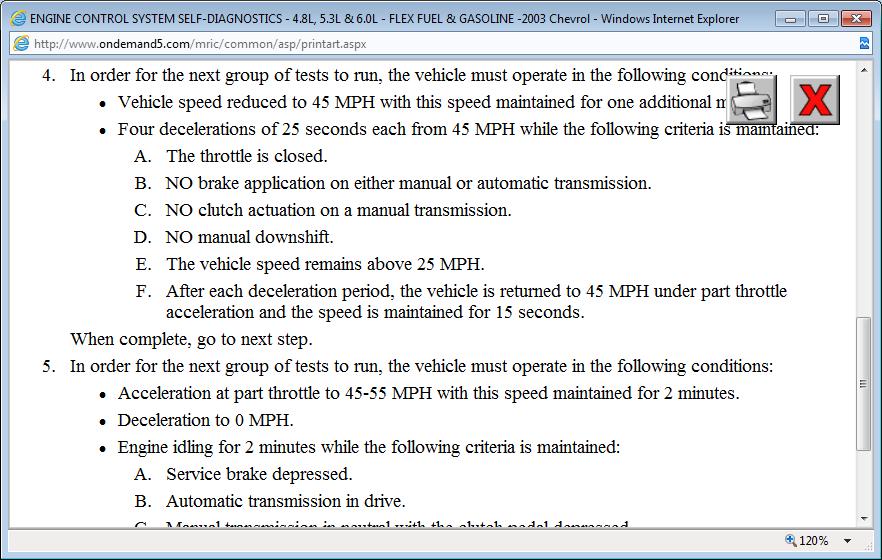

I posted the drive cycle to reset all the monitors.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jan 4, 2012 at 2:05 AM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Does your code reader show if the monitors are ready or complete?The evap one sometimes takes a little while to set the monitors.Are you trying to smog the truck?
Jan 4, 2012 at 2:09 AM
Avatar
ROBERTLOWRY
  • MEMBER
  • 7 POSTS
Thank you I will try my luck.
Robert C. Lowry
Jan 4, 2012 at 2:13 AM
Avatar
ROBERTLOWRY
  • MEMBER
  • 7 POSTS
yes I am trying to get it smogged. It has passed the emissions test and was failed on the evap system.
Jan 4, 2012 at 2:16 AM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Alright it usually takes a few trys doing the drive cycle its better if you have a scan tool that can check to see if the monitors are set.Let me know how you make out.
Jan 4, 2012 at 2:20 AM
Avatar
ROBERTLOWRY
  • MEMBER
  • 7 POSTS
my scan tool tells me if my I/M monitors are set. I have the one to go. Thanks I will let you know how I come out.
Jan 4, 2012 at 2:29 AM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Perfect keep me posted.
Jan 4, 2012 at 2:50 AM
Avatar
ROBERTLOWRY
  • MEMBER
  • 7 POSTS
saturntech9,
My evap I/M monitor reset itself today and my wife took the truck to the smog station and it passed calif smog test. She was doing the drive cycle instructions you gave us while I was at work Thanks much for your help !!!
Robert C. Lowry
Jan 6, 2012 at 5:44 AM
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Your welcome thats what were here for glad to hear you got it reset and your good to go for another 2yrs of no smog worries.
Jan 6, 2012 at 5:56 AM
