2003 Chevrolet Silverado electrical issues

2003 CHEVROLET SILVERADO
900,000 MILES • 6.6L • V8 • TURBO • 4WD • AUTOMATIC
Avatar
COBALT BLUE1
  • MEMBER
  • 2 POSTS
passenger side locks ,window control and mirror extension just quit working but signal marker in mirror is still working ??
Jun 16, 2014 at 6:11 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

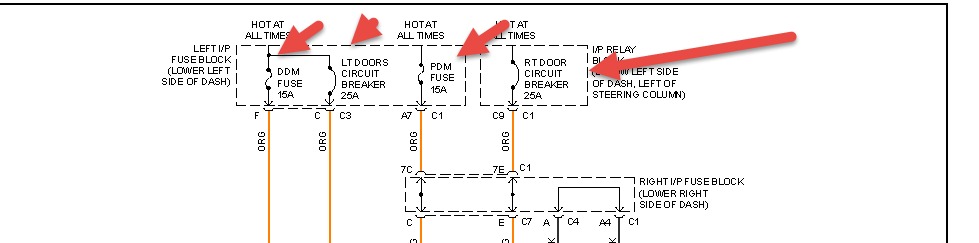

check items in pic then scan for codes.
Image (Click to enlarge)
Attached Media
Jun 16, 2014 at 6:40 AM
Avatar
COBALT BLUE1
  • MEMBER
  • 2 POSTS
Fuse checked out it is ok traced wiring across truck to the two plug ins and no breaks in wiring.
Jun 16, 2014 at 8:09 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
scan to see if the module is bad or check the wiring past the two plug in if it is broken it will be between the door and post more likely
Jun 16, 2014 at 10:35 AM
