Halo Headlights

2003 CHEVROLET IMPALA
140,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
ICEBREAKER70
  • MEMBER
  • 2 POSTS
Hi,



I would like to know if I can get some advice on installing my halo's. I already have them installed and the projector lights work fine but my halo rings do not glow. When I connect the positive/ negative directly to the battery they light up so I know they work. I have a 03 Chevy Impala. I would like to know what step am I missing?
May 27, 2011 at 12:25 AM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

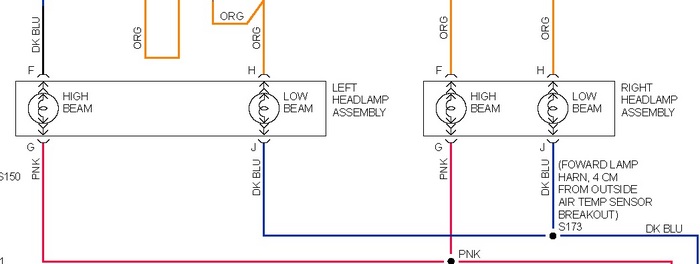

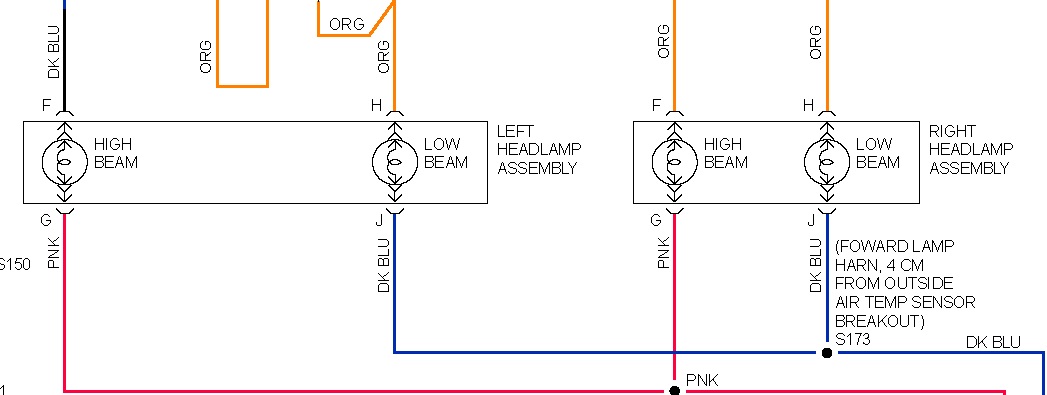

Did the new lights come with wiring instructions? In the diagram the top wires are voltage for the headlamps, hot all the time. The bottom wires are ground, hi/lo, bright/dim, on/off are controled on the ground circuit.
Image (Click to enlarge)
Attached Media
May 27, 2011 at 1:38 AM
Avatar
ICEBREAKER70
  • MEMBER
  • 2 POSTS
Thank you, I have to crimp my halos to the runners lights in the harness. Thanks for your help!
May 27, 2011 at 2:54 AM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Hope you get it going your way.
May 27, 2011 at 3:04 PM
